Refined French Country House Plan
Heated S.F.
5,290
Beds
5
Baths
5.5+
Stories
2
Cars
4
What's Included
Plan Details
  • Polished and refined, this French Country house plan offers five bedrooms and a separate craft room for all your projects.

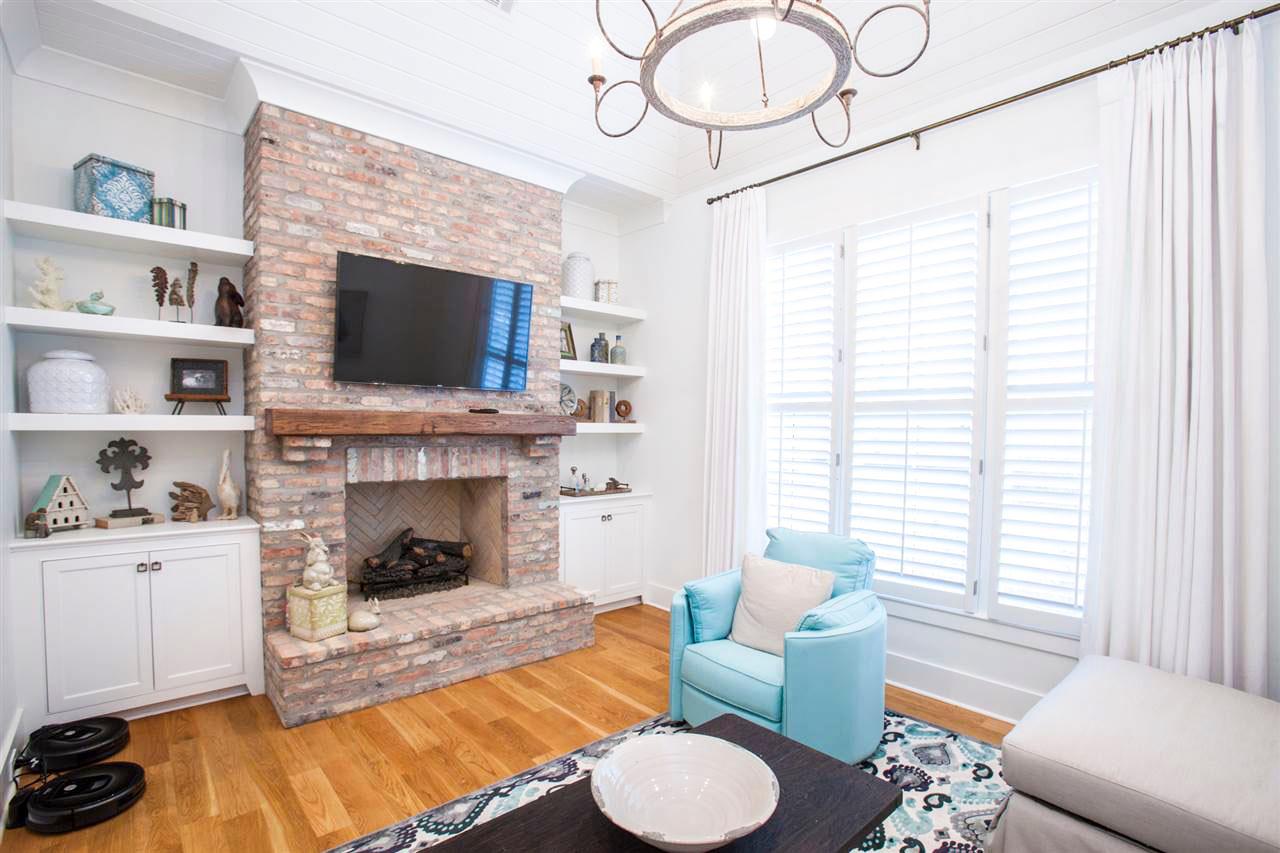

  • 11' high ceilings make an impressive statement and there's an arched entryway from the formal dining room to the keeping room with its big fireplace.
  • A huge living room boasts a coffered ceiling with double doors to take you out to one of the rear porches.

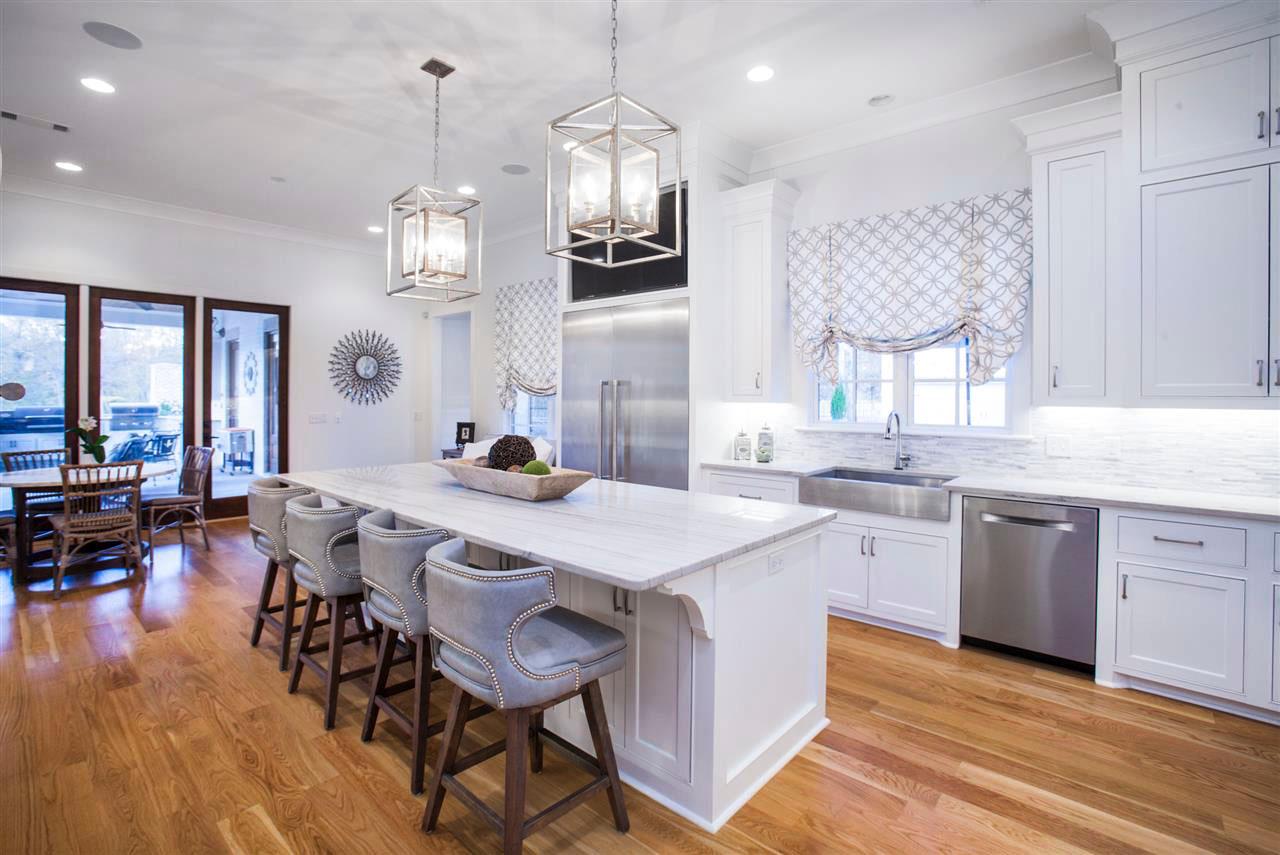

  • The kitchen and breakfast nook form one large space with a door to the screened porch.
  • Bedroom 2 has a quiet location off by itself on the first floor.

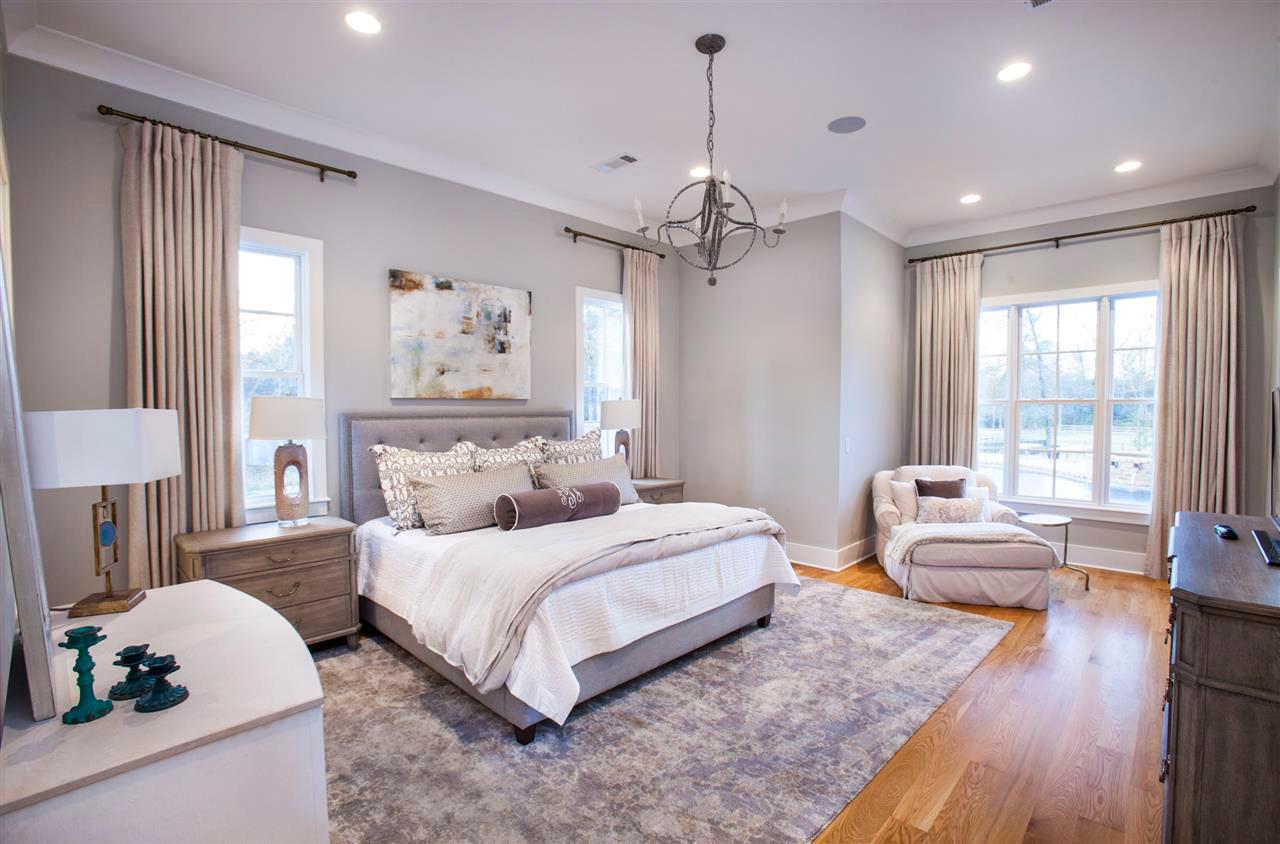

  • The luxurious master suite is also on the first floor and it features a sitting area, his and her closets and a spacious master bathroom.
  • Every bedroom on the second floor has a private bathroom and walk-in closet and the craft room is lined with built-ins along one wall.
  • Garages are split with a three car bay on one side and a one car bay across by the porte cochere.
What's Included
This plan has 11 pages as follows:
  1. Page 1 Coversheet Color Rendering

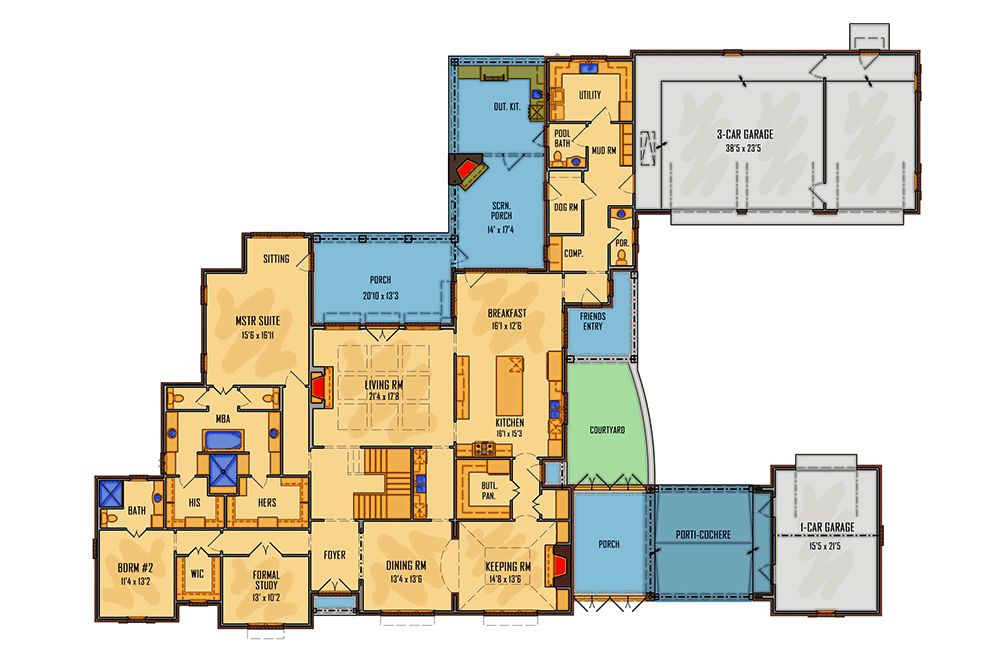

  2. First Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

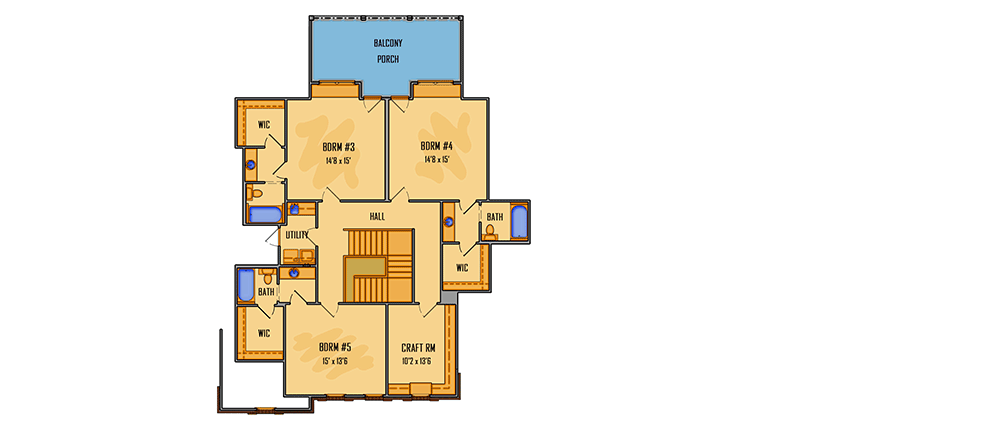

  3. Second Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

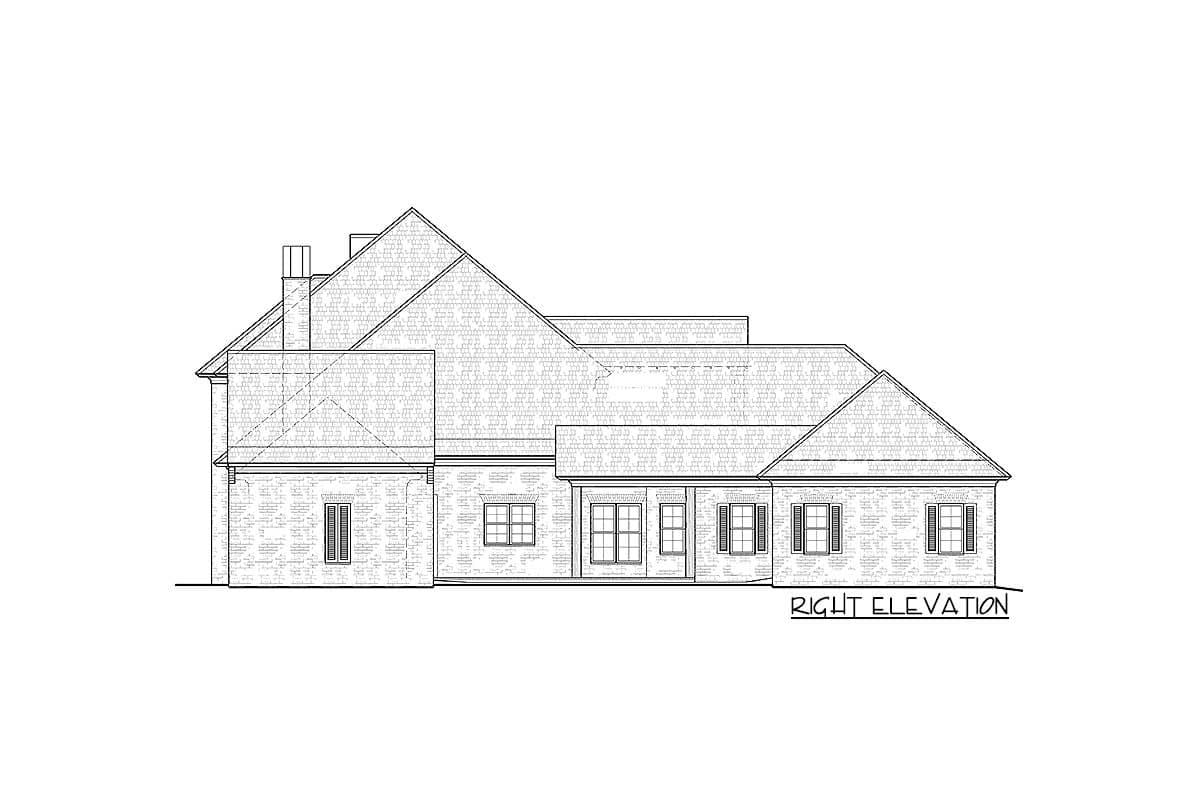

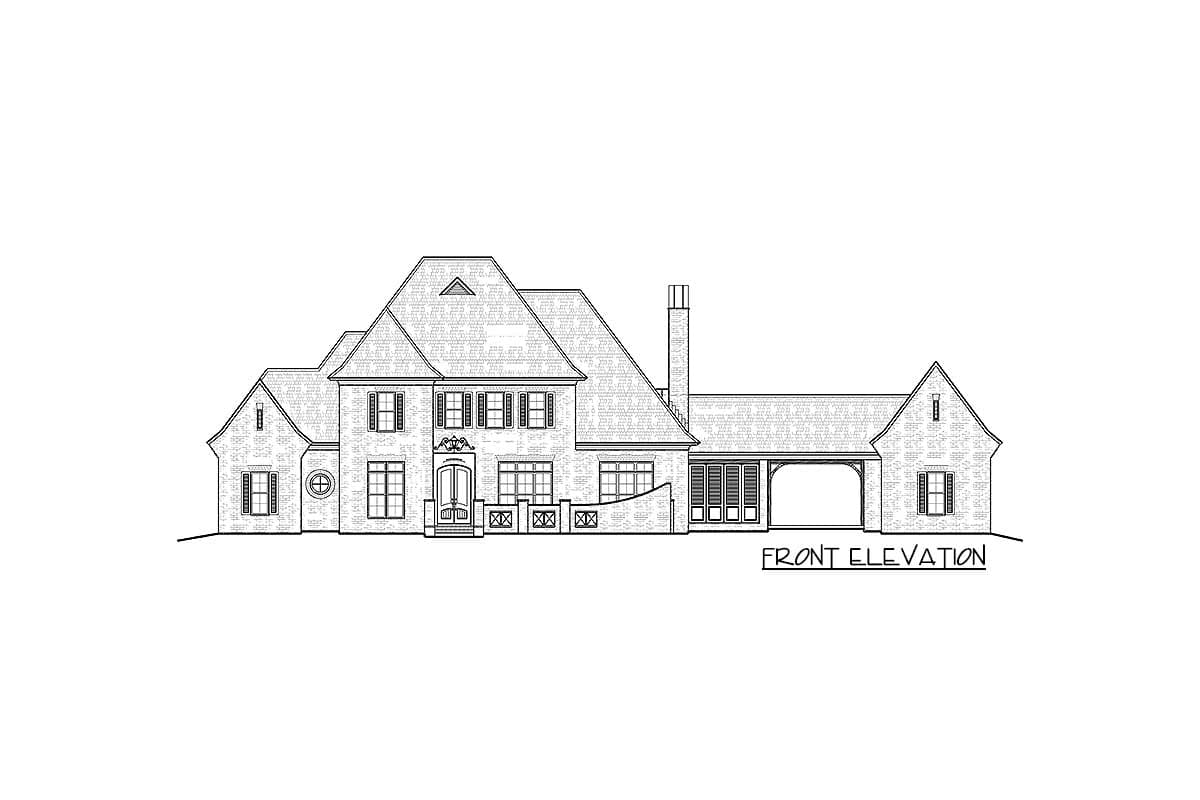

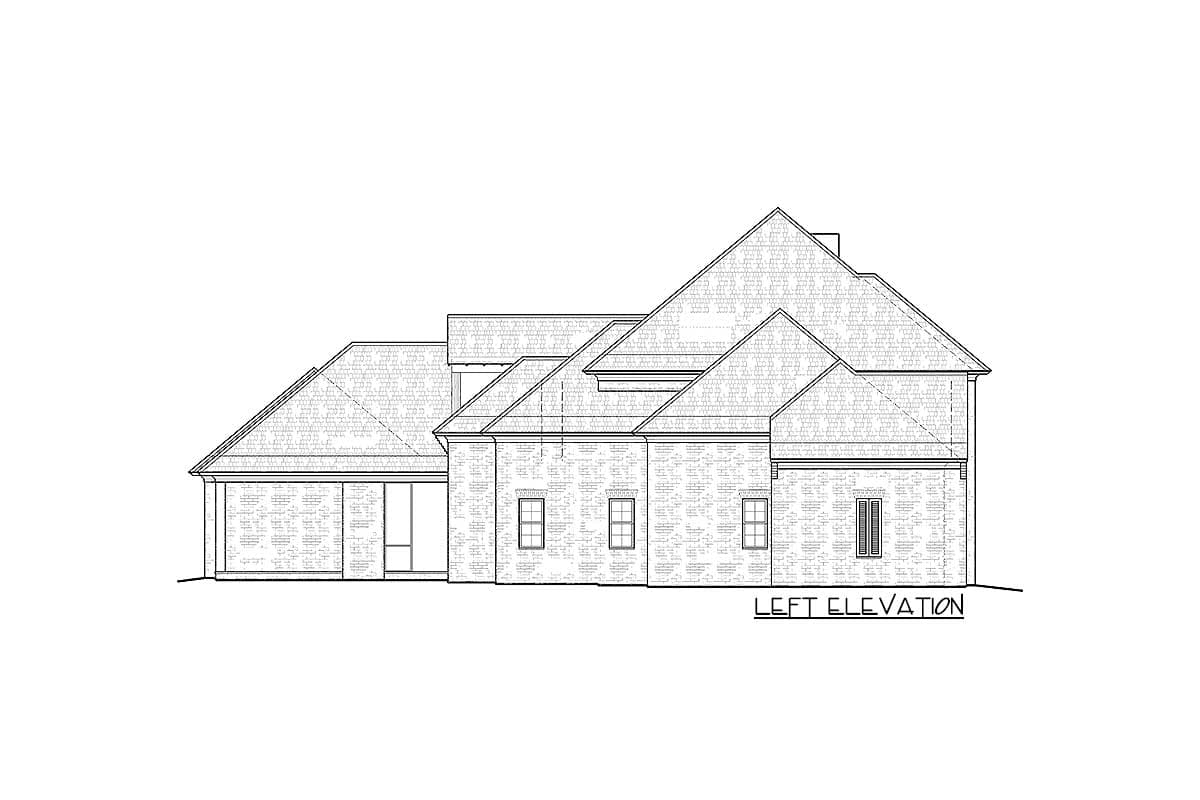

  4. Front & Left Exterior Elevation, Column Detail, Roof Support Detail

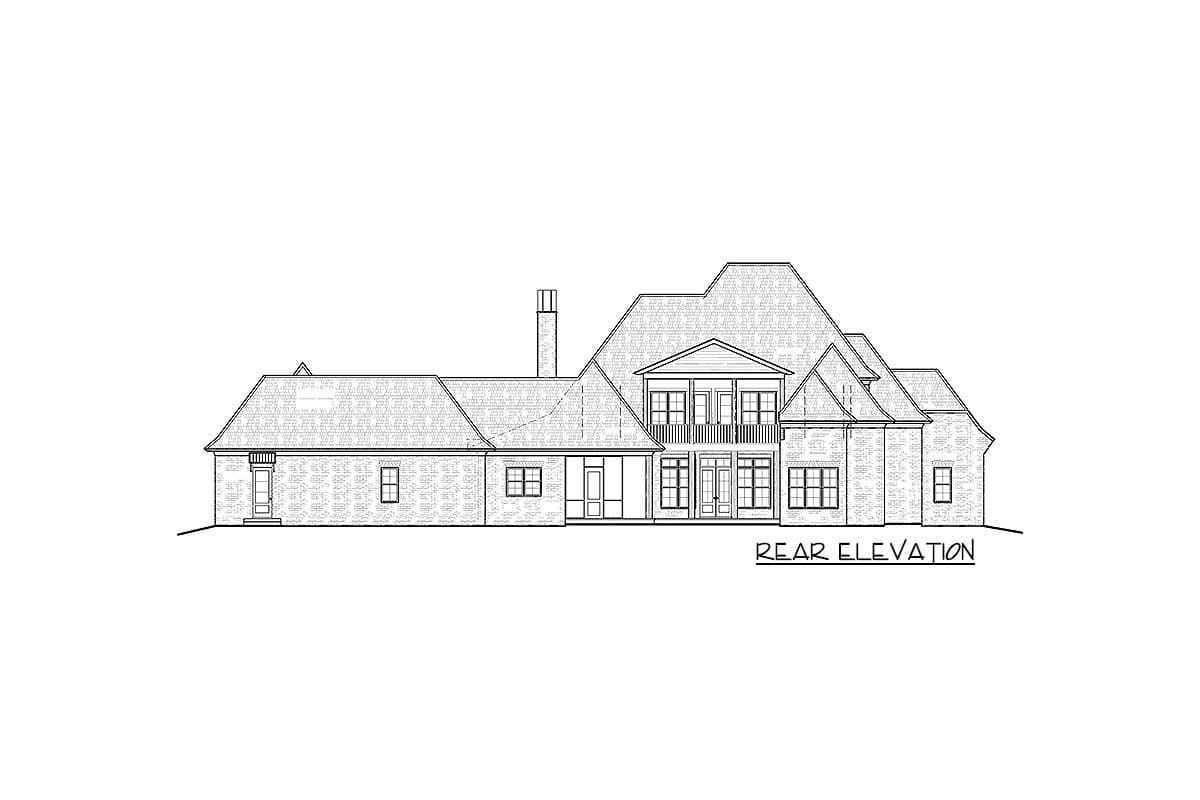

  5. Rear & Right Exterior Elevation, Window Details
  6. Building Sections, Partial Elevations, Cornice Details, Rear Porch Details, Fire Place Details
  7. Building Sections, Roof Plan, Flashing Detail, Cricket Detail, Rafter Span Schedule, Jack Arch Detail, Flush Rake Detail
  8. First Floor Electrical Plan and Schedules
  9. Second Floor Electrical Plan and Schedules
  10.  Slab Foundation
  11. Footing Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
