Plan 67129GL

Remarkable Hill Country House Plan

Pageloader

Remarkable Hill Country House Plan

Plan 67129GL

  • 5,358

    Heated s.f.

  • 3-4

    Beds

  • 3 - 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • With every luxury at your fingertips, this remarkable Hill Country house plan gives you a fabulous home.
  • The giant foyer has a cathedral ceiling and stretches back all the way through to the covered porch in back.
  • A large wet bar or pub is ideally positioned to serve both the formal and informal areas of the home.
  • From the kitchen you can see right into the cafe and the massive vaulted family room.
  • Send the kids off to play in the enormous games room in back where noise is less apt to disturb the rest of the house.
  • The master suite is absolutely stunning with its tray ceiling and bright and airy retreat room.
  • Two other bedrooms lie across the house with a fourth bedroom and media room on the upper floor.

Each plan set includes the following:


Cover sheet
table of contents

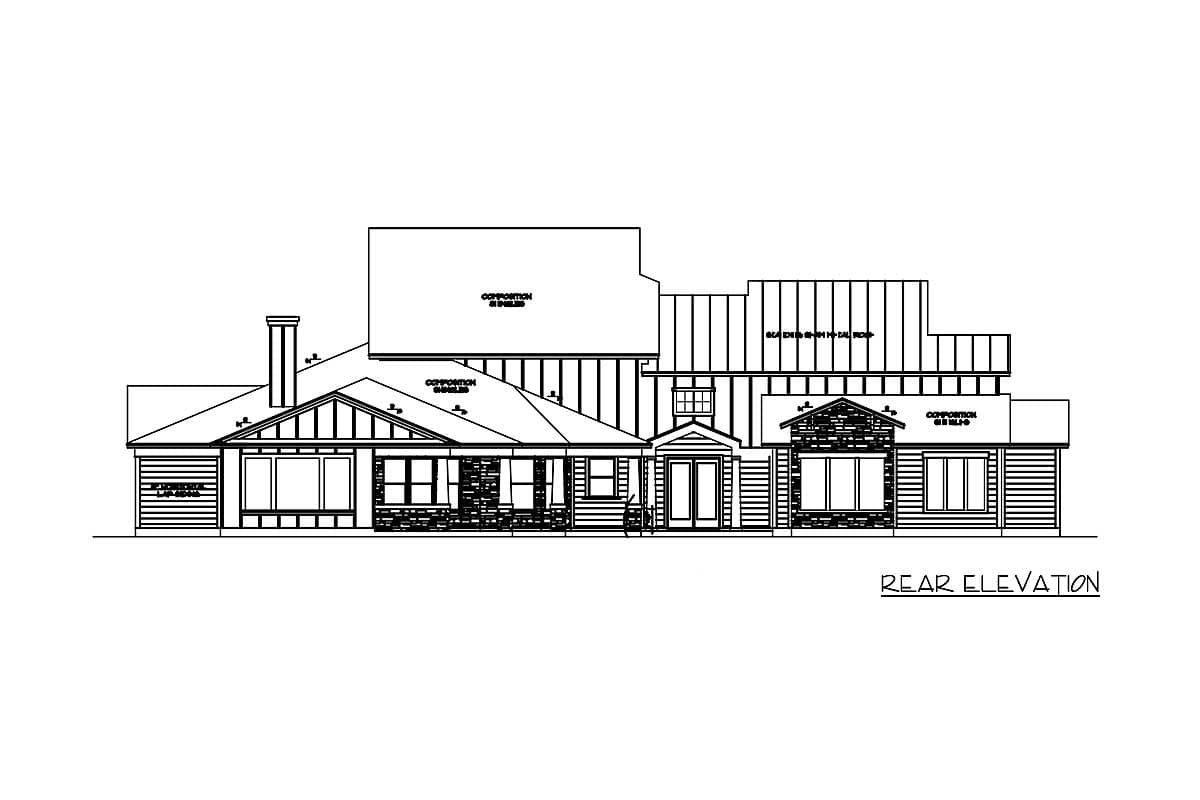

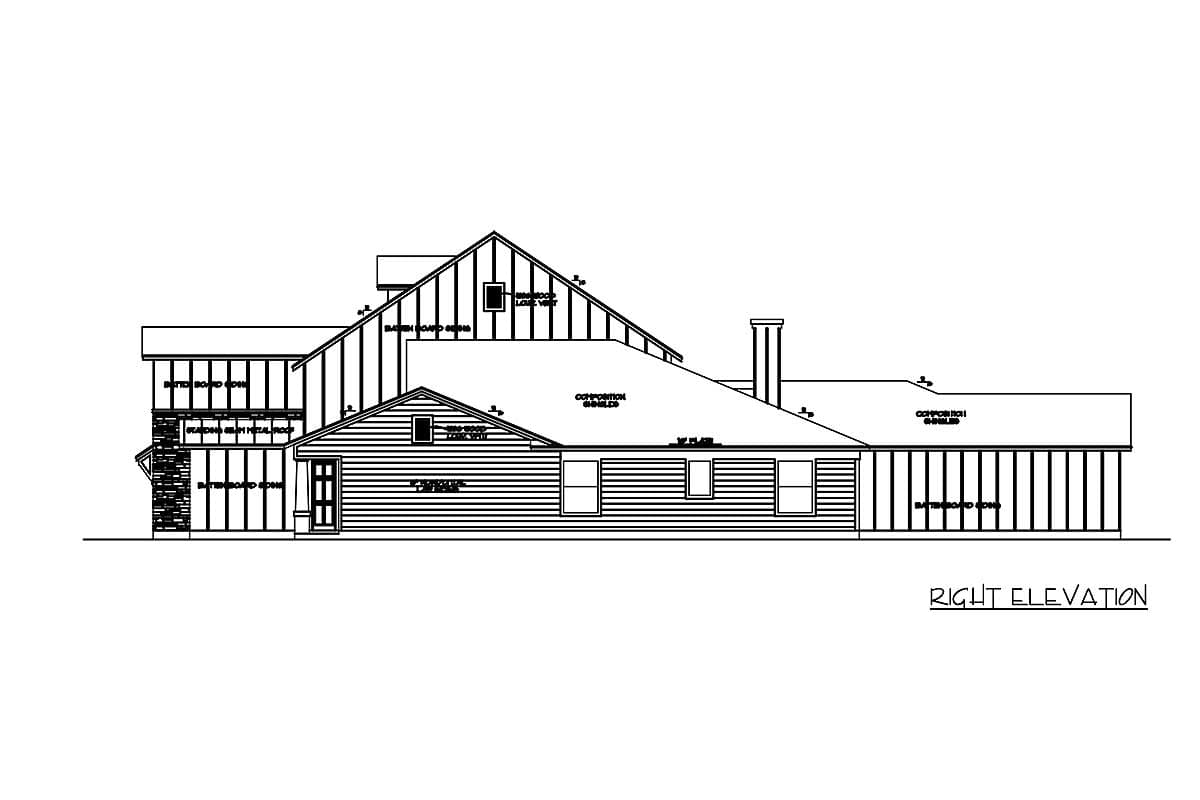

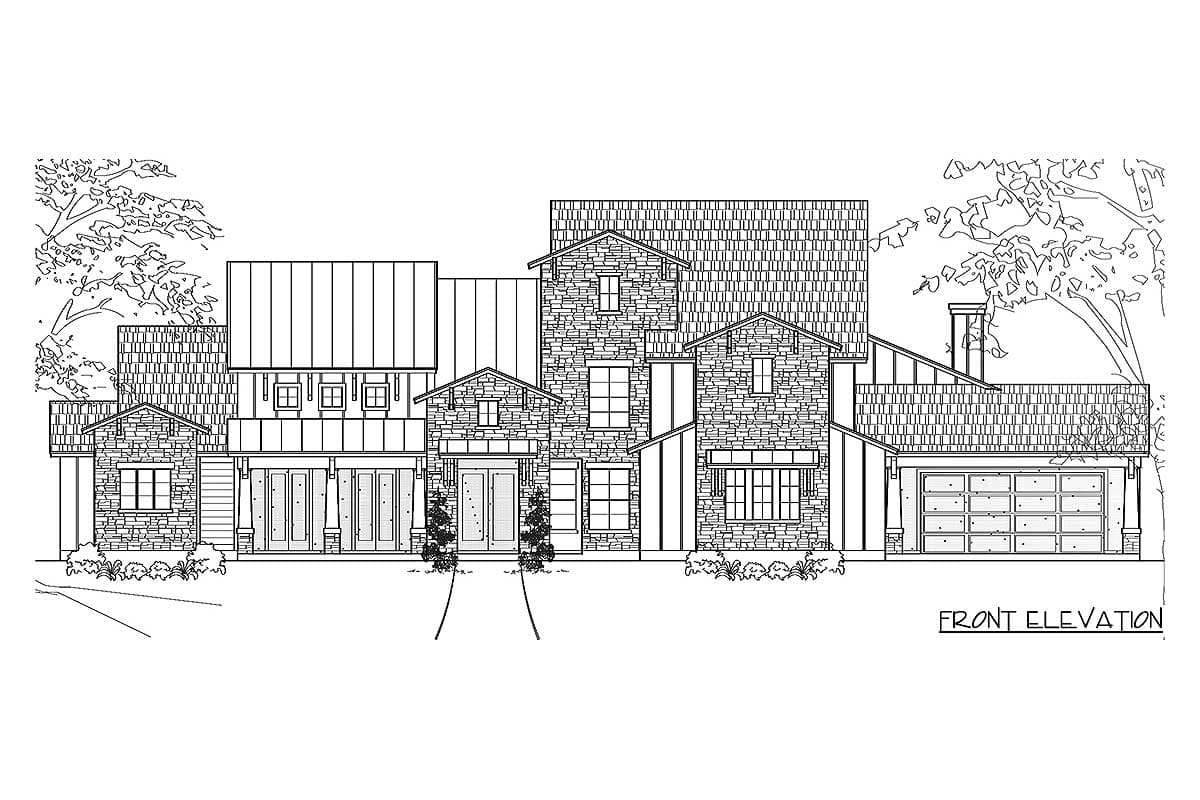

exterior elevations (noted and dimensioned)
floor plan(s) (noted and dimensioned)
electrical plan(s)
framing plan(s)
joist layout plan(s),
foundation footprint
at least one cross-section, and any other relevant details, including, but not limited to, a typical detail sheet showing common construction methods.

The plans do NOT include electrical plans,  HVAC (Heating, Ventilation, Air-conditioning) drawings, M.E.P. (Mechanical, Electrical, Plumbing), i.e. plumbing layouts showing pipe sizes and locations, or location specific engineering.

Floor Plan

Plan details



Remarkable Hill Country House Plan

  • 5,358

    Heated s.f.

  • 3 - 4

    Beds

  • 3 +

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $3,590
  • CAD $4,990
  • View all purchase option online

About This Plan

  • With every luxury at your fingertips, this remarkable Hill Country house plan gives you a fabulous home.
  • The giant foyer has a cathedral ceiling and stretches back all the way through to the covered porch in back.
  • A large wet bar or pub is ideally positioned to serve both the formal and informal areas of the home.
  • From the kitchen you can see right into the cafe and the massive vaulted family room.
  • Send the kids off to play in the enormous games room in back where noise is less apt to disturb the rest of the house.
  • The master suite is absolutely stunning with its tray ceiling and bright and airy retreat room.
  • Two other bedrooms lie across the house with a fourth bedroom and media room on the upper floor.

Floor Plans

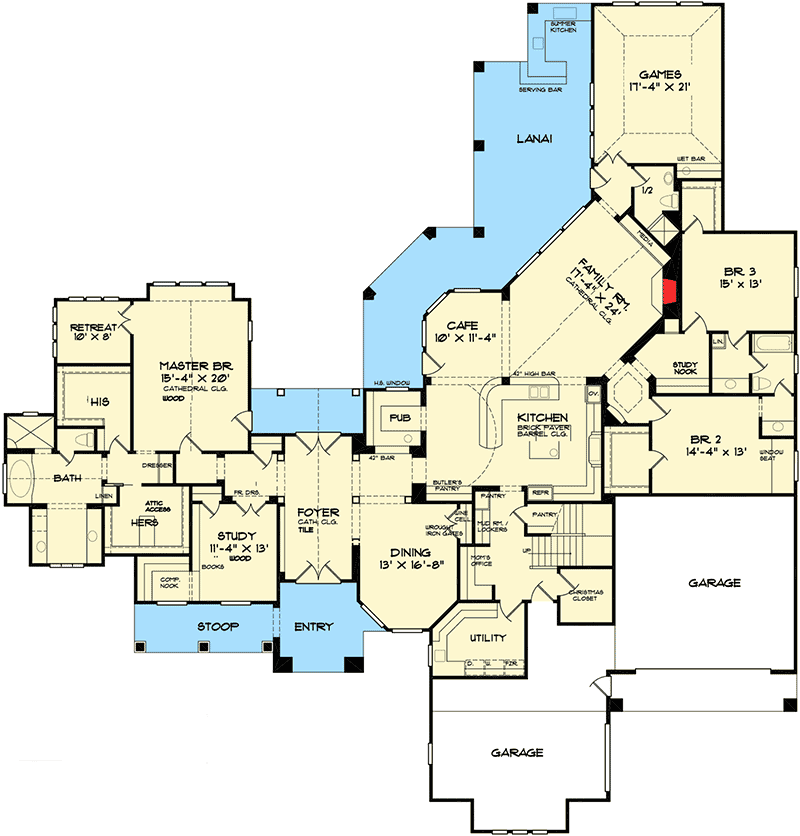

  • Main Level

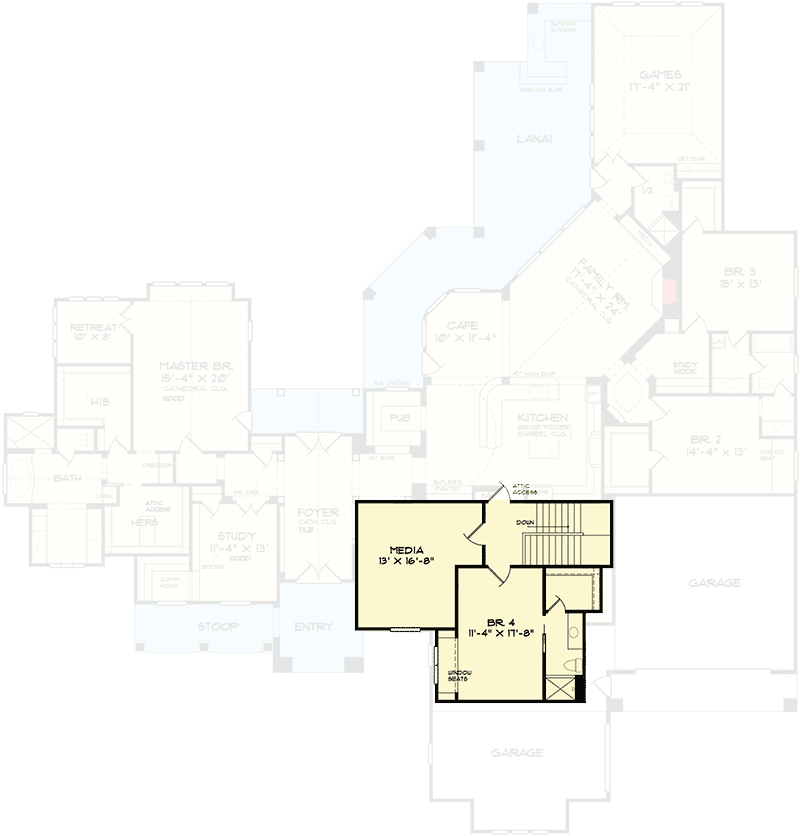

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,358 sq. ft.
  • 1st Floor: 4,409 sq. ft.
  • 2nd Floor: 949 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Unknown

Dimensions

  • Width: 105' 7"
  • Depth: 110' 6"

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Front, Side
