Plan 17591LV

Retreat Essence

4,271 4 6 2 2
Pageloader

Retreat Essence

Plan 17591LV

  • 4,271

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 2

    Stories

  • 2

    Cars

  • The master retreat pampers and captures the true essence of a retreat.
  • From the master suite with separate sitting area, to the master bath, the day winds-down in a most relaxing manner, ending with a long soak in the oval spa tub.
  • Days begin with freshly brewed coffee from the morning kitchen then to the connecting study, with fireplace, used as a home office.
  • The curved staircase in the foyer, and elevator found in the gallery, and upper balcony lead to the secondary suites on the upper level.
  • Related Plan: Need a basement? See house plan 17590LV.

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)

Floor Plan

Plan details



Retreat Essence

  • 4,271

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,800
  • Reproducible Set $1,800
  • CAD $3,600
  • View all purchase option online

About This Plan

  • The master retreat pampers and captures the true essence of a retreat.
  • From the master suite with separate sitting area, to the master bath, the day winds-down in a most relaxing manner, ending with a long soak in the oval spa tub.
  • Days begin with freshly brewed coffee from the morning kitchen then to the connecting study, with fireplace, used as a home office.
  • The curved staircase in the foyer, and elevator found in the gallery, and upper balcony lead to the secondary suites on the upper level.
  • Related Plan: Need a basement? See house plan 17590LV.

Floor Plans

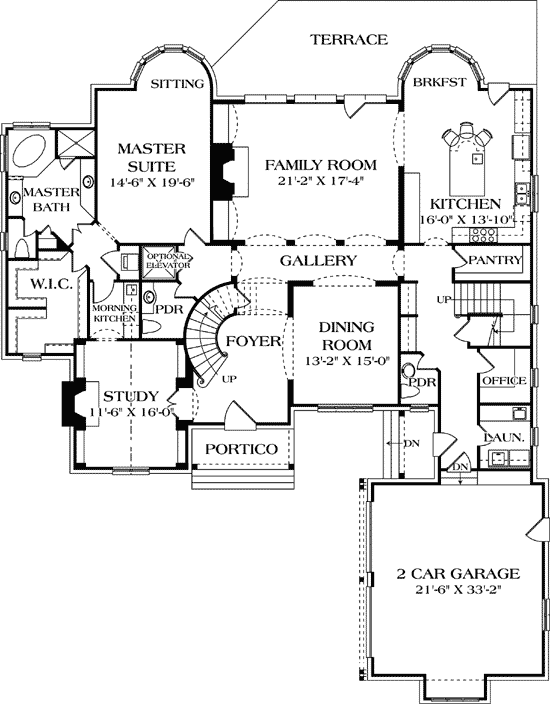

  • Main Level

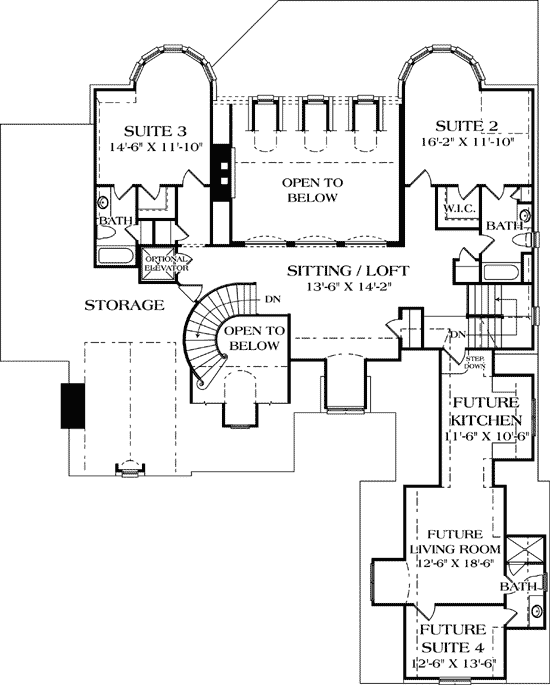

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,271 sq. ft.
  • 1st Floor: 2,887 sq. ft.
  • 2nd Floor: 1,384 sq. ft.
  • Bonus: 579 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 70' 10"
  • Depth: 89' 6"

Garage

  • Type: Attached
  • Area: 585 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

  • European
  • French Country

Special features

  • 2nd Floor Master Suite
  • Bonus Room
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • In-Law Suite
  • Jack & Jill Bath
  • Loft
  • MBR Sitting Area
  • Multi Stairs to 2nd Floor
  • PDF

Plan Collections

  • Luxury
