Rockin' Mountain Home with Climbing and Exercise Rooms - 4784 Sq Ft

Plan 95028RW

  • 4,784

    Heated s.f.

  • 5-6

    Beds

  • 4.5 - 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

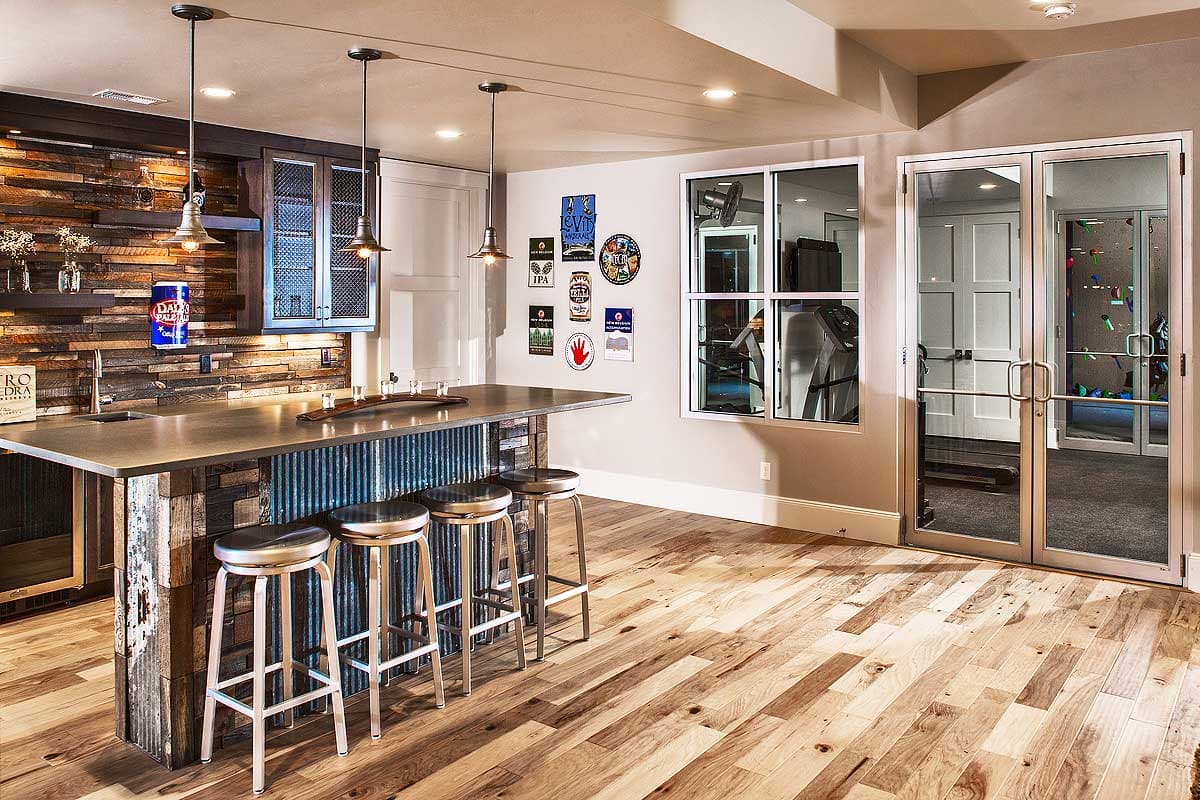

  • With its striking good looks and spacious rooms, this Mountain house plan goes over the top with an exercise room and climbing room in the optional finished lower level.

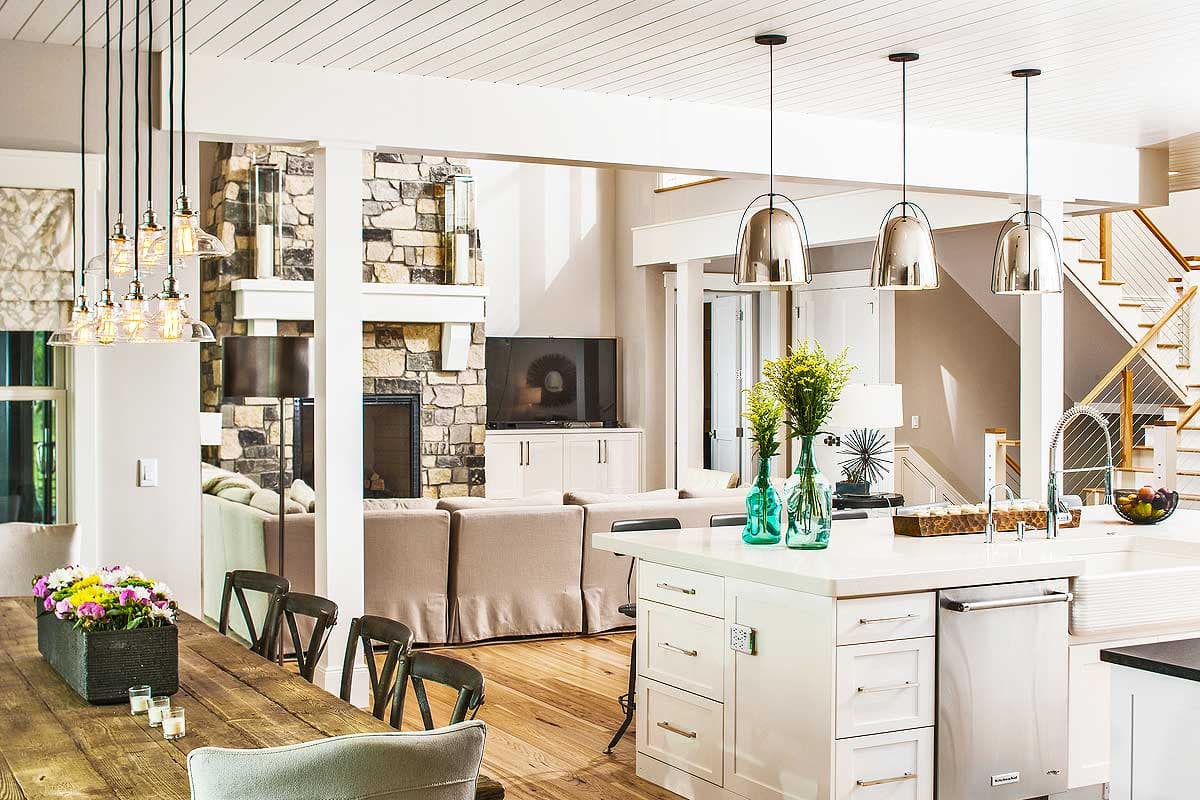

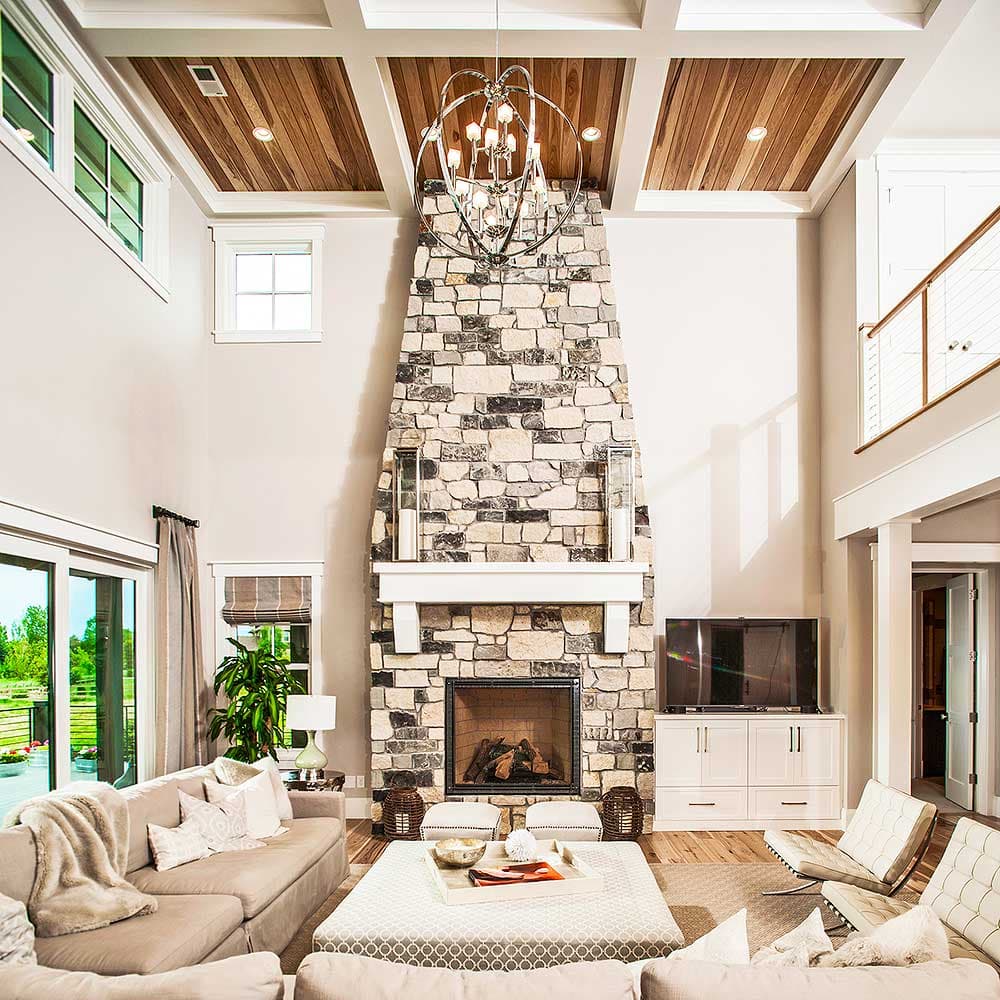

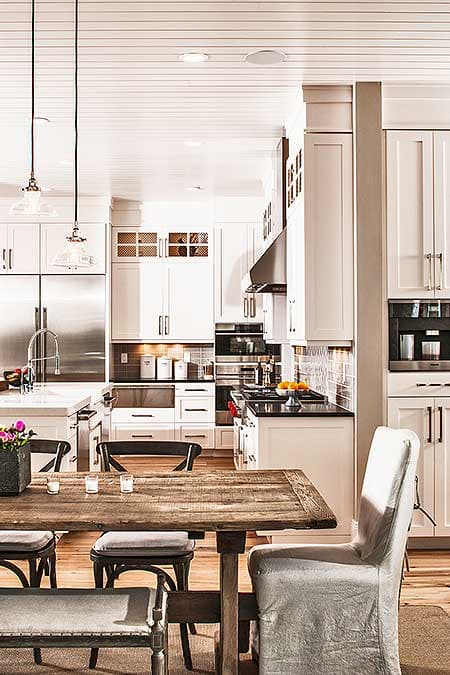

  • A key design element is the open floor plan that offers sight lines that sweep from room to room.
  • Interior columns are used instead of walls that block the views.

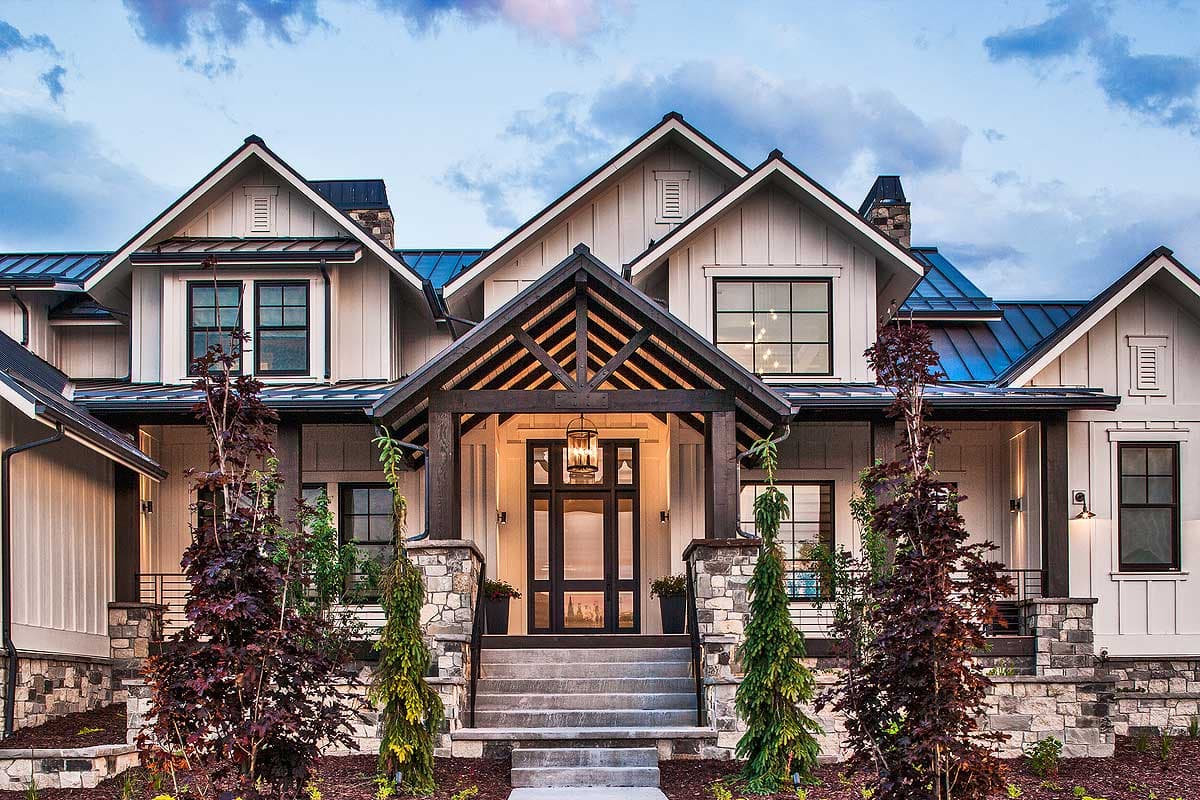

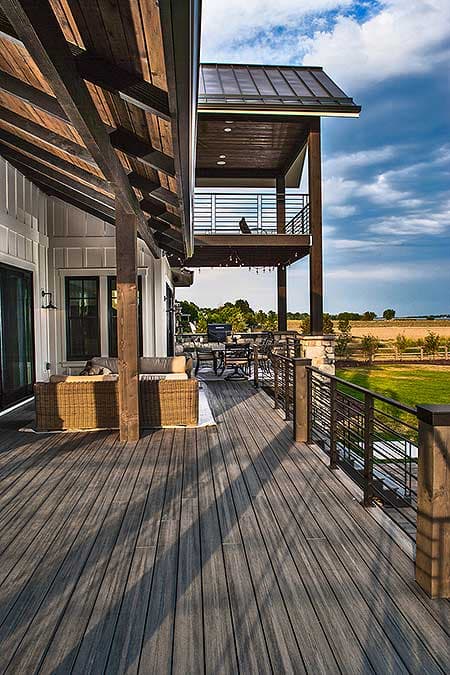

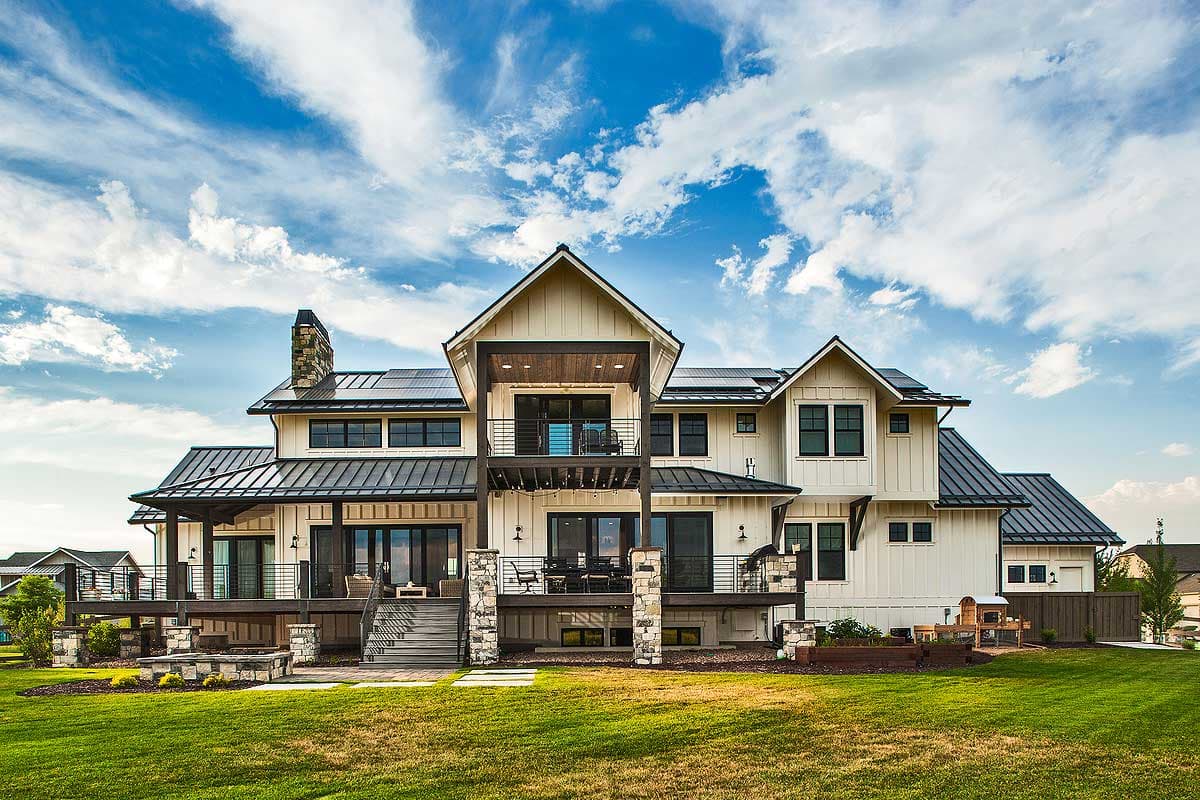

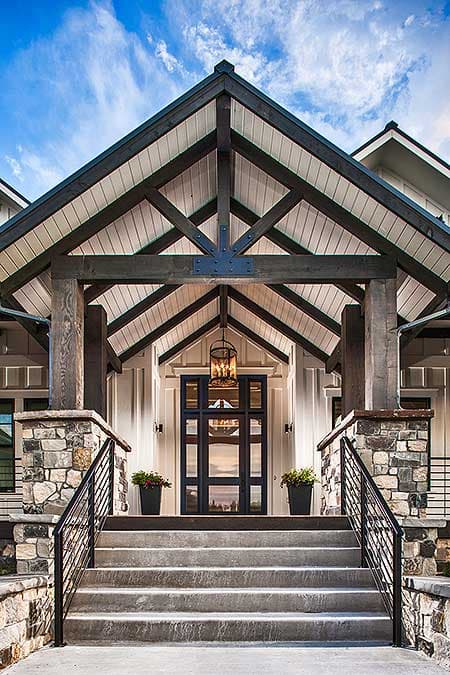

  • Outdoor space includes a covered deck and a pergola-covered open deck plus the big front porch.
  • Sliding glass doors all along the back let you easily step outside.

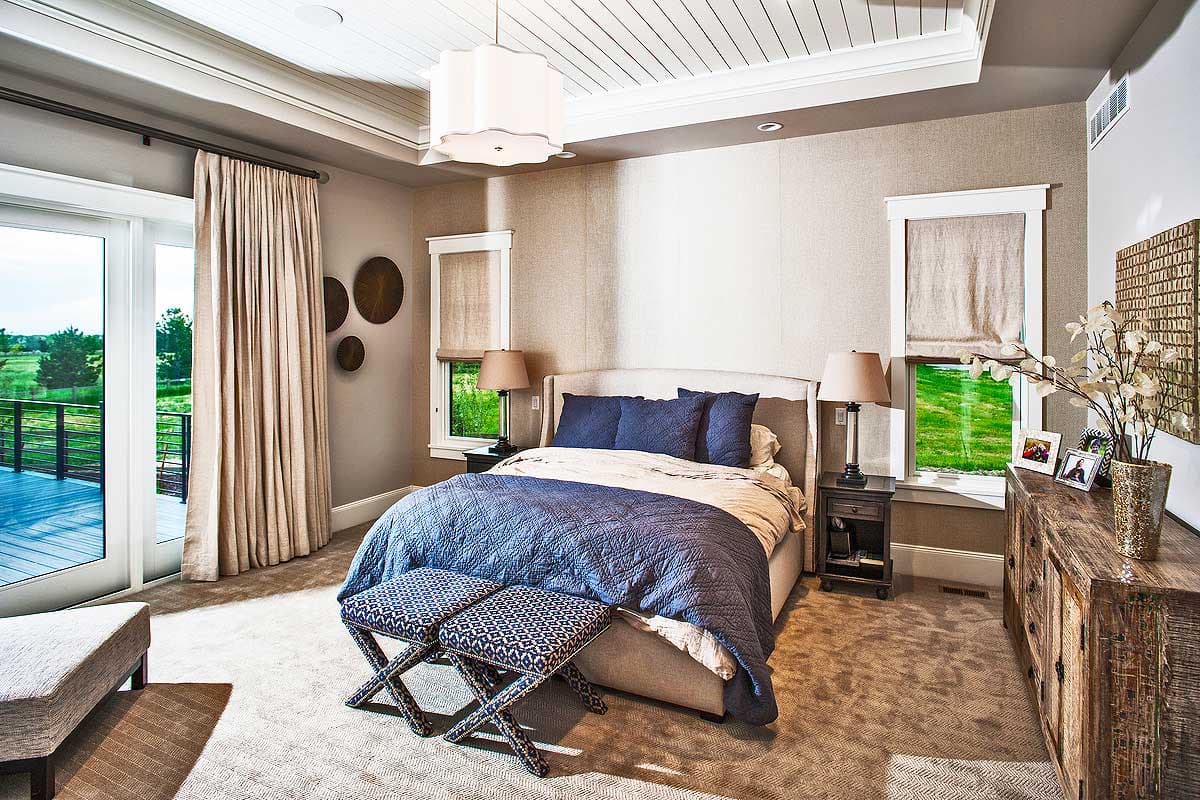

  • The master suite has a lovely tray ceiling, two separate walk-in closets and a large private bathroom.

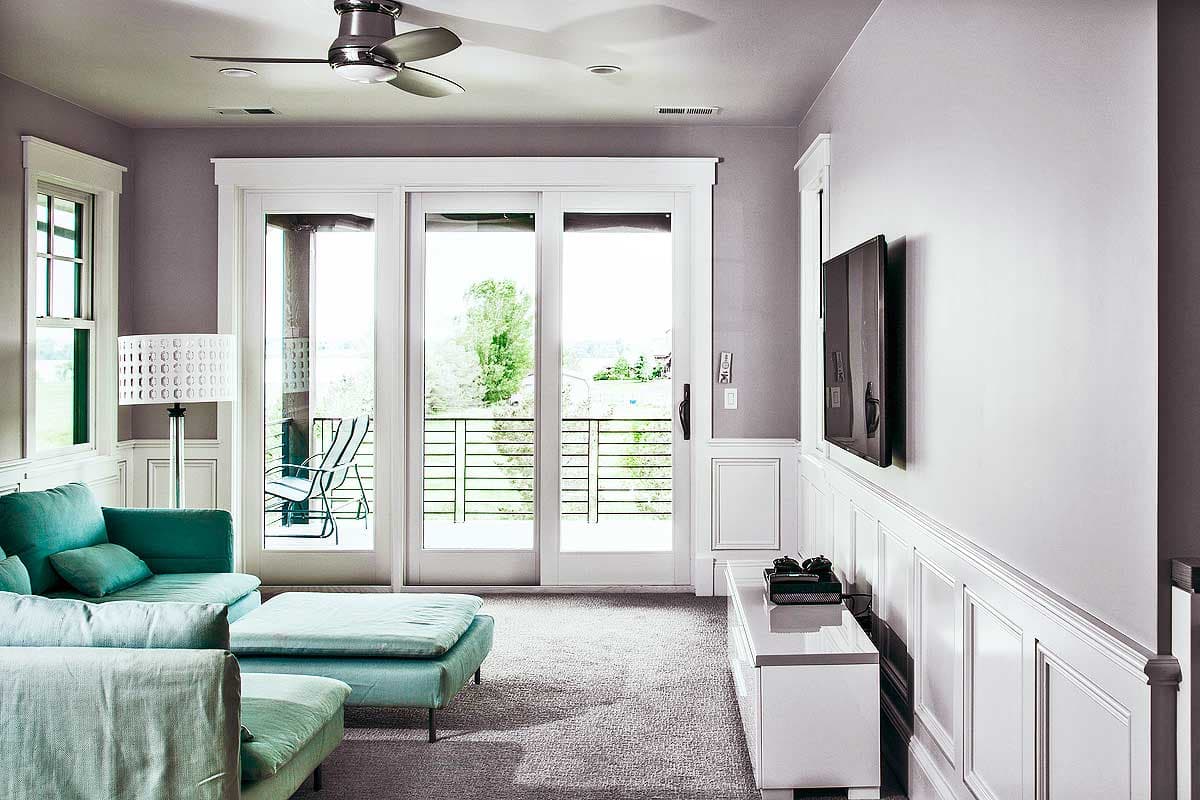

  • On the second floor, the loft opens up to a covered deck that gives you views of your back yard.

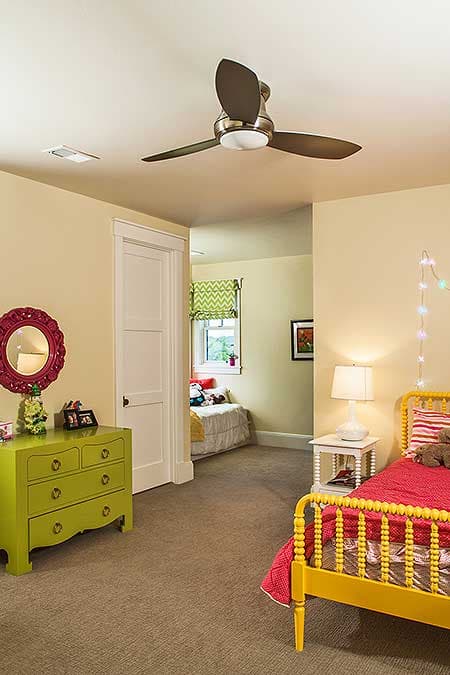

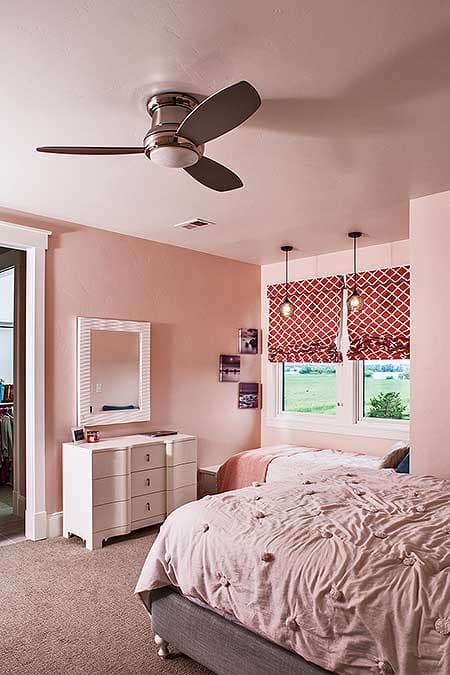

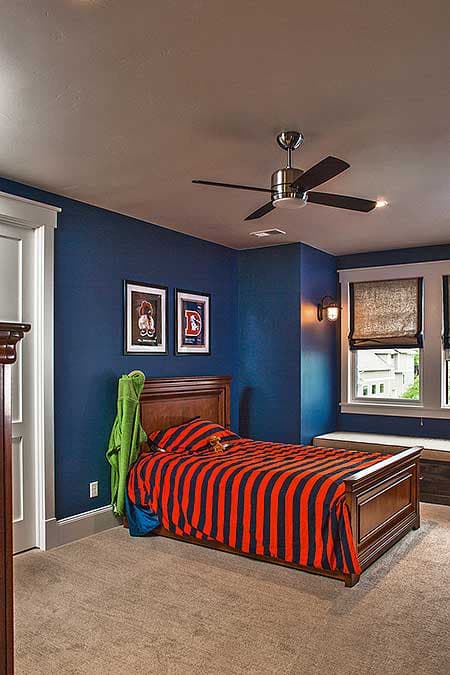

  • With three bedrooms upstairs, two on the main floor and the possibility of a sixth on the lower level, this home is geared for large families.

This plan set has 12 pages as follows:

  1. Cover page

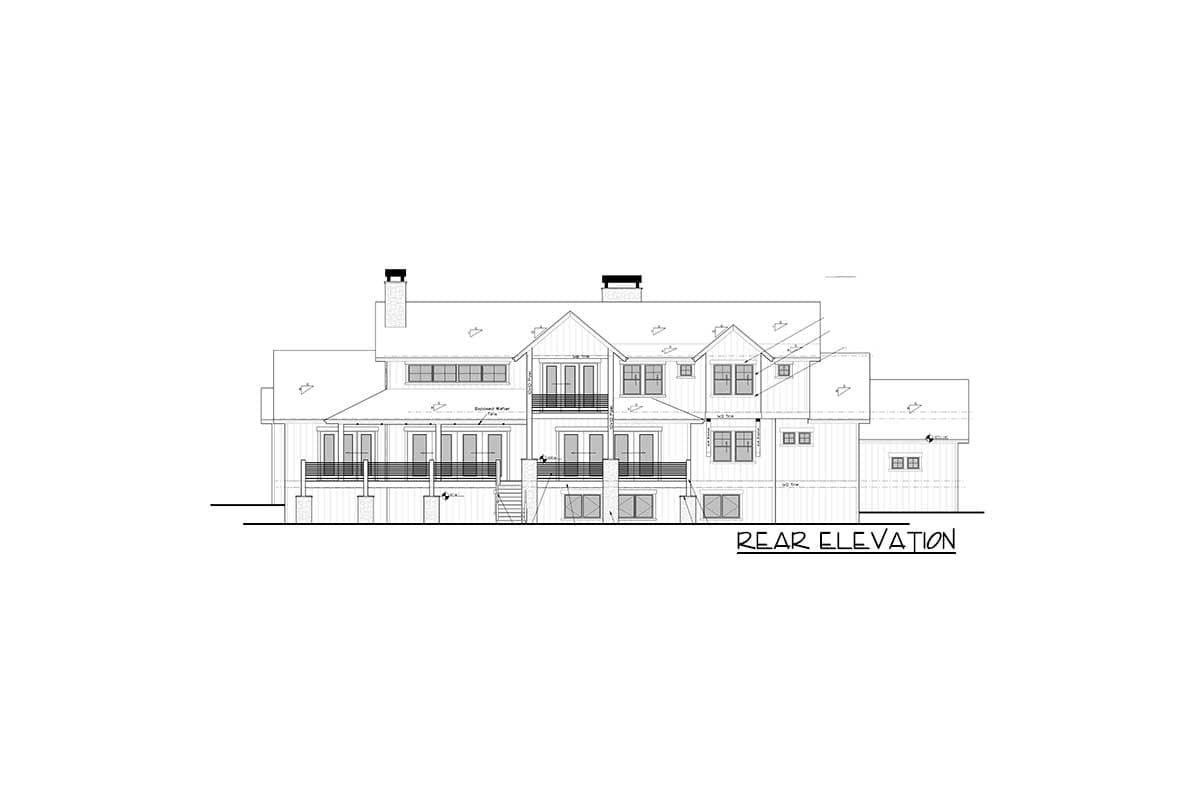

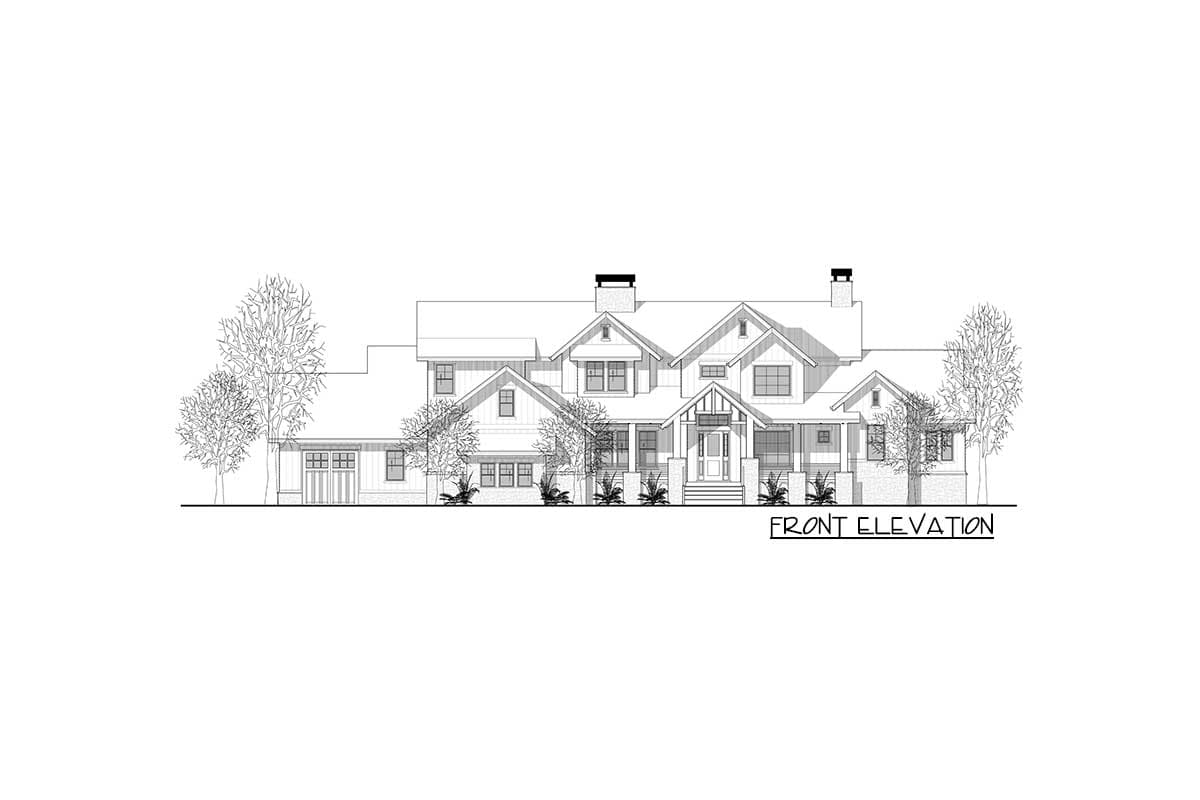

  2. Front and rear elevations

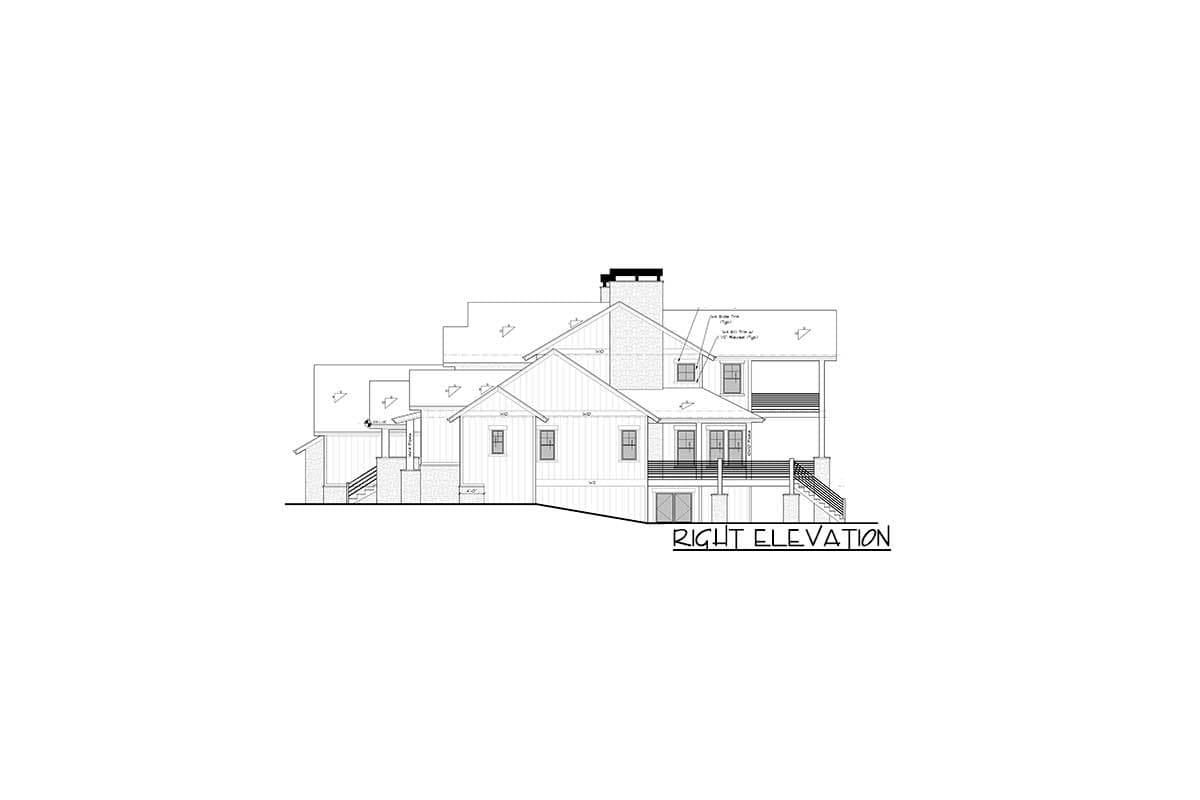

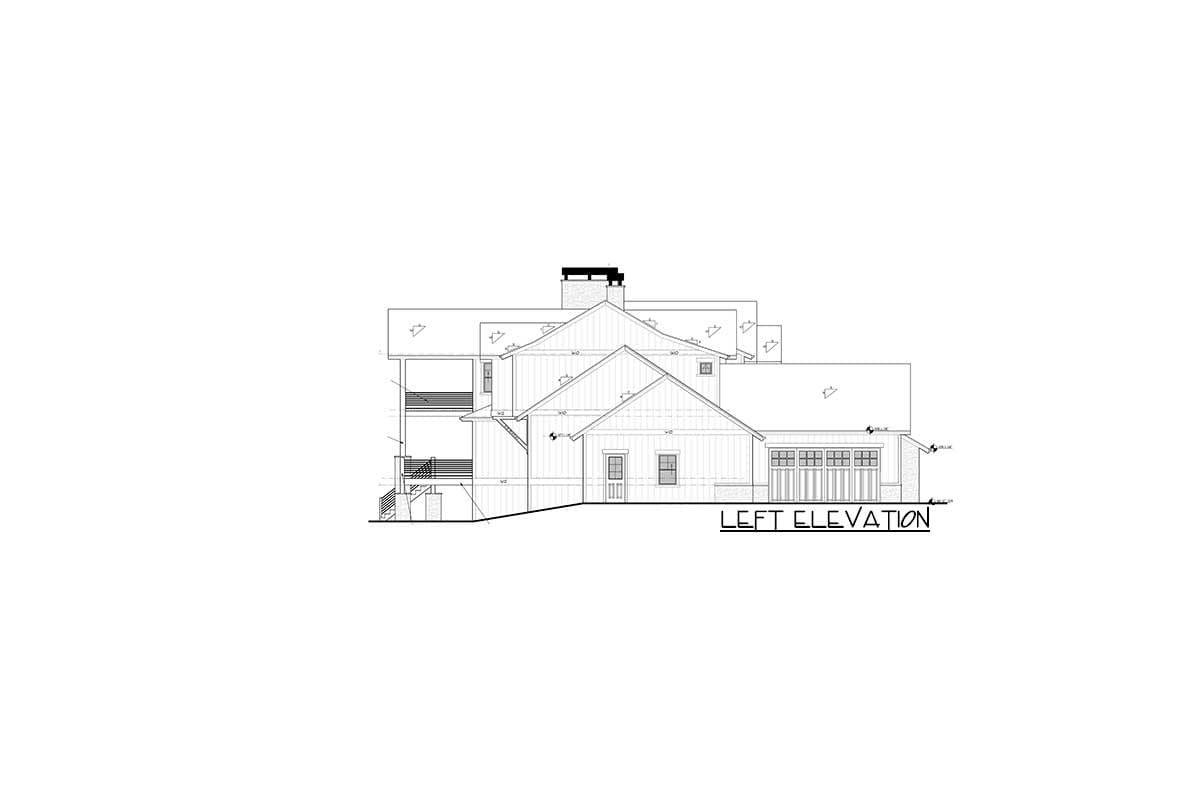

  3. Left and right elevations
  4. Lower floor plan
  5. Main floor plan
  6. Foundation plan
  7. Floor framing plan
  8. Roof plan
  9. Sections and details
  10. Main floor electrical
  11. Lower and upper floor electrical

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

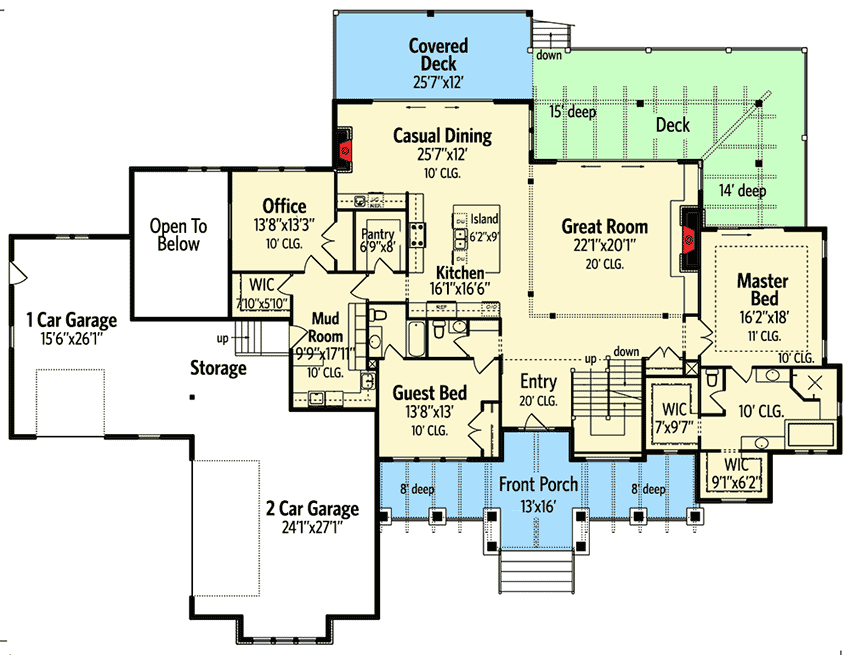

Rockin' Mountain Home with Climbing and Exercise Rooms - 4784 Sq Ft - 95028RW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

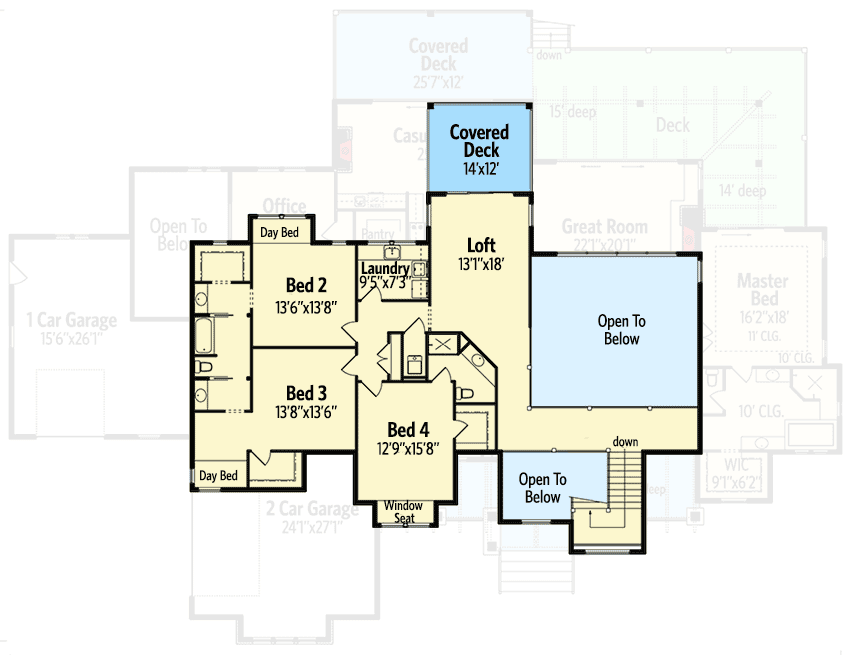

Rockin' Mountain Home with Climbing and Exercise Rooms - 4784 Sq Ft - 95028RW floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

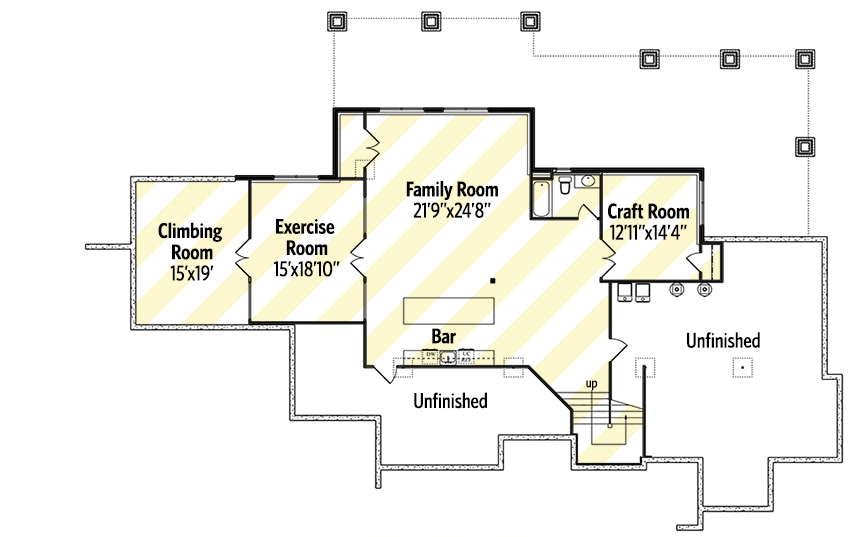

Rockin' Mountain Home with Climbing and Exercise Rooms - 4784 Sq Ft - 95028RW floor plan - Lower Level

Rockin' Mountain Home with Climbing and Exercise Rooms - 4784 Sq Ft

  • 4,784

    Heated s.f.

  • 5-6

    Beds

  • 4.5 - 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,784 sq. ft.
  • 1st Floor: 3,031 sq. ft.
  • 2nd Floor: 1,753 sq. ft.

Dimensions

  • Width: 110' 6"
  • Depth: 84' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 4 or 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1439 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
