Roof Peak Medley

Plan 69215AM

  • 2,518

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Inside and out, this is a house worthy of daydreams. A medley of roof peaks, a sheltered entry, and mullioned windows capture curbside attention. Interior space flows logically and with energy. Ceilings change height, defining rooms and creating atmosphere. Double-height ceilings in the foyer and great room foster a gregarious feeling. Less volume in the dining room, kitchen, and den generate a cozier mood.
  • Cheerful sunlight ricochets around the family area at the rear of the house. Windows and a sliding patio door enclose the dining nook. Floor-to-ceiling windows climb the wall of the great room.
  • The sink peninsula in the kitchen is open to the great room, allowing the cook to share the warmth of the fireplace, the view to the back yard, and family activities. The gourmet kitchen is linked to the dining room by a butler's pantry, furnished with china cabinets and countertop.
  • The first-floor master suite is graced with a tray ceiling in the bedroom, a walk-in closet, and a bath equipped for two with a whirlpool tub and a shower.
  • The second floor accommodates two more bedrooms, a bath, and a loft area at the top of the staircase.
  • The large bonus room above the garage can be adapted as an extra bedroom, a home office, or a playroom.
  • Related Plan: Get an alternate exterior with house plan 69324AM.

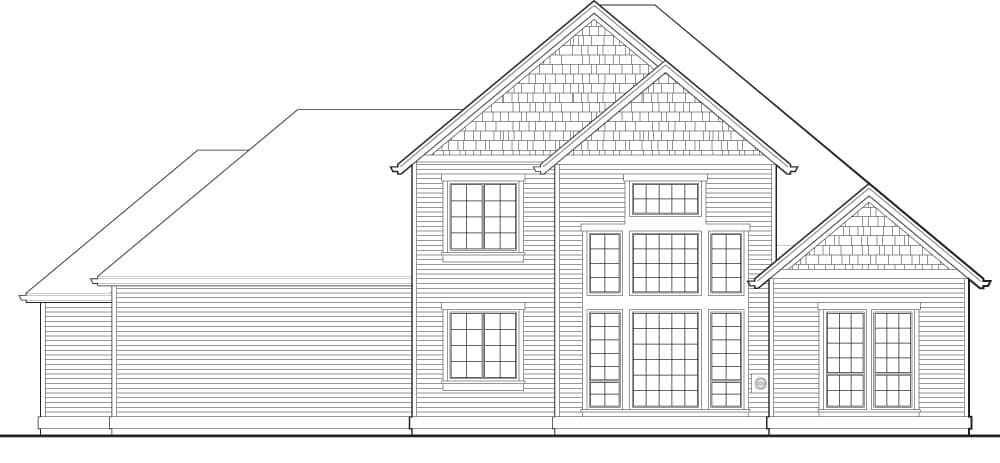

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

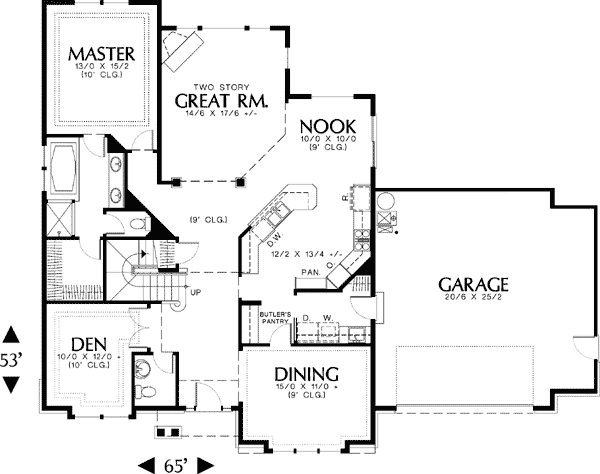

Roof Peak Medley - 69215AM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

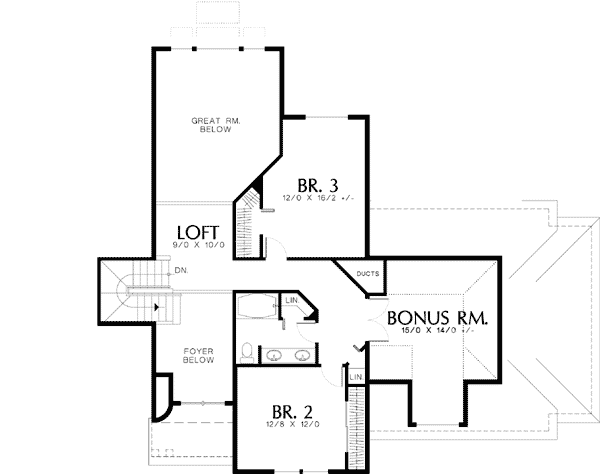

Roof Peak Medley - 69215AM floor plan - 2nd Floor

Roof Peak Medley

  • 2,518

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,518 sq. ft.
  • 1st Floor: 1,799 sq. ft.
  • 2nd Floor: 719 sq. ft.

Dimensions

  • Width: 65' 0"
  • Depth: 53' 0"
  • Max ridge height: 29' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 656 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
