Plan 510108WDY

Roomy 4-Bed House Plan with Split Bedrooms

Heated S.F.
3,722
Beds
4
Baths
4.5
Stories
2
Cars
3

Floor Plan

Plan 510108WDY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 510108WDY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

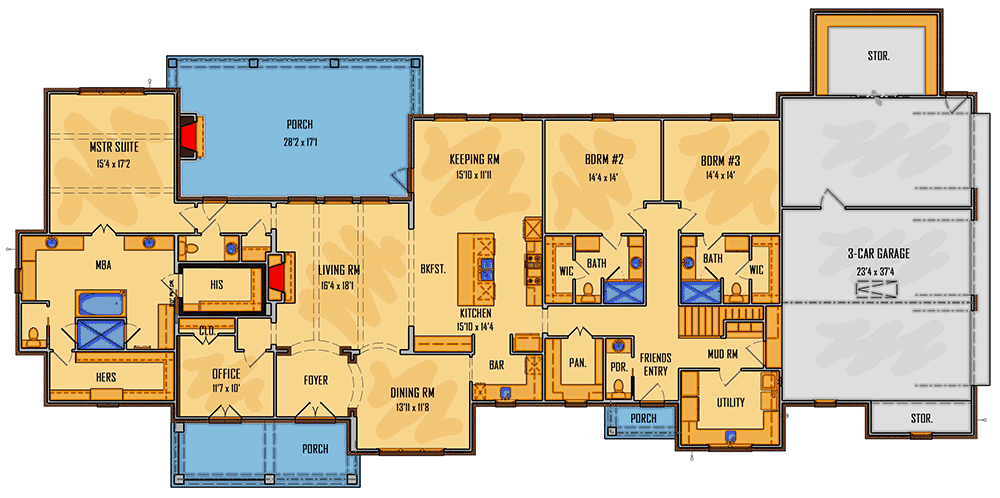

Plan 510108WDY: Roomy 4-Bed House Plan with Split Bedrooms - Floor Plan - Main Level - Acadian, French Country, Louisiana-Style, Southern

2nd Floor

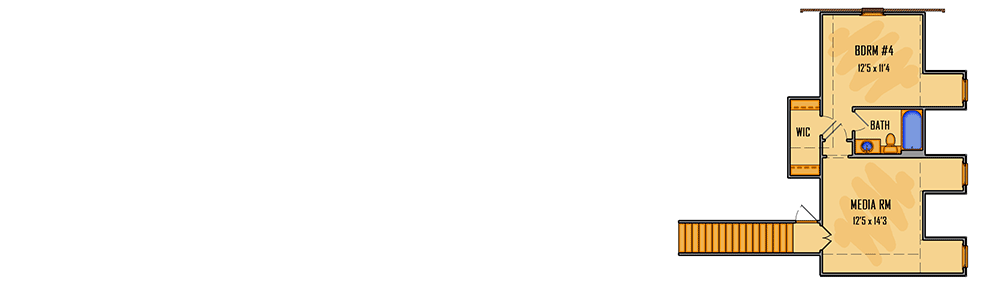

Plan 510108WDY: Roomy 4-Bed House Plan with Split Bedrooms - Floor Plan - 2nd Floor - Acadian, French Country, Louisiana-Style, Southern

Plan Details

  • This 4-bedroom house plan offers a roomy interior flow with split bedrooms providing the utmost privacy to the homeowner.
  • Double doors usher guests into a spacious foyer, and beyond to the living room. Exposed beams rest above a fireplace, and large windows, which overlook the back porch, allow natural light to flood the shared living space.
  • The adjoining kitchen includes a large keeping room, and a butler's pantry with a bar sink leads to the forward-facing dining room.
  • The secluded master suite occupies the left wing of the home, featuring a spa-like en suite with dual closets and vanities.
  • A storage room in the 3-car garage decreases clutter, and the mudroom just inside serves as the perfect drop zone for personal items. A friend's entrance neighbors a powder bath, and the nearby hallway leads to bedrooms 2 and 3, each with a full bath.

What's Included

  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,722 sq. ft.

1st Floor

3,190 sq. ft.

2nd Floor

532 sq. ft.

Porch, Combined

730 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

118' 0"

Depth

59' 1"

Garage

Type

Attached

Area

1132 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

12'

Second Floor

9'

Roof Details

Primary Pitch

16 on 12

Framing Type

Stick

Architectural Style

Acadian

French Country

Louisiana-Style

Southern

Special Features

Bedrooms - Split

Formal Dining

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Walk-in Pantry

Wet Bar

Square Footage Breakdown

Total Heated Area

3,722 sq. ft.

1st Floor

3,190 sq. ft.

2nd Floor

532 sq. ft.

Porch, Combined

730 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

118' 0"

Depth

59' 1"

Garage

Type

Attached

Area

1132 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

12'

Second Floor

9'

Roof Details

Primary Pitch

16 on 12

Framing Type

Stick

Architectural Style

Acadian

French Country

Louisiana-Style

Southern

Special Features

Bedrooms - Split

Formal Dining

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Walk-in Pantry

Wet Bar
