Plan 60570ND

Round-top Windows & Bonus Room

1,848 3 2 1 2
Pageloader

Round-top Windows & Bonus Room

Plan 60570ND

  • 1,848

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

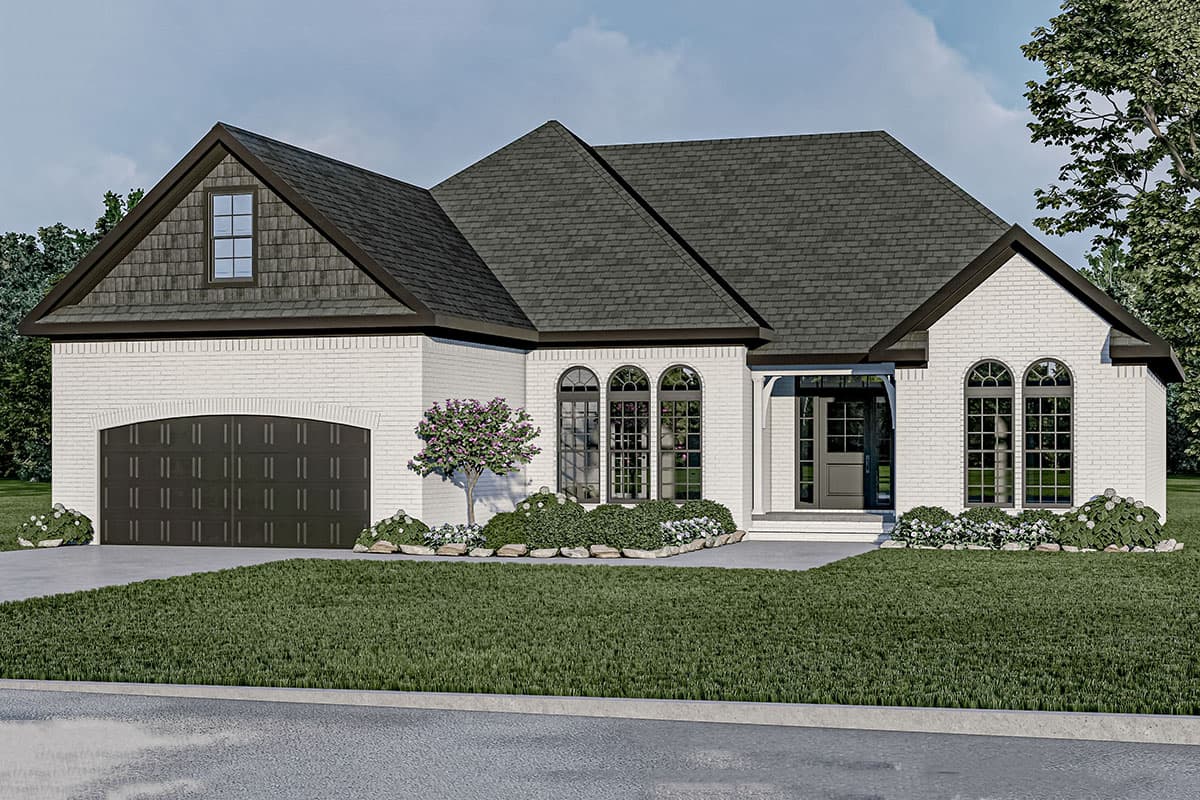

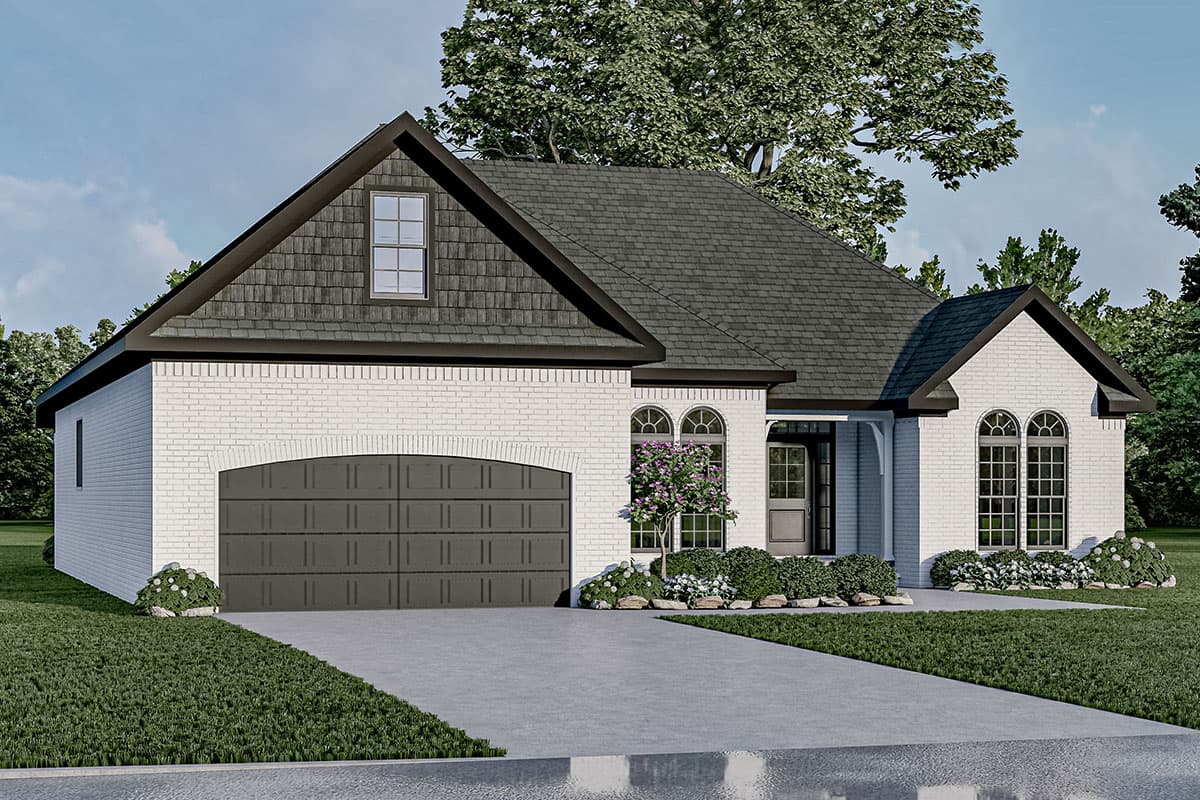

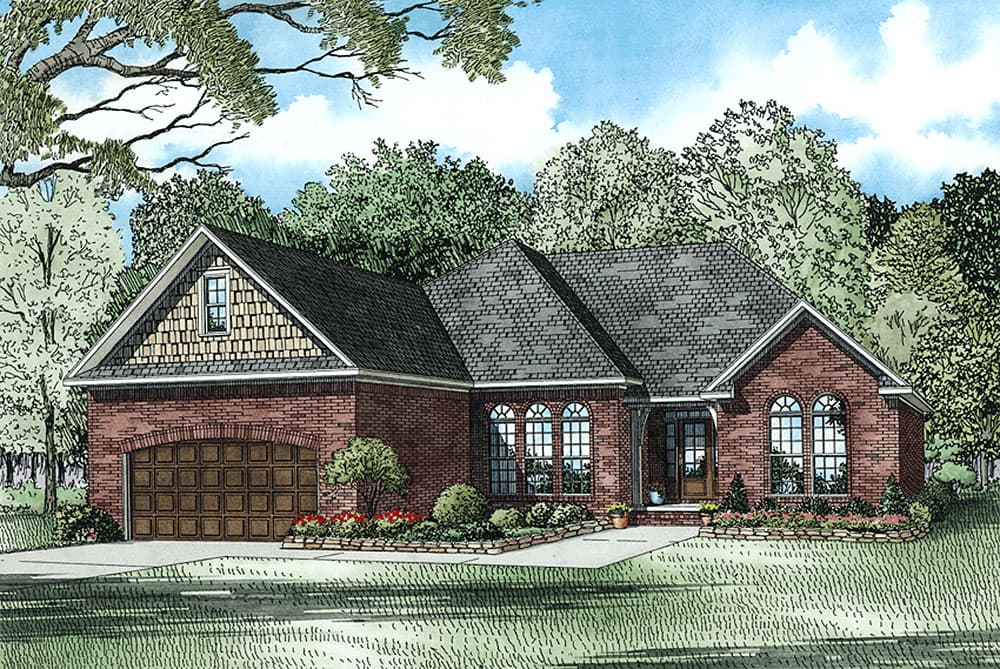

  • Round-top windows and a sleek roofline give elegance to this home plan. This split bedroom house plan has 9' boxed ceilings and a formal dining room with columns and 10' ceiling.

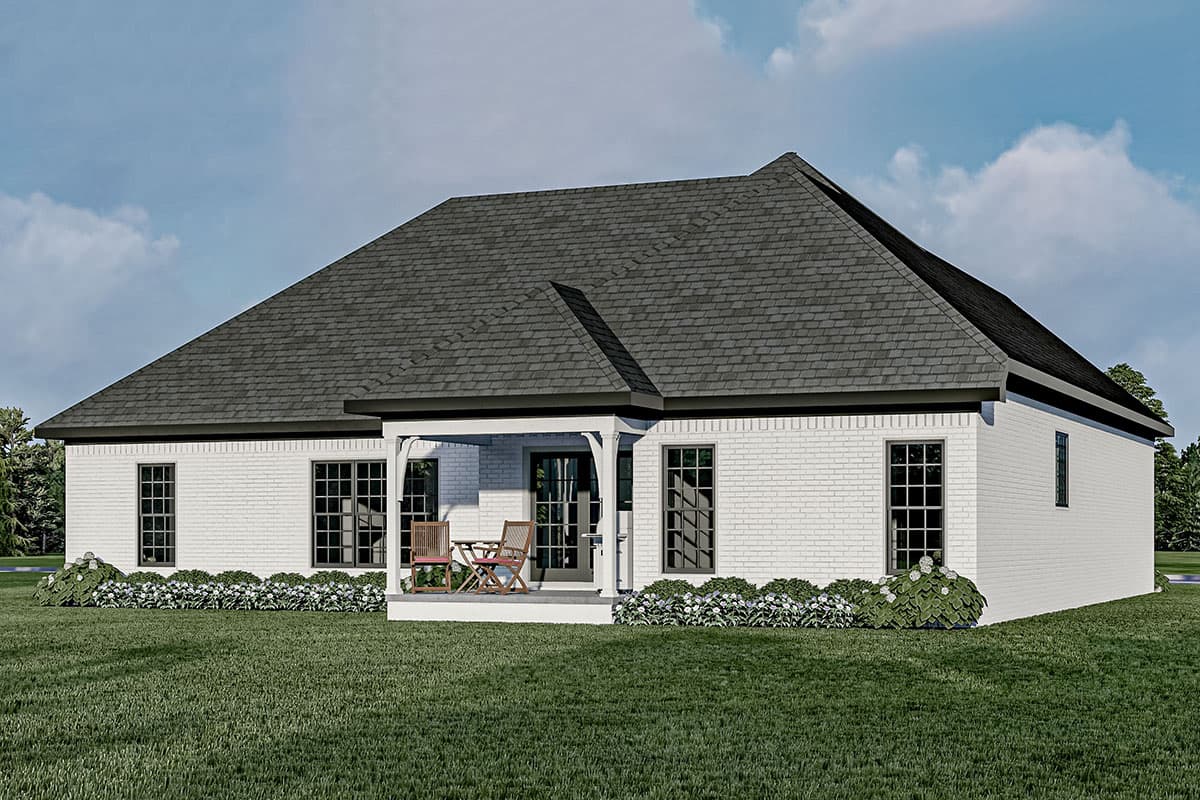

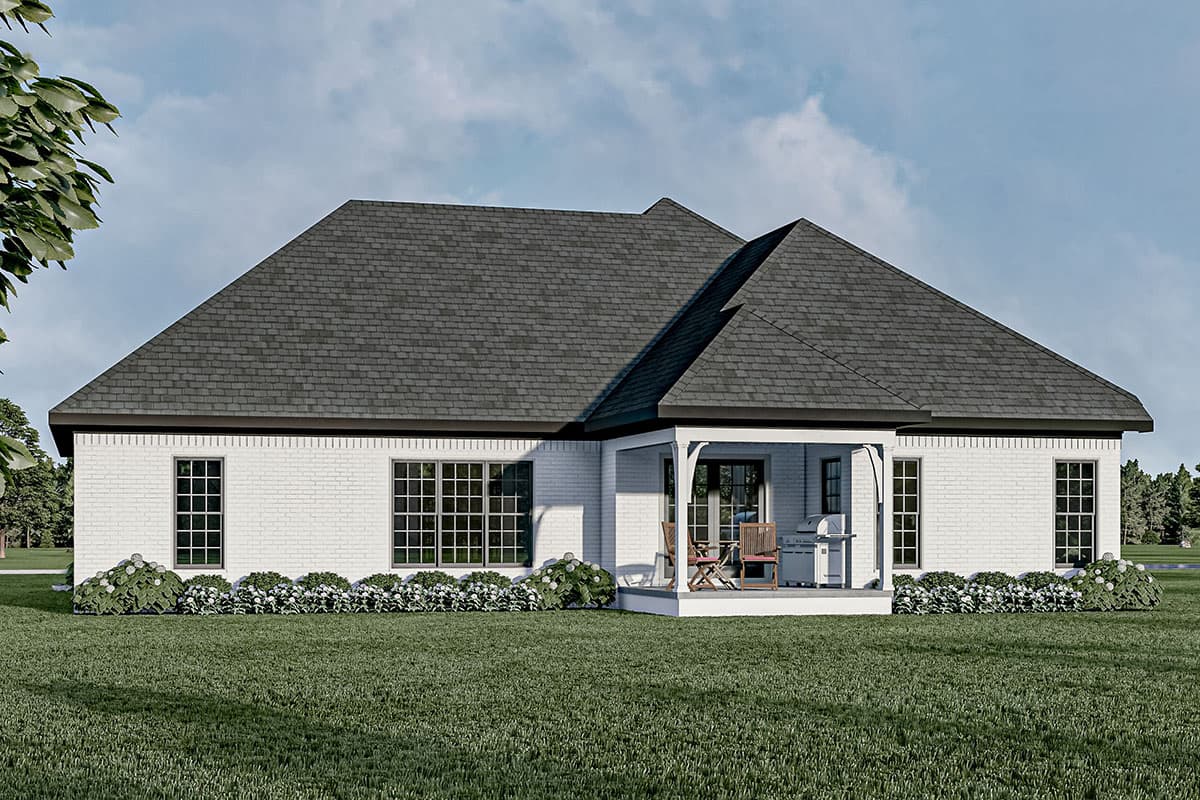

  • A spacious great room with fireplace and backyard view blends with the kitchen and breakfast room with access to the grilling porch - creating the perfect area for entertaining.
  • Indulge yourself in the master suite and private bathroom with the relaxing whirlpool bath and privacy glass block window above.
  • An optional bonus room above the garage allows for present or future living space.
  • Related Plans: Get an all brick exterior with house plan 59299ND.
  • Get an alternate layout with house plan59650ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

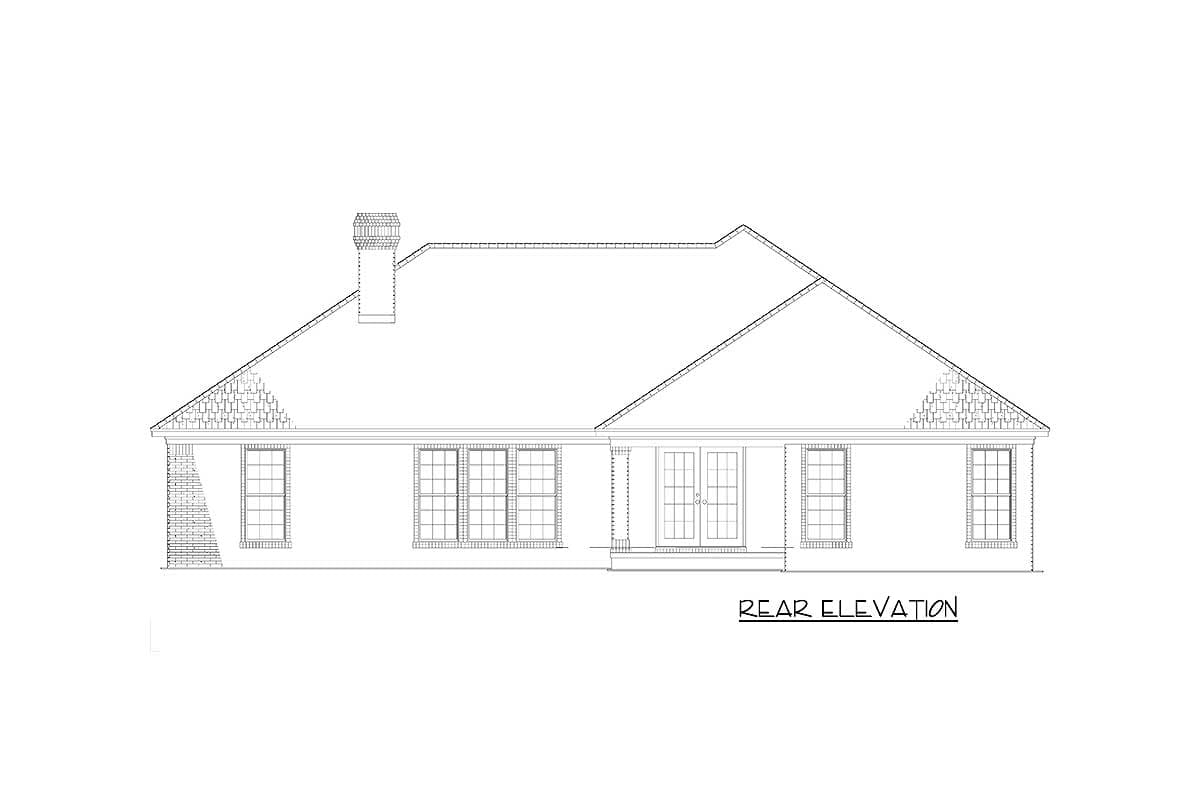

  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Plan details



Round-top Windows & Bonus Room

  • 1,848

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $670
  • 5 Sets $780
  • 8 Sets $945
  • Reproducible Set $1,450
  • PDF - single-use $1,450
  • CAD $2,235
  • View all purchase option online

About This Plan

  • Round-top windows and a sleek roofline give elegance to this home plan. This split bedroom house plan has 9' boxed ceilings and a formal dining room with columns and 10' ceiling.
  • A spacious great room with fireplace and backyard view blends with the kitchen and breakfast room with access to the grilling porch - creating the perfect area for entertaining.
  • Indulge yourself in the master suite and private bathroom with the relaxing whirlpool bath and privacy glass block window above.
  • An optional bonus room above the garage allows for present or future living space.
  • Related Plans: Get an all brick exterior with house plan 59299ND.
  • Get an alternate layout with house plan59650ND.

Floor Plans

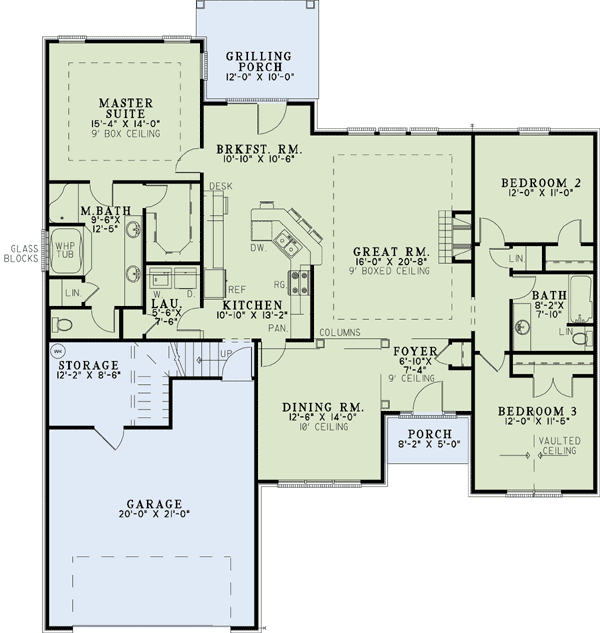

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,848 sq. ft.
  • 1st Floor: 1,848 sq. ft.
  • Porch, Rear: 120 sq. ft.
  • Porch, Front: 42 sq. ft.
  • Bonus: 331 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 55' 10"
  • Depth: 63' 10"
  • Max ridge height: 25' 8"

Garage

  • Type: Attached
  • Area: 595 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

  • European
  • Traditional

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • CAD Available
  • PDF
  • Split Bedrooms
