Rugged 3-Bed House Plan Under 2600 Square Feet

Name: Plan 64530SC: Rugged 3-Bed House Plan Under 2600 Square Feet
Brand: Architectural Designs
SKU: 64530SC
Price: 1795.0 USD
Availability: InStock

Heated S.F.

2,574

Beds

Baths

2.5

Stories

Cars

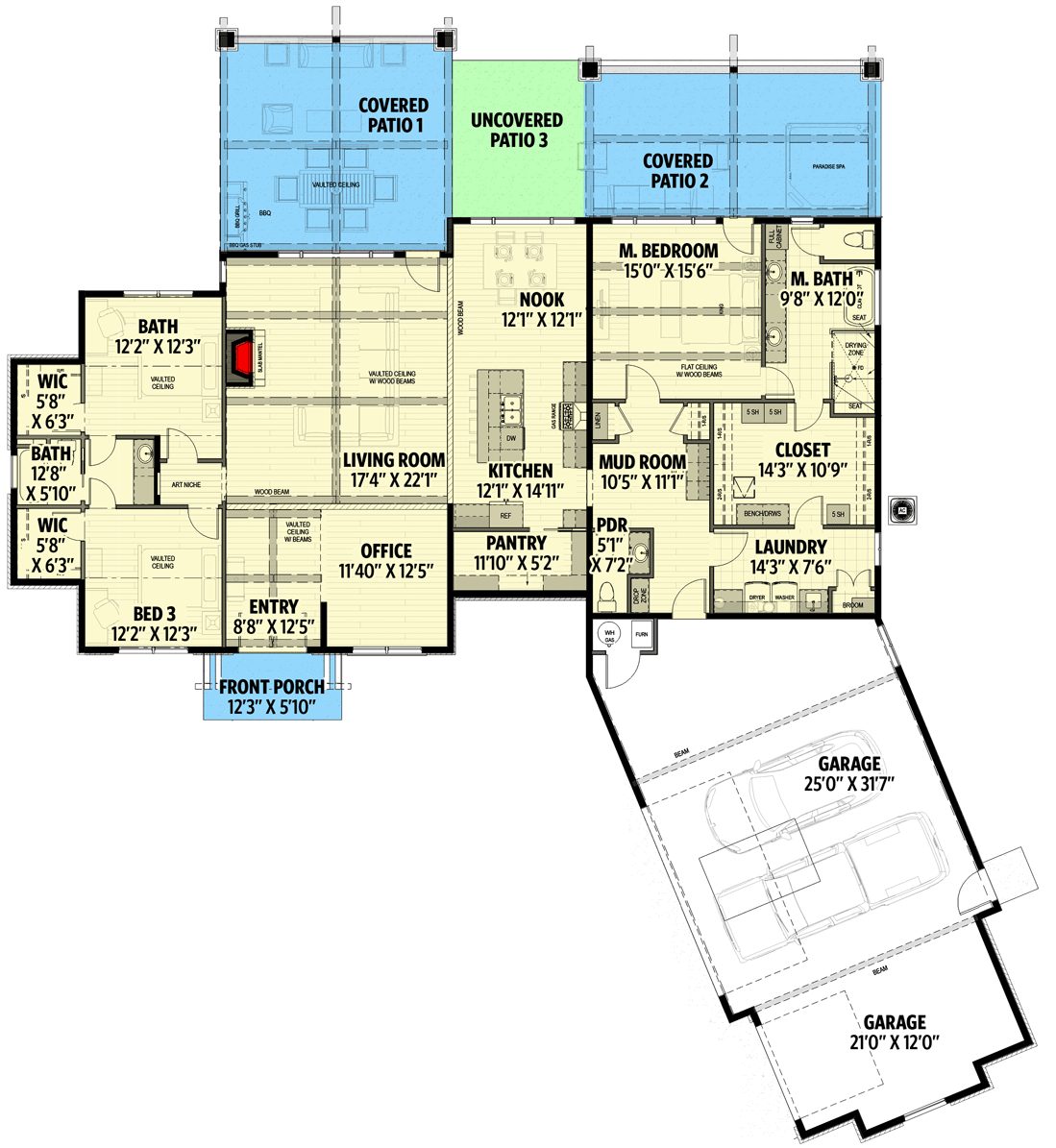

Floor Plan

Main Level

Plan Details

This rugged yet elegant looking home has all the features you would find in your local urban neighborhood or along the banks of a river with sweeping mountain views in the background.
The 3 bed 2 1/2 bath layout provides a full family room of their own, or room for many guests to share the mountain lodge. An oversized garage for plenty of storage and 3 vehicles is a must if you have the room on your site.
An open plan concept for the main living area of the home allows for an office or formal dining room, living room, breakfast nook, and kitchen with separate full pantry room.
The master bedroom is situation at the back of the home and has a large covered patio similar to the one that is access from the living room. The master suite as a whole has a 5 piece bath with more than ample counter space and a closet that is large enough to qualify for it's own zip code.

What's Included

Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
Upper Level Plan (if needed) - same information as Main Level.
Roof Plan - layout with pitch markers, dimensions and notes.
Main Level Electrical Plan - electrical outlets, switches and light locations shown.
Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
