Rugged Craftsman Home Plan with Spectacular Rear Deck

Plan 95048RW

3,446
Heated s.f.
3-5
Beds
2.5 - 5.5
Baths
2
Stories
3
Cars

This Craftsman-style home plan has 10' ceilings which make it feel even larger than its 3,446 square feet of heated living area suggest.
In the home office the ceiling vaults up to 13' high.
Walls of glass along the back of the home overlook the spacious covered rear deck with its outdoor fireplace.
In the master suite, sliding glass doors take you to an uncovered deck where you can catch the sun.
Corner windows frame the kitchen sink offering beautiful views outside.
On the second floor, two large bedrooms each have a walk-in closet and a shared bathroom.
The play room on this level features a covered deck.
Finish the optional lower level and gain two more bedrooms, a home theater and a massive family room with wet bar.

This plan has 11 sheets as follows:

Cover page with details

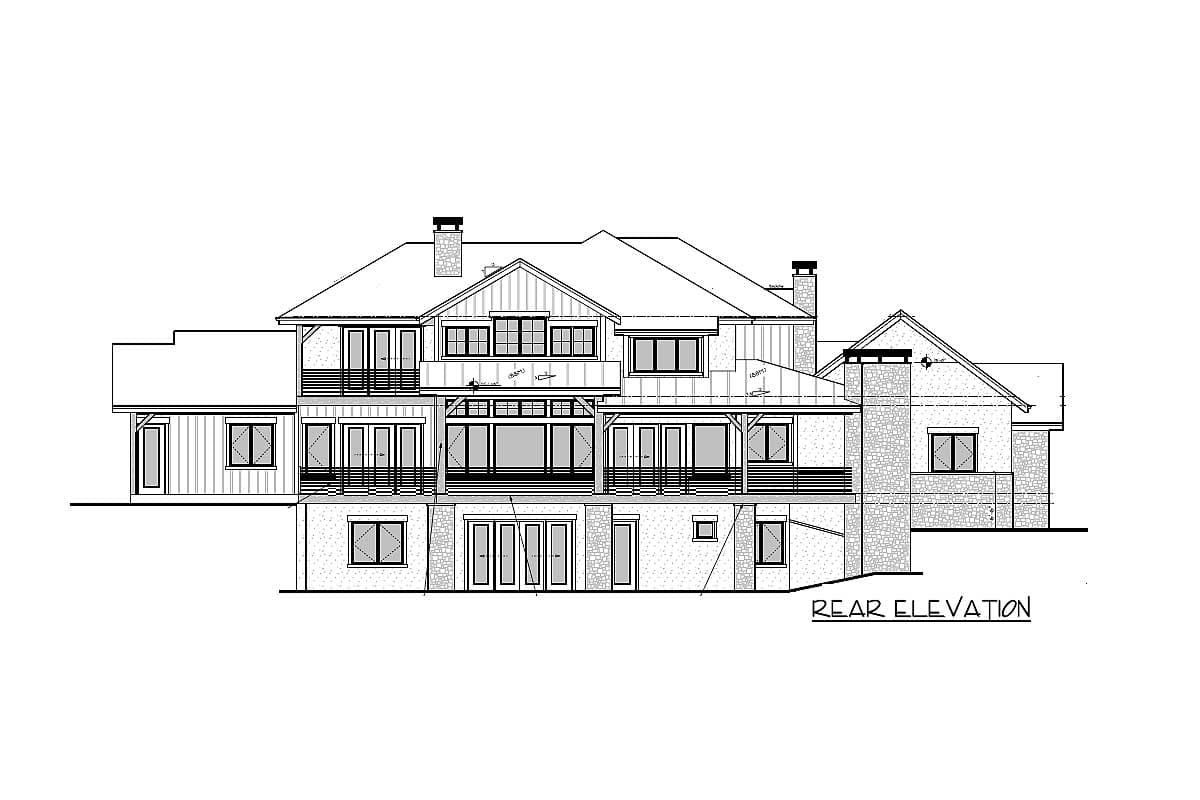

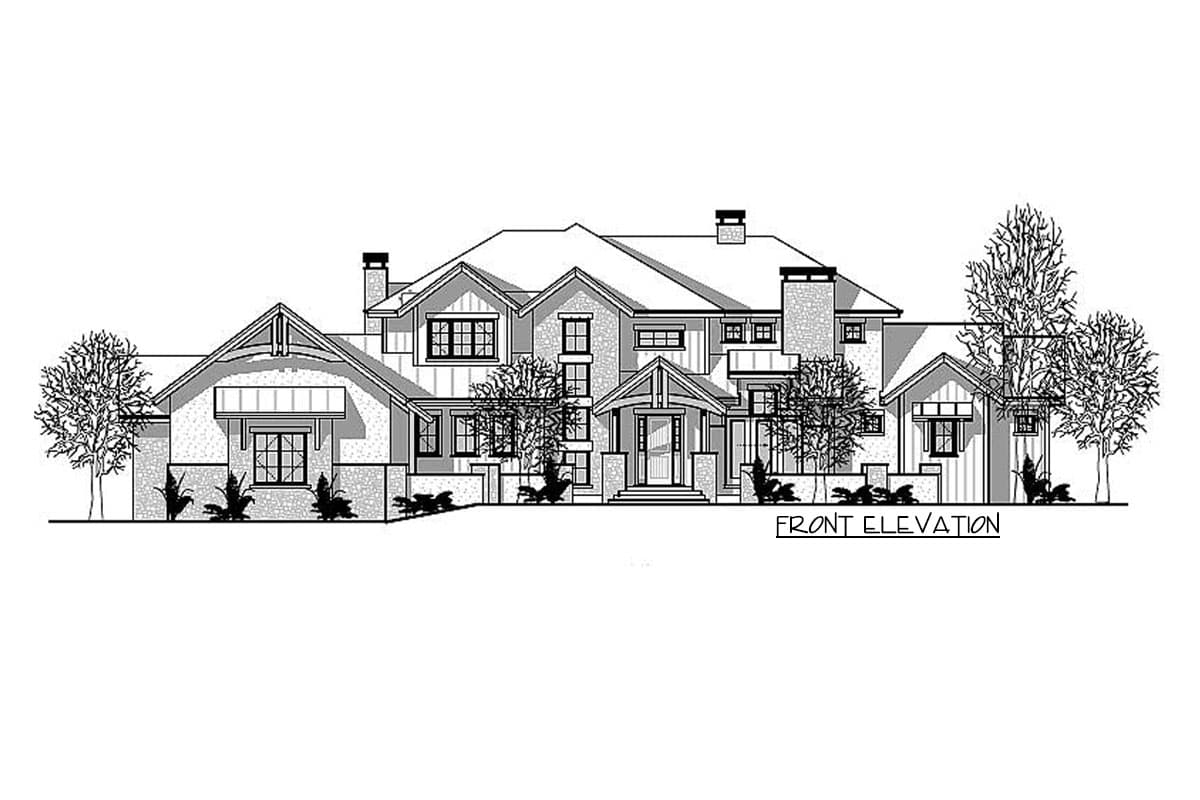

Front and back elevations
Left and right elevations
Lower floor plan and typical wall section
Main floor plan
Upper floor plan
Foundation plan
Floor framing plan
Roof plan
Main floor electrical
Lower and upper floor electrical

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

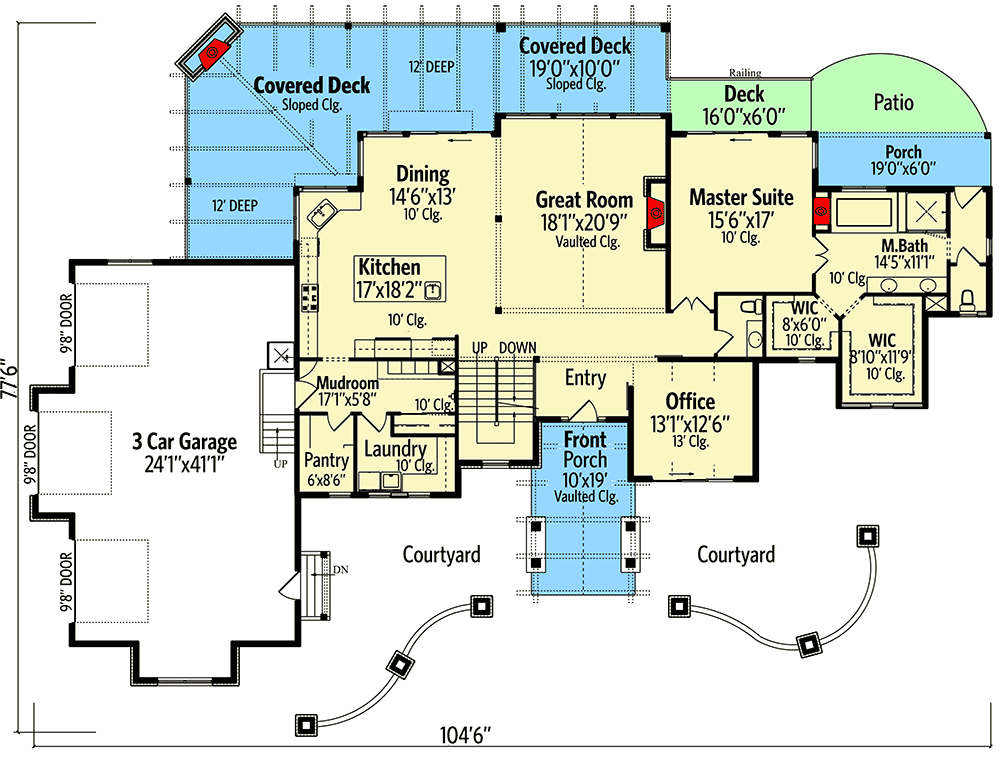

Rugged Craftsman Home Plan with Spectacular Rear Deck - 95048RW floor plan - Main Level

Second Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

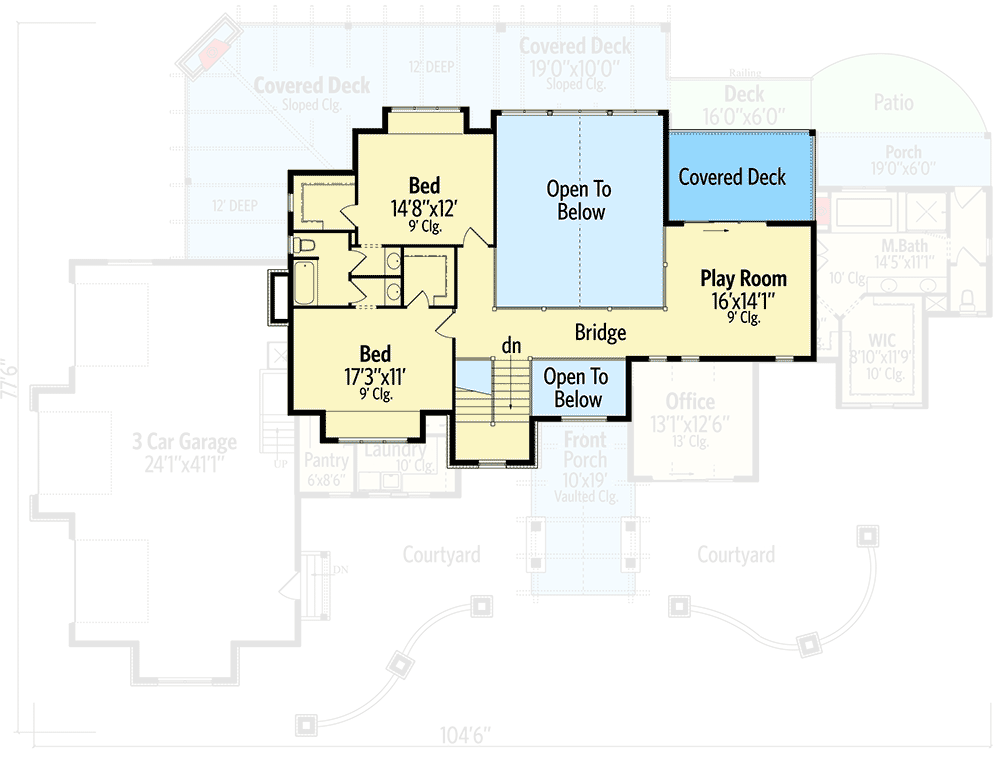

Rugged Craftsman Home Plan with Spectacular Rear Deck - 95048RW floor plan - Second Level

Optional Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

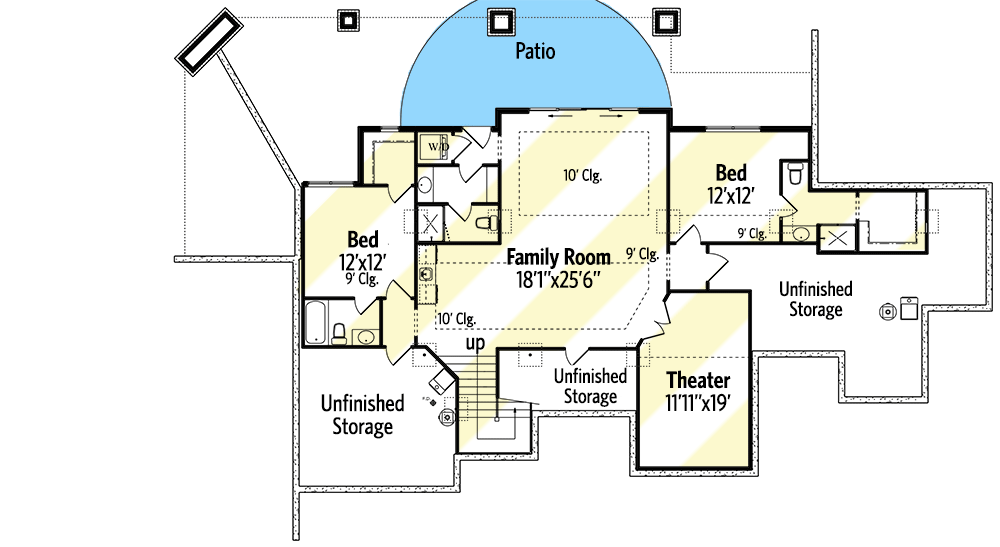

Rugged Craftsman Home Plan with Spectacular Rear Deck - 95048RW floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 3,446 sq. ft.
1st Floor: 2,404 sq. ft.
2nd Floor: 1,042 sq. ft.

Deck & Porch: 1,585 sq. ft.
Optional Lower Level: 1,562 sq. ft.
Basement Unfinished: 842 sq. ft.

Beds/Baths

Bedrooms: 3, 4, or 5

Full bathrooms: 2, 3, 4, or 5
Half bathrooms: 1

Foundation Type

Standard Foundations: Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 104' 6"
Depth: 77' 6"
Max ridge height: 30' 0"

Garage

Type: Attached
Area: 1144 sq. ft.
Count: 3 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 7 on 12
Secondary Pitch: 9 on 12

Architectural Style

Special features

Plan Collections
