Plan 72937DA
Rugged Craftsman Ranch Home Plan with Angled Garage - 2652 Sq Ft
Heated S.F.
2,652
Beds
3
Baths
2.5
Stories
1
Cars
2
Plan Details
  • The modern ranch house plans has a rugged exterior with Craftsman detailing and great curb appeal.
  • That rugged Craftsman feeling continues inside the house with a tall entry leading into a vaulted great room with large hearthed fireplace and built-in entertainment center.
  • The long kitchen lines the side of the great room and includes an island with a built-in stovetop and a breakfast nook. Off to the side of the kitchen is a formal dining room. These spaces are defined, yet open, making the space great for a sense of togetherness or entertaining.
  • The left side of the house has the bedrooms, mudroom, and office.
  • The owners' suite offers a little luxurious getaway with a large soaking tub and an impressive walk-in shower.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

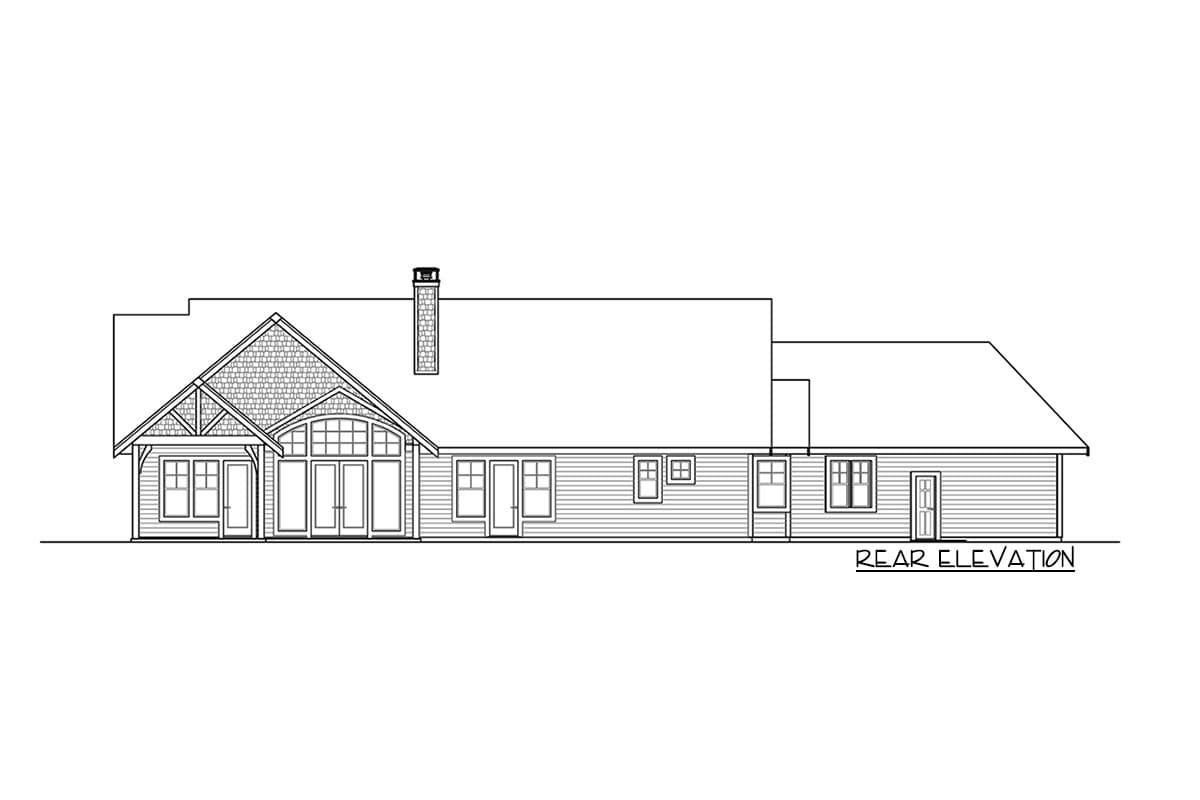

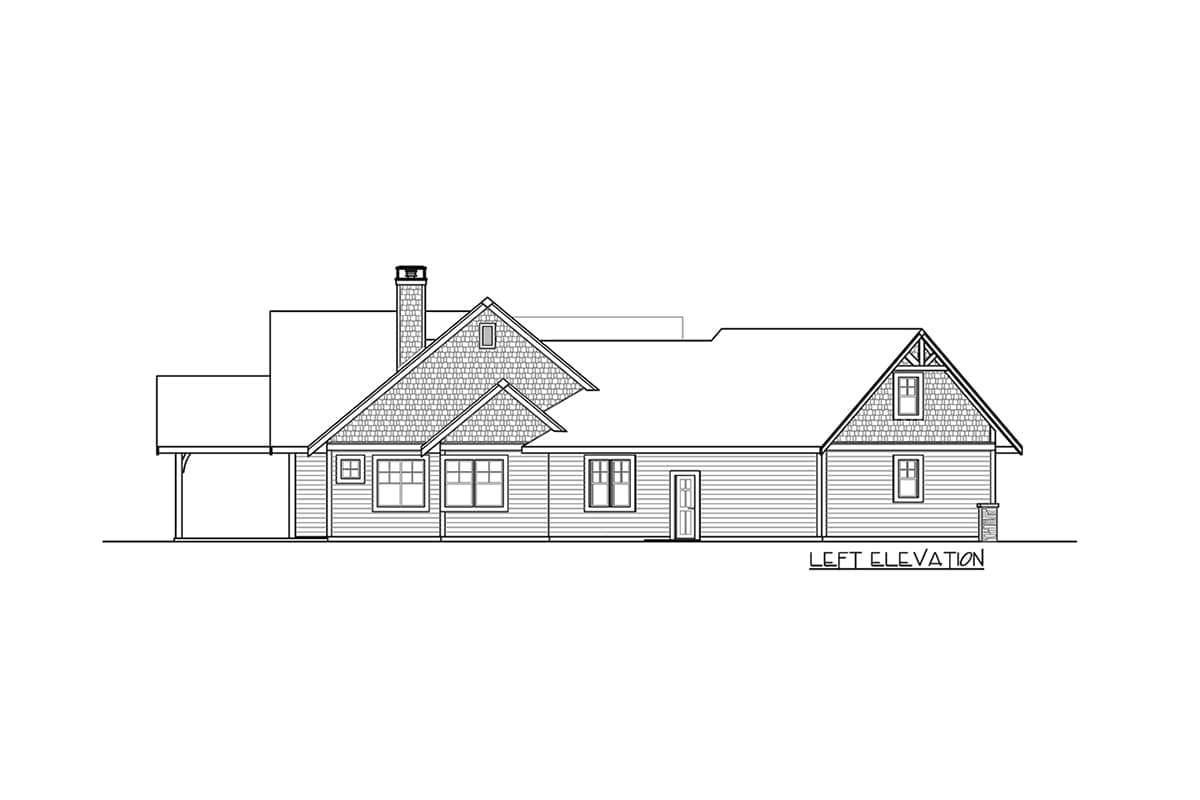

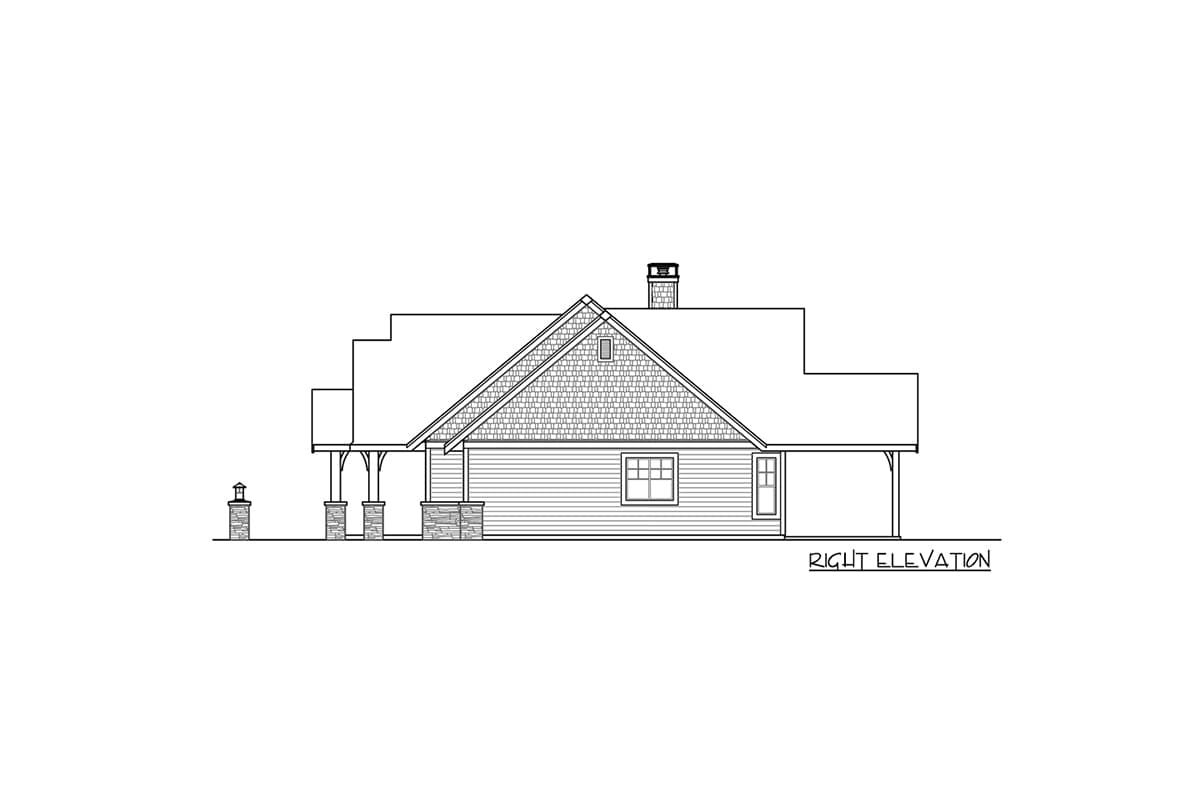

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Rugged Craftsman Ranch Home Plan with Angled Garage - 2652 Sq Ft

  • 2,652

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

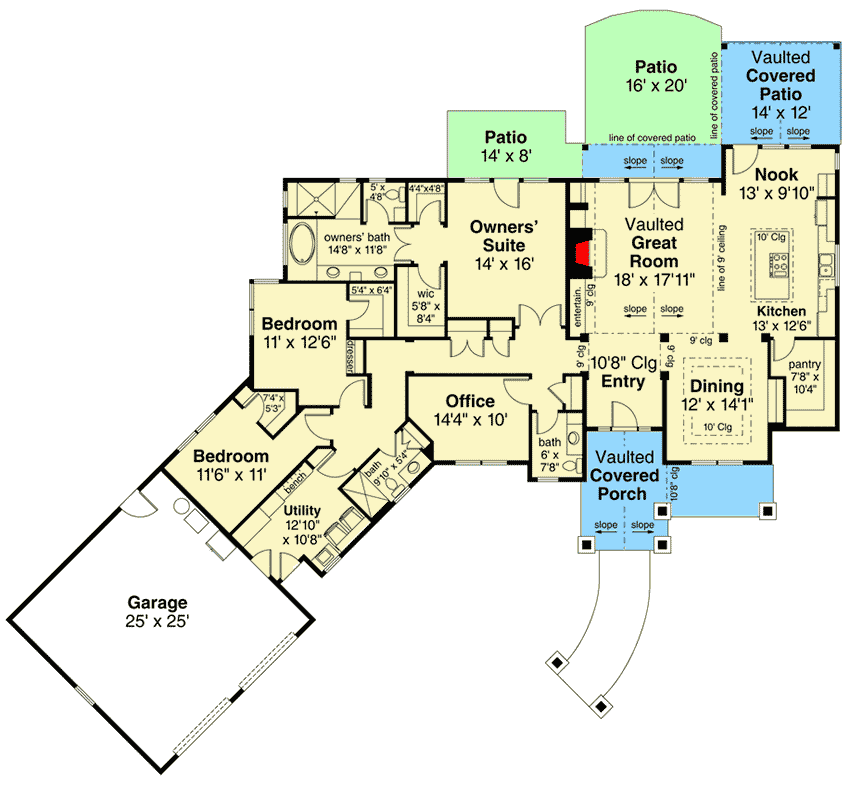

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,652 sq. ft.
  • 1st Floor: 2,652 sq. ft.

Dimensions

  • Width: 98' 11"
  • Depth: 86' 10"
  • Max ridge height: 25' 11"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 666 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 10 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site
