Rugged Craftsman With Drop-Dead Gorgeous Views In Back

Plan 64457SC

  • 2,459

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

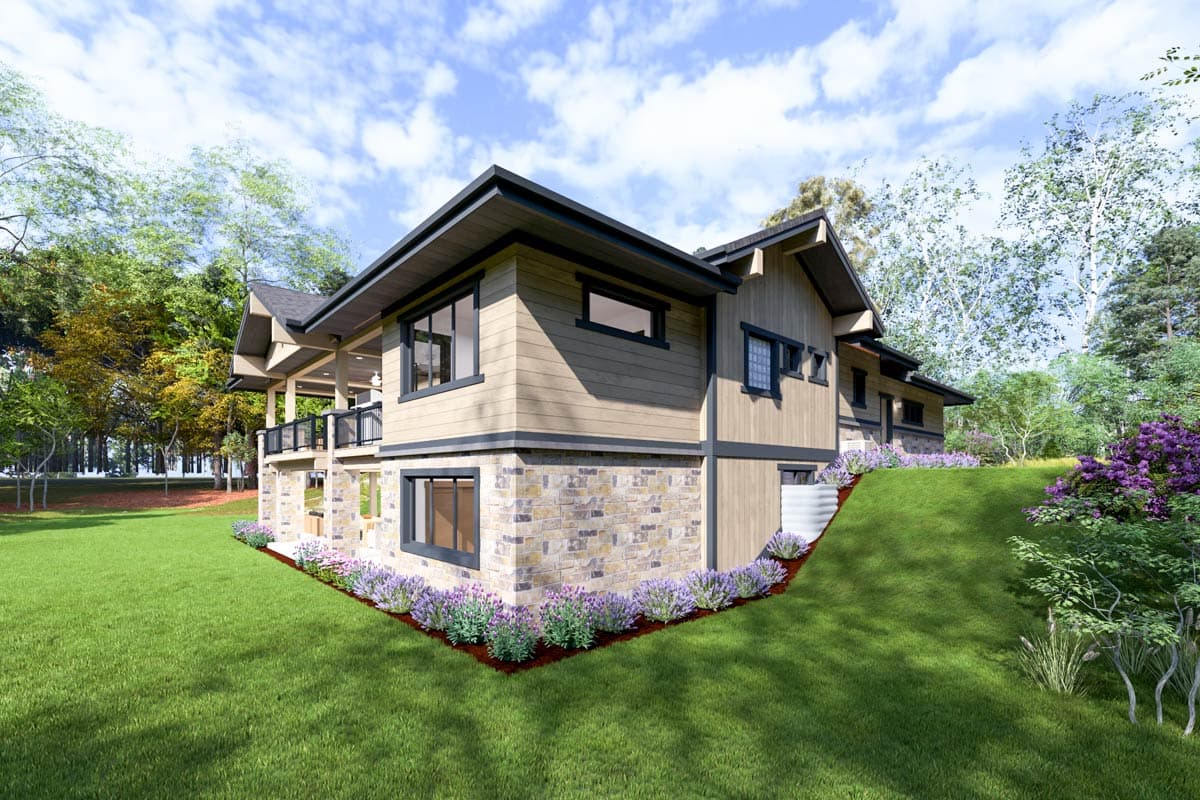

  • A very open concept with great views out the back and at an angle with the stepping back in plan of the exterior walls.
  • Three bedrooms or two and an office on the main floor, and plenty of bedroom options on the basement level.
  • The master suite is tied directly to the laundry for a very convenient work flow.
  • With the master bedroom being tucked quietly away on one side of the home, entertaining and resting can happen simultaneously without worries.

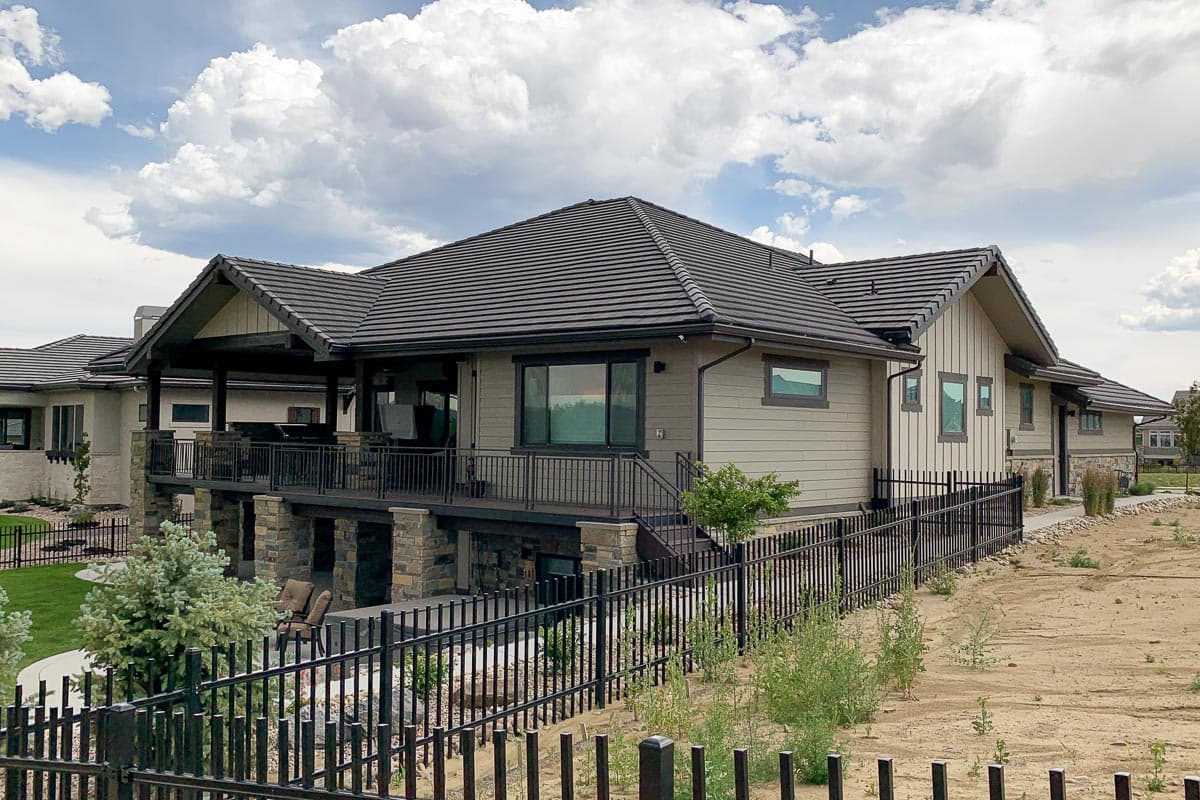

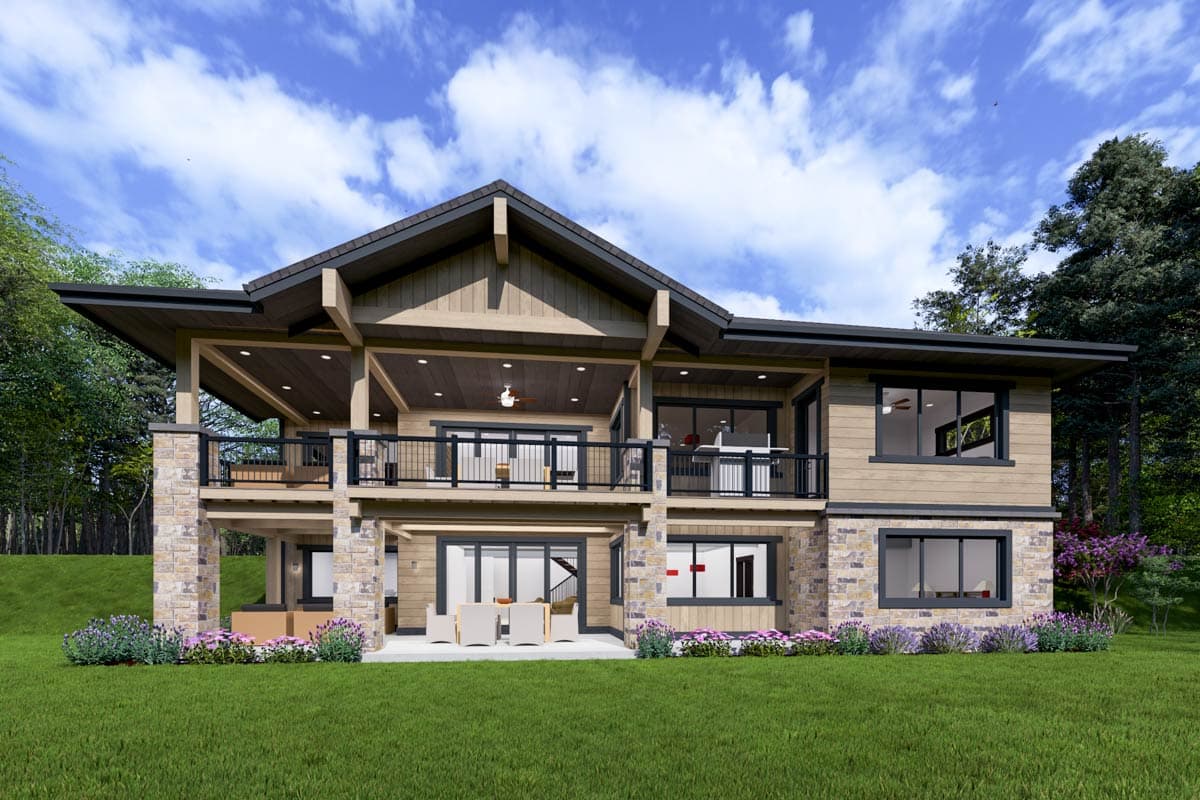

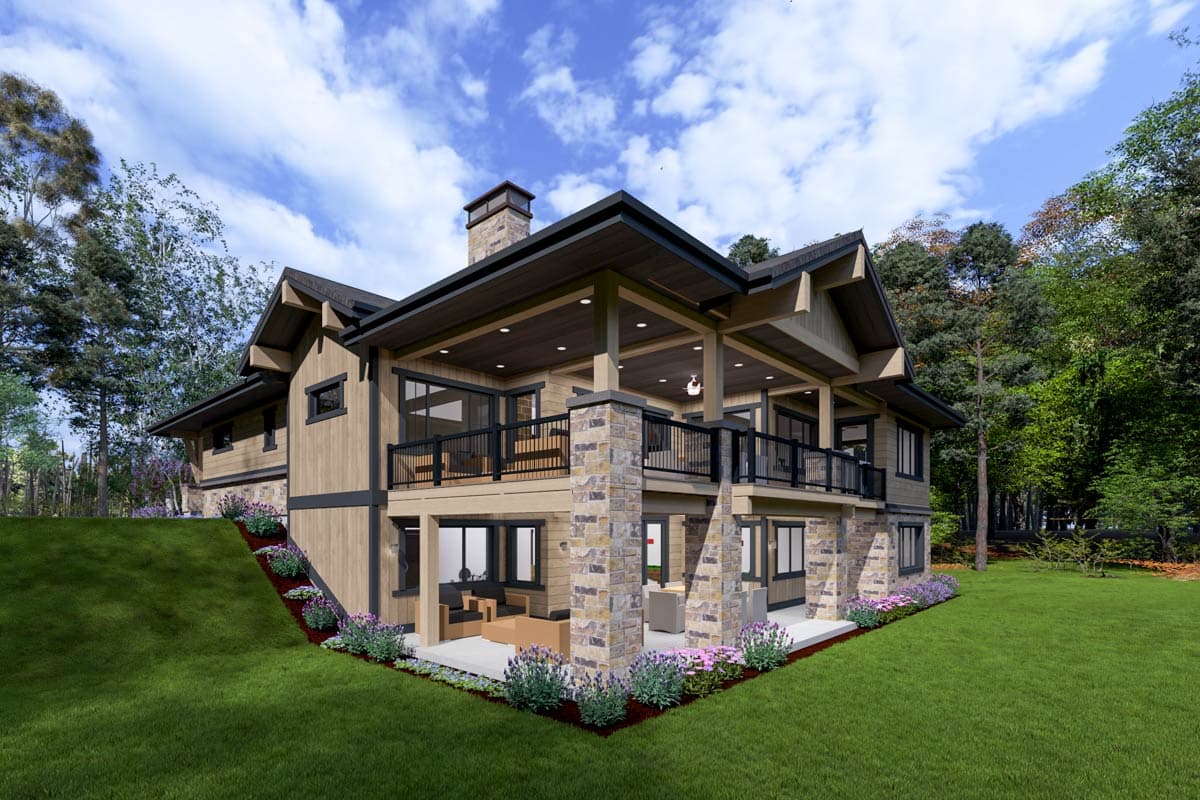

  • The very large covered deck is the perfect place to take in the view or get some fresh air and with large double doors from the living room, the combination of the two spaces is an entertainers dream.
  • Related Plan: Get a version with a 1-car garage with house plan 64475SC.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

This plan includes the following details:

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

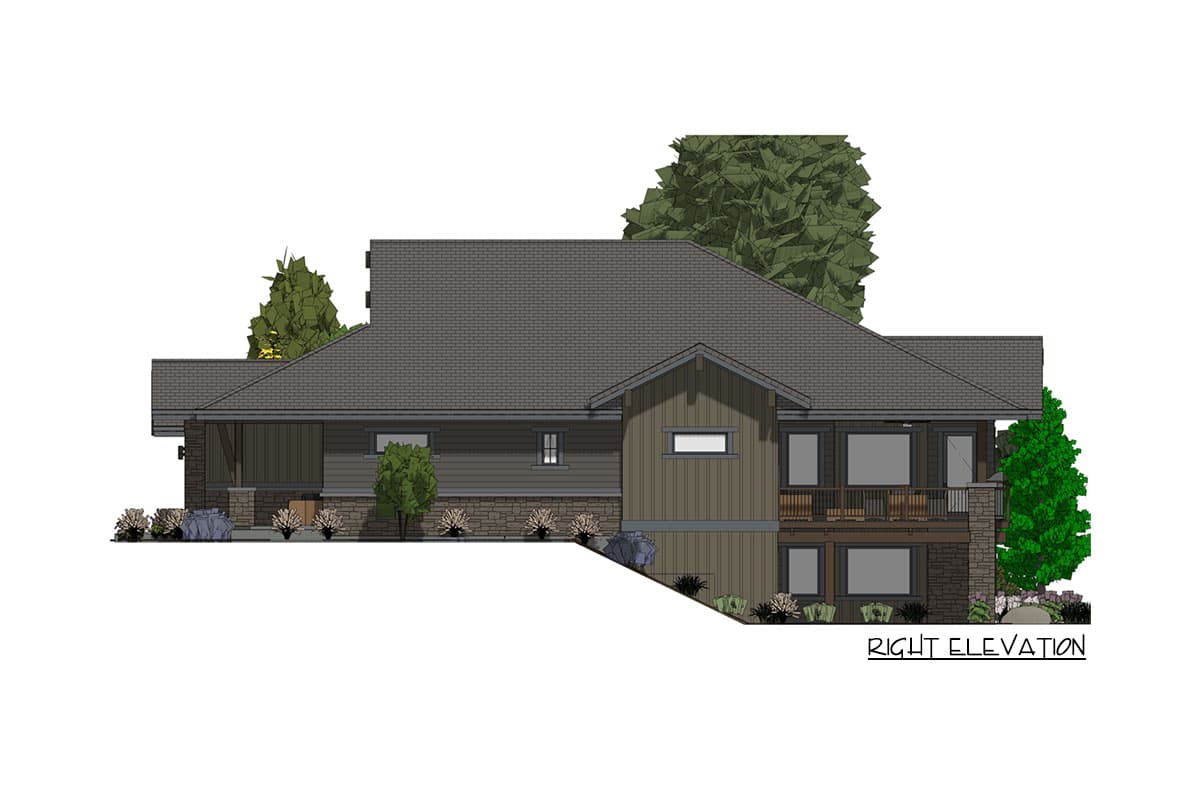

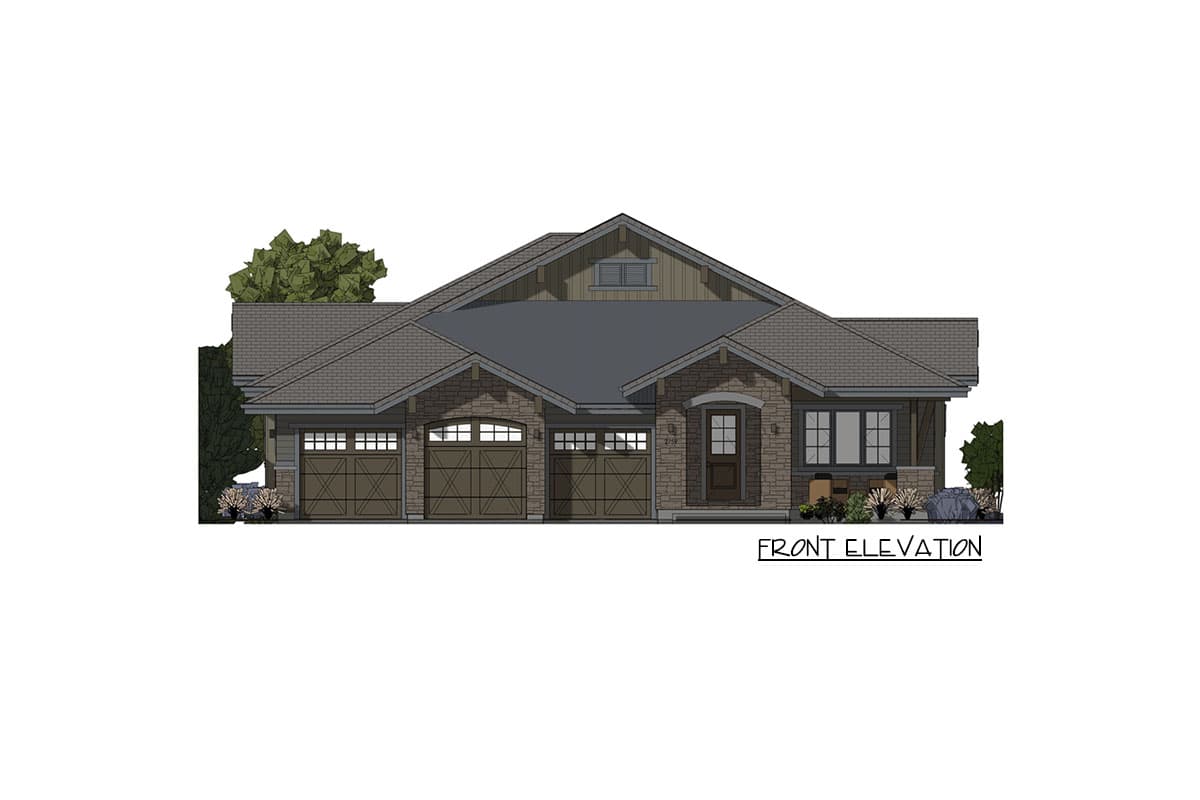

  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

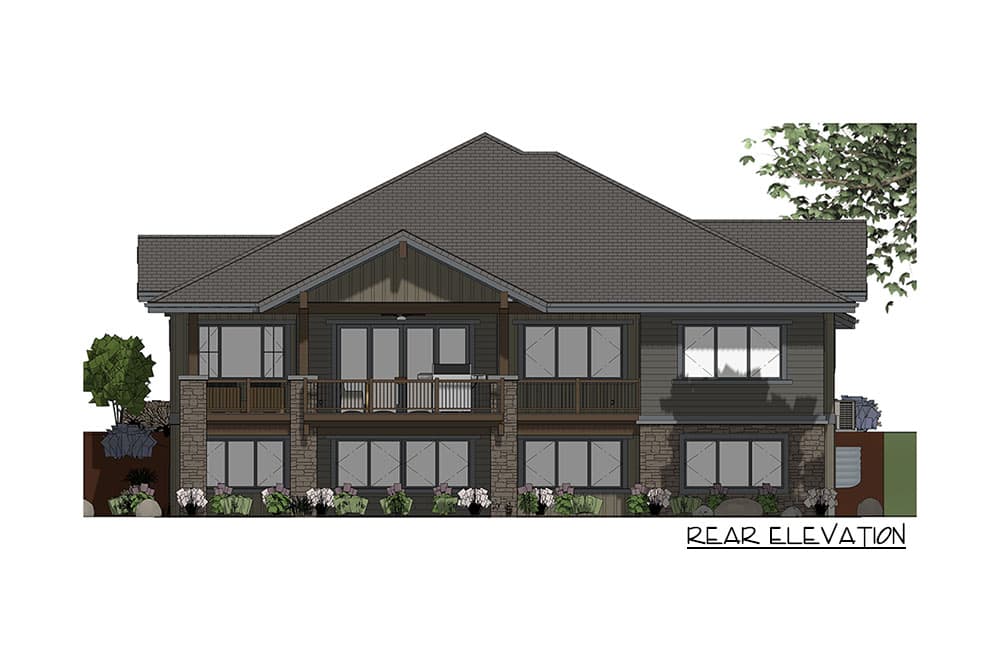

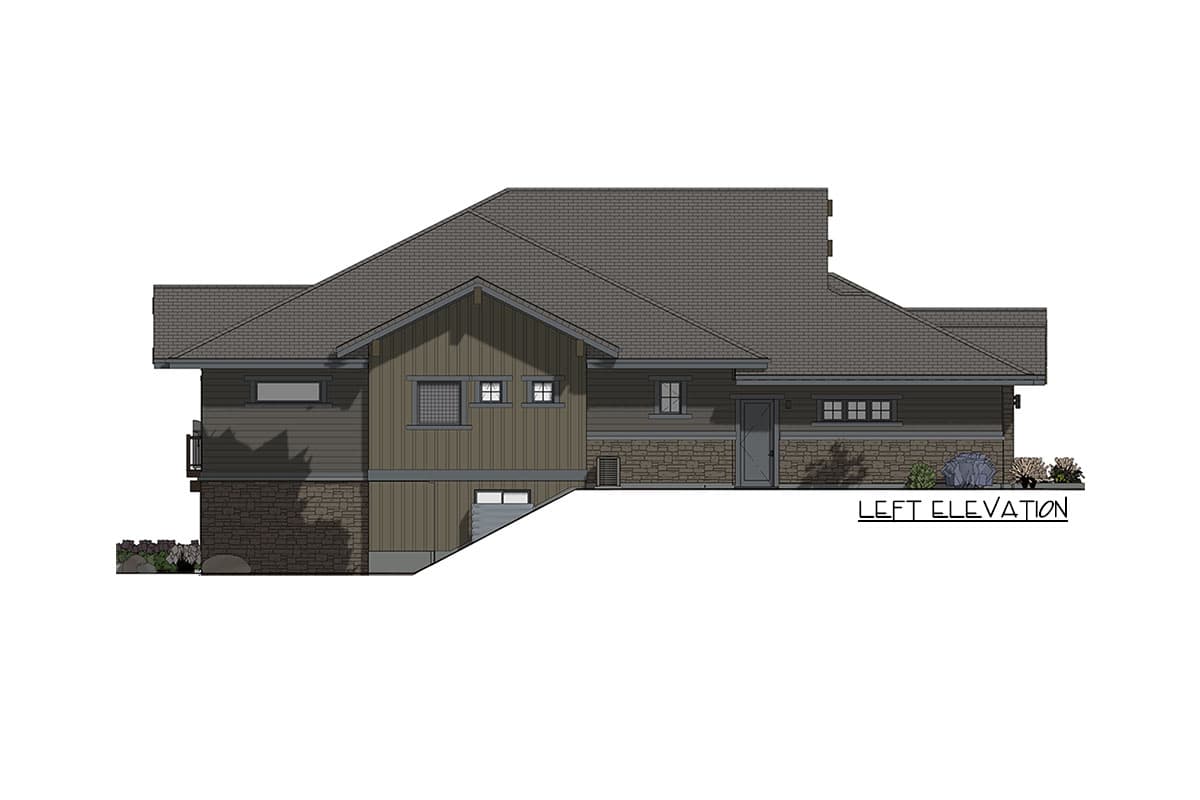

  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

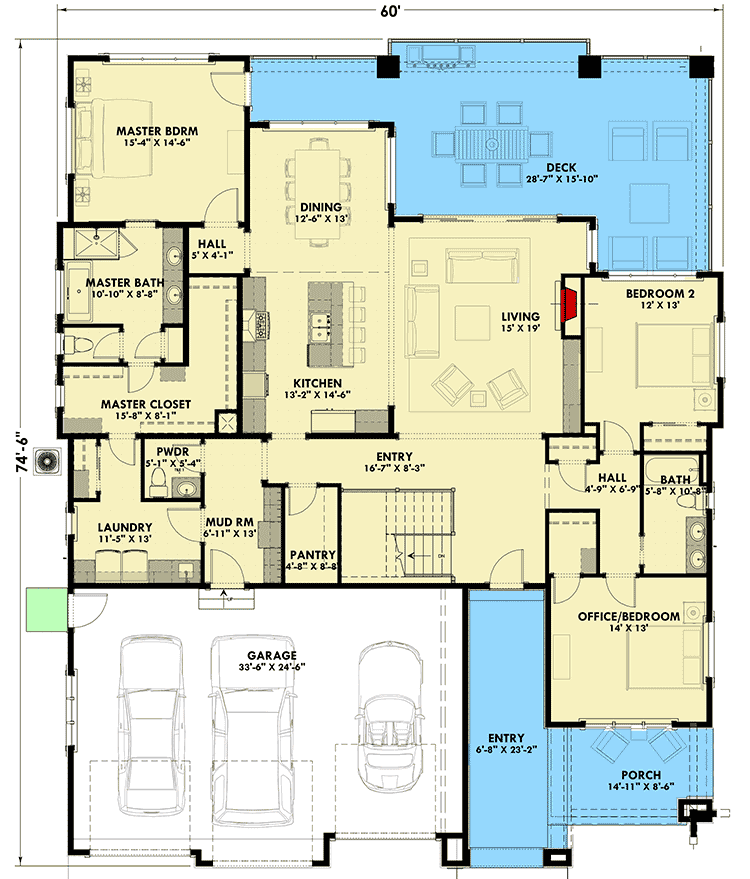

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Rugged Craftsman With Drop-Dead Gorgeous Views In Back - 64457SC floor plan - Main Level

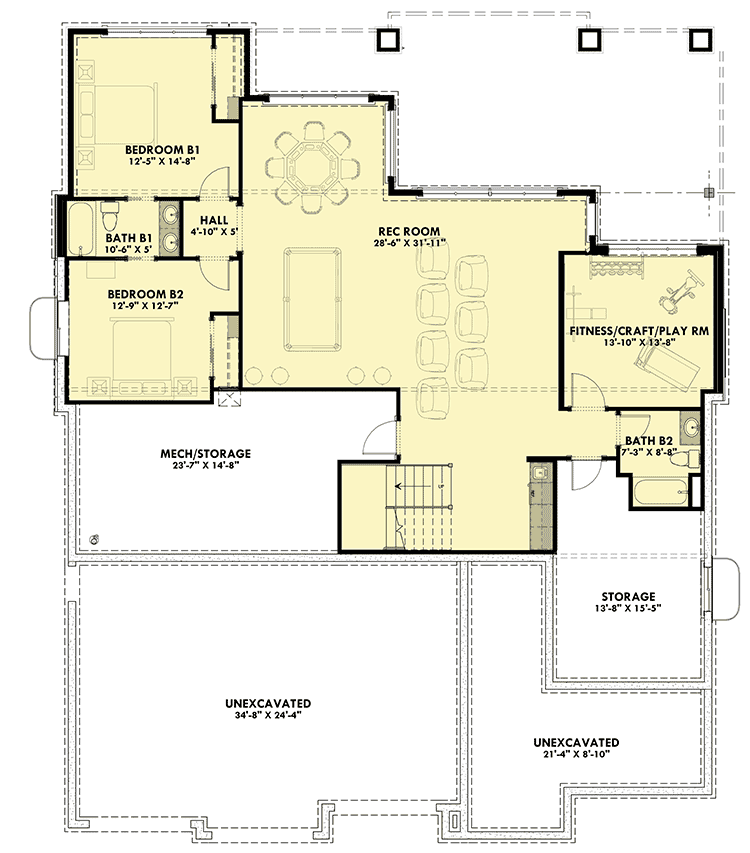

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Rugged Craftsman With Drop-Dead Gorgeous Views In Back - 64457SC floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,459 sq. ft.
  • 1st Floor: 2,459 sq. ft.
  • Deck: 555 sq. ft.
  • Porch, Front: 283 sq. ft.
  • Optional Lower Level: 1,795 sq. ft.
  • Basement Unfinished: 600 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Basement, Daylight, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 74' 6"
  • Max ridge height: 25' 4"

Garage

  • Type: Attached
  • Area: 813 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Rugged Craftsman With Drop-Dead Gorgeous Views In Back

  • 2,459

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,459 sq. ft.
  • 1st Floor: 2,459 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 74' 6"
  • Max ridge height: 25' 4"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 813 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement, Daylight, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick And Truss
