Rugged Mountain Plan With Great Outdoor Spaces

Plan 26710GG

  • 3,207

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 2

    Cars

  • The rugged exterior of this Mountain home plan hides a refined interior with great spaces and great looks.
  • The spacious foyer opens up to the family room with a 19'9" vaulted ceiling, exposed beams and a fireplace. This opens to the screened porch which carries the same vaulted ceiling outdoors.
  • The master is on the main floor and has deck access, his and hers walk-ins and a great master bath.
  • Use the office as bedroom 2 if desired since it has a full bath and closet.
  • The kitchen has commanding views to the family room and the eating room which has a vaulted ceiling with a 11'5" peak.
  • The finished lower level gives you two more bedrooms plus a den and outdoor access. You also get a huge mechanical/storage room plus a workshop with outdoor access.
  • Related Plan: Gain an upper floor with two more bedrooms with house plan 26706GG.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations (when available)

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Main Level

Pinit white
Reverse Floor Plan

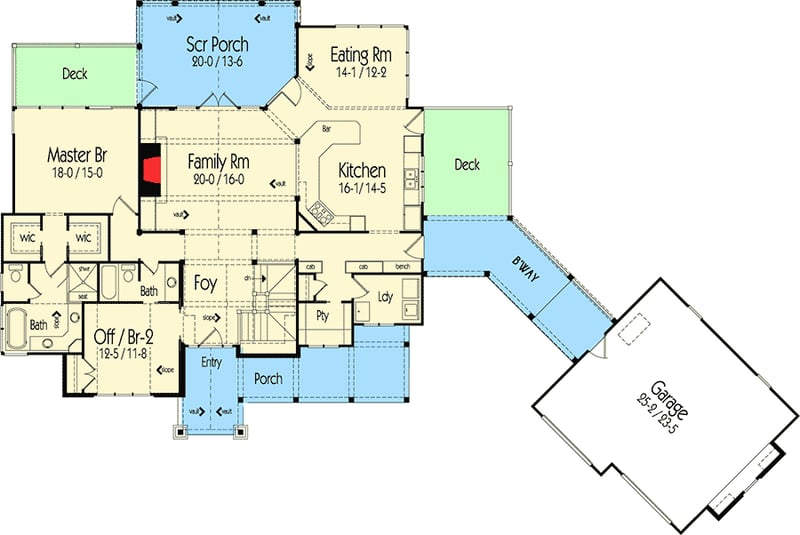

Rugged Mountain Plan With Great Outdoor Spaces - 26710GG floor plan - Main Level

Lower Level

Pinit white
Reverse Floor Plan

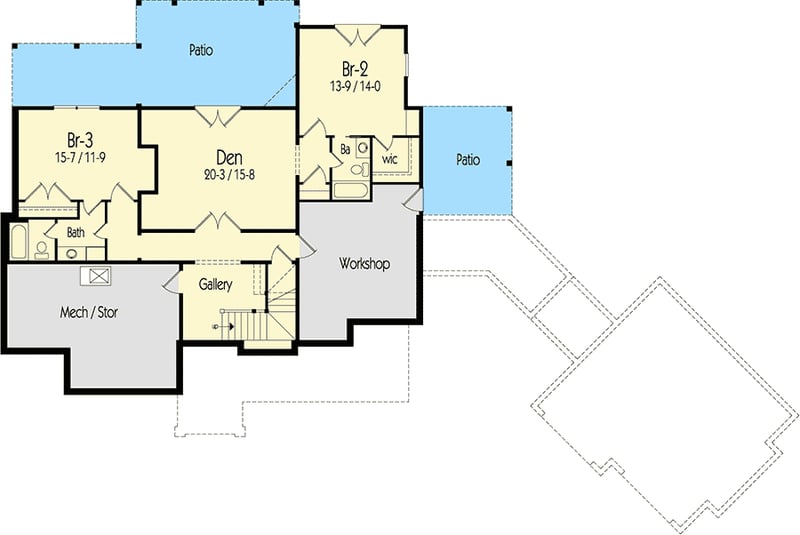

Rugged Mountain Plan With Great Outdoor Spaces - 26710GG floor plan - Lower Level
