Plan 70830MK
Rustic 2-Family Home Plan with Matching Units Under 1500 Square Feet
Heated S.F.
2,922
Units
2
Width
76' 4"
Depth
44' 6"
What's Included
Plan Details
  • This rustic duplex house plan gives you matching units with beds located on the outside walls with a 2-story great room.
  • The upstairs is dedicated to the master suite.
  • Each unit gives you 3 beds, 2 baths and 1461 square feet of finished living space (1070 sq. ft. on the main floor and 391 sq. ft. on the second floor).
  • Related Plan: Get an alternate version with house plan 60647ND.
Unit A
1,461 Sq. Ft.
1070 Sq. Ft. 1st Floor
391 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
None
38' w 44' d 22' h
Unit B
1,461 Sq. Ft.
2140 Sq. Ft. 1st Floor
391 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
None
38' w 44' d 22' h
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Rustic 2-Family Home Plan with Matching Units Under 1500 Square Feet

  • 2,922

    Heated s.f.

  • 2

    Units

  • 76' 4"

    Width

  • 44' 6"

    Depth

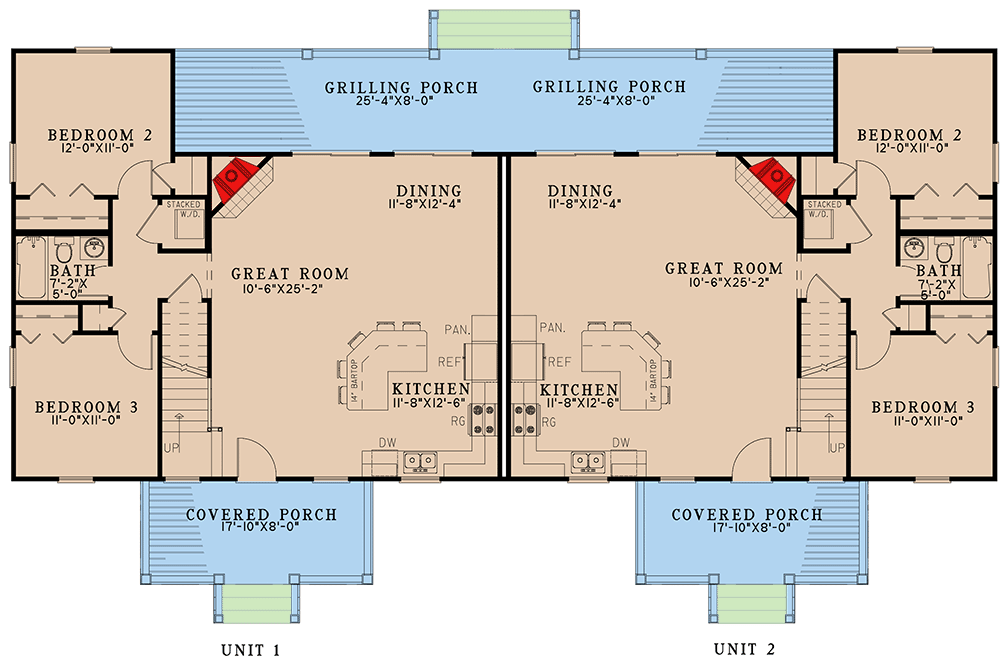

Floor Plan

  • Main Level

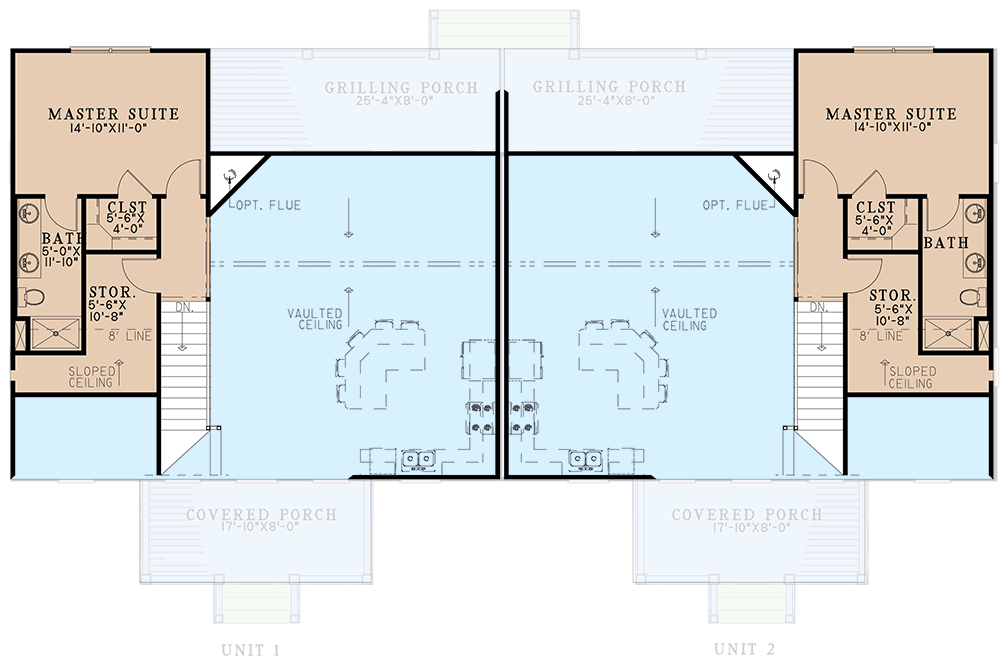

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,922 sq. ft.
  • 1st Floor: 2,140 sq. ft.
  • 2nd Floor: 782 sq. ft.

Dimensions

  • Width: 76' 4"
  • Depth: 44' 6"
  • Max ridge height: 22' 8"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
