Plan 70614MK
Rustic 4-Bed House Plan with Loads of Outdoor Space in Back - 2860 Sq Ft
Heated S.F.
2,663
Beds
4
Baths
3
Stories
2
Cars
1
Floor Plan

Plan 70614MK

Main Level
slide image 0
2nd Floor
slide image 1

Plan 70614MK

1-800-854-7852

1-262-521-4596

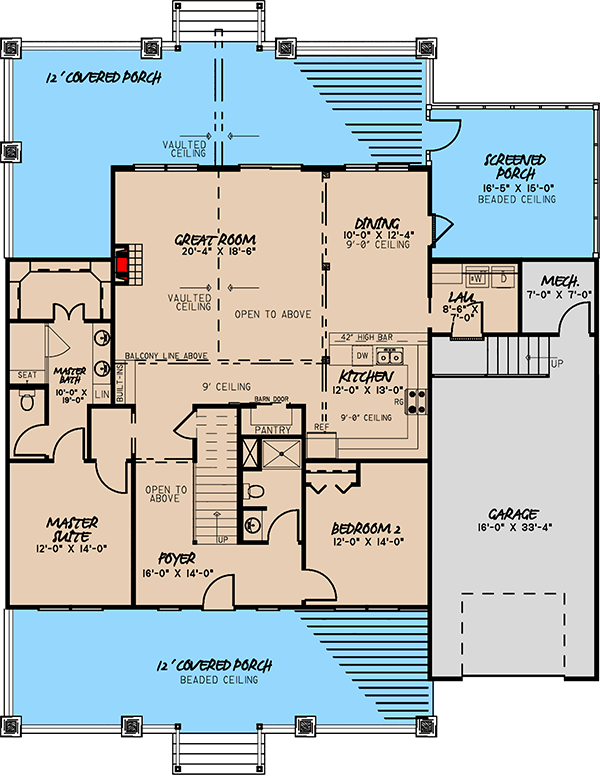

Main Level
floor plan image Main Level

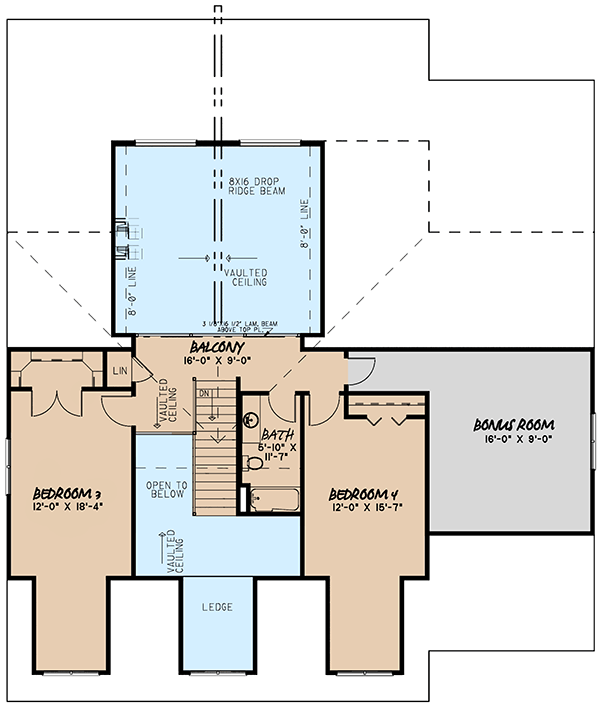

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Rustic design is perfectly displayed in this 4-bed house plan. The large front porch, dormers and stone skirt columns all add to the rustic curb appeal.
  • The foyer leads you to the vaulted great room with a vaulted ceiling, a cozy fireplace and a great view out the back of the home to the covered wrap around back porch. It is open to the dining room and kitchen each of which have flat ceilings.
  • The master suite occupies the entire left side of the home. The suite comes complete with a dual sink vanity, a large walk-in shower and large walk-in closet.
  • Upstairs, two bedrooms share a hall bath. An overlook gives you views to the great room and the foyer. The bonus room gives you 338 square feet of expansion space.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,663 sq. ft.

1st Floor

1,780 sq. ft.

2nd Floor

883 sq. ft.

Porch, Combined

1,336 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

58' 0"

Depth

67' 4"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

610 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage
