Plan 12910KN

Rustic Carriage House Apartment

Heated S.F.

1,160

Beds

1

Baths

1

Stories

2

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

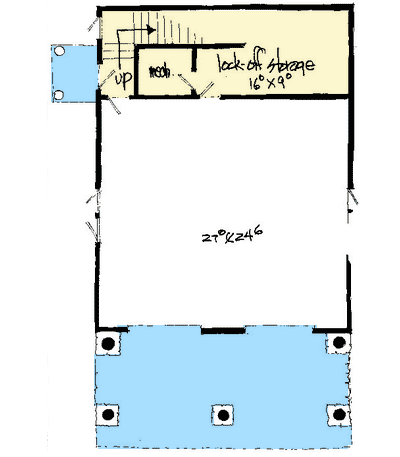

Rustic Carriage House Apartment - 12910KN floor plan - Main Level

2nd Floor

Reverse Floor Plan

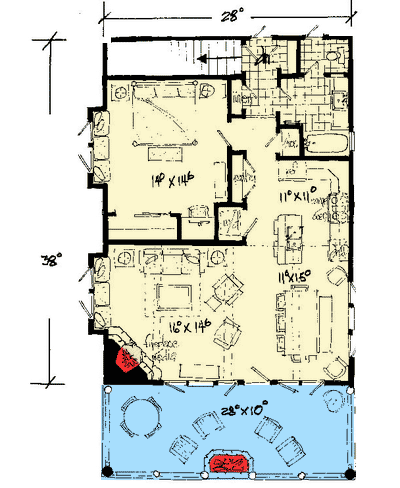

Rustic Carriage House Apartment - 12910KN floor plan - 2nd Floor

Plan Details

Log siding and wood shakes give this Carriage House apartment plan its rustic look.
The 2 car garage section has a locked-off storage room for all your valuables.
Upstairs, the L-shaped living area is open concept to promote views from room to room.
The large bedroom has a box bay window for a charming window seat.
The bathroom has a large vanity sink and there is a stack washer/dryer closet off the hall.

What's Included

Floor plans at ¼" scale
All exterior elevations at ¼" scale
Roof plan at ¼" scale
Building sections at ¼" scale
Completed foundation plan at ¼" scale
Completed floor/roof framing plan at ¼" scale
Building height profiles at ¼" scale
Door and window schedules
General construction notes and building schedules
Exterior finish schedule
Architectural details
Construction details for cabinets, interior built-ins and stairs
Designations for all floor, wall and ceiling surfaces
Details and specifications for all ceiling treatments
All square footage calculations

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

1,160 sq. ft.

1st Floor:

135 sq. ft.

2nd Floor:

1,025 sq. ft.

Beds/Baths

Bedrooms:

1

Full bathrooms:

1

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

28' 0"

Depth:

48' 0"

Garage

Type:

Drive Under

Area:

662 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Architectural Style

Special Features

Laundry - Main Level

Master Suite - 2nd Floor
