Rustic Cottage in Multiple Versions

Plan 2513DH

  • 864

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • This rustic cottage with generous sized front porch is perfect for a vacation getaway, small family, or a retired couple.
  • The great room and large living/dining area shares a snack bar with the kitchen where there is no shortage of storage with ample cabinets and a pantry.
  • Bedrooms 1 and 2 conveniently share a large bathroom.
  • A dedicated laundry room is conveniently tucked in the back of the home plan.
  • Related Plans: Get an alternate exterior with house plans 25012DH, 25013DH, 25037DH and 2546DH. Get more room with house plan 2561DH (1,007 sq. ft).

Each plan set includes the following:

  • Floor plans - Included with your plans will be a detailed floor plan at 1/4" scale with a window and door schedule.
  • Foundation Plan - On many of our plans we offer you options on the type of foundation. The available options for each plan are shown on the page with the plans.
  • Electrical Plan - This sheet will show the locations of all lights, receptacles, switches, etc. as well as a roof layout.
  • Exterior Elevations - Our plans include complete front, sides and rear views, as well as any special exterior details.
  • Interior Elevations of cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections, Details and Typical Specifications Sheets
  • Some plans can be ordered with a materials list for an extra change. Please check availability for this option.
  • Plumbing diagrams and HVAC plans are not available for these homes, since they are generally not needed for home construction and since each county's code will vary and a licensed plumber and/or electrician must follow the codes.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

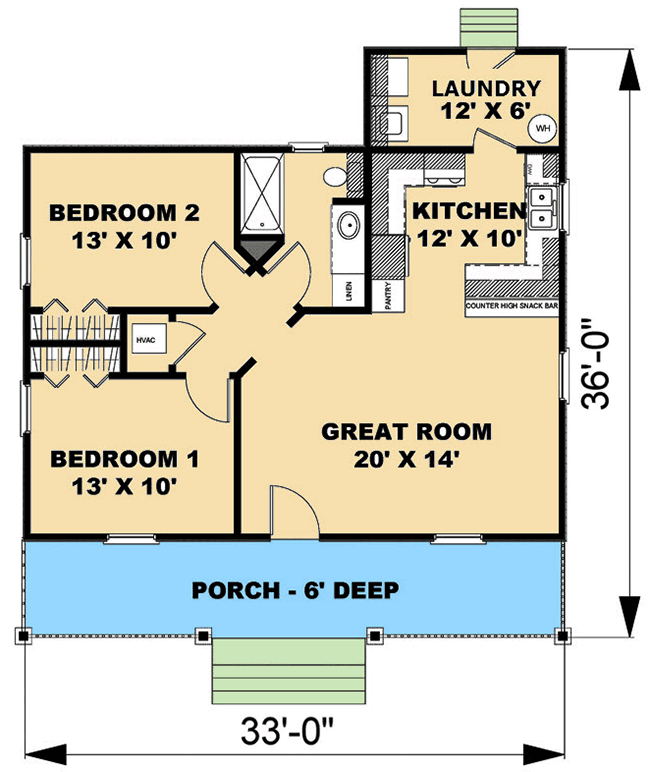

Rustic Cottage in Multiple Versions - 2513DH floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 864 sq. ft.
  • 1st Floor: 864 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Stem Wall
  • Optional Foundations: Walkout, Monolithic Slab, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 33' 0"
  • Depth: 36' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Framing Type: Truss

Architectural Style
