Rustic Cottage With Picture Window

Plan 12908KN

  • 2,687

    Heated s.f.

  • 3-5

    Beds

  • 3

    Baths

  • 2

    Stories

  • 1

    Cars

  • An attractive front porch and a bayed picture window add to the character of this rustic house plan.
  • From the front entry you have views all the way through the home.
  • The family room has a vaulted ceiling and a large fireplace.  It also has direct access to the outdoor living room.
  • The kitchen has a central location and views to the family and dining rooms.
  • The master bedroom has that that great picture window, a large walk-in closet and bath.  Tucked in the front you'll find a cozy nook.
  • Upstairs, two beds share a bath while the lower level gives you two more beds, a family room and a patio if your lot is sloping. There is also room for the mechanicals.
  • A stacked washer dryer are by the one-car garage.
  • Related Plan: For an alternative version, see house plan 12907KN.  Add a second garage bay with Plan 12942KN.

Floor plans at ¼" scale

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

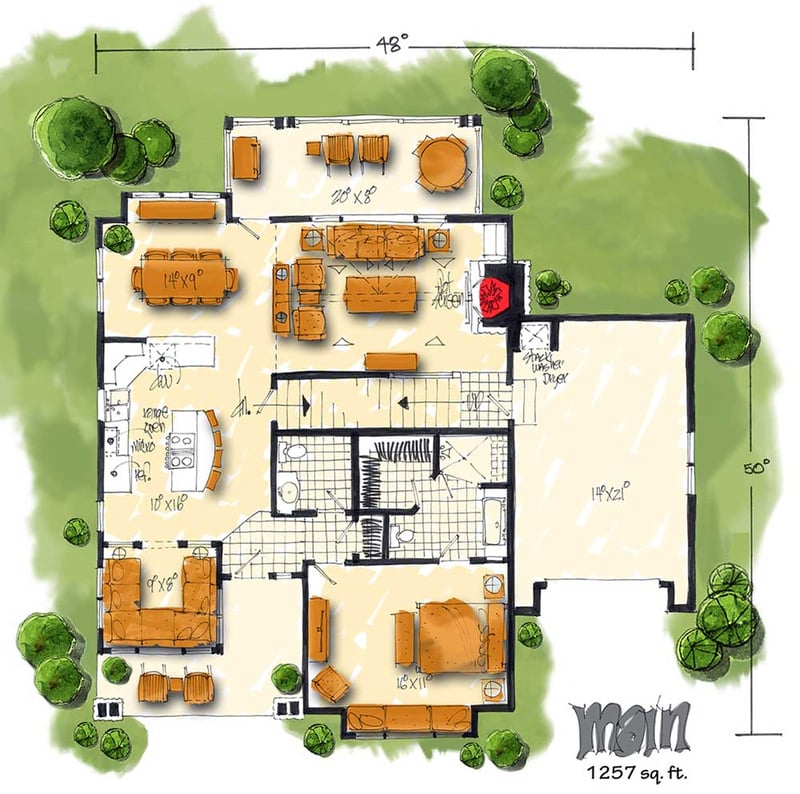

Rustic Cottage With Picture Window - 12908KN floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

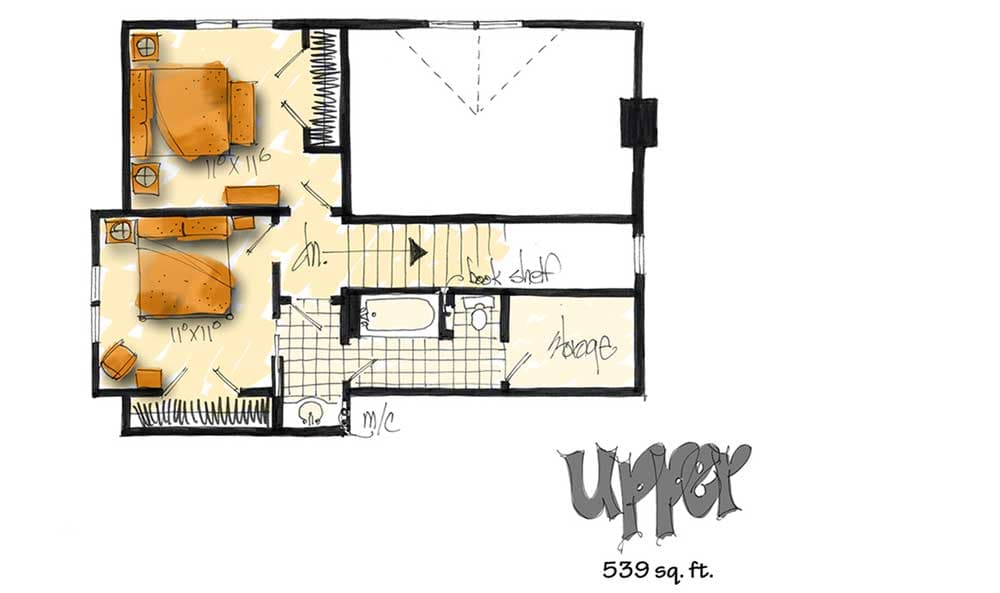

Rustic Cottage With Picture Window - 12908KN floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

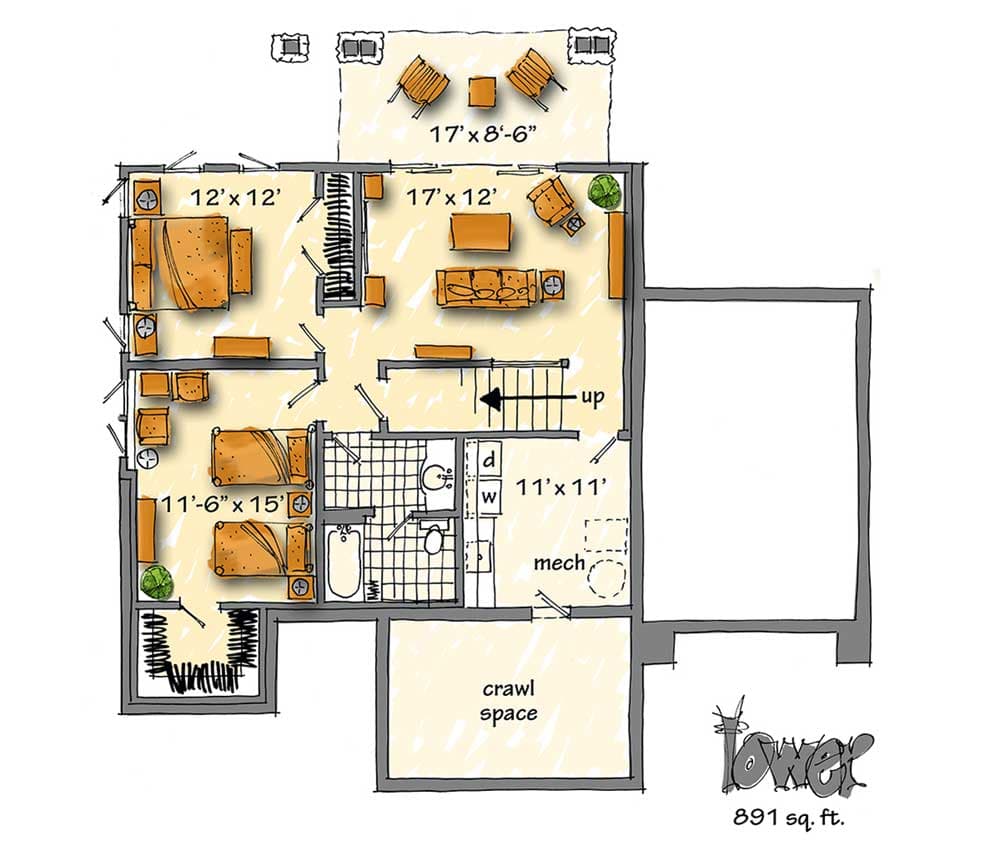

Rustic Cottage With Picture Window - 12908KN floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,687 sq. ft.
  • Lower Level: 891 sq. ft.
  • 1st Floor: 1,257 sq. ft.
  • 2nd Floor: 539 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, & 5
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Basement, Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 50' 0"
  • Max ridge height: 37' 0"

Garage

  • Type: Attached
  • Area: 320 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 9"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick and Truss

Architectural Style

Special features

Plan Collections



Rustic Cottage With Picture Window

  • 2,687

    Heated s.f.

  • 3 - 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • Study Set – Digital $700
  • PDF - Single-Build $2,100
  • CAD - Single-Build $2,350
  • View all purchase option online

About This Plan

  • An attractive front porch and a bayed picture window add to the character of this rustic house plan.
  • From the front entry you have views all the way through the home.
  • The family room has a vaulted ceiling and a large fireplace.  It also has direct access to the outdoor living room.
  • The kitchen has a central location and views to the family and dining rooms.
  • The master bedroom has that that great picture window, a large walk-in closet and bath.  Tucked in the front you'll find a cozy nook.
  • Upstairs, two beds share a bath while the lower level gives you two more beds, a family room and a patio if your lot is sloping. There is also room for the mechanicals.
  • A stacked washer dryer are by the one-car garage.
  • Related Plan: For an alternative version, see house plan 12907KN.  Add a second garage bay with Plan 12942KN.
