Rustic Cottage With Soaring Spaces

Plan 12907KN

  • 3,060

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Stories

  • 1

    Cars

  • An angled entry off the quaint covered porch takes you inside this rustic home with great soaring spaces.
  • The great room vaults and has access to the porch in back.
  • The kitchen has an angled counter for casual conversation and meals and has views to the great room, dining room and the screened porch in back.
  • The master bed is on the main floor and has a vaulted ceiling and great closet space.
  • The upper floor has two beds and a loft where you can relax.
  • There's more room below with a bunk room, bed and family room. The back rooms both walk out to the back if you have a sloping lot. And storage rounds out the floor.
  • Laundry is tucked by the one-car garage.
  • Related Plans: For an alternate version, see house plan 12908KN.  Add a second garage bay with Plan 12941KN.

Floor plans at ¼" scale

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

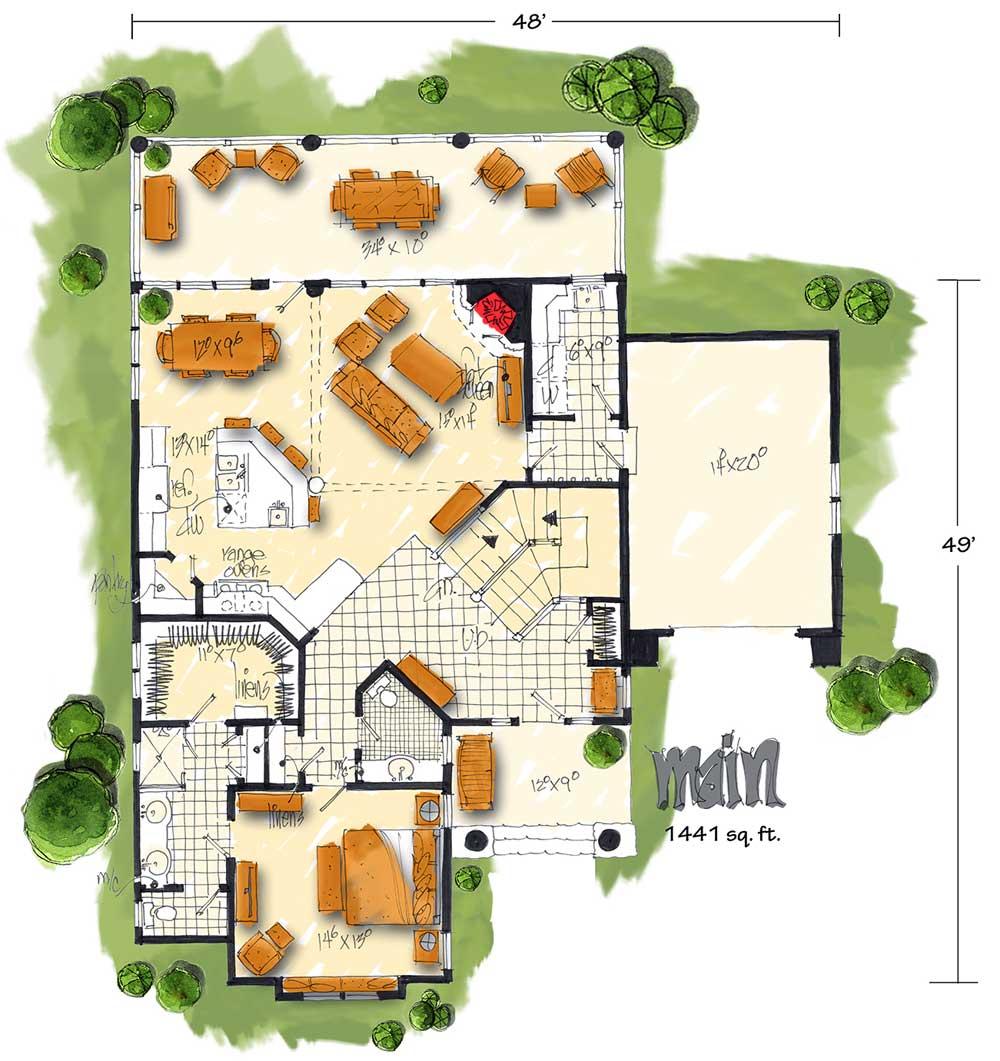

Rustic Cottage With Soaring Spaces - 12907KN floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Rustic Cottage With Soaring Spaces - 12907KN floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Rustic Cottage With Soaring Spaces - 12907KN floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,060 sq. ft.
  • Lower Level: 960 sq. ft.
  • 1st Floor: 1,441 sq. ft.
  • 2nd Floor: 659 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab, Crawl, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 49' 0"
  • Depth: 58' 6"
  • Max ridge height: 40' 2"

Garage

  • Type: Attached
  • Area: 320 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick and Truss

Architectural Style

Special features

Rustic Cottage With Soaring Spaces

  • 3,060

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $2,900
  • CAD - Single-Build $3,350
  • View all purchase option online

About This Plan

  • An angled entry off the quaint covered porch takes you inside this rustic home with great soaring spaces.
  • The great room vaults and has access to the porch in back.
  • The kitchen has an angled counter for casual conversation and meals and has views to the great room, dining room and the screened porch in back.
  • The master bed is on the main floor and has a vaulted ceiling and great closet space.
  • The upper floor has two beds and a loft where you can relax.
  • There's more room below with a bunk room, bed and family room. The back rooms both walk out to the back if you have a sloping lot. And storage rounds out the floor.
  • Laundry is tucked by the one-car garage.
  • Related Plans: For an alternate version, see house plan 12908KN.  Add a second garage bay with Plan 12941KN.
