Plan 31137D
Rustic Craftsman Cottage
Heated S.F.
2,567
Beds
3
Baths
3.5
Stories
2
Cars
2
What's Included
Plan Details

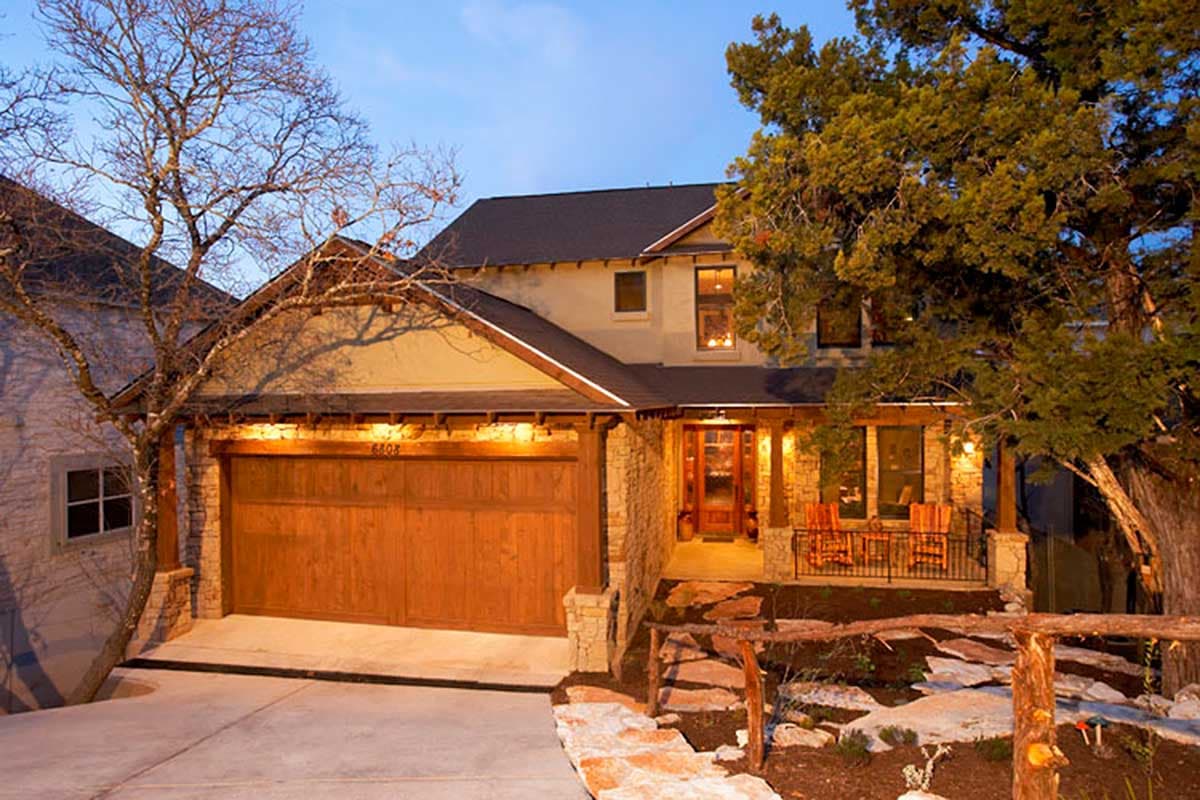

  • A rugged exterior of stone and stucco adds wonderful curb appeal to this Craftsman cottage home plan.
  • The front porch, listed at 20' x 6'10" and 176 square feet, has plenty of room for rocking chairs to enjoy the evening beeze.

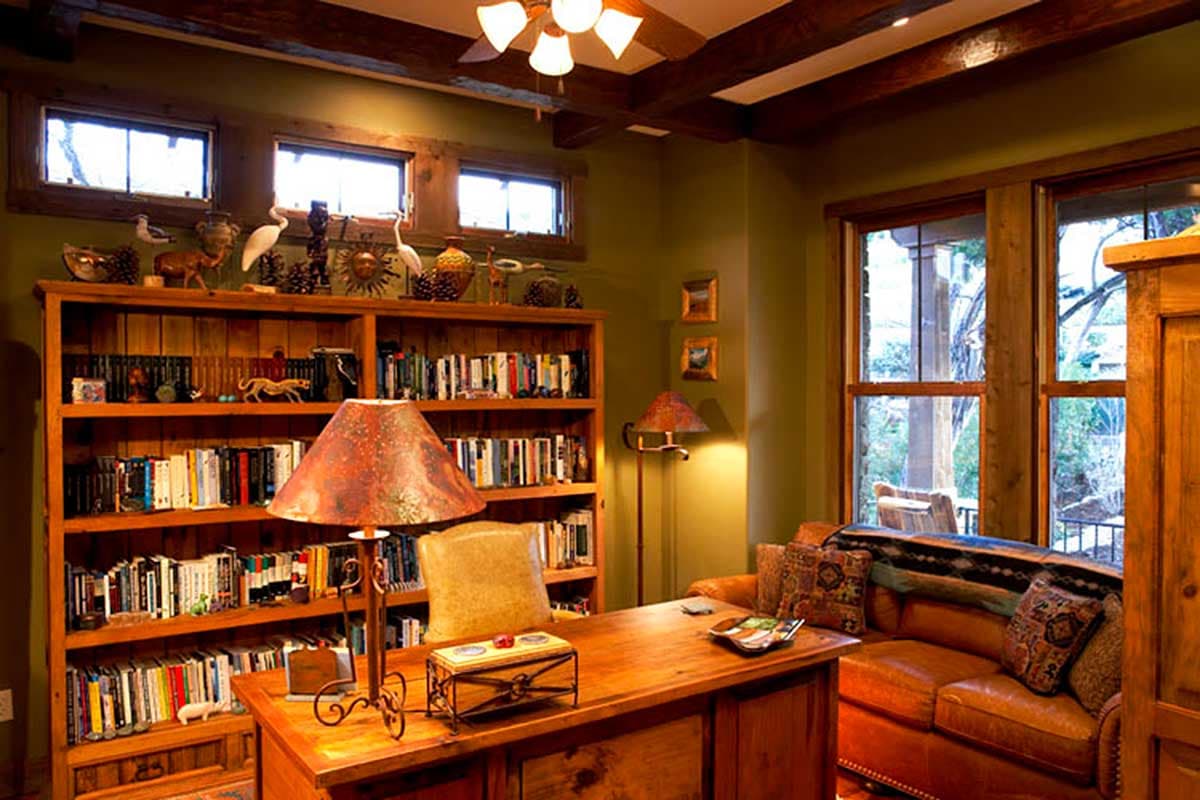

  • Inside, a beamed ceiling in the den and light from two windows makes this a pleasant place to pass the time.
  • Beams continue in the great room with fireplace and dining room that has access to the 232 square foot rear covered porch (23'x10').
  • The first floor master suite also sports a special ceiling treatment as well as a charming window seat.
  • Upstairs a balcony hall overlooks the great room below.
  • Two roomy bedrooms each have a walk-in closet and their own bath.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
What's Included

  • Foundation plan
  • Fully dimensioned floor plan

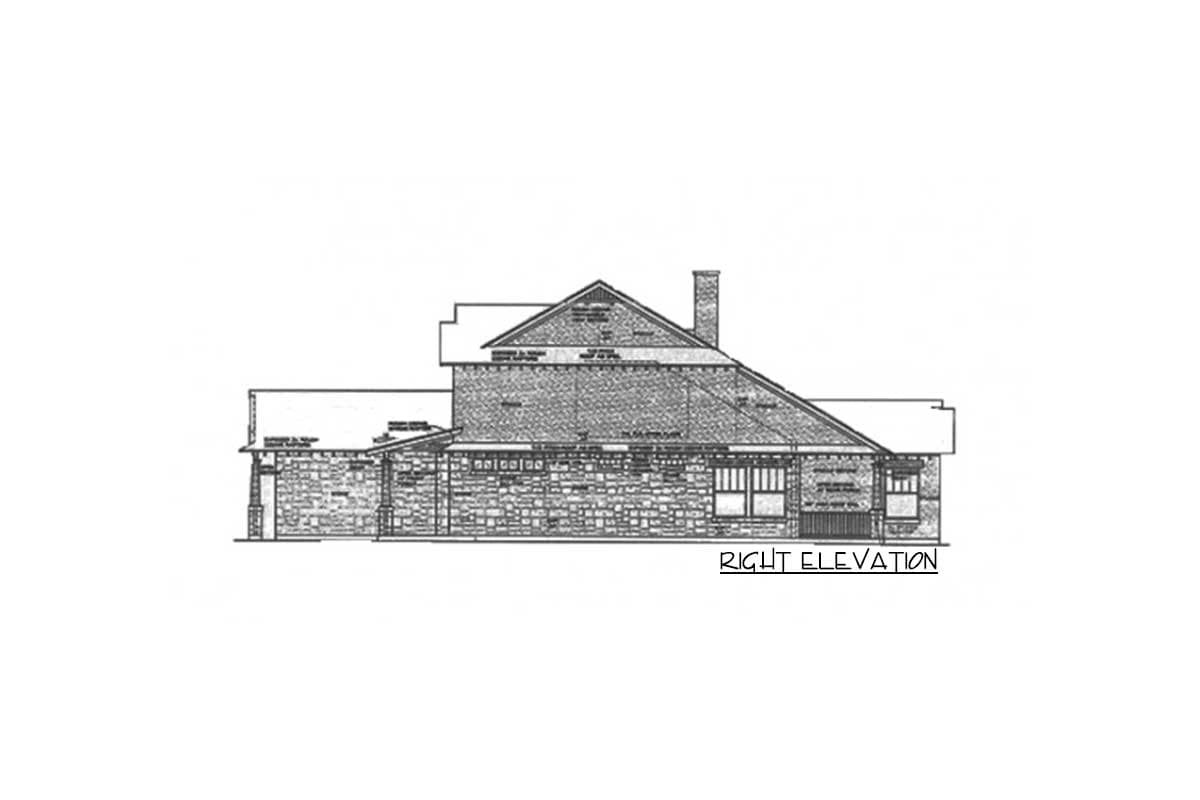

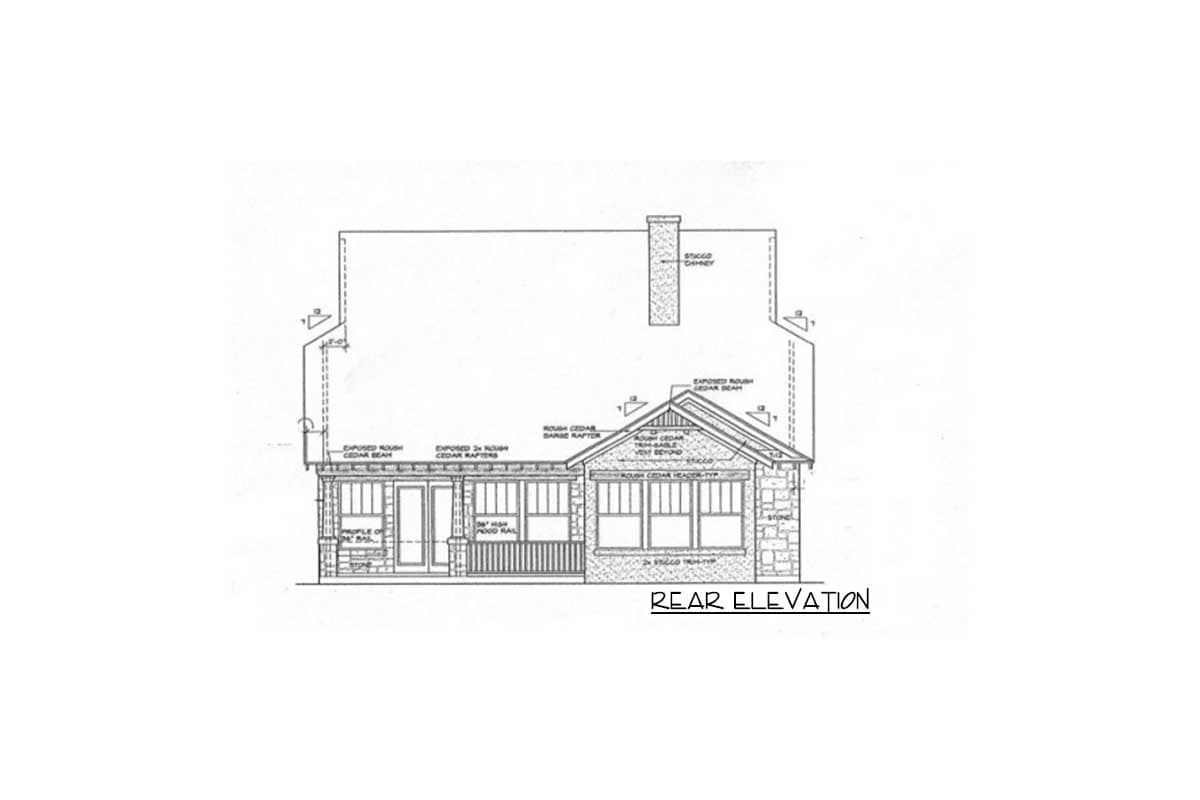

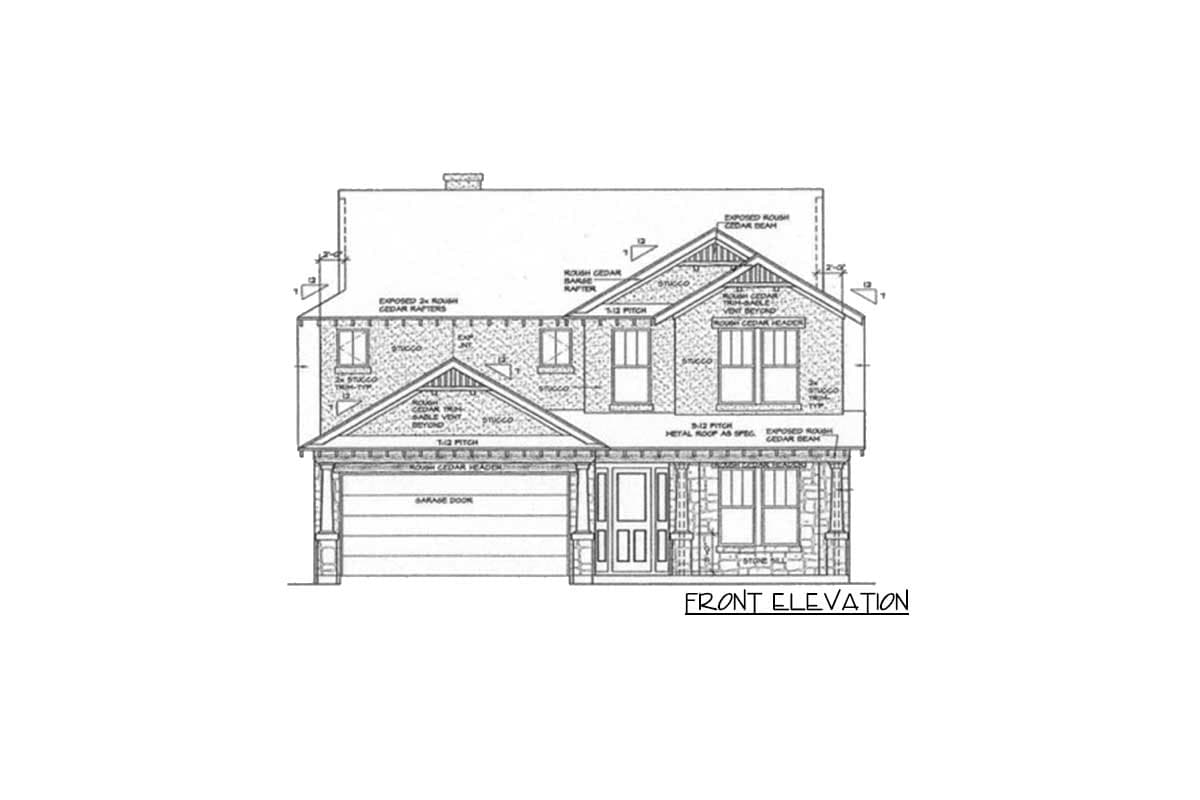

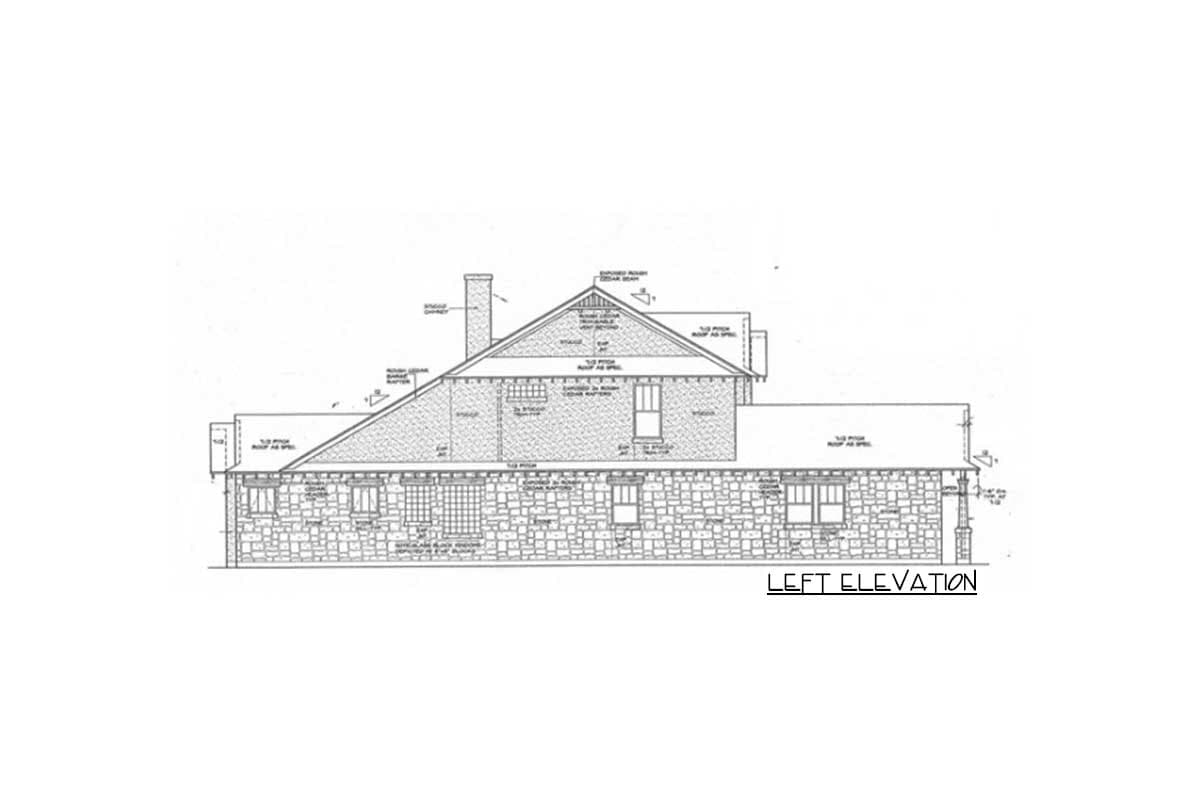

  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Rustic Craftsman Cottage

  • 2,567

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

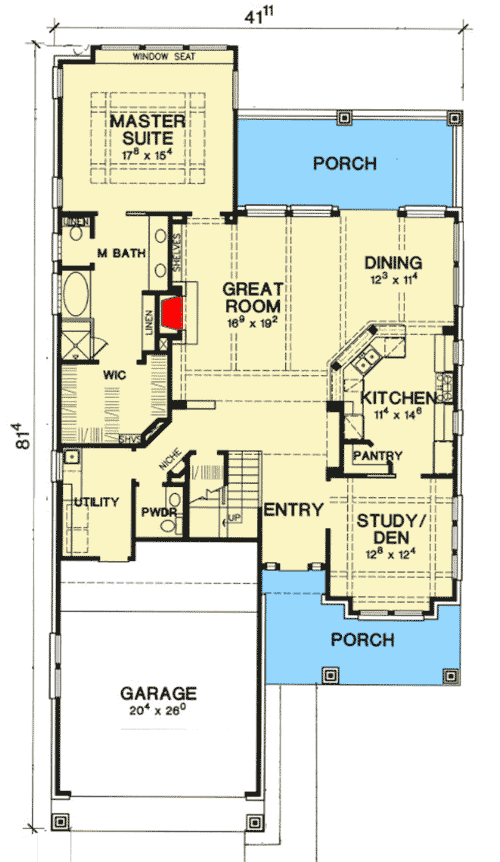

Floor Plan

  • Main Level

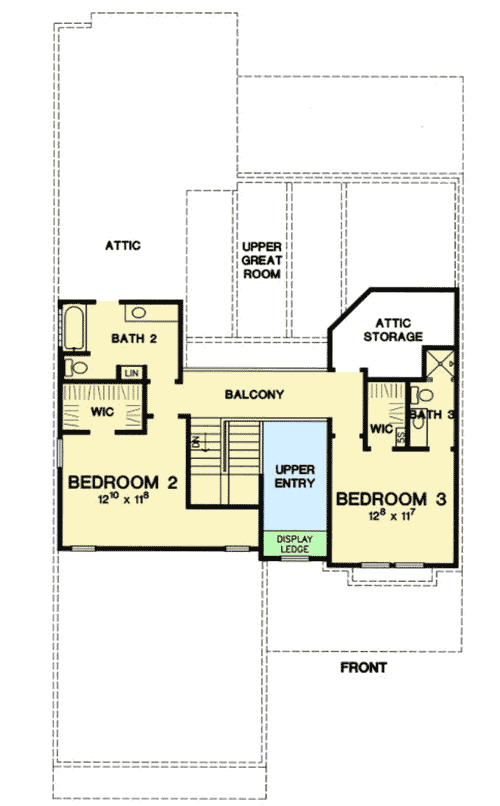

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,567 sq. ft.
  • 1st Floor: 1,836 sq. ft.
  • 2nd Floor: 731 sq. ft.

Dimensions

  • Width: 41' 11"
  • Depth: 81' 0"
  • Max ridge height: 29' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 567 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick
