Plan 57297HA

Rustic Craftsman Home Plan

Heated S.F.
2,360
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 57297HA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 57297HA

M-F 9am-5pm EST |

1-203-761-8500

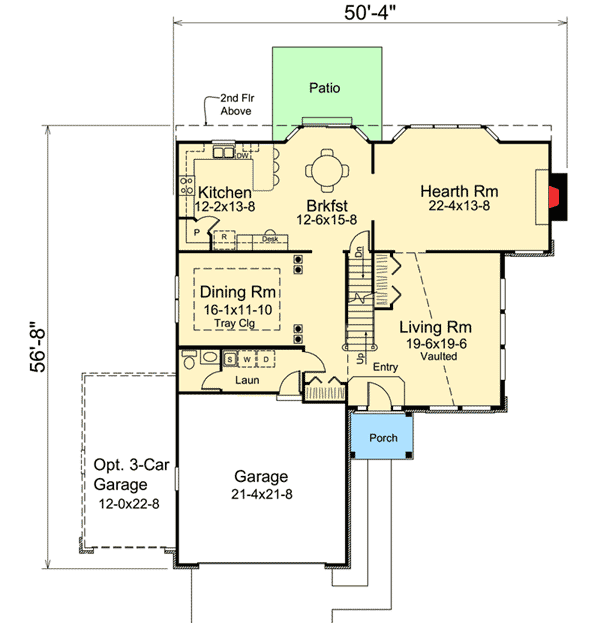

Main Level

Plan 57297HA: Rustic Craftsman Home Plan - Floor Plan - Main Level - Craftsman, European

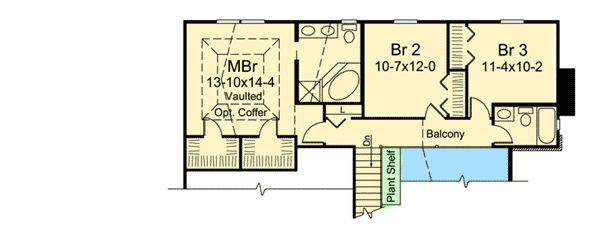

2nd Floor

Plan 57297HA: Rustic Craftsman Home Plan - Floor Plan - 2nd Floor - Craftsman, European

Plan Details

  • A gracious hearth room is brightened by windows and is perfect for relaxing with family next to the cozy fireplace in this rustic Craftsman home plan.
  • Entertain more formally in the big vaulted living room with lots of windows.
  • The kitchen features a walk-in pantry and eating bar for convenience.
  • The vaulted master bedroom has a private bath with whirlpool tub, separate shower and a double-bowl vanity.
  • An open balcony rail overlooks the living room below.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

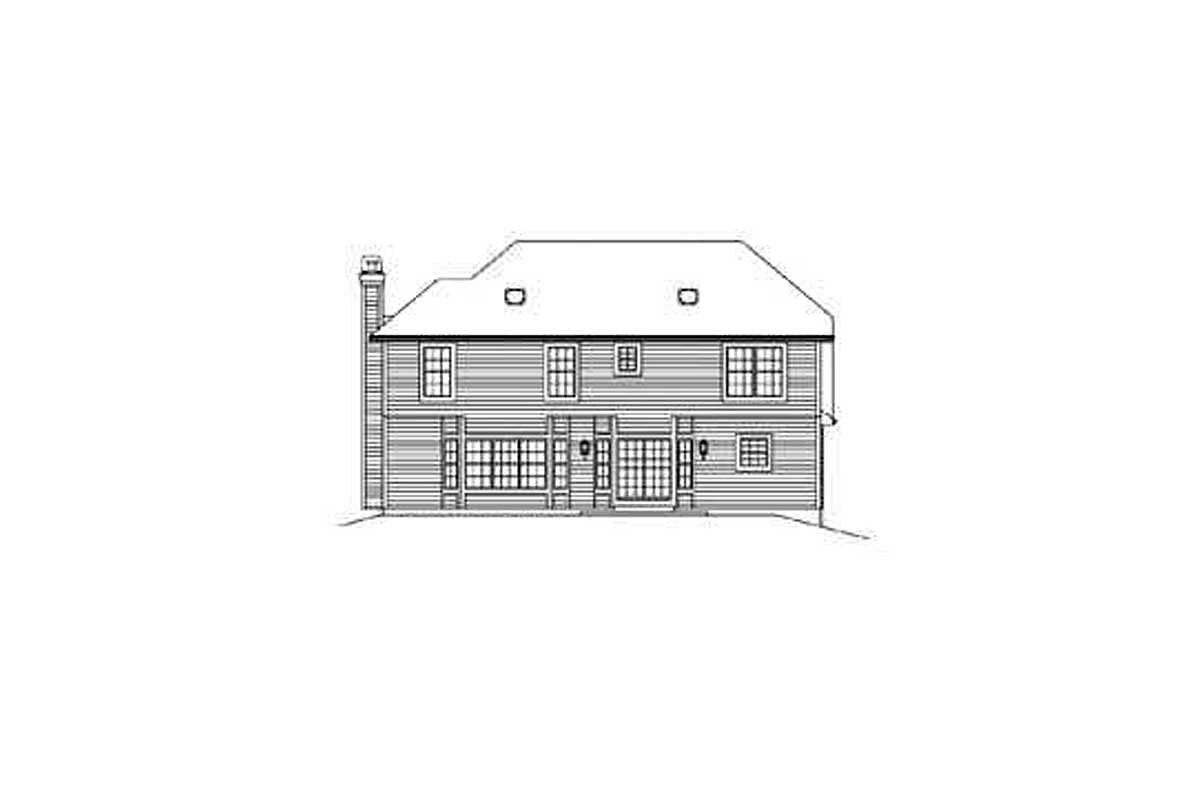

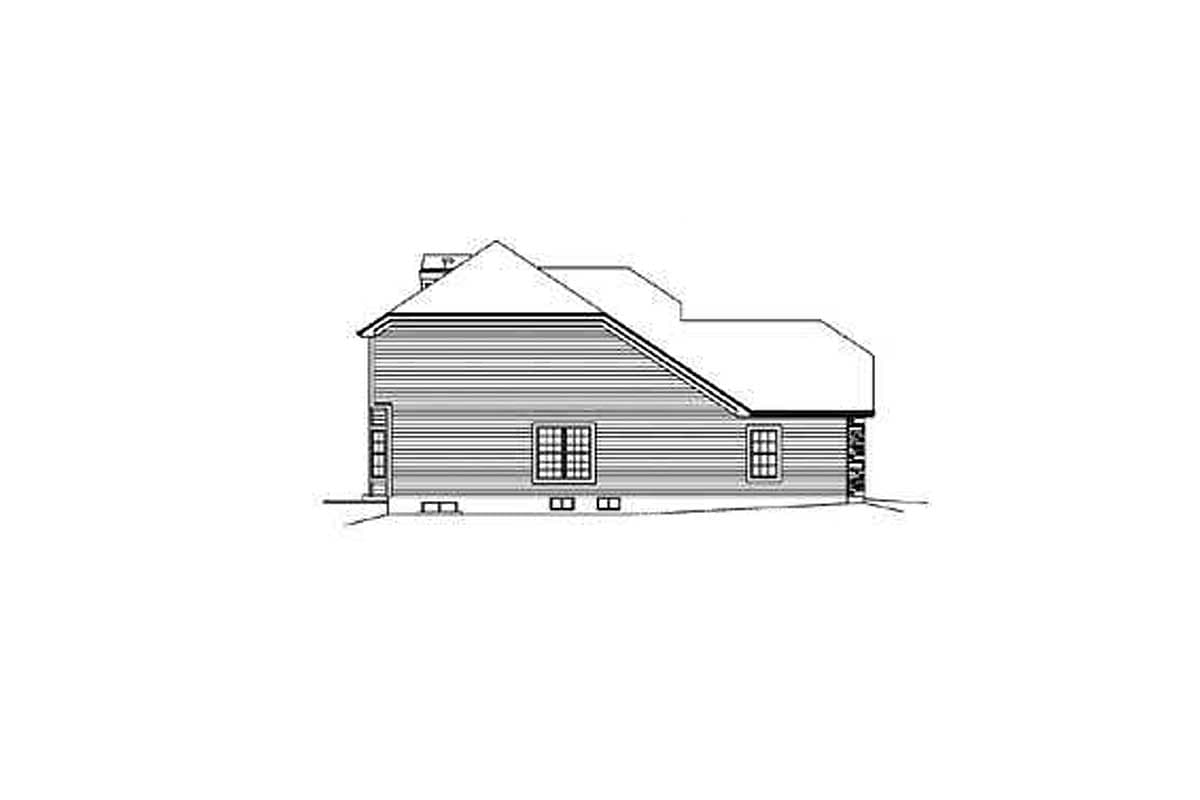

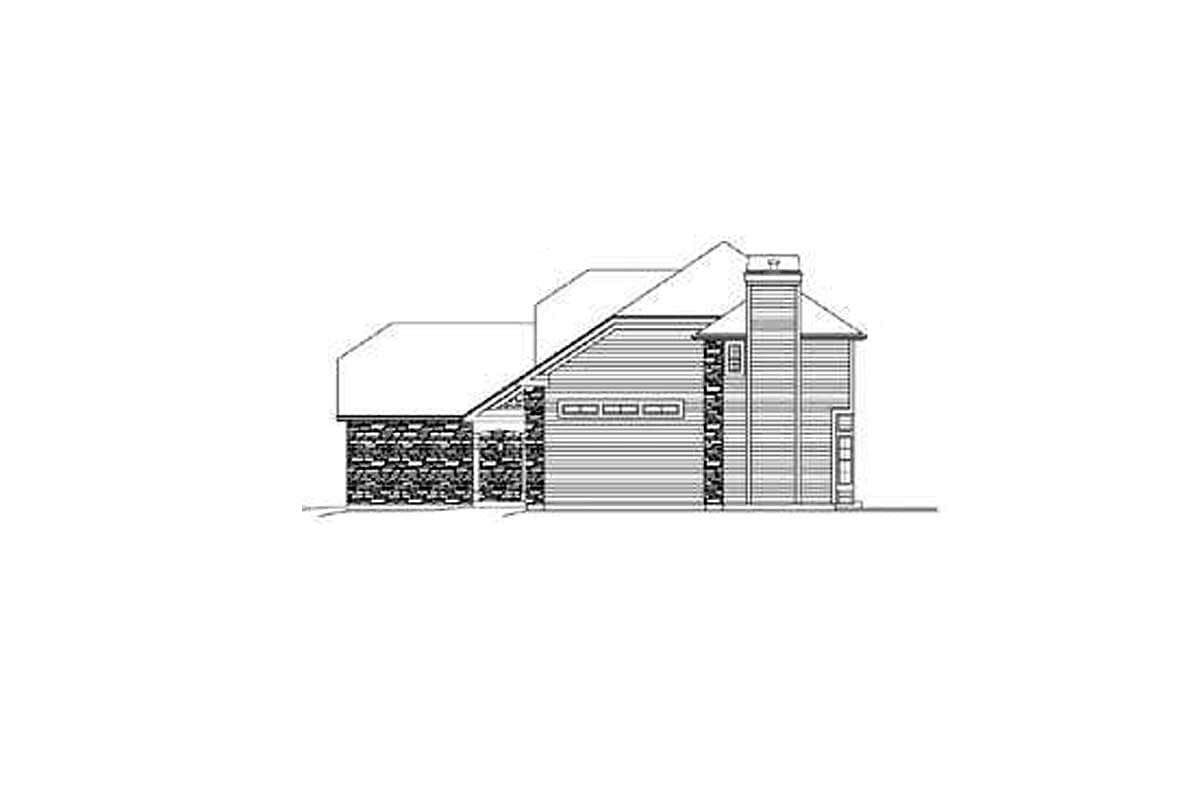

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,360 sq. ft.

1st Floor

1,534 sq. ft.

2nd Floor

826 sq. ft.

Basement Unfinished

1,383 sq. ft.

Entry

53 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 4"

Depth

56' 8"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

478 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

European

Special Features

Master Suite - Upstairs

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,360 sq. ft.

1st Floor

1,534 sq. ft.

2nd Floor

826 sq. ft.

Basement Unfinished

1,383 sq. ft.

Entry

53 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 4"

Depth

56' 8"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

478 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

European

Special Features

Master Suite - Upstairs

Walk-in Pantry
