Plan 60717ND Rustic Craftsman House Plan Under 3500 Square Feet with Finished Lower Level and Bonus Above Garage

3,447 4 3.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Rustic Craftsman House Plan Under 3500 Square Feet with Finished Lower Level and Bonus Above Garage

Plan 60717ND

  • 3,447

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This rustic Craftsman-style house plan has a rustic exterior with a combination of materials - board and batten, shingles, stone, timbers - that combine to give it great curb appeal. A shed dormer above the 2-car garage adds to the curb appeal plus it gives light and head space to the bonus space.
  • A split bedroom layout gives you a master suite on the left with direct access to the laundry room and a beautiful vaulted ceiling with optional access to the outdoors. Across the home, a flex room - use it as an office or a bedroom - and Bed 2 share a Jack and Jill bathroom.
  • A stylish vaulted and beamed ceiling above the great room helps create a dynamic space to enjoy. A pair of French doors opens to the screened porch which carries the same vaulted ceiling and has an outdoor fireplace.
  • Enjoy meals in the breakfast room with optional outdoor access, at the peninsula in the kitchen (which comfortably sits up to 7) or in the formal dining room.
  • The finished lower level gives you an ensuite bedroom plus a game room and a hobby room. The game room has a fireplace and access to a covered deck if building on a rear-sloping lot.
  • The bonus room gives you 364 square feet of expansion space.
  • Related Plan: Get an alternate version with house plan 59740ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

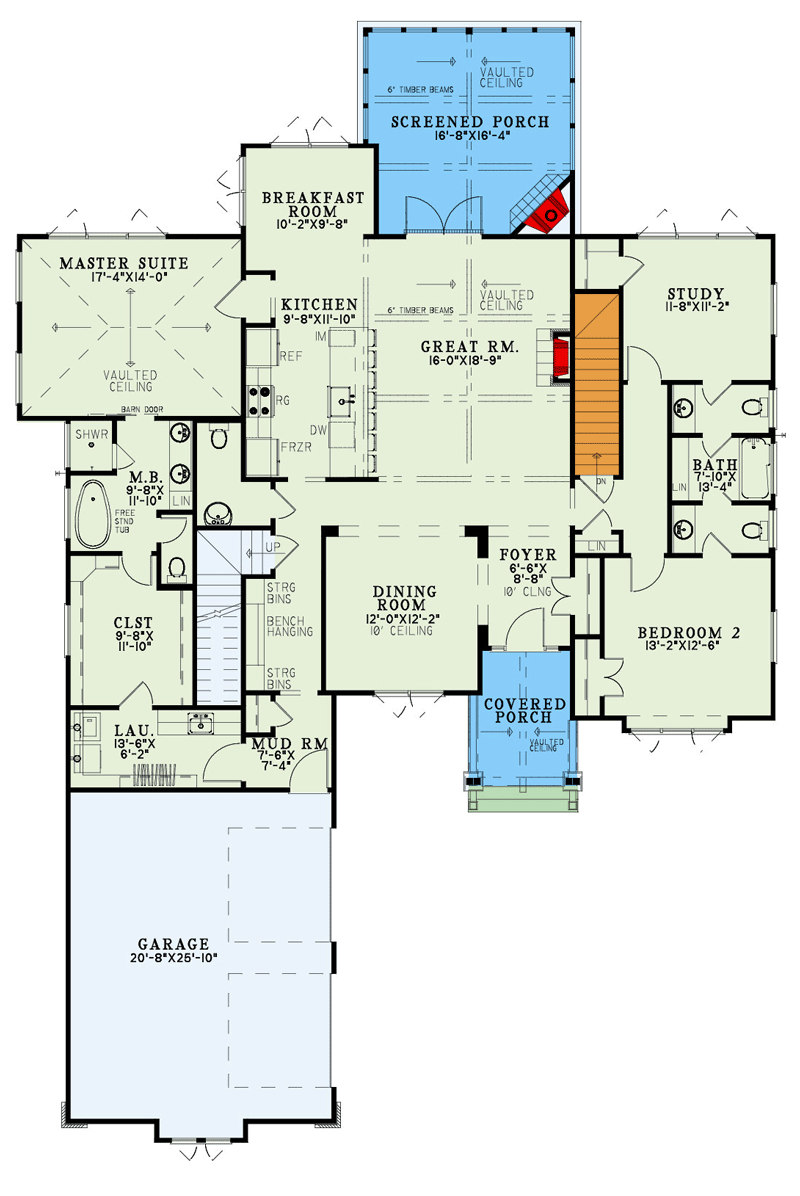

Rustic Craftsman House Plan Under 3500 Square Feet with Finished Lower Level and Bonus Above Garage - 60717ND floor plan - Main Level

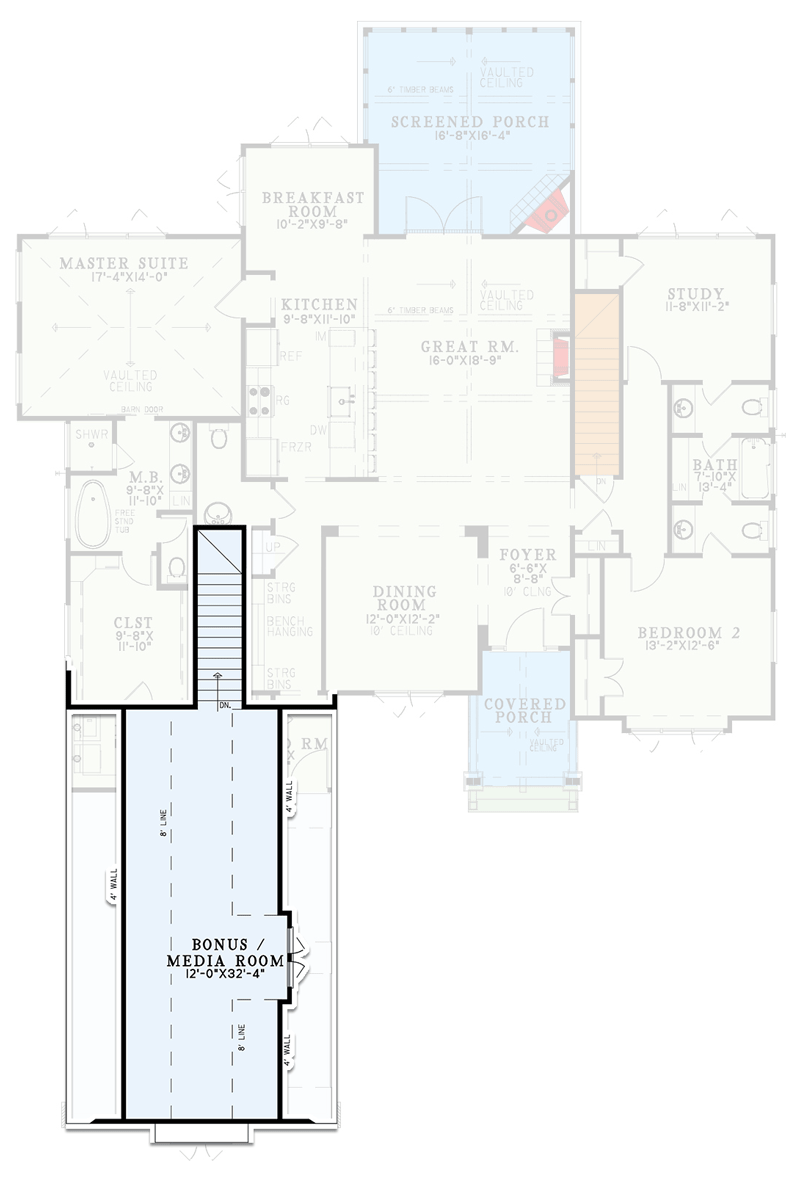

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Rustic Craftsman House Plan Under 3500 Square Feet with Finished Lower Level and Bonus Above Garage - 60717ND floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

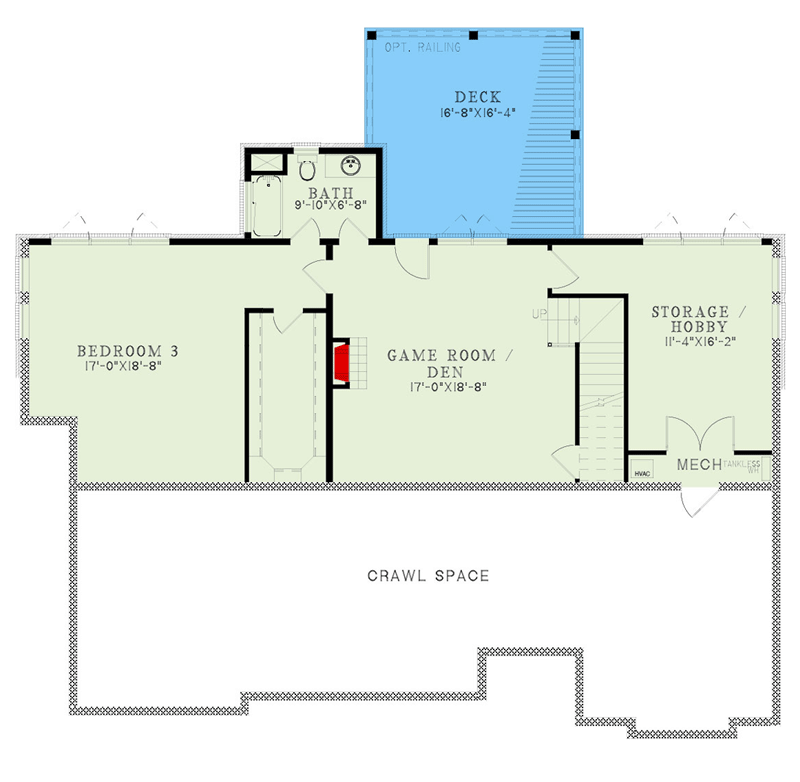

Rustic Craftsman House Plan Under 3500 Square Feet with Finished Lower Level and Bonus Above Garage - 60717ND floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,447 sq. ft.
  • Lower Level: 1,245 sq. ft.
  • 1st Floor: 2,202 sq. ft.
  • Bonus: 364 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 10"
  • Depth: 88' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 617 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Rustic Craftsman House Plan Under 3500 Square Feet with Finished Lower Level and Bonus Above Garage

  • 3,447

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,550
  • 5 Sets $1,650
  • 5 Sets + PDF $1,900
  • PDF - Unlimited Build $2,250
  • CAD Unlimited + PDF $3,100
  • View all purchase option online

About This Plan

  • This rustic Craftsman-style house plan has a rustic exterior with a combination of materials - board and batten, shingles, stone, timbers - that combine to give it great curb appeal. A shed dormer above the 2-car garage adds to the curb appeal plus it gives light and head space to the bonus space.
  • A split bedroom layout gives you a master suite on the left with direct access to the laundry room and a beautiful vaulted ceiling with optional access to the outdoors. Across the home, a flex room - use it as an office or a bedroom - and Bed 2 share a Jack and Jill bathroom.
  • A stylish vaulted and beamed ceiling above the great room helps create a dynamic space to enjoy. A pair of French doors opens to the screened porch which carries the same vaulted ceiling and has an outdoor fireplace.
  • Enjoy meals in the breakfast room with optional outdoor access, at the peninsula in the kitchen (which comfortably sits up to 7) or in the formal dining room.
  • The finished lower level gives you an ensuite bedroom plus a game room and a hobby room. The game room has a fireplace and access to a covered deck if building on a rear-sloping lot.
  • The bonus room gives you 364 square feet of expansion space.
  • Related Plan: Get an alternate version with house plan 59740ND.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,447 sq. ft.
  • Lower Level: 1,245 sq. ft.
  • 1st Floor: 2,202 sq. ft.
  • Bonus: 364 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 10"
  • Depth: 88' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 617 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
Plan 60717ND
View this and more for this plan by visiting www.architechtecturaldesigns.com/60717ND
|
Need Help? 800-854-7852
|
