Plan 280180JWD Rustic Craftsman Plan with Side Porches

Rustic Craftsman Plan with Side Porches

Plan 280180JWD

  • 2,363

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • With over 2,300 square feet of living space spread across two floors, this Rustic Craftsman plan is perfect for a family or empty nesters.
  • Step inside to find an entryway that immediately leads to the heart of the home. An island in the kitchen features an eating bar and the adjacent dining room provides access to the side patio.
  • Tall ceilings soar above the great room which hosts a fireplace and opens to the eat-in kitchen.
  • Conveniently located on the main level, the master bedroom is joined by a 4-fixture bathroom and walk-in closet.
  • Upstairs, a loft leads to two bedrooms and a bonus room (included in the total square footage) above the garage lends versatility to the design.

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

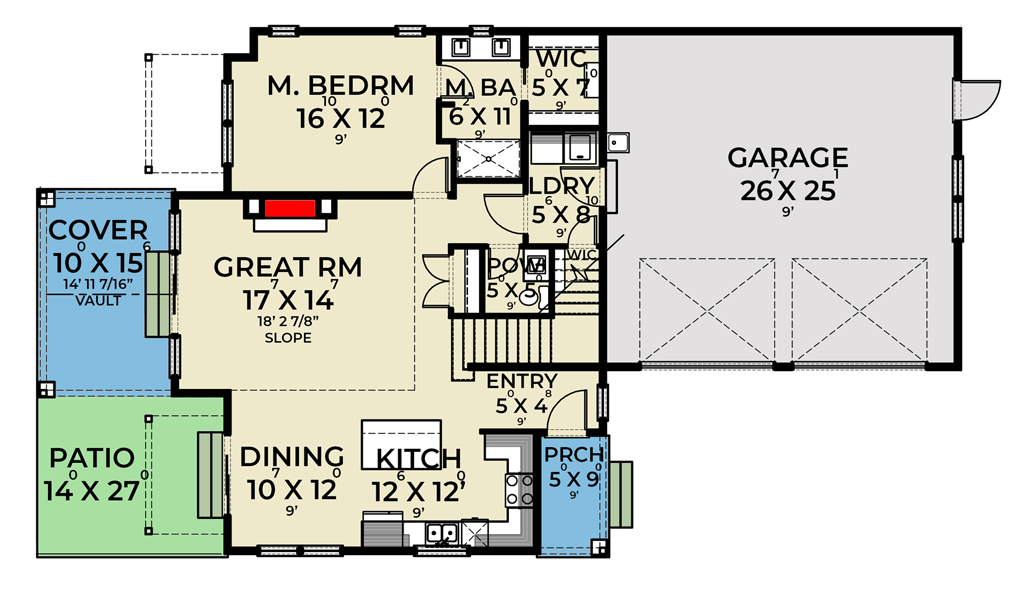

Rustic Craftsman Plan with Side Porches - 280180JWD floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

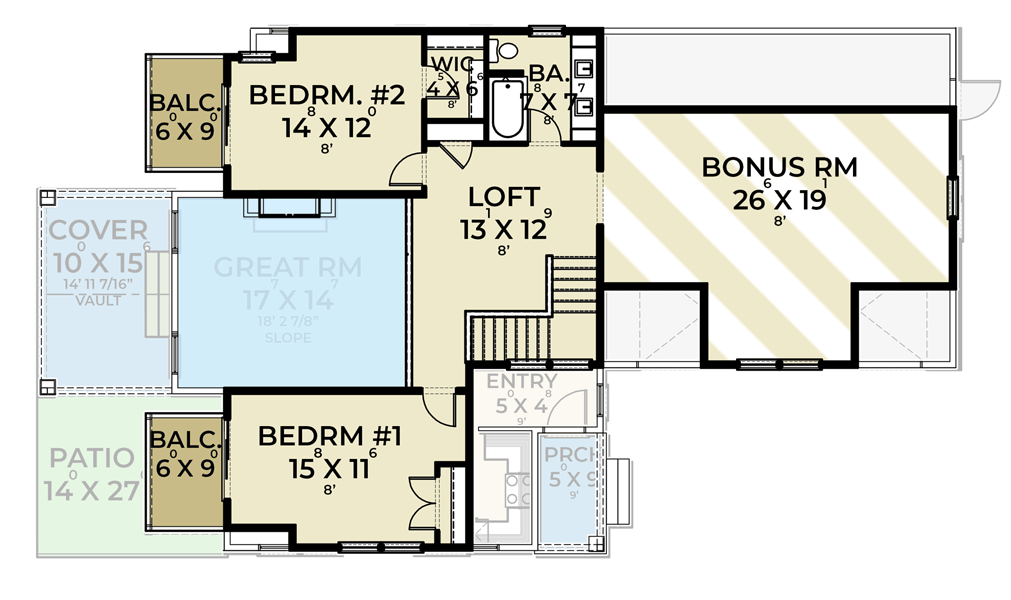

Rustic Craftsman Plan with Side Porches - 280180JWD floor plan - 2nd Floor

Plan details

Rustic Craftsman Plan with Side Porches

  • 2,363

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $875
  • PDF - Single-Build $1,750
  • 5 Sets + PDF $2,200
  • CAD + PDF - Single-Build $2,250
  • View all purchase option online

About This Plan

  • With over 2,300 square feet of living space spread across two floors, this Rustic Craftsman plan is perfect for a family or empty nesters.
  • Step inside to find an entryway that immediately leads to the heart of the home. An island in the kitchen features an eating bar and the adjacent dining room provides access to the side patio.
  • Tall ceilings soar above the great room which hosts a fireplace and opens to the eat-in kitchen.
  • Conveniently located on the main level, the master bedroom is joined by a 4-fixture bathroom and walk-in closet.
  • Upstairs, a loft leads to two bedrooms and a bonus room (included in the total square footage) above the garage lends versatility to the design.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,363 sq. ft.
  • 1st Floor: 1,173 sq. ft.
  • 2nd Floor: 1,190 sq. ft.
  • Porch, Combined: 200 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 40' 0"
  • Max ridge height: 28' 4"

Garage

  • Type: Attached
  • Area: 702 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
