Plan 25717GE Rustic Craftsman with an Angled 2-car Garage and a 2-Story Lodge Room Open to the Kitchen

Rustic Craftsman with an Angled 2-car Garage and a 2-Story Lodge Room Open to the Kitchen

Plan 25717GE

  • 2,797

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This rustic Craftsman home plan has an angled 2-car garage and gives you 3 bedrooms on the main floor with a potential fourth one upstairs with a full bath.
  • Step in off the entry porch and you find yourself in the vaulted foyer with views ahead to the vaulted lodge room. The space to your left can be left open and used as a dining room or enclosed and used as a study or home office.
  • The lodge room has a vaulted ceiling and a built-in fireplace on the right. The back wall gives you views and access to the back. The room opens to the kitchen and breakfast room which also has outdoor access. The adjacent keeping room has a coffered ceiling and a fireplace
  • Generous mud and laundry rooms are nearby creating ample storage space.
  • The master suite occupies the entire right side of the home and has two large walk-in closets and a five-fixture bath with a 2-person shower. Across the home, two bedrooms share a Jack and Jill bath.
  • Related Plan: Get an alternate layout with house plan 25706GE.

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

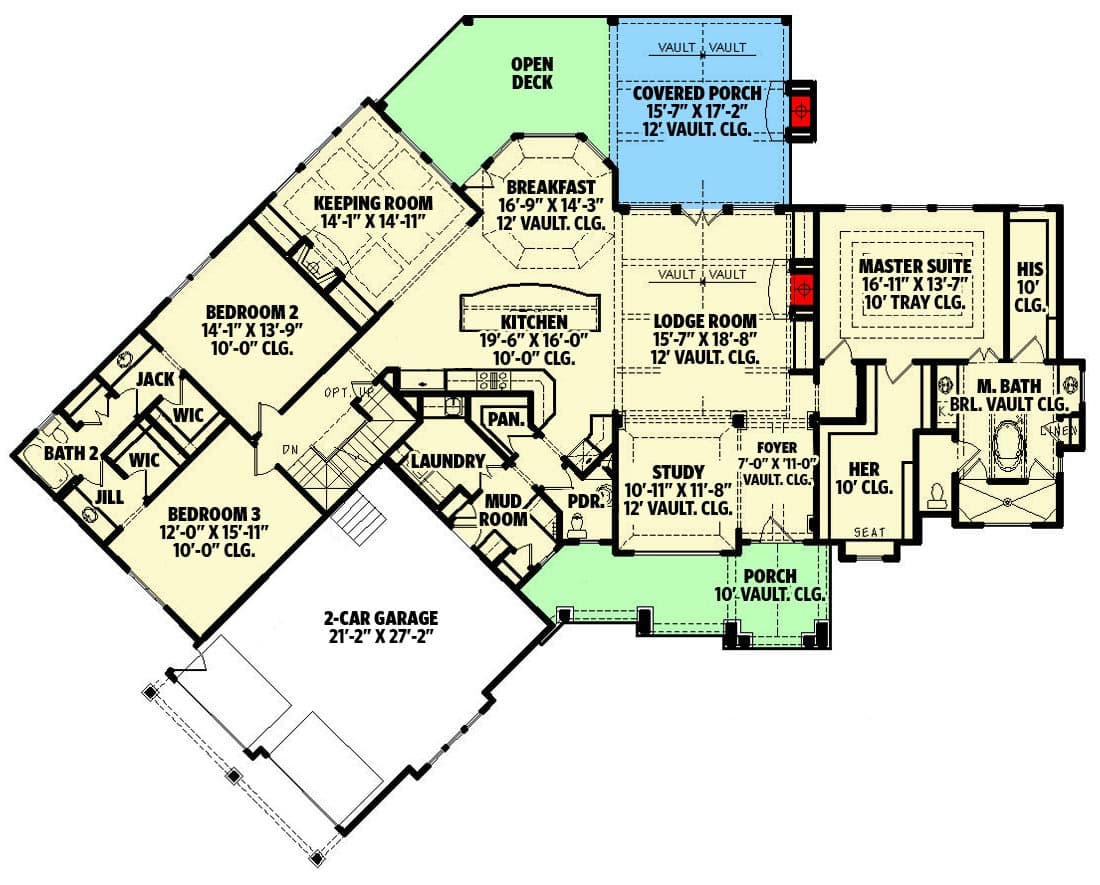

Rustic Craftsman with an Angled 2-car Garage and a 2-Story Lodge Room Open to the Kitchen - 25717GE floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Rustic Craftsman with an Angled 2-car Garage and a 2-Story Lodge Room Open to the Kitchen - 25717GE floor plan - 2nd Floor

Optional Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

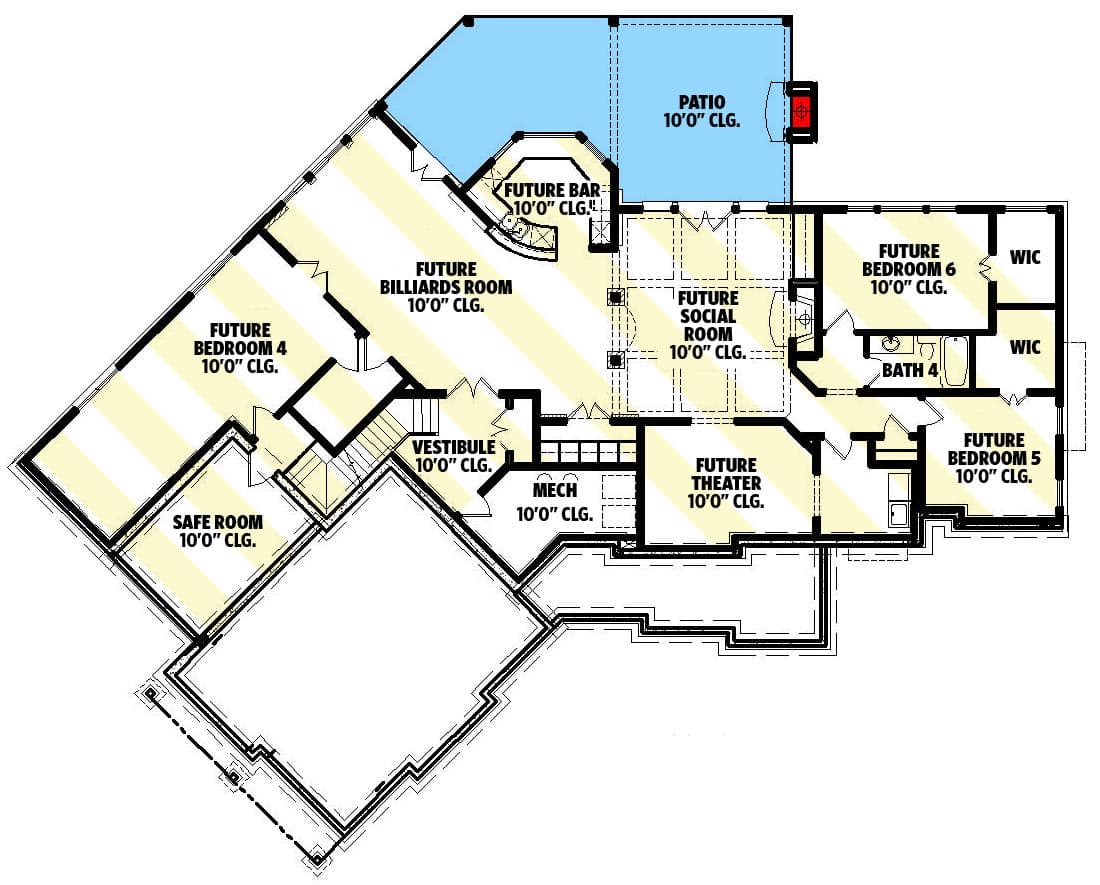

Rustic Craftsman with an Angled 2-car Garage and a 2-Story Lodge Room Open to the Kitchen - 25717GE floor plan - Optional Lower Level

Plan details

Rustic Craftsman with an Angled 2-car Garage and a 2-Story Lodge Room Open to the Kitchen

  • 2,797

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,495
  • CAD - Single-Build $3,445
  • View all purchase option online

About This Plan

  • This rustic Craftsman home plan has an angled 2-car garage and gives you 3 bedrooms on the main floor with a potential fourth one upstairs with a full bath.
  • Step in off the entry porch and you find yourself in the vaulted foyer with views ahead to the vaulted lodge room. The space to your left can be left open and used as a dining room or enclosed and used as a study or home office.
  • The lodge room has a vaulted ceiling and a built-in fireplace on the right. The back wall gives you views and access to the back. The room opens to the kitchen and breakfast room which also has outdoor access. The adjacent keeping room has a coffered ceiling and a fireplace
  • Generous mud and laundry rooms are nearby creating ample storage space.
  • The master suite occupies the entire right side of the home and has two large walk-in closets and a five-fixture bath with a 2-person shower. Across the home, two bedrooms share a Jack and Jill bath.
  • Related Plan: Get an alternate layout with house plan 25706GE.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,797 sq. ft.
  • 1st Floor: 2,797 sq. ft.
  • 2nd Floor: 392 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 97' 10"
  • Depth: 77' 8"

Garage

  • Type: Attached
  • Area: 593 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
