Plan 25727GE
Rustic Craftsman with Vaulted Lodge Room and Bonus Expansion Over Garage
Heated S.F.
2,797
Beds
3-7
Baths
2.5 - 4.5
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

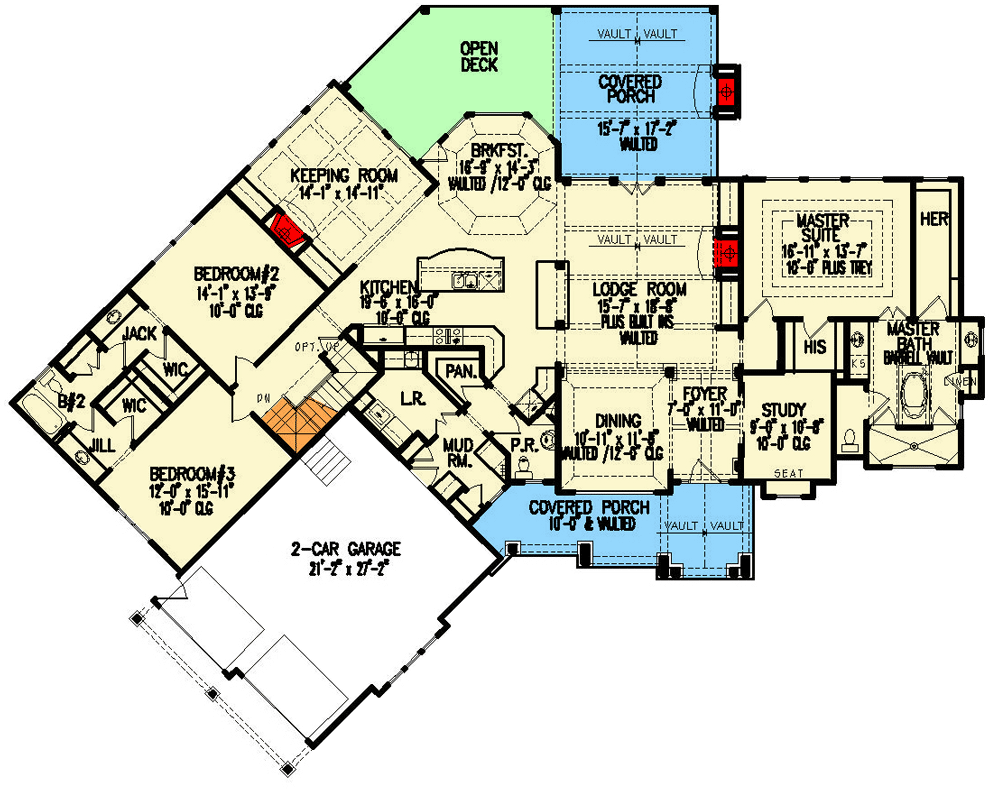

Rustic Craftsman with Vaulted Lodge Room and Bonus Expansion Over Garage - 25727GE floor plan - Main Level

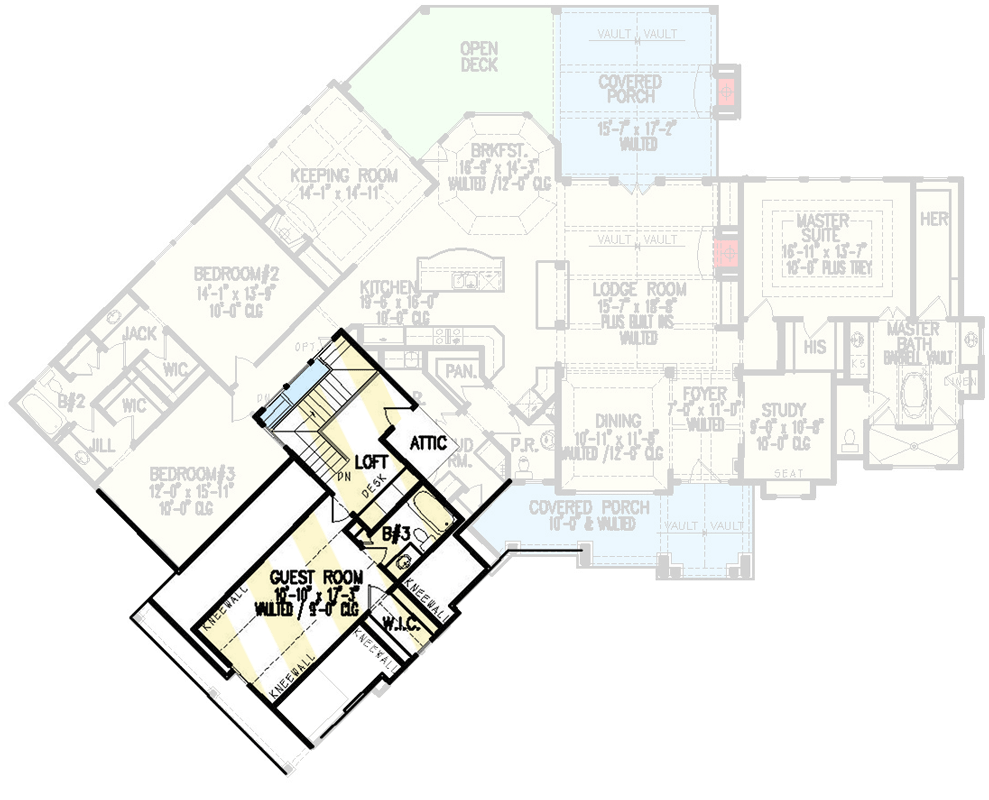

2nd Floor - Bonus Room
Reverse Floor Plan
Rustic Craftsman with Vaulted Lodge Room and Bonus Expansion Over Garage - 25727GE floor plan - 2nd Floor - Bonus Room

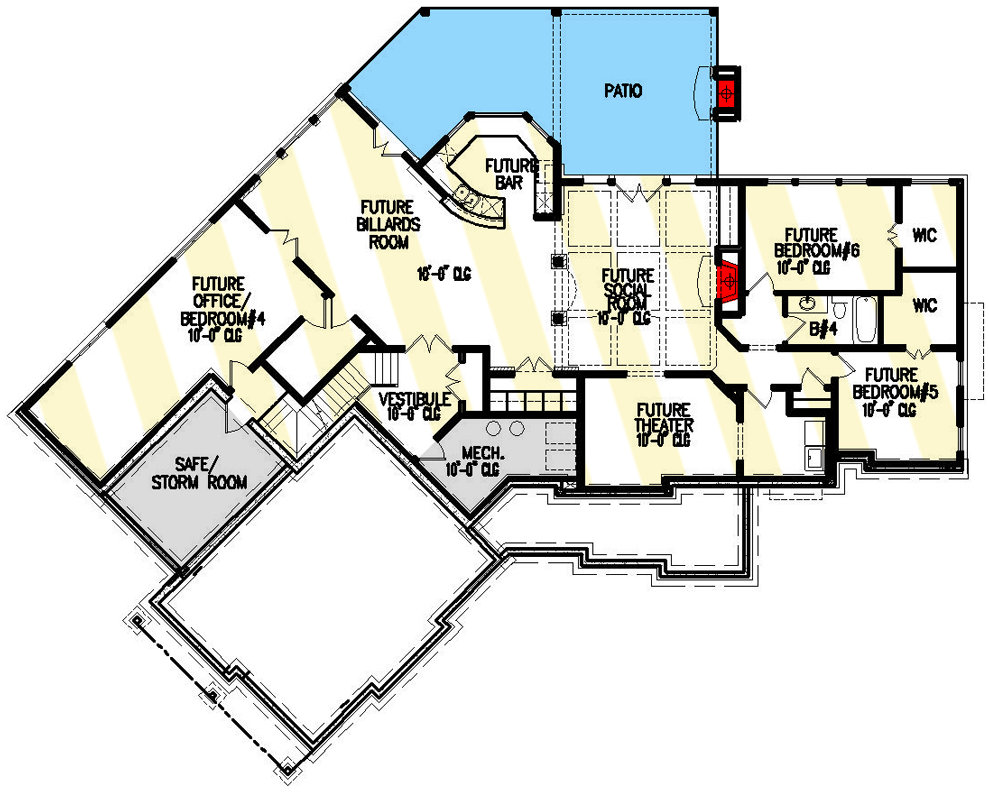

Optionally Finished Lower Level
Reverse Floor Plan
Rustic Craftsman with Vaulted Lodge Room and Bonus Expansion Over Garage - 25727GE floor plan - Optionally Finished Lower Level
Plan Details
  • This rustic Craftsman house plan has an angled 2-car garage with beautiful spaces inside and out. The home plan features ornate gabled peaks, various roof pitches, a decorative single dormer, and soaring timber trusses framing the entry.
  • The vaulted foyer, adjacent to the dining room, leads you to the vaulted lodge room with a fireplace. Windows flank the doors on the back wall that take you to a vaulted covered porch that expands onto a sun deck.
  • The breakfast room, kitchen, and keeping room are centrally located and adjacent to several larger rooms promoting easy flow throughout the home. Generous mud and laundry rooms are near the kitchen, creating ample storage space.
  • The master suite has a tray ceiling and views to the back, along with a master bath with a 2-person shower, a spa tub, and dual walk-in closets. Across the home, two bedrooms share a Jack-and-Jill bath.
  • Stairs by the garage take you to a bonus suite giving you a guest bedroom and a loft with a built-in desk.
  • Related Plan: Get an alternate version with house plan 25646GE.
What's Included
  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
