Plan 95156RW Rustic Farmhouse Plan with Home Office and Main-floor Master Bedroom

3,787 3-5 3.5 - 4.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Rustic Farmhouse Plan with Home Office and Main-floor Master Bedroom

Plan 95156RW

  • 3,787

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

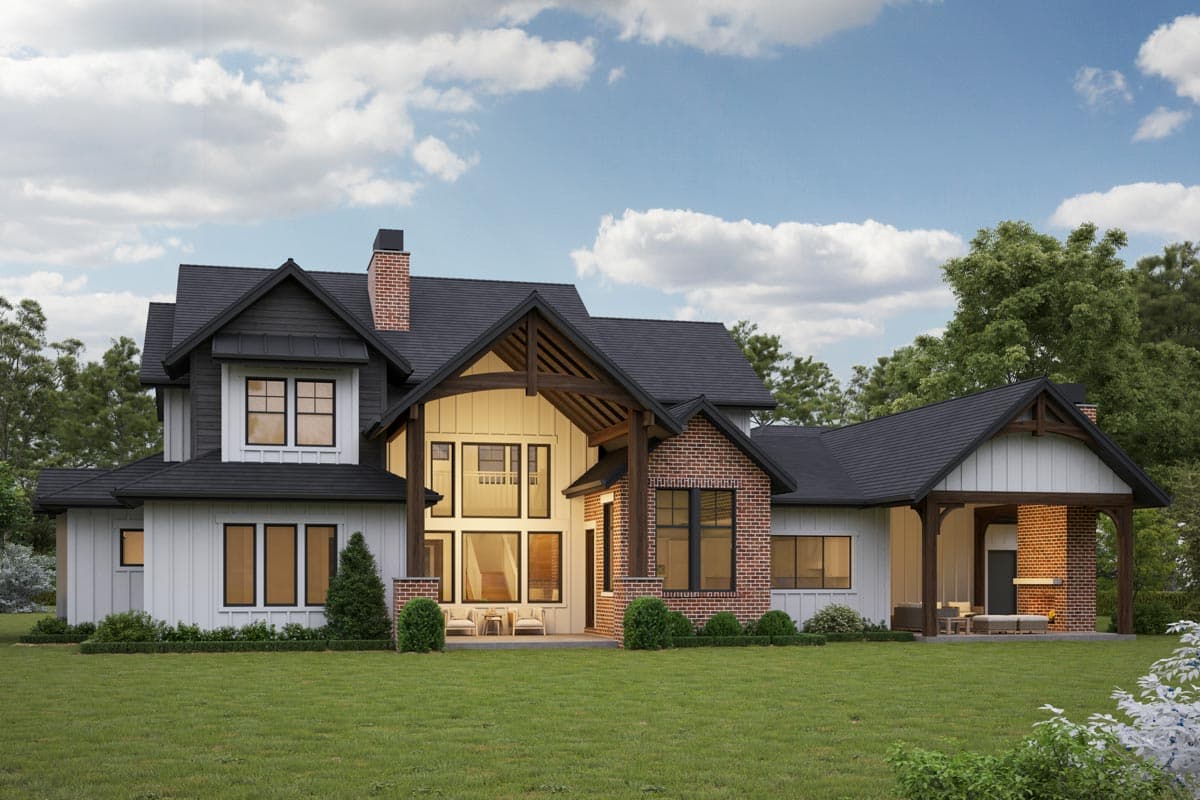

  • A blend of siding materials add to the eye-catching curb appeal offered by this Rustic Farmhouse plan. The thoughtful design creates a comfortable home for everyday living, as well as a natural space to entertain.
  • The open main level hosts a great room with a vaulted ceiling and fireplace, large dining area (including a breakfast nook with built-in seating), and an island kitchen with a large range and loads of counter space.
  • Multiple covered patios allow you expand the living space outdoors and sizable service areas help to accommodate even the most active lifestyles.
  • The right wing of the home is dedicated to the homeowner with a generous master bedroom that features an ensuite with access to the laundry room. A home office is also located just across the hall.
  • Three family bedrooms are located upstairs; two share a Jack-and-Jill bath, and one includes a full bath.
  • The fun continues downstairs where you'll find an open rec room with a billiards table, media area, and wet bar. Bedrooms 5 and 6 share a 3/4 bath and an exercise room completes the space.

  • Cover Page

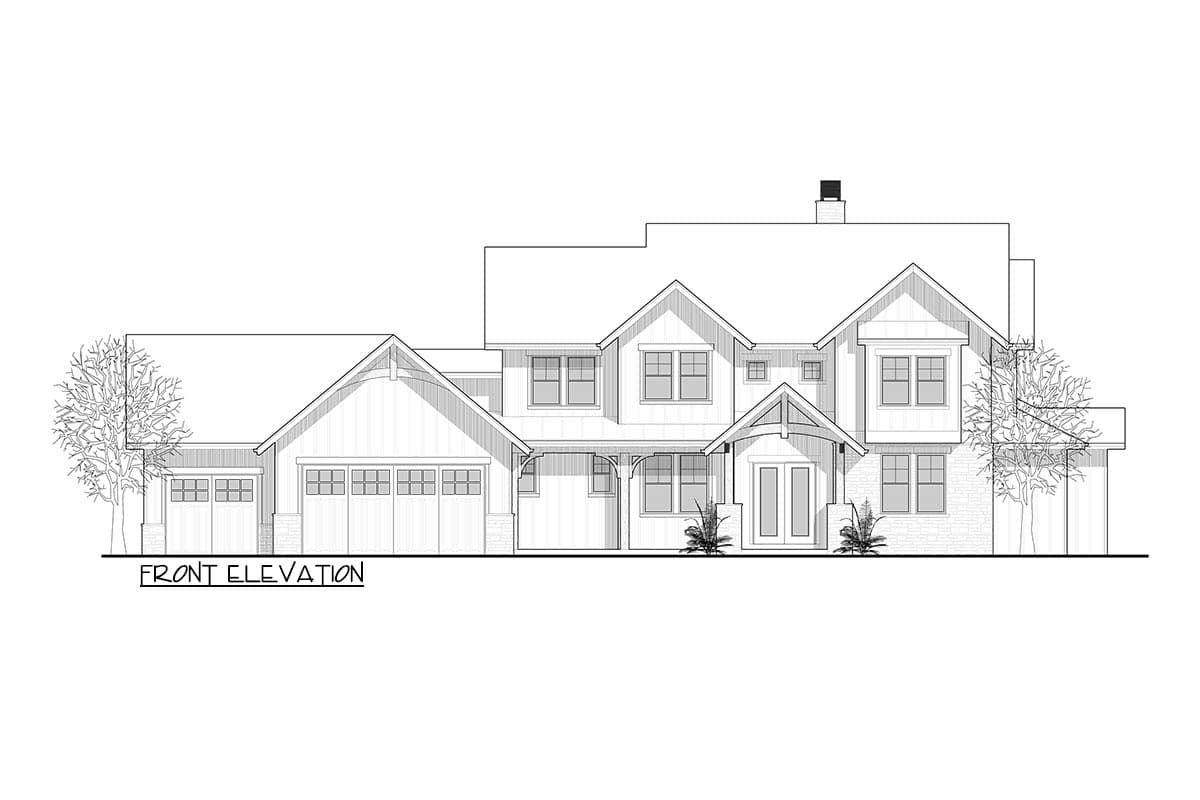

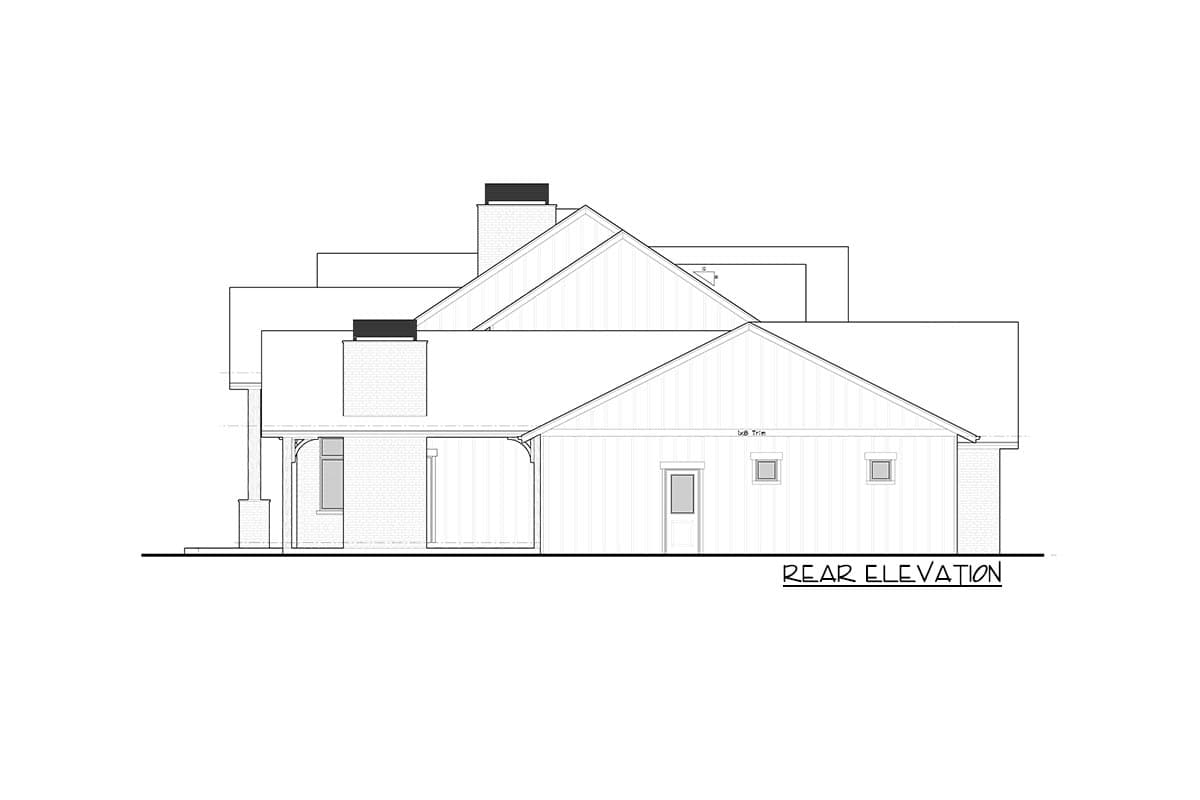

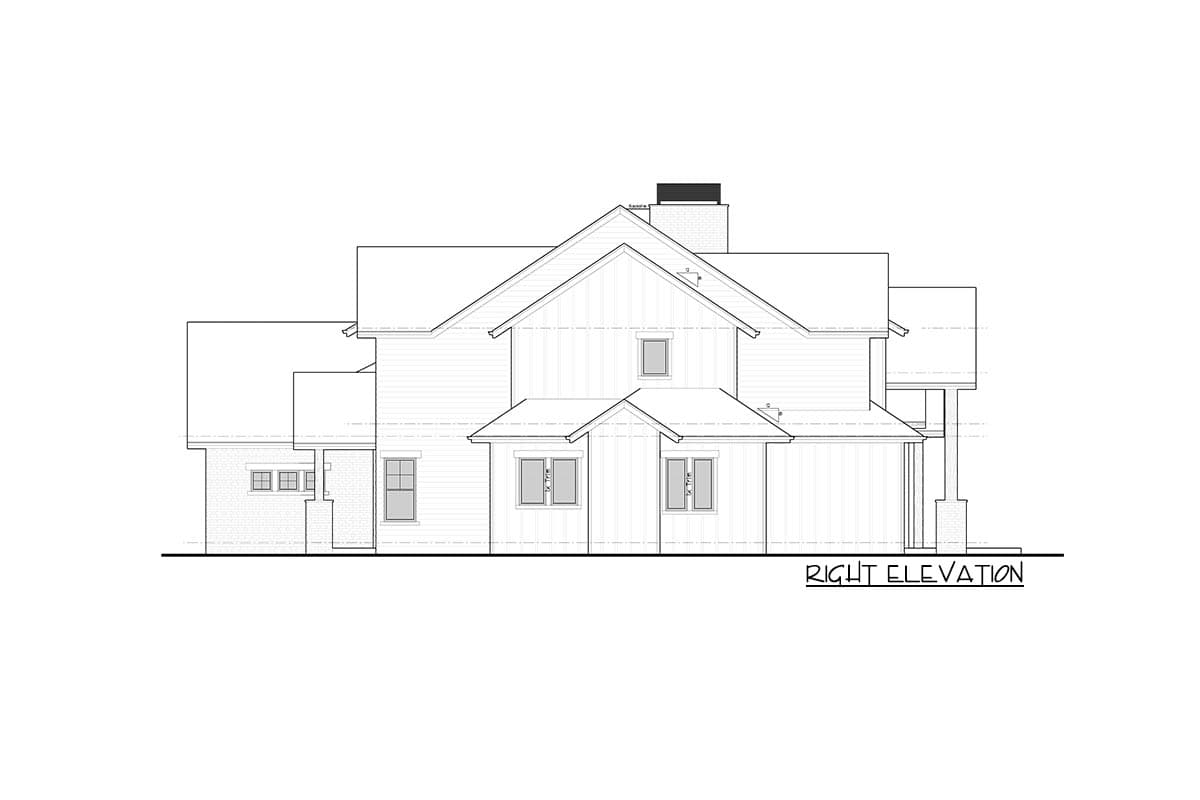

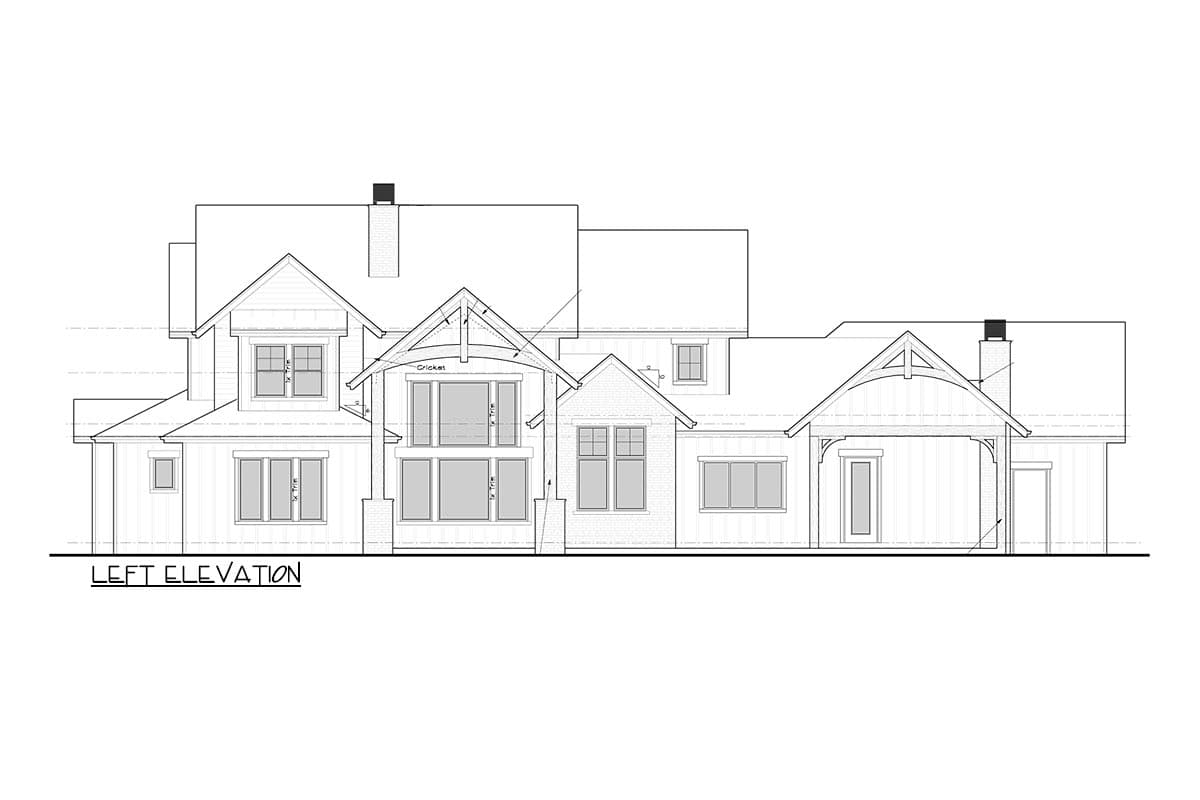

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

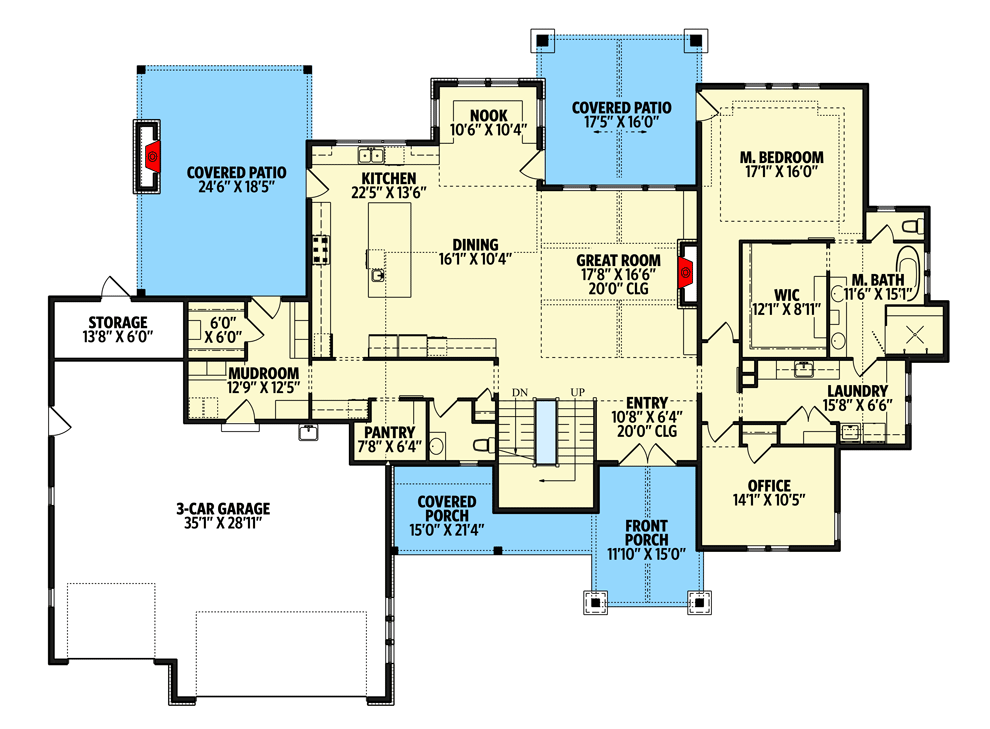

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Rustic Farmhouse Plan with Home Office and Main-floor Master Bedroom - 95156RW floor plan - Main Level

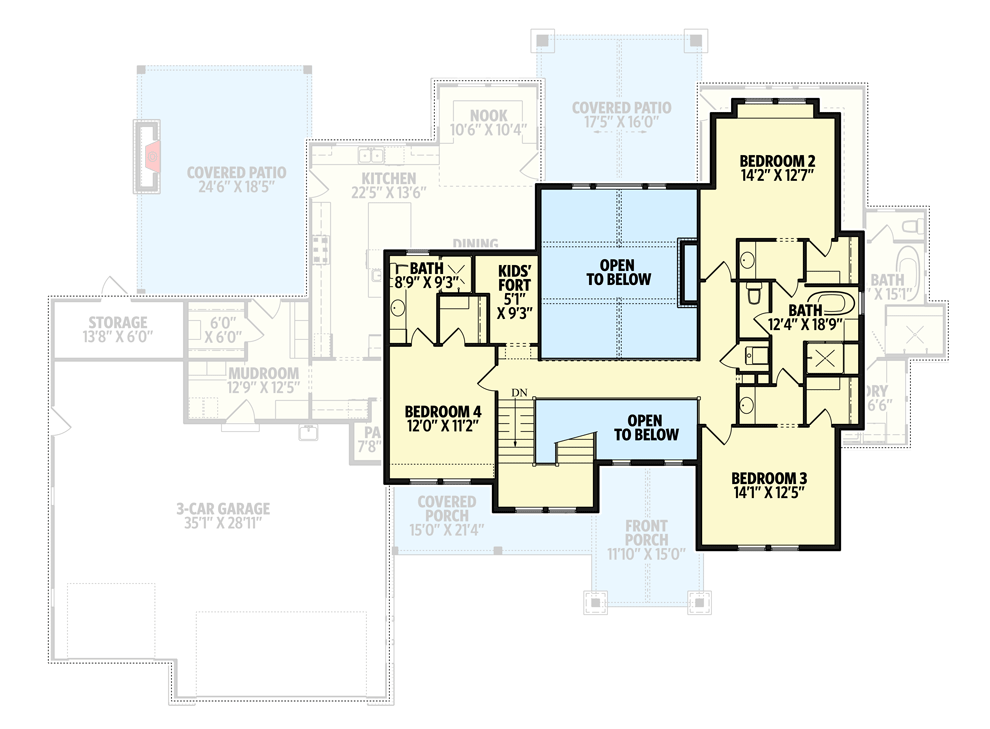

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Rustic Farmhouse Plan with Home Office and Main-floor Master Bedroom - 95156RW floor plan - 2nd Floor

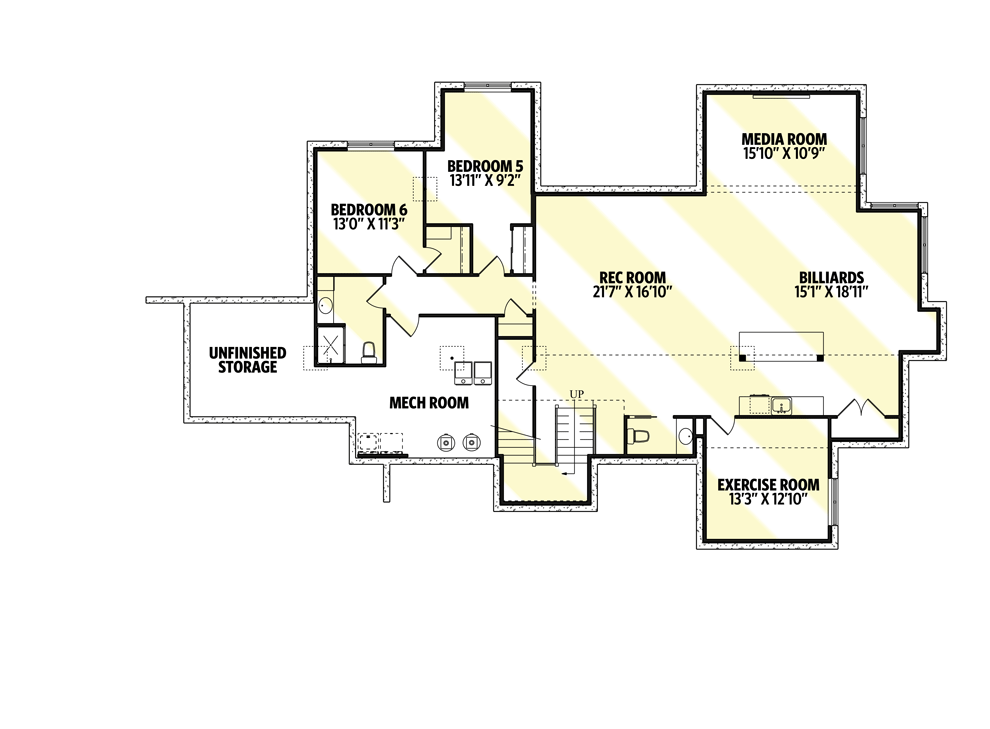

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Rustic Farmhouse Plan with Home Office and Main-floor Master Bedroom - 95156RW floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,787 sq. ft.
  • 1st Floor: 2,607 sq. ft.
  • 2nd Floor: 1,180 sq. ft.
  • Deck & Porch: 1,033 sq. ft.
  • Optional Lower Level: 2,201 sq. ft.
  • Basement Unfinished: 406 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 95' 0"
  • Depth: 70' 6"
  • Max ridge height: 31' 9"

Garage

  • Type: Attached
  • Area: 1176 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0" Second Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12

Architectural Style

Special features

Rustic Farmhouse Plan with Home Office and Main-floor Master Bedroom

  • 3,787

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,300
  • CAD + PDF - Single Build $3,800
  • View all purchase option online

About This Plan

  • A blend of siding materials add to the eye-catching curb appeal offered by this Rustic Farmhouse plan. The thoughtful design creates a comfortable home for everyday living, as well as a natural space to entertain.
  • The open main level hosts a great room with a vaulted ceiling and fireplace, large dining area (including a breakfast nook with built-in seating), and an island kitchen with a large range and loads of counter space.
  • Multiple covered patios allow you expand the living space outdoors and sizable service areas help to accommodate even the most active lifestyles.
  • The right wing of the home is dedicated to the homeowner with a generous master bedroom that features an ensuite with access to the laundry room. A home office is also located just across the hall.
  • Three family bedrooms are located upstairs; two share a Jack-and-Jill bath, and one includes a full bath.
  • The fun continues downstairs where you'll find an open rec room with a billiards table, media area, and wet bar. Bedrooms 5 and 6 share a 3/4 bath and an exercise room completes the space.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,787 sq. ft.
  • 1st Floor: 2,607 sq. ft.
  • 2nd Floor: 1,180 sq. ft.
  • Deck & Porch: 1,033 sq. ft.
  • Optional Lower Level: 2,201 sq. ft.
  • Basement Unfinished: 406 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 95' 0"
  • Depth: 70' 6"
  • Max ridge height: 31' 9"

Garage

  • Type: Attached
  • Area: 1176 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
