Rustic Mountain Craftsman with Over 2700 Square Feet of Heated Living with Expansion Possibilities

Plan 770502JME

  • 2,719

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Wood siding, timbers and stone combine to give this mixed material mountain Craftsman home plan rustic appeal. A 2-car side garage - with a bonus room with bath above - helps preserve maintain the visual appeal of the front of the home.
  • A vaulted ceiling runs from the center of the foyer (with coat closet and stairs to the basement) through to the great room with fireplace and continues outside to the covered patio.
  • A double sink is centered over windows looking out across the back and a 5' by 10' island provides work space and casual seating in the kitchen. A mini-fridge in the walk-in pantry is a nice convenience.
  • The master suite enjoys access to the covered patio and has a vaulted ceiling. A five-fixture bath and walk-in closet complete the suite. Across the home, Beds 2 and 3 each have their own baths and walk-in closets.
  • Expand above the garage and gain 459 square feet with the bonus room. Expand to the basement and gain an additional 3,408 square feet when you do.
  • DELIVERY NOTE: Please allow 3 to 5 days for delivery if it includes Readable Reverse.

This plan includes the following details:

  • Cover sheet
  • Foundation plan
  • Floor plans
  • Floor joist layout
  • Roof truss layout
  • Sections
  • Elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

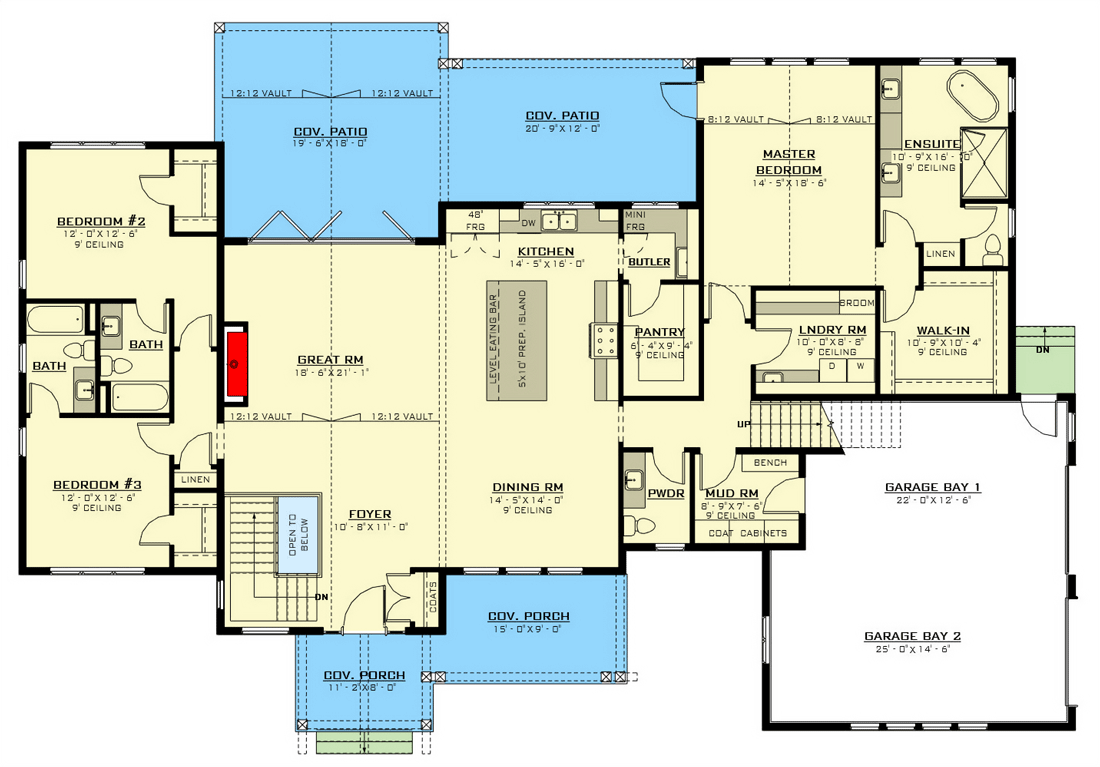

Rustic Mountain Craftsman with Over 2700 Square Feet of Heated Living with Expansion Possibilities - 770502JME floor plan - Main Level

Upper Level Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

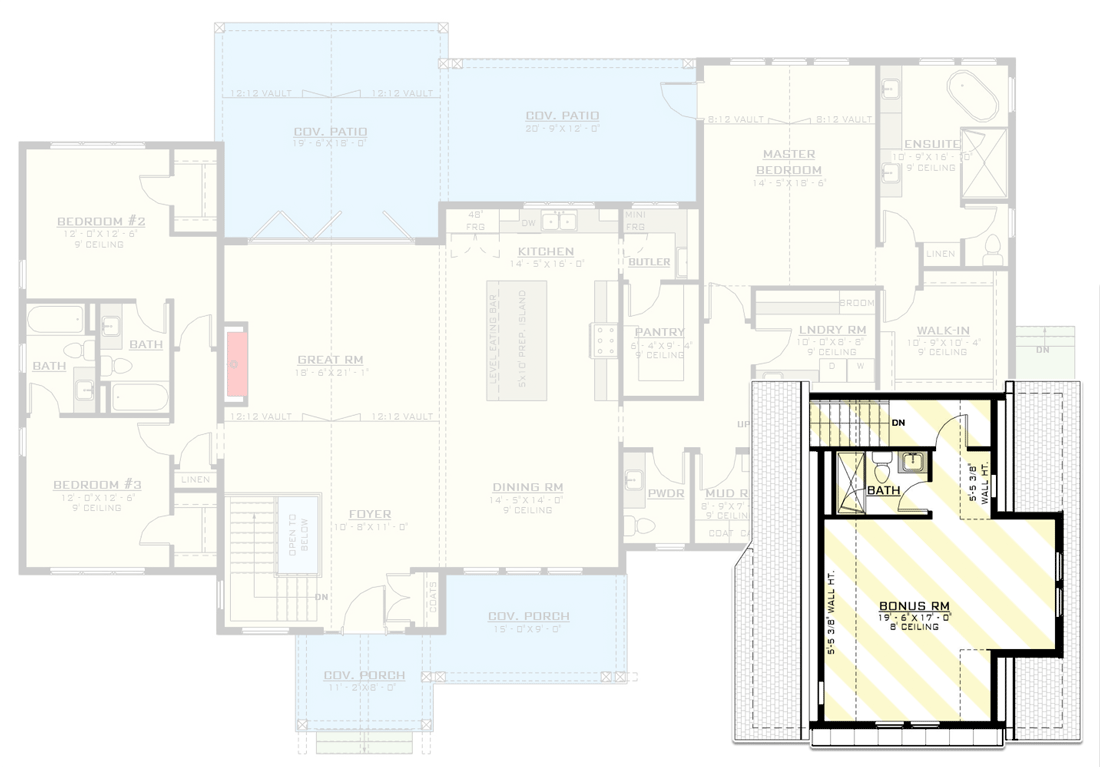

Rustic Mountain Craftsman with Over 2700 Square Feet of Heated Living with Expansion Possibilities - 770502JME floor plan - Upper Level Bonus Room

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

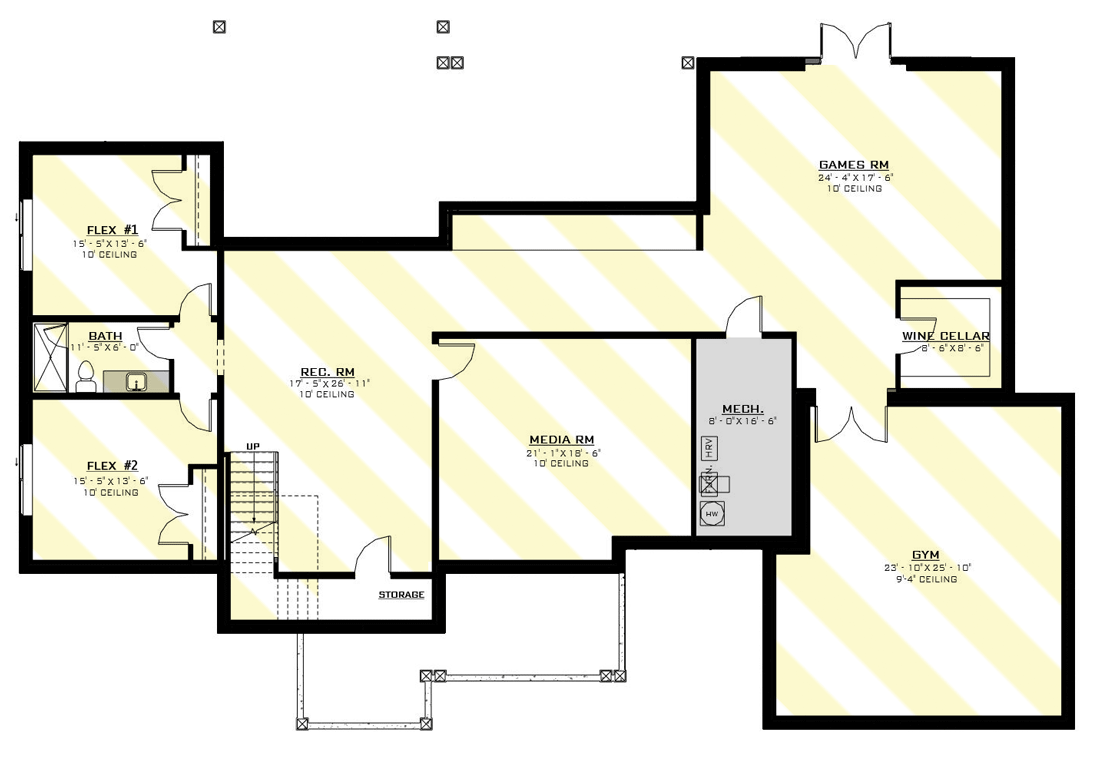

Rustic Mountain Craftsman with Over 2700 Square Feet of Heated Living with Expansion Possibilities - 770502JME floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,719 sq. ft.
  • 1st Floor: 2,719 sq. ft.
  • Porch, Combined: 821 sq. ft.
  • Porch, Rear: 592 sq. ft.
  • Porch, Front: 229 sq. ft.
  • Bonus: 459 sq. ft.
  • Basement Unfinished: 3,408 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 88' 0"
  • Depth: 59' 0"
  • Max ridge height: 25' 10"

Garage

  • Type: Attached
  • Area: 688 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Rustic Mountain Craftsman with Over 2700 Square Feet of Heated Living with Expansion Possibilities

  • 2,719

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,595
  • CAD + PDF - Single Build $2,095
  • CAD Unlimited + PDF $2,595
  • View all purchase option online

About This Plan

  • Wood siding, timbers and stone combine to give this mixed material mountain Craftsman home plan rustic appeal. A 2-car side garage - with a bonus room with bath above - helps preserve maintain the visual appeal of the front of the home.
  • A vaulted ceiling runs from the center of the foyer (with coat closet and stairs to the basement) through to the great room with fireplace and continues outside to the covered patio.
  • A double sink is centered over windows looking out across the back and a 5' by 10' island provides work space and casual seating in the kitchen. A mini-fridge in the walk-in pantry is a nice convenience.
  • The master suite enjoys access to the covered patio and has a vaulted ceiling. A five-fixture bath and walk-in closet complete the suite. Across the home, Beds 2 and 3 each have their own baths and walk-in closets.
  • Expand above the garage and gain 459 square feet with the bonus room. Expand to the basement and gain an additional 3,408 square feet when you do.
  • DELIVERY NOTE: Please allow 3 to 5 days for delivery if it includes Readable Reverse.
