Rustic Mountain Home Plan for Rear-sloping Lot

Plan 35486GH

  • 5,309

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This Mountain home plan presents a rustic exterior that blends beautifully with the surrounding landscape and delivers over 5,300 square feet of living space.
  • Tall ceilings and large windows in the family room create a light and airy interior with access to a screened porch and sun deck on either side.
  • The heart of the home offers an eating bar at the central island and easy access to the dining room encourages family meals around the table.
  • Conveniently located on the main level, discover the master suite with access to the deck through french doors. Upstairs is shared by a loft and second bedroom.
  • The finished basement is where you'll find bedrooms 3 and 4, a home gym, and family room that extends onto a patio.

Each plan set includes the following:

  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.
  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan:This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric:This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

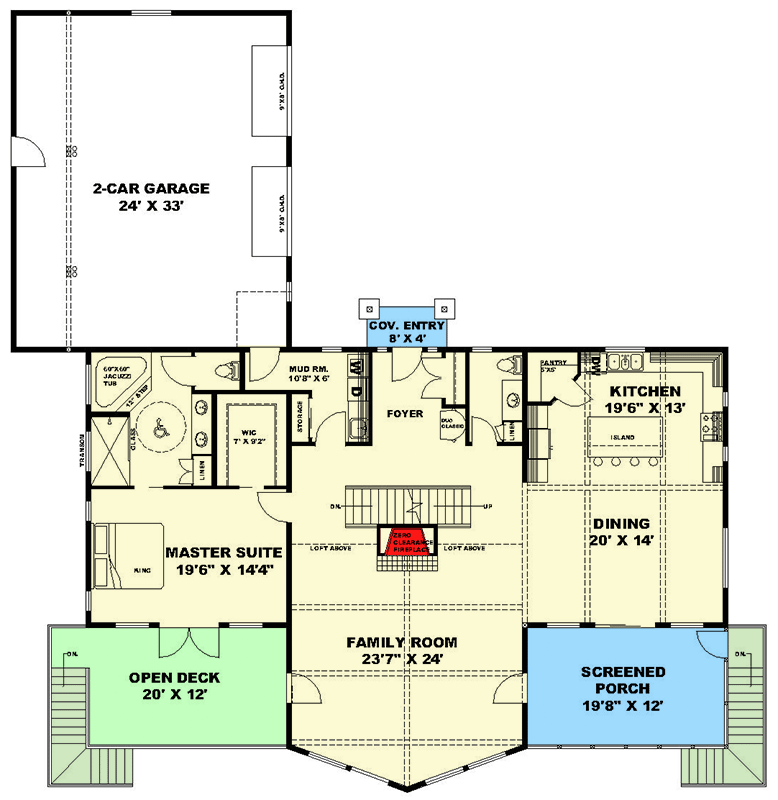

Rustic Mountain Home Plan for Rear-sloping Lot - 35486GH floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

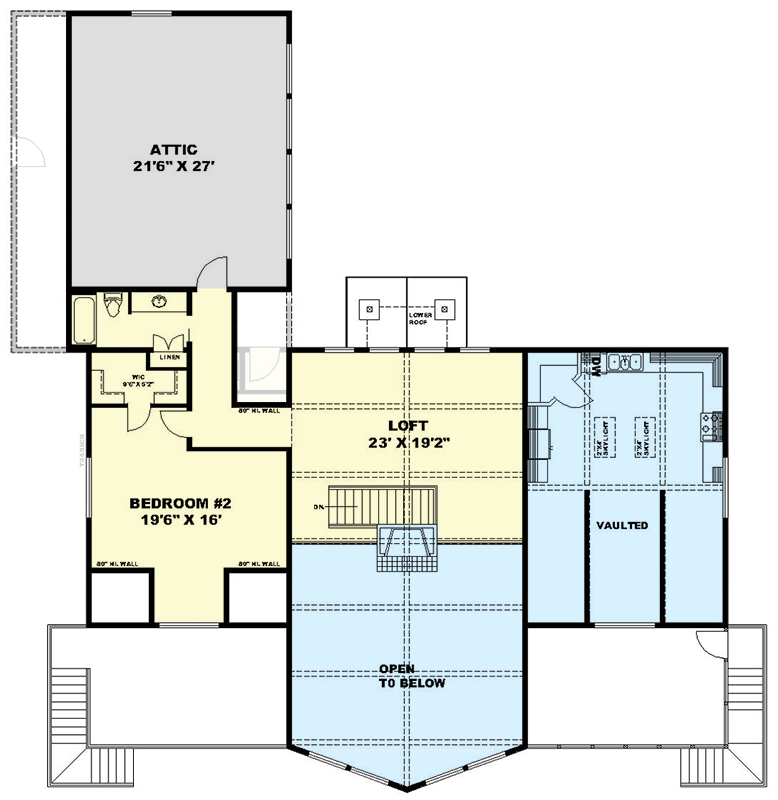

Rustic Mountain Home Plan for Rear-sloping Lot - 35486GH floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

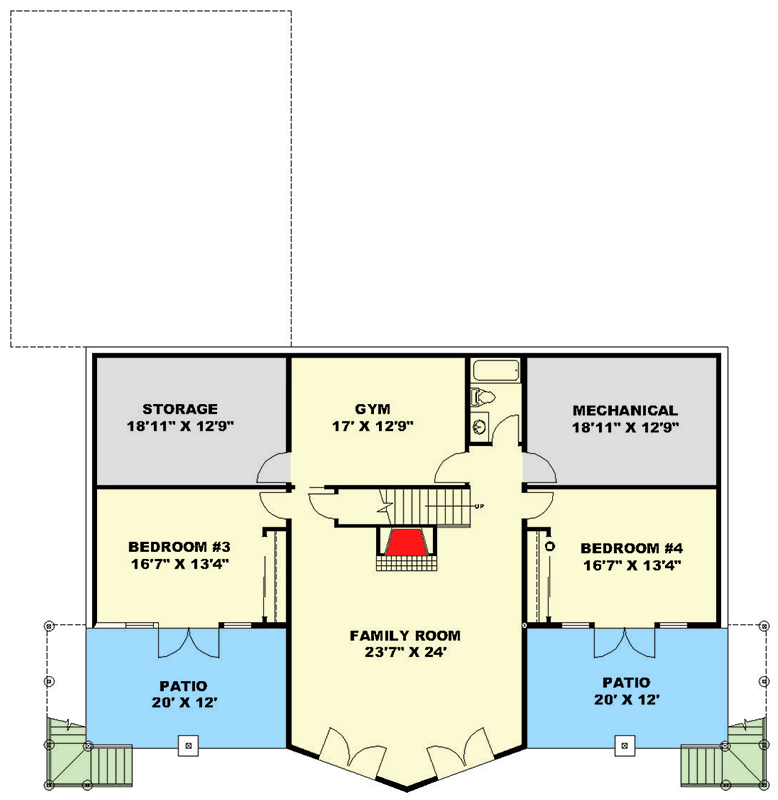

Rustic Mountain Home Plan for Rear-sloping Lot - 35486GH floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,309 sq. ft.
  • 1st Floor: 2,133 sq. ft.
  • 2nd Floor: 1,043 sq. ft.
  • 3rd Floor: 2,133 sq. ft.
  • Attic: 622 sq. ft.
  • Screened Porch: 240 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 75' 4"
  • Depth: 77' 11"
  • Max ridge height: 31' 10"

Garage

  • Type: Attached
  • Area: 942 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 1" Second Floor / 11' 8"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Rustic Mountain Home Plan for Rear-sloping Lot

  • 5,309

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $2,295
  • PDF + CAD - Single Build $2,395
  • 5 Sets + PDF $2,545
  • CAD + PDF - Unlimited Build $3,095
  • View all purchase option online

About This Plan

  • This Mountain home plan presents a rustic exterior that blends beautifully with the surrounding landscape and delivers over 5,300 square feet of living space.
  • Tall ceilings and large windows in the family room create a light and airy interior with access to a screened porch and sun deck on either side.
  • The heart of the home offers an eating bar at the central island and easy access to the dining room encourages family meals around the table.
  • Conveniently located on the main level, discover the master suite with access to the deck through french doors. Upstairs is shared by a loft and second bedroom.
  • The finished basement is where you'll find bedrooms 3 and 4, a home gym, and family room that extends onto a patio.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,309 sq. ft.
  • 1st Floor: 2,133 sq. ft.
  • 2nd Floor: 1,043 sq. ft.
  • 3rd Floor: 2,133 sq. ft.
  • Attic: 622 sq. ft.
  • Screened Porch: 240 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 75' 4"
  • Depth: 77' 11"
  • Max ridge height: 31' 10"

Garage

  • Type: Attached
  • Area: 942 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 1" Second Floor / 11' 8"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick And Truss
Plan 35486GH
View this and more for this plan by visiting www.architechtecturaldesigns.com/35486GH
|
