Rustic Mountain Lodge with Vaulted Interior and Angled 2-Car Garage

Plan 68490VR

  • 2,943

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • A massive vaulted great room is the key design feature of this rustic Mountain lodge house plan. The vaulted ceiling extends to the front porch, entry foyer and back through to the vaulted rear porch and a 2-car angled garage is attached by a breezeway.
  • Dine informally in the kitchen at the massive island that seats 5 people. The walk-in pantry is huge, providing room for food storage and pots and pans.
  • Double doors in the family room lead out to an open deck where you can enjoy the sunshine.
  • Homeowners get a deck of their own plus a private bathroom and large walk-in closet. Two family bedrooms are all the way over on the other side of the house.
  • Related Plan: Turn the office into a breezeway with house plan 680012VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

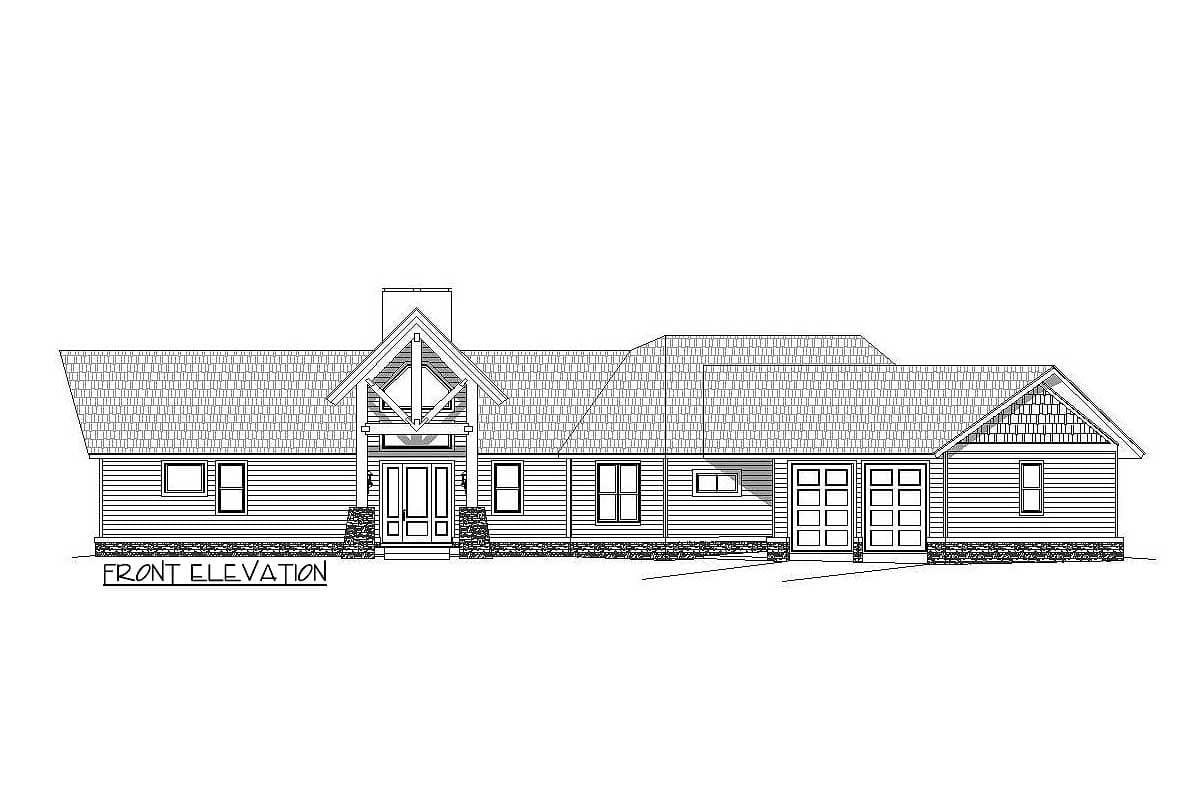

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

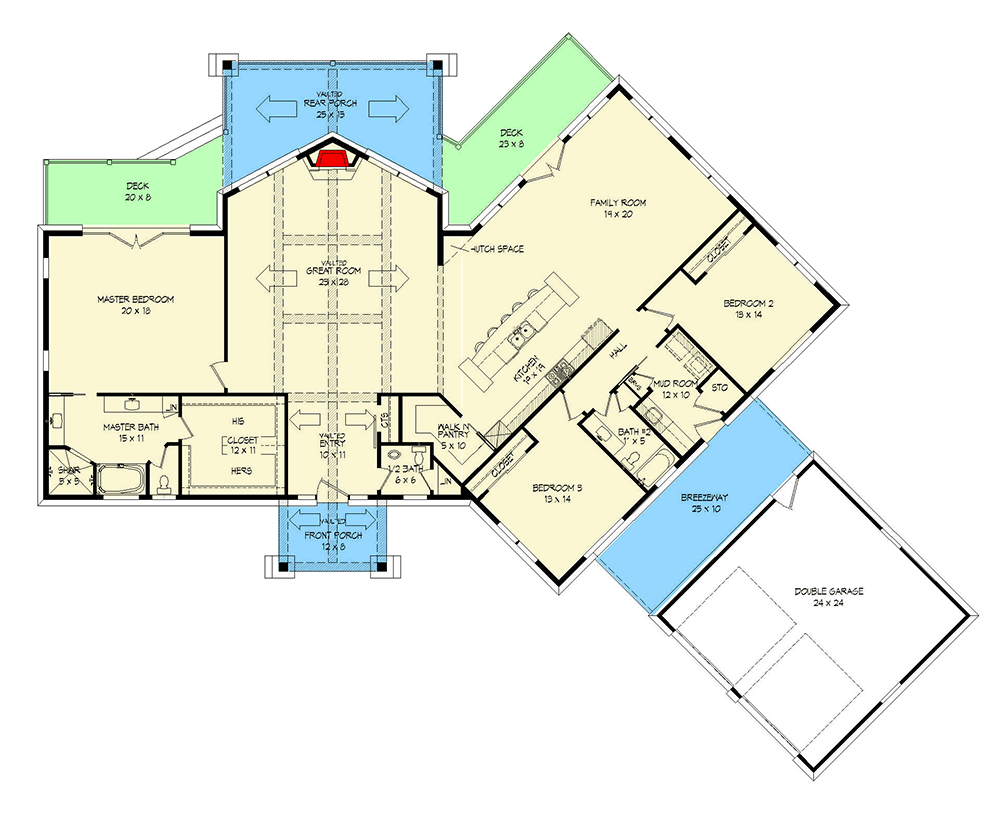

Rustic Mountain Lodge with Vaulted Interior and Angled 2-Car Garage - 68490VR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,943 sq. ft.
  • 1st Floor: 2,943 sq. ft.
  • Deck: 355 sq. ft.
  • Porch, Combined: 631 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 104' 0"
  • Depth: 79' 6"
  • Max ridge height: 29' 9"

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Rustic Mountain Lodge with Vaulted Interior and Angled 2-Car Garage

  • 2,943

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,575
  • 5 Sets $1,660
  • 5 Sets + PDF $1,805
  • CAD + PDF - Single-Build $2,125
  • View all purchase option online

About This Plan

  • A massive vaulted great room is the key design feature of this rustic Mountain lodge house plan. The vaulted ceiling extends to the front porch, entry foyer and back through to the vaulted rear porch and a 2-car angled garage is attached by a breezeway.
  • Dine informally in the kitchen at the massive island that seats 5 people. The walk-in pantry is huge, providing room for food storage and pots and pans.
  • Double doors in the family room lead out to an open deck where you can enjoy the sunshine.
  • Homeowners get a deck of their own plus a private bathroom and large walk-in closet. Two family bedrooms are all the way over on the other side of the house.
  • Related Plan: Turn the office into a breezeway with house plan 680012VR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,943 sq. ft.
  • 1st Floor: 2,943 sq. ft.
  • Deck: 355 sq. ft.
  • Porch, Combined: 631 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 104' 0"
  • Depth: 79' 6"
  • Max ridge height: 29' 9"

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick
Plan 68490VR
