Plan 70749MK

Rustic One-level 4-Bed Craftsman Home Plan with Upstairs Expansion - 4694 Sq Ft

Name: Plan 70749MK: Rustic One-level 4-Bed Craftsman Home Plan with Upstairs Expansion - 4694 Sq Ft
Brand: Architectural Designs
SKU: 70749MK
Price: 1850.0 USD
Availability: InStock

Heated S.F.

4,694

Beds

Baths

5.5

Stories

Cars

Floor Plan

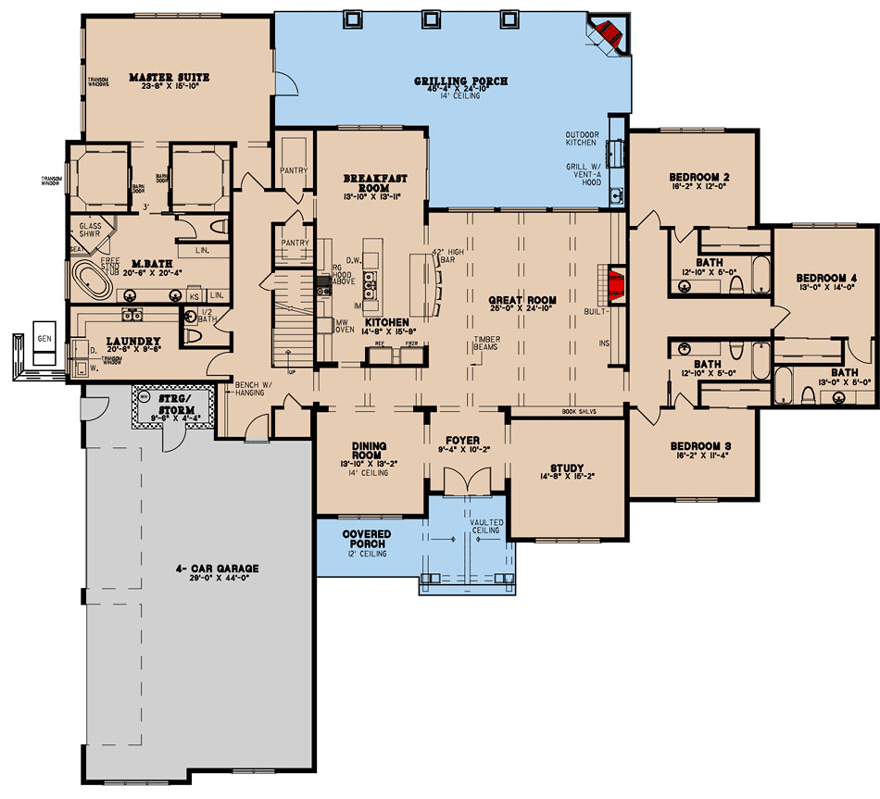

Main Level

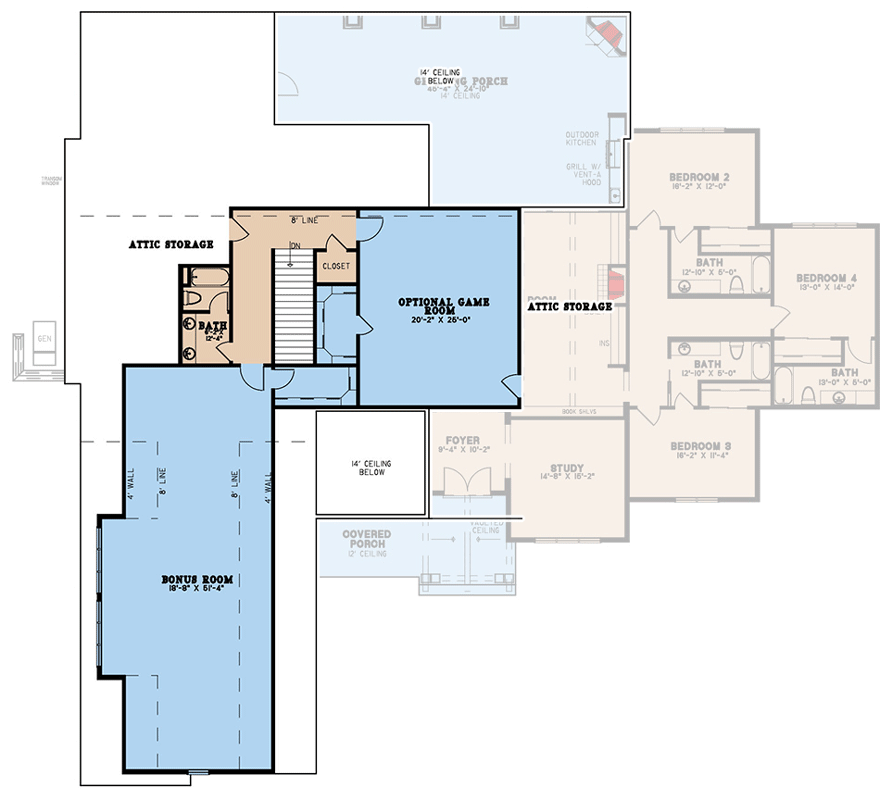

2nd Floor

Plan Details

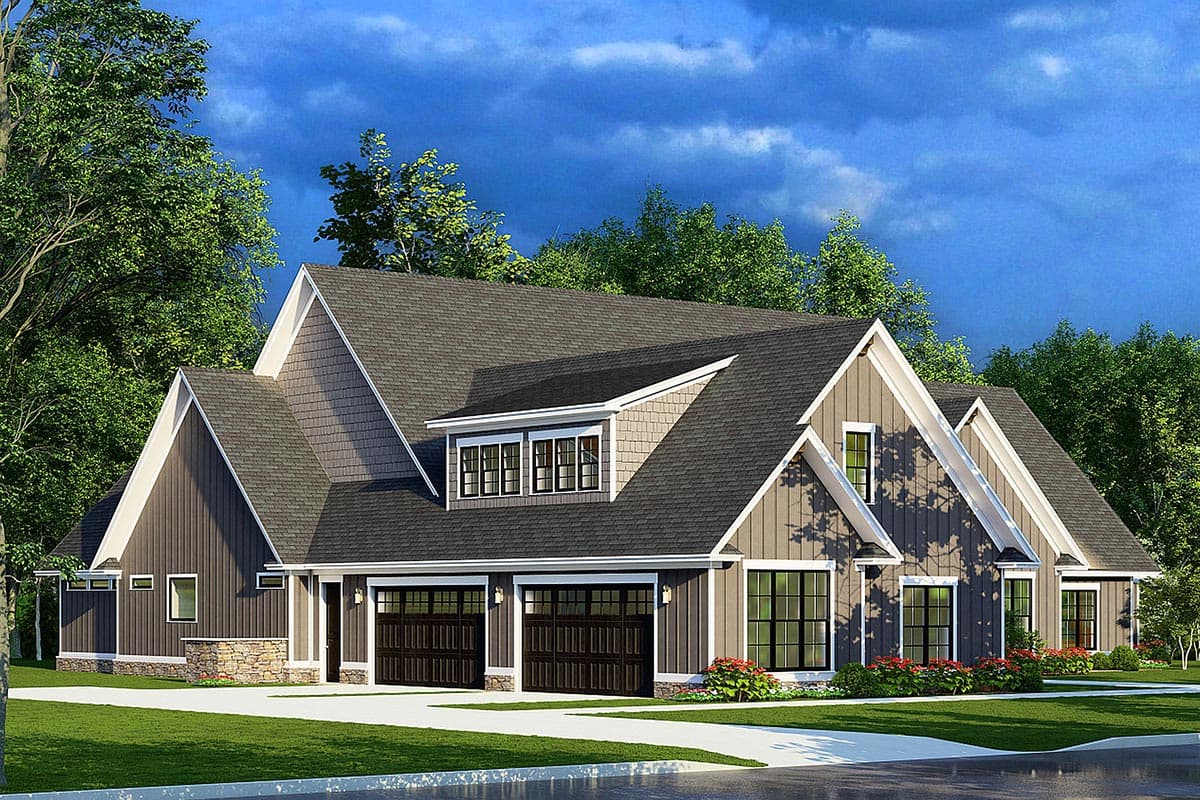

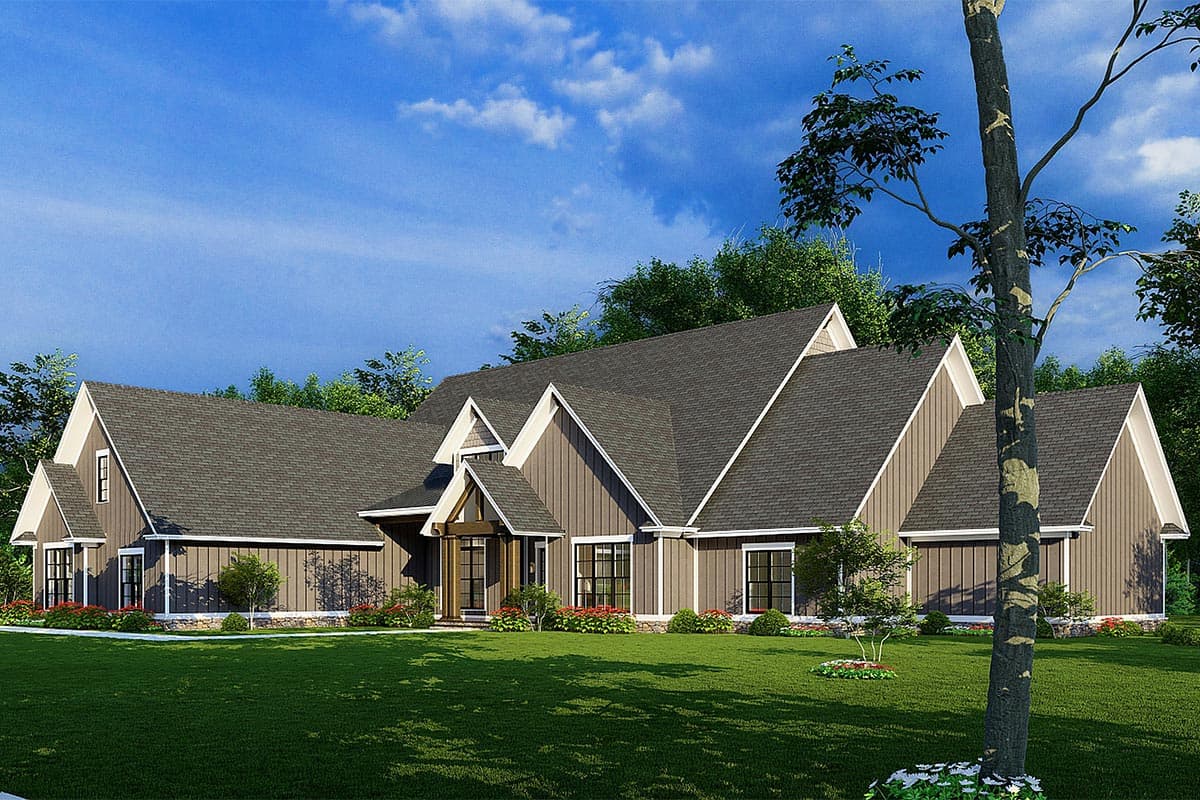

This rustic one-level house plan gives you upstairs expansion with the addition of a large bonus room and game room if desired. It has a board and batten exterior - with a timber-trussed covered entry and comes in at just under 4,700 square feet of heated living on the main floor.
Enter off the vaulted covered front porch and find yourself in a stunning foyer that opens up to the private study, the dining room, and the great room. To the left, a staircase leads you to the expansion space above (the bathroom, landing and closet are considered finished space and are colored differently than the expansion space).

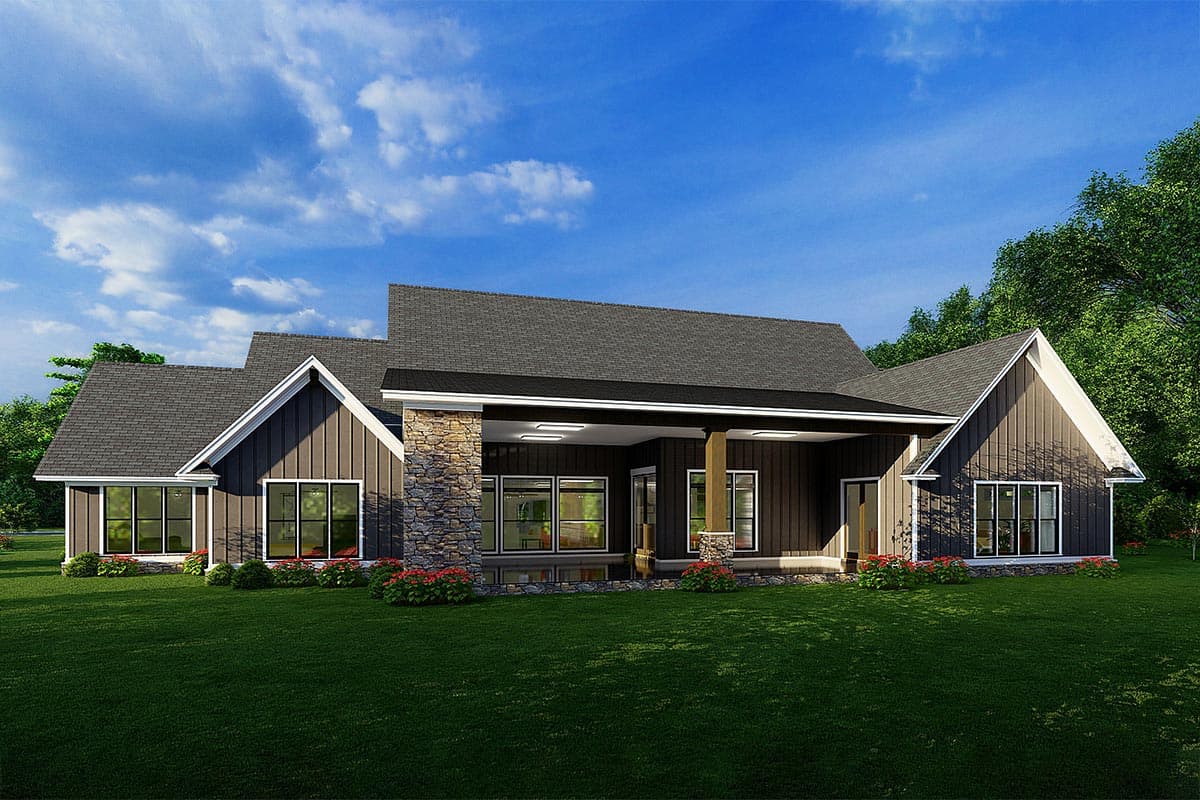

Ahead, the great room with views to the back and a fireplace framed by built-in shelving is open to the kitchen with a large island and walk-in pantry. . Sliding doors by the breakfast area take you to the huge rear porch.
The master suite is on the left side of the home and has two roomy walk-in closets to either side of the hallway that leads to the master bathroom with two vanities, a free-standing tub and a large walk-in glass shower. Across the home, there are three ensuite bedrooms.
Related Plans: Get alternate versions with house plans 60577ND (3,766 sq. ft.), 70527MK (2,993 sq. ft.), 70723MK (3,917 sq. ft.) and 70730MK (2,968 sq. ft.).

What's Included

Foundation Plan (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)
Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
Roof Overview Plan (1/4"=1")
An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
