Rustic Pool House Plan with 1-Car Garage and Outdoor Living
Heated S.F.
506
Baths
1
Stories
1
Cars
1
What's Included
Plan Details
  • This versatile structure could be a great accessory to any house and be used as a pool house, a guest house or a backyard retreat.
  • It comes equipped with a living/kitchen area and bathroom and includes a single car garage.
  • The most notable feature of this plan is the large outdoor living area with a wood burning fireplace and separate outdoor kitchen.
  • The garage has room for two vehicles and two dedicated storage areas, one accessible from inside and the other from outside.
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details

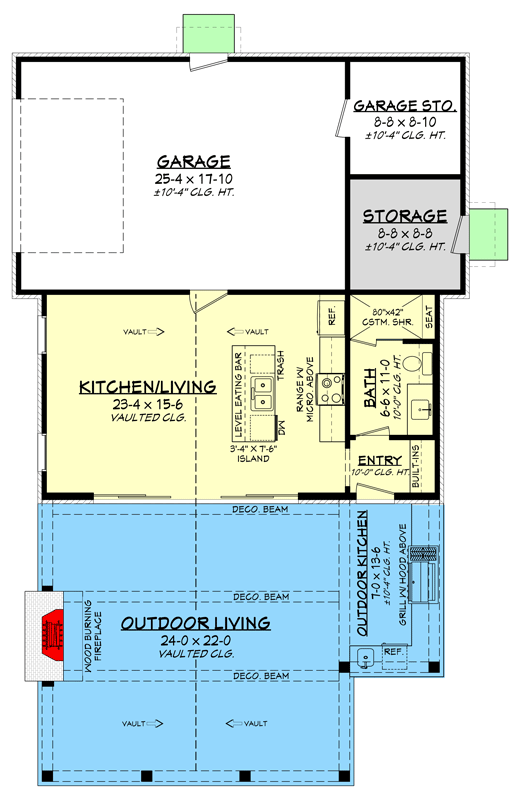

  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

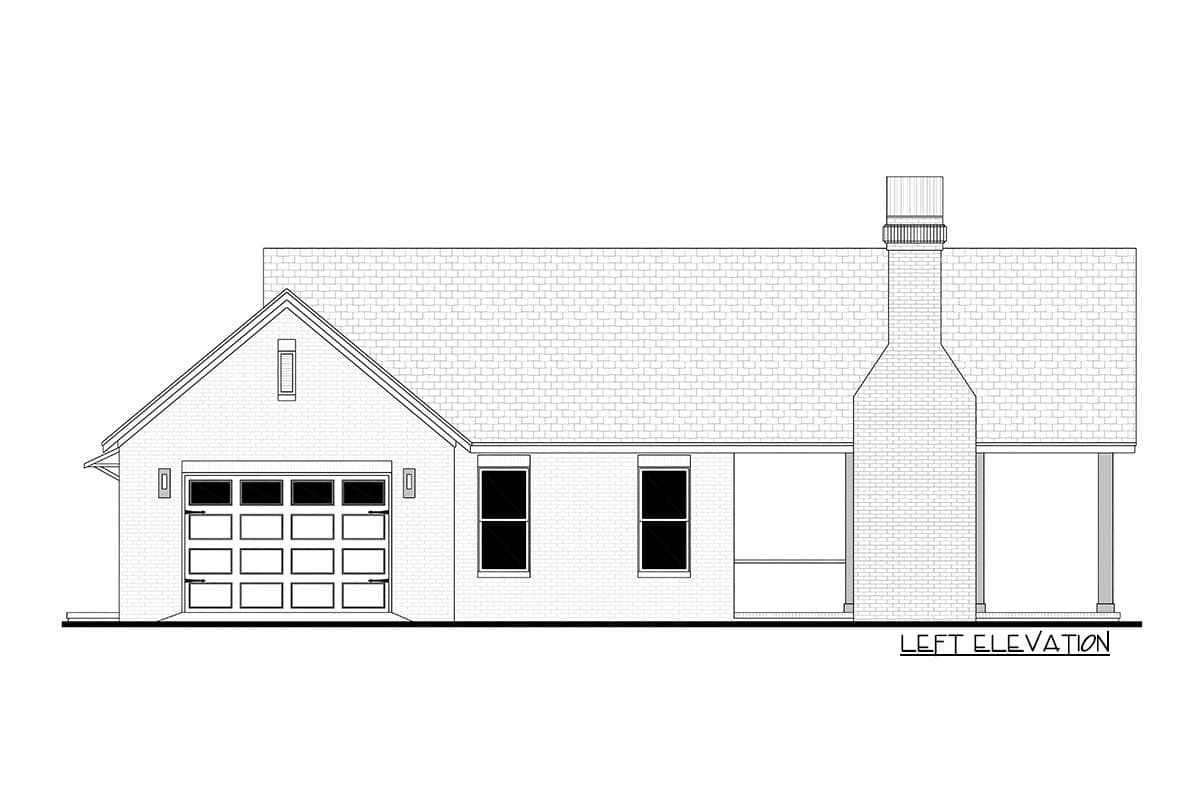

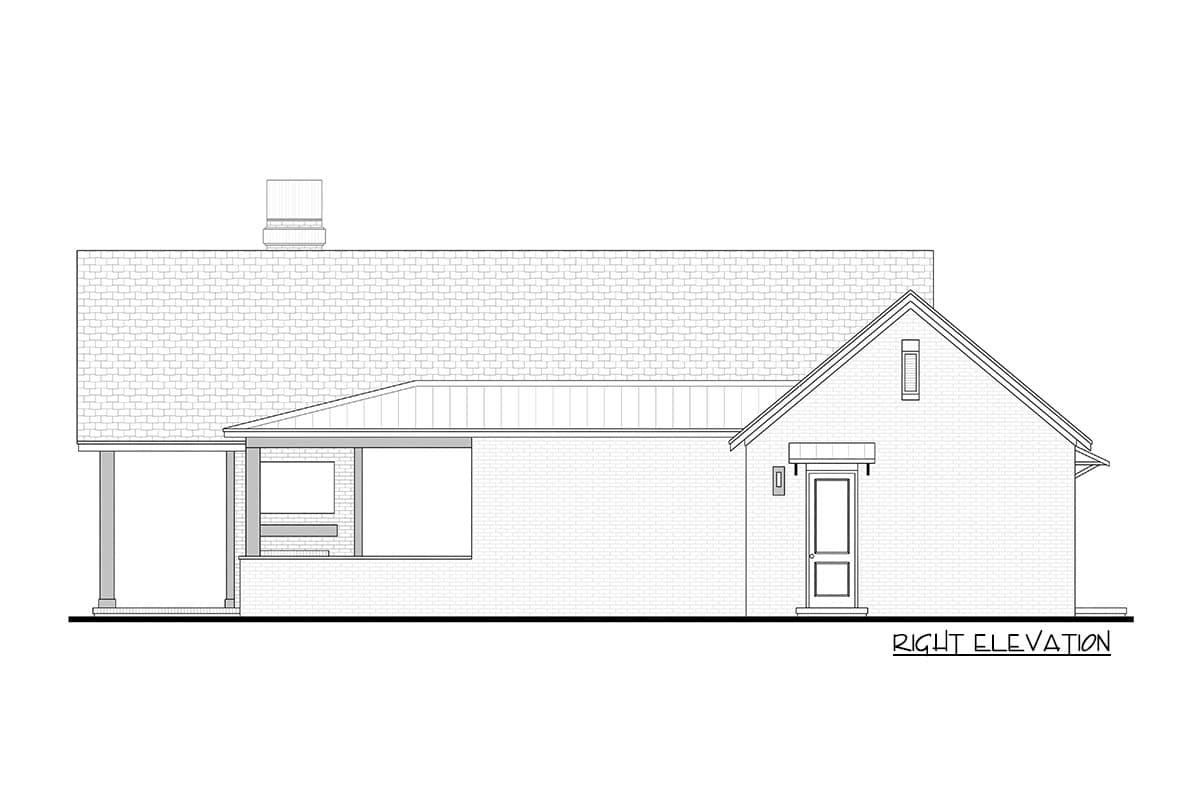

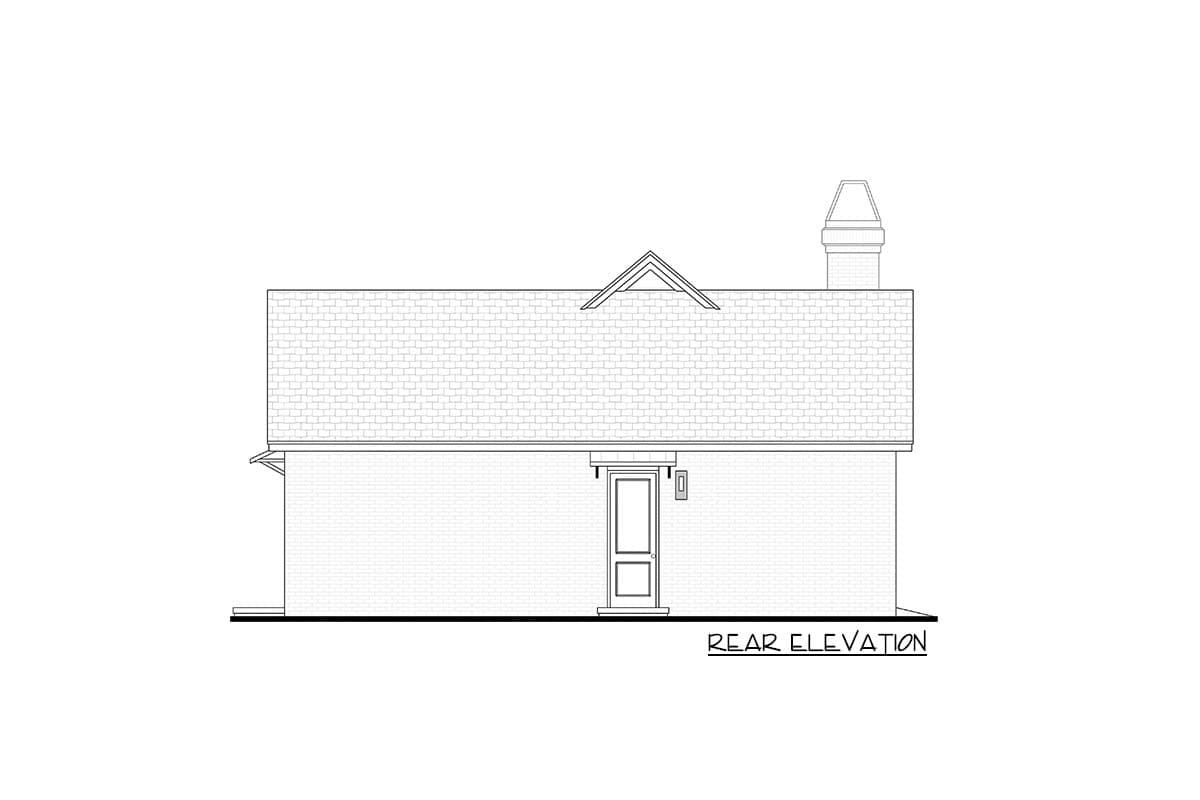

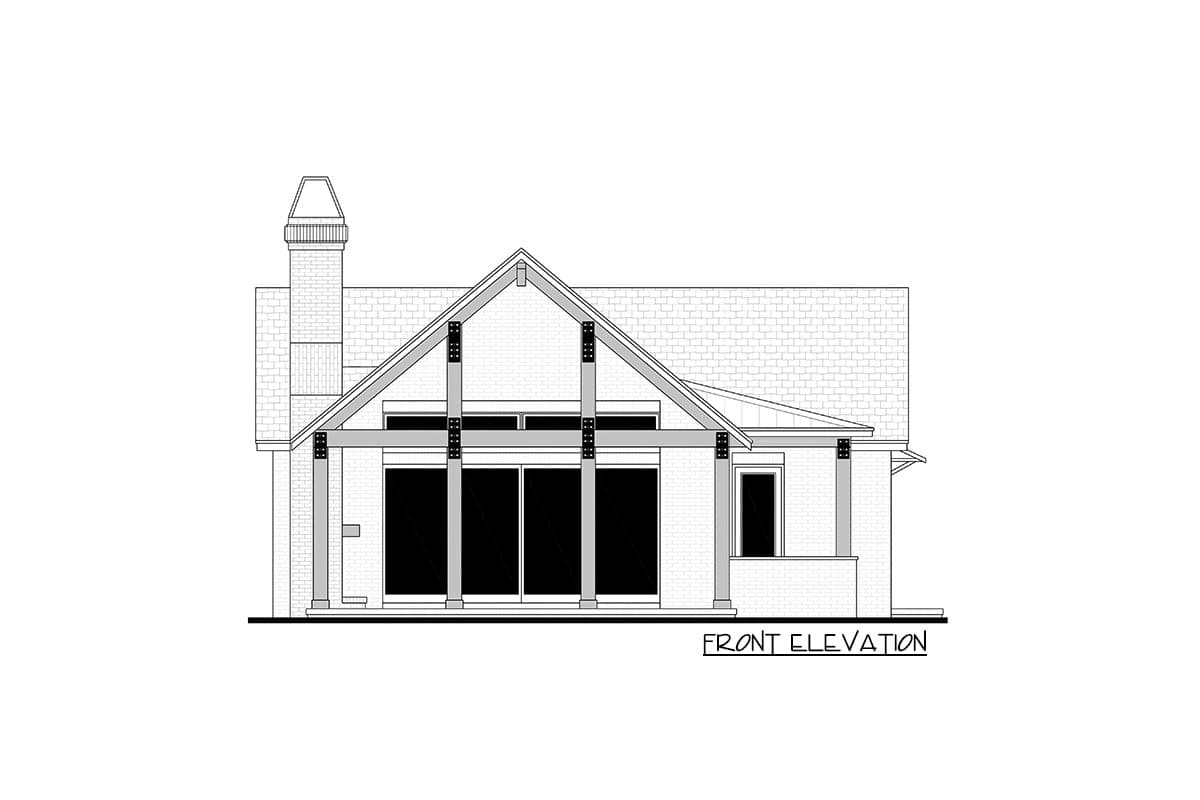

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Rustic Pool House Plan with 1-Car Garage and Outdoor Living

  • 506

    Heated s.f.

  • Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 506 sq. ft.
  • 1st Floor: 506 sq. ft.

Dimensions

  • Width: 35' 0"
  • Depth: 56' 6"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 473 sq. ft.
  • Count: 1 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
