Plan 280181JWD Rustic Ranch Plan with Ample Outdoor Living Space

Rustic Ranch Plan with Ample Outdoor Living Space

Plan 280181JWD

  • 2,267

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • Three simple gabled rooflines lend a modern vibe to the exterior of this Rustic Ranch plan.
  • In the center, discover a kitchen, dining area, and great room that serve as one open gathering space. French doors extend the living space onto a covered porch for outdoor enjoyment.
  • Cabinets, counters, and appliances surround an island in the kitchen and create an easy flow for everyday cooking / living.
  • The master bedroom occupies the right side of the home and indulges in a deluxe ensuite with a sizable walk-in closet and zero-threshold shower.
  • Two secondary bedrooms line the left side of the home, separated by a compartmentalized bathroom and laundry room.

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

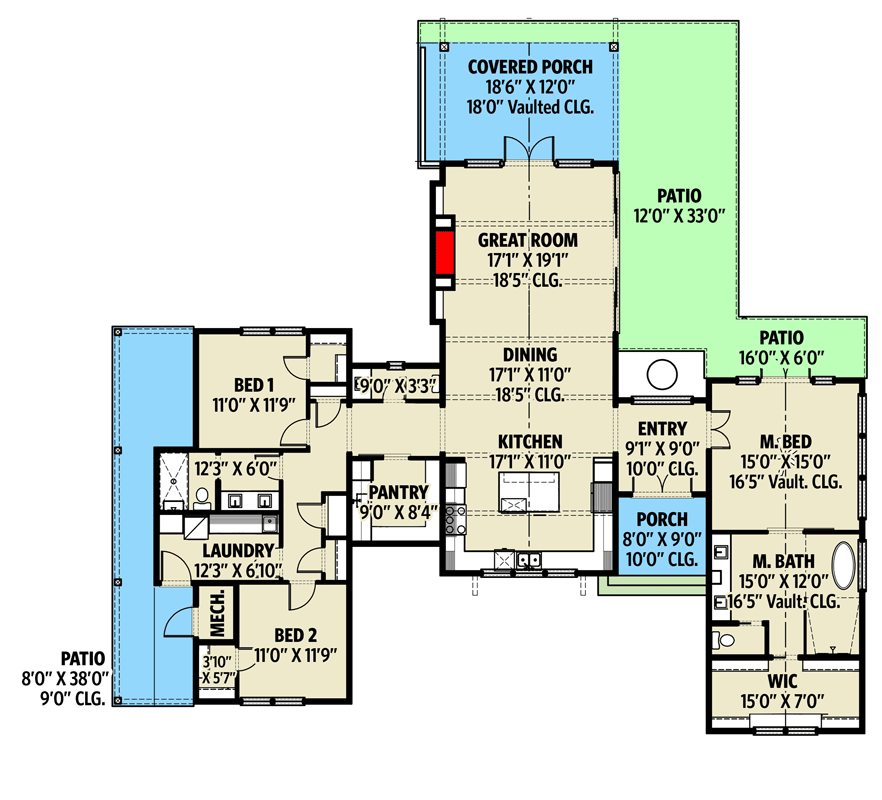

Rustic Ranch Plan with Ample Outdoor Living Space - 280181JWD floor plan - Main Level

Optional Detached Garage (+ $500)

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

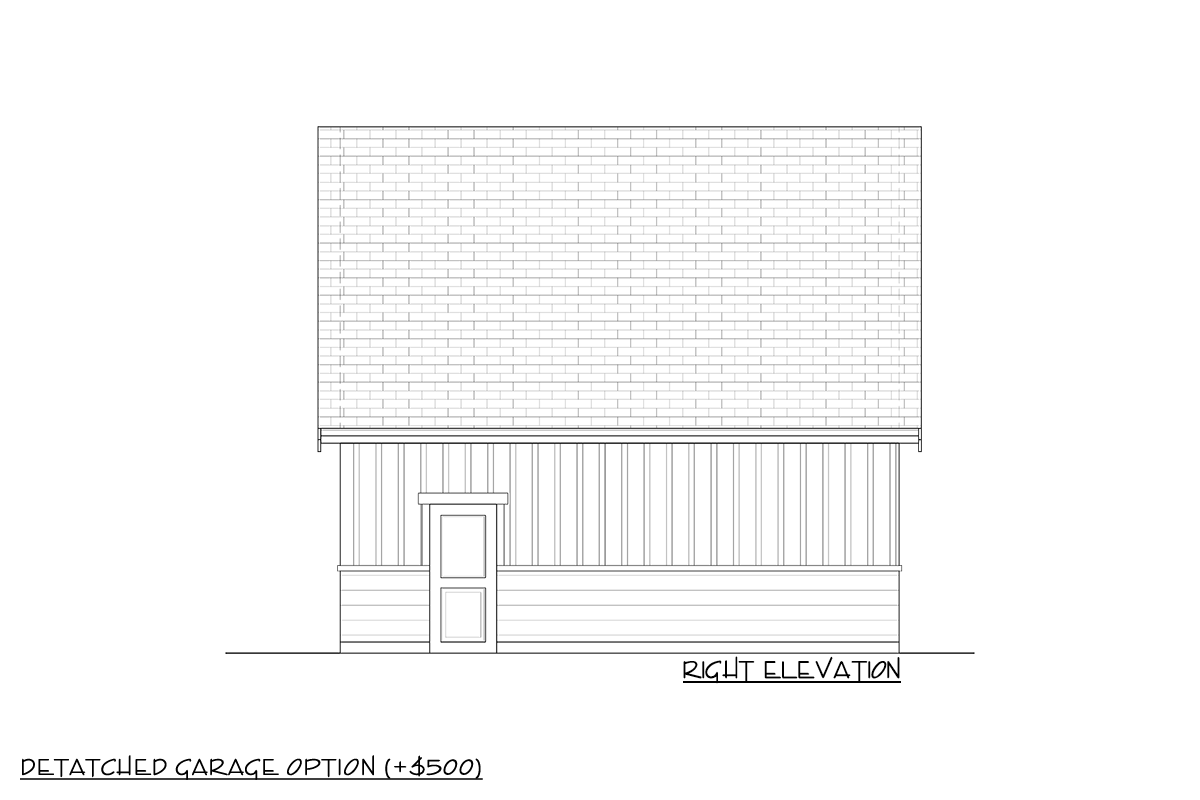

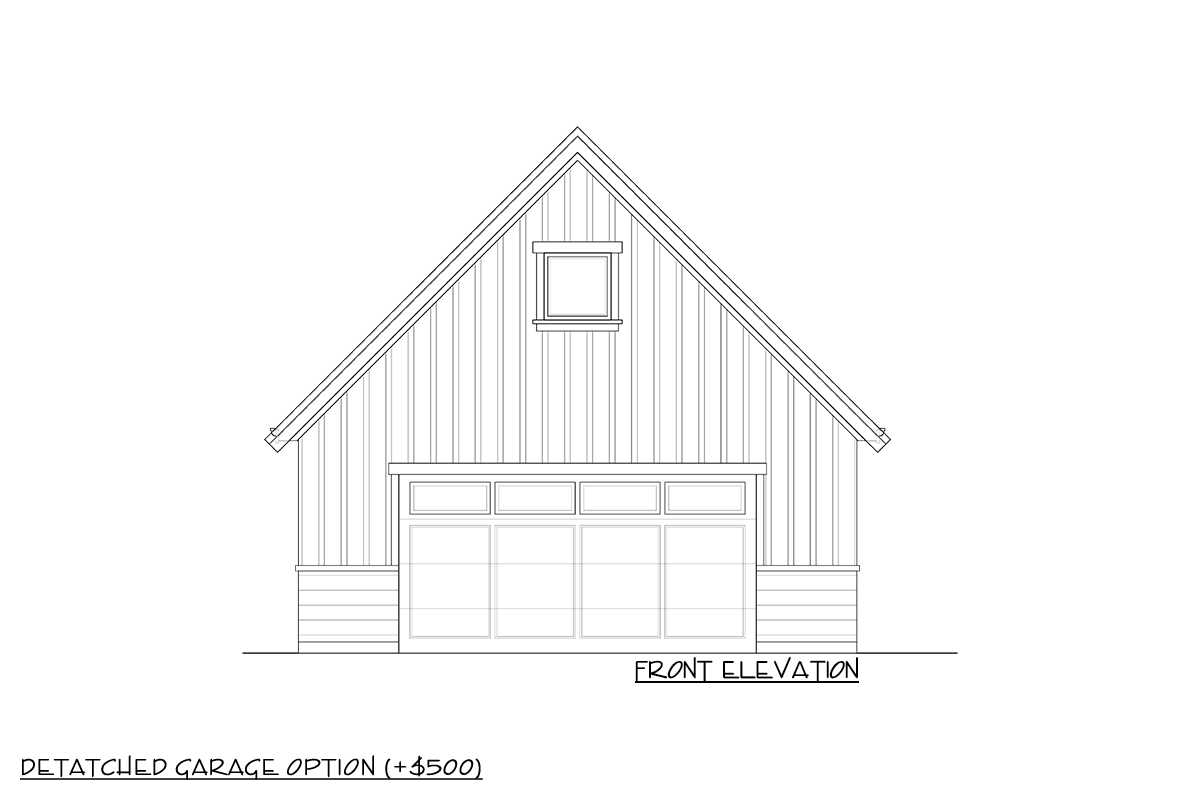

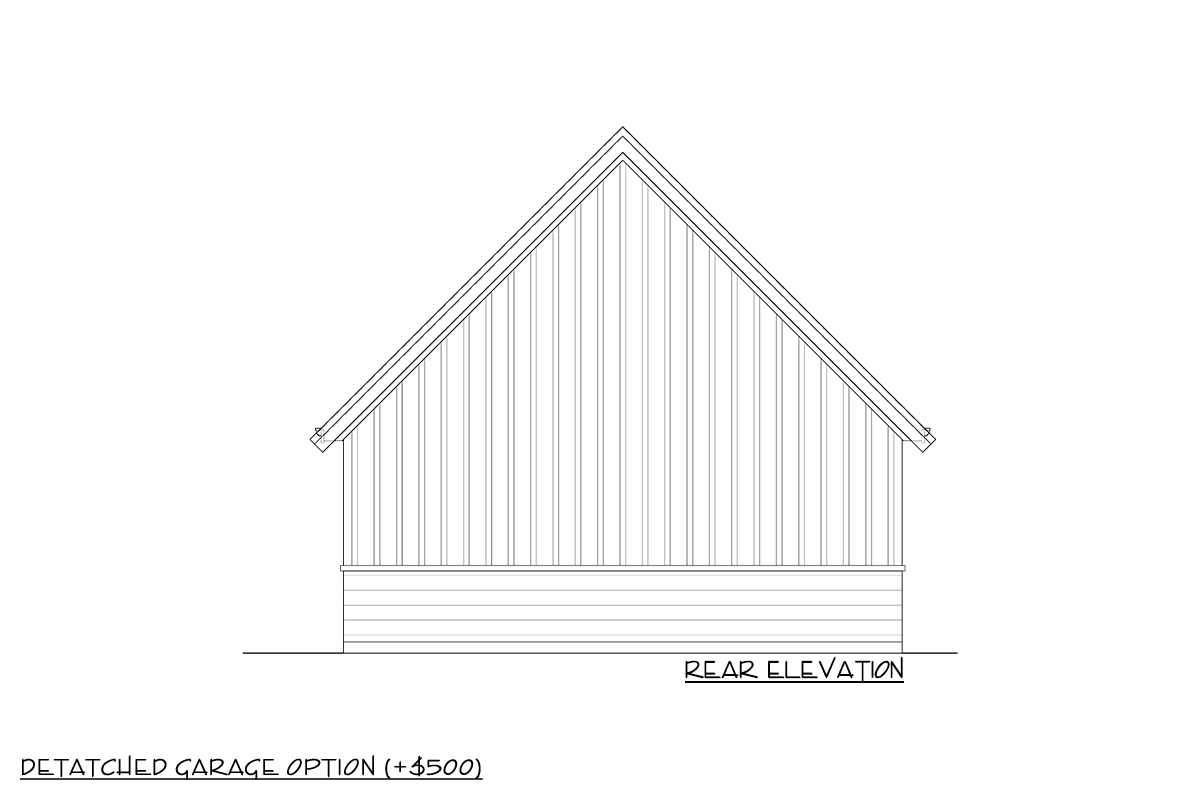

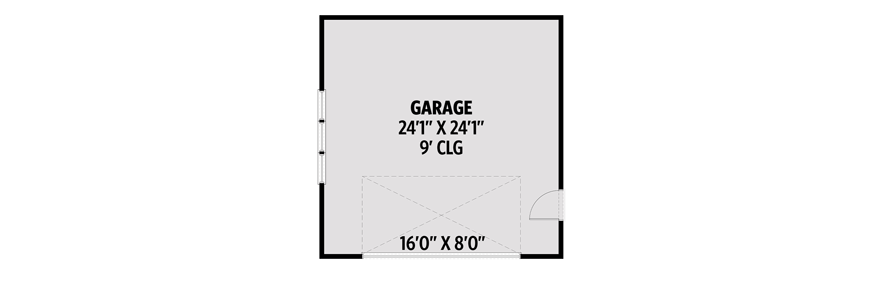

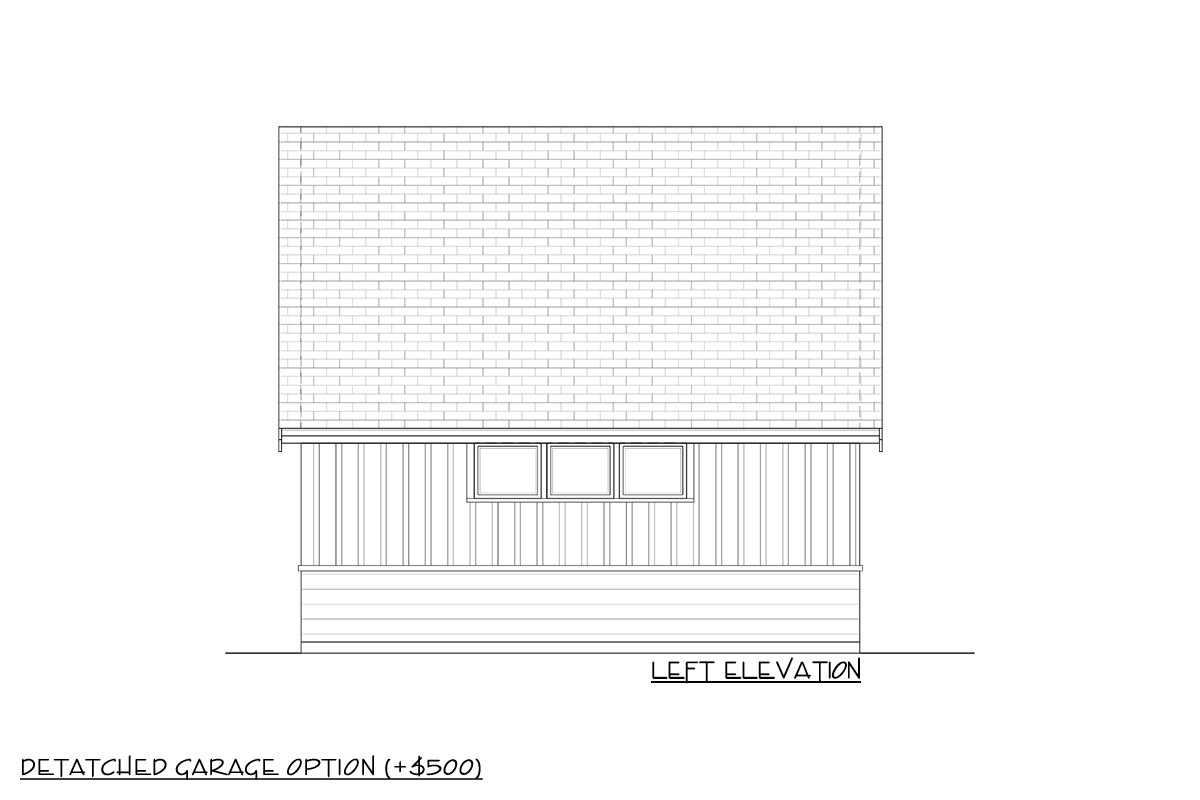

Rustic Ranch Plan with Ample Outdoor Living Space - 280181JWD floor plan - Optional Detached Garage (+ $500)

Plan details

Architectural Style

Plan Collections

Rustic Ranch Plan with Ample Outdoor Living Space

  • 2,267

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

Buy This Plan
  • Study Set - Digital $875
  • PDF - Single-Build $1,750
  • 5 Sets + PDF $2,200
  • CAD + PDF - Single-Build $2,250
  • View all purchase option online

About This Plan

  • Three simple gabled rooflines lend a modern vibe to the exterior of this Rustic Ranch plan.
  • In the center, discover a kitchen, dining area, and great room that serve as one open gathering space. French doors extend the living space onto a covered porch for outdoor enjoyment.
  • Cabinets, counters, and appliances surround an island in the kitchen and create an easy flow for everyday cooking / living.
  • The master bedroom occupies the right side of the home and indulges in a deluxe ensuite with a sizable walk-in closet and zero-threshold shower.
  • Two secondary bedrooms line the left side of the home, separated by a compartmentalized bathroom and laundry room.

Floor Plans

  • Main Level

  • Optional Detached Garage (+ $500)

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,267 sq. ft.
  • 1st Floor: 2,267 sq. ft.
  • Covered Patio: 552 sq. ft.
  • Uncovered Patio: 501 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 72' 0"
  • Depth: 58' 0"
  • Max ridge height: 23' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
