Plan 70840MK
Rustic Ranch Under 3700 Square Feet with Porte-Cochere and an Angled 3-Car Garage
Heated S.F.
3,683
Beds
3
Baths
2.5
Stories
1
Cars
3
What's Included
Plan Details
  • This one-level split bedroom home plan has a porte-cochere and a large 3-car angled garage. Inside, it gives you 4,183 square feet of heated living with 3 to 4 beds and 3.5 baths.
  • Step inside and find yourself in the vaulted great room with and sky window letting in natural light from above. French doors on the back wall take you to a sunroom with windows on all three sides.
  • The large kitchen makes entertaining easy with an island eating bar, a prep island and adjacent dining room.
  • The master suite features a fireplace and vaulted ceiling while the master bath offers a whirlpool tub, corner glass shower with seats, and a huge 22'-long walk-in closet. Across the home, bedrooms 2 and 3 share a bathroom while a 4th bedroom could be an exercise room.
  • The 3-car garage has a storm room and a storage room.
  • Related Plans: Get alternate versions with house plans 60636MK and 60627MK.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Rustic Ranch Under 3700 Square Feet with Porte-Cochere and an Angled 3-Car Garage

  • 3,683

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

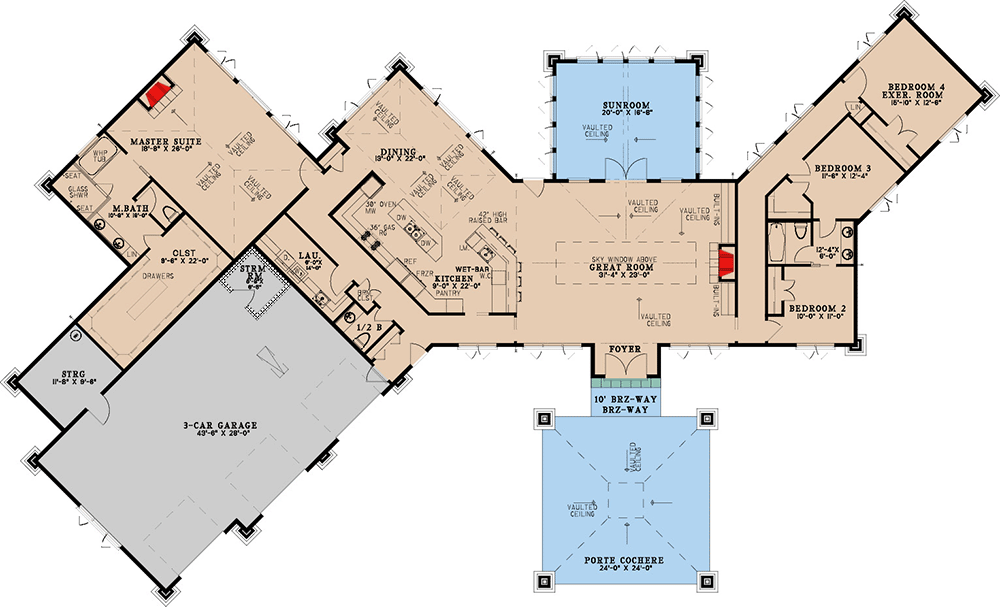

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,683 sq. ft.
  • 1st Floor: 3,683 sq. ft.

Dimensions

  • Width: 141' 4"
  • Depth: 85' 0"
  • Max ridge height: 20' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1933 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Daylight, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
