Plan 60676ND

Rustic Ranch with Large Grilling Porch

Heated S.F.
1,128
Beds
2
Baths
1
Stories
1

Floor Plan

Plan 60676ND

Main Level
Main Level

Plan 60676ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

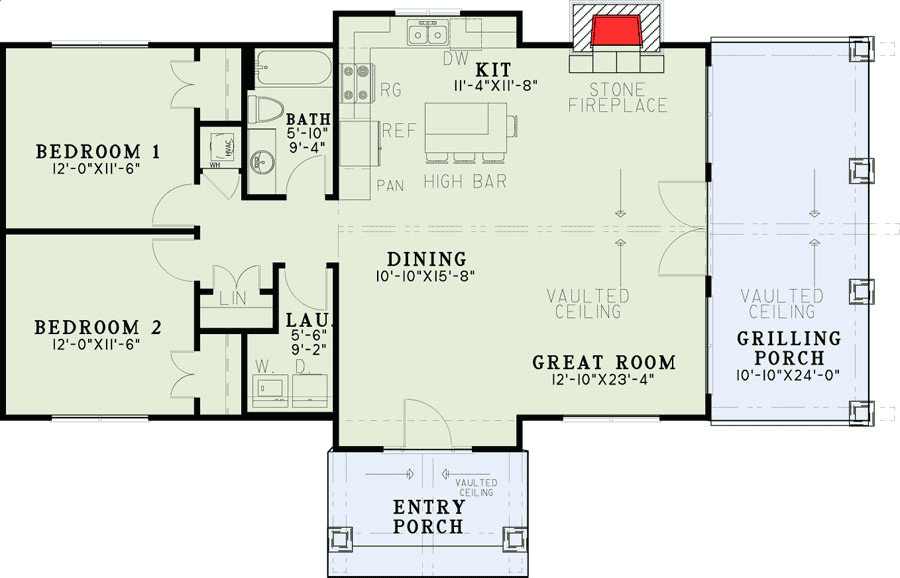

Plan 60676ND: Rustic Ranch with Large Grilling Porch - Floor Plan - Main Level - Mountain, Ranch, Rustic, Vacation

Plan Details

  • This 2 bed rugged ranch home plan features a vaulted covered front entry porchand vaulted ceilings throughout the interior as well as an open floor plan.
  • The kitchen offers an eat-at island bar with a nearby stone fireplace to provide warmth to the great room and dining room.
  • Two bedrooms are located on the left side of the house with a full bath and a laundry room and the spacious grilling porch off of the great room also features a vaulted ceiling.
  • the grilling porch is 10'10" across and spans the entire depth of the home.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

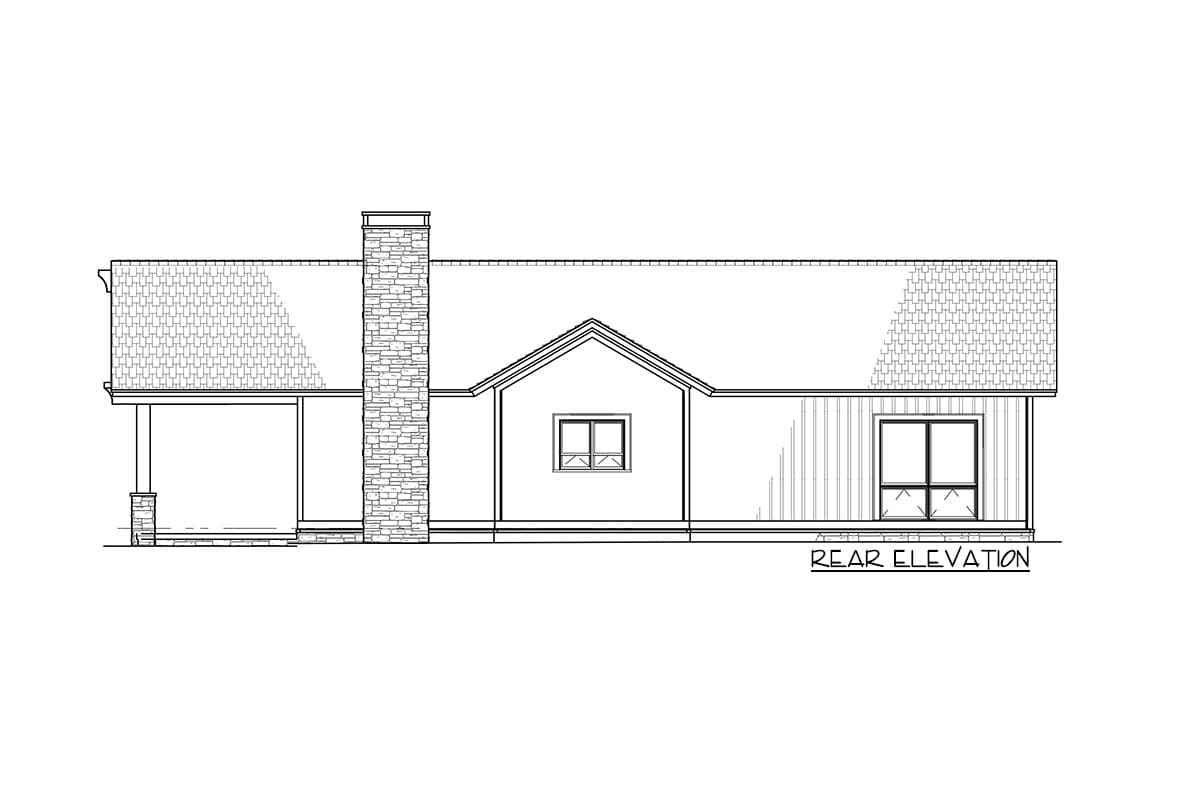

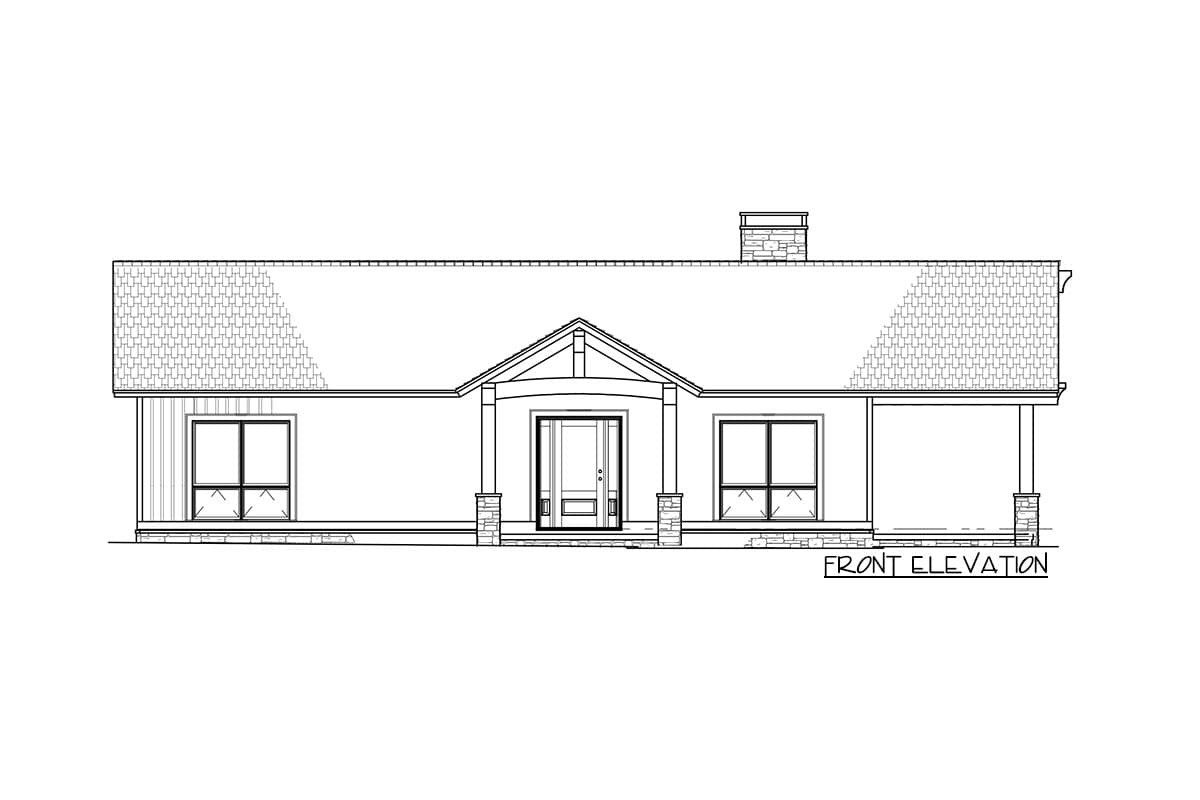

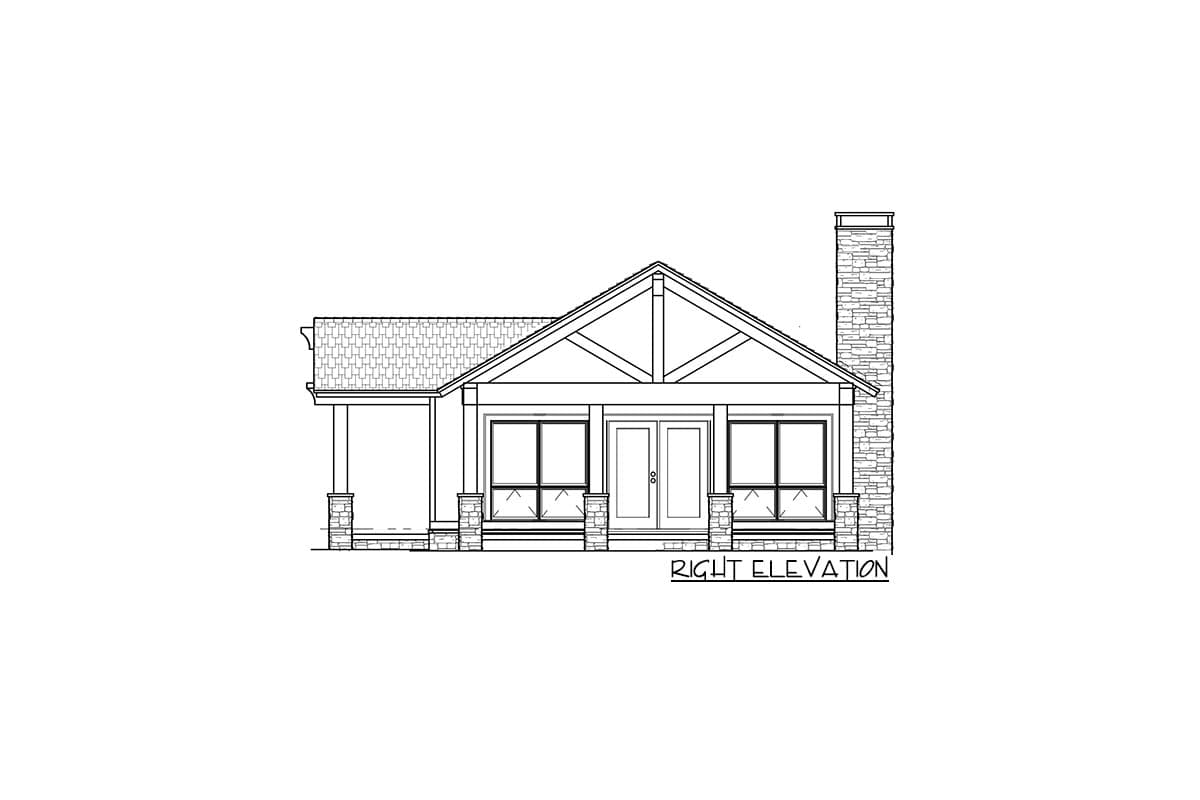

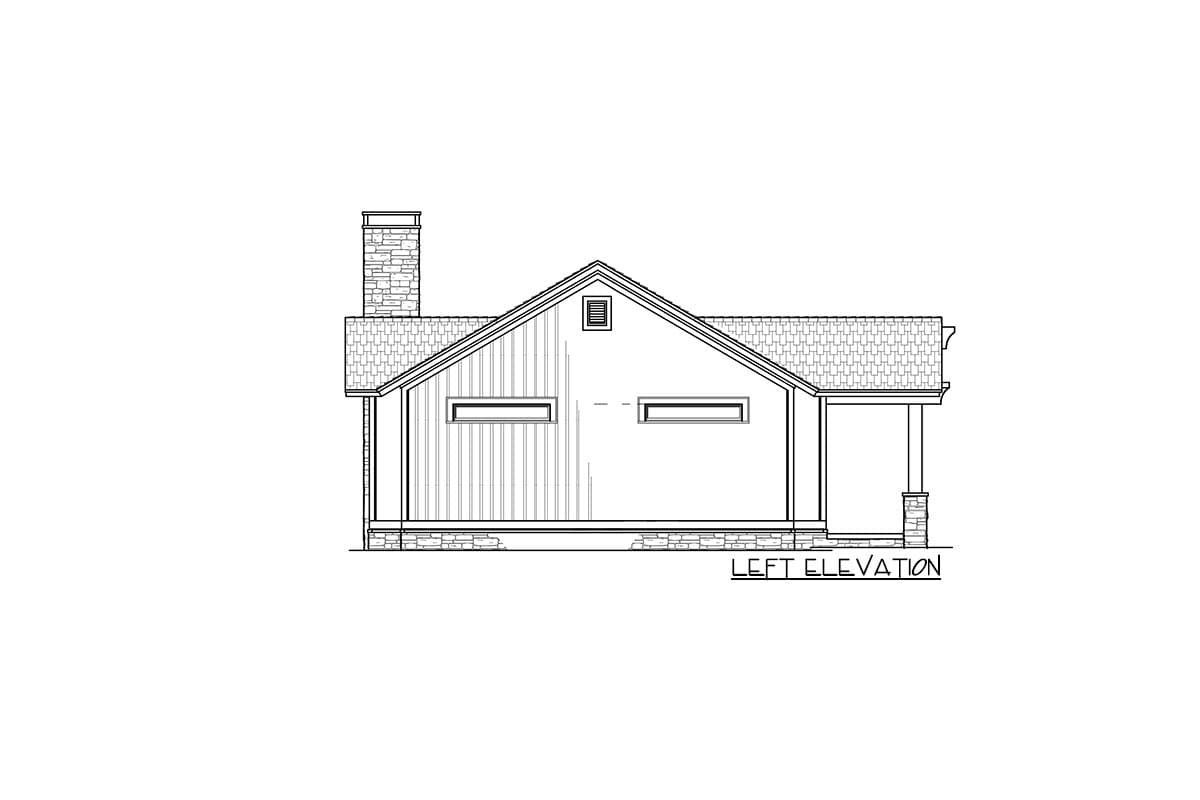

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,128 sq. ft.

1st Floor

1,128 sq. ft.

Porch, Combined

311 sq. ft.

Screened Porch

192 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

55' 5"

Depth

34' 3"

Max Ridge Height

16' 6"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Mountain

Ranch

Rustic

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,128 sq. ft.

1st Floor

1,128 sq. ft.

Porch, Combined

311 sq. ft.

Screened Porch

192 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

55' 5"

Depth

34' 3"

Max Ridge Height

16' 6"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Mountain

Ranch

Rustic

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor
