Plan 62770DJ RV Garage Apartment Plan

967 1 1.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

RV Garage Apartment Plan

Plan 62770DJ

  • 967

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 3

    Cars

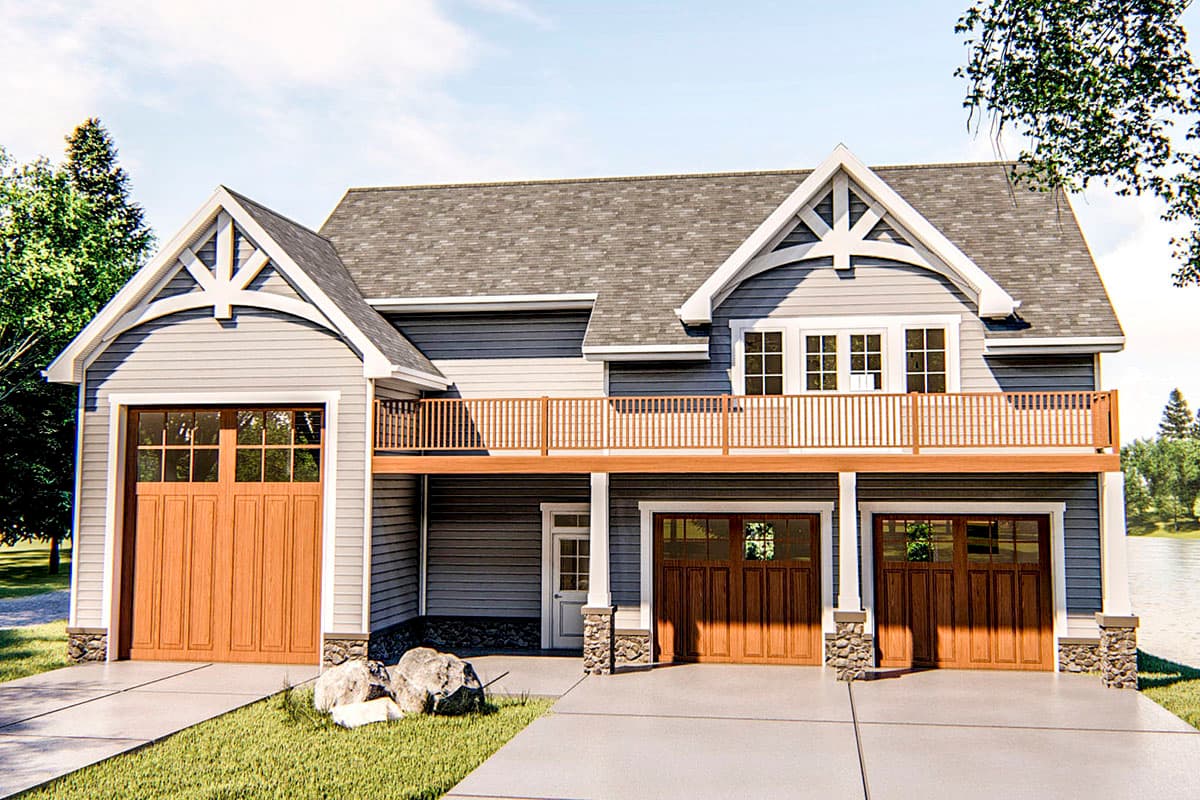

  • Store your RV in style with this apartment garage plan. This plan gives you guest space to add to your existing house or gives you a place to work from home. With a beautiful blend of wood garage doors, stone and wood beams, this excellent craftsman exterior has great curb appeal.
  • On the main level, you'll find a great 2 car garage complete with a workshop in the back. Also on the main level, there is an excellent drive through RV garage.
  • The upper level of this garage includes a great apartment layout. The living area flows into the full-sized kitchen that includes an island and a walk-in pantry. The master suite has a large bathroom with his/her vanities and a walk-in closet.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

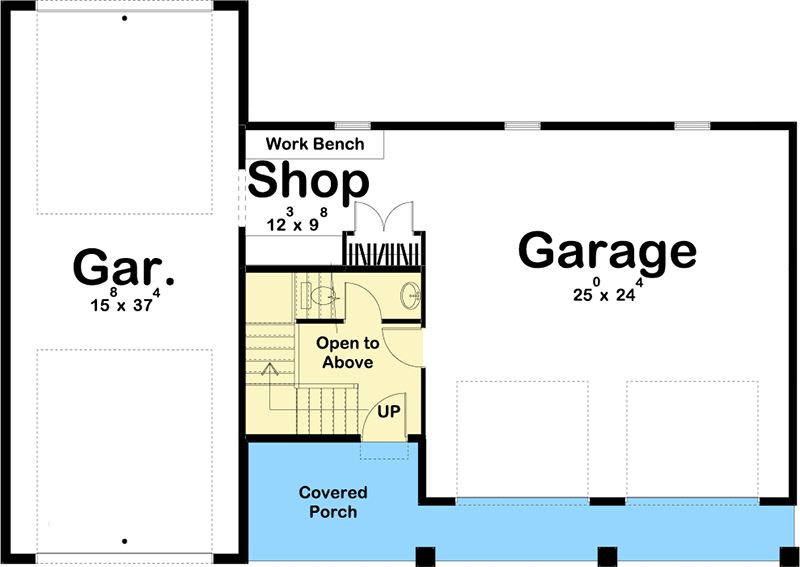

RV Garage Apartment Plan - 62770DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

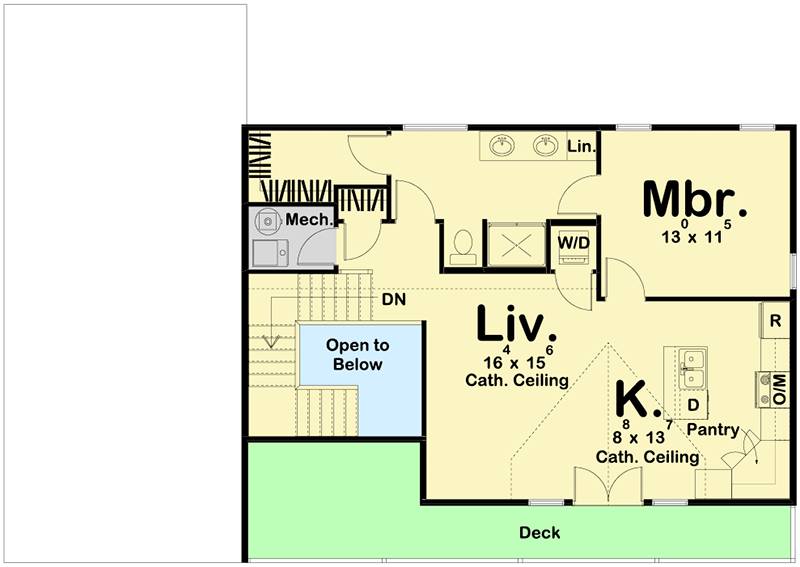

RV Garage Apartment Plan - 62770DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 967 sq. ft.
  • 1st Floor: 156 sq. ft.
  • 2nd Floor: 811 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 39' 0"

Garage

  • Type: RV Garage, Detached
  • Area: 1441 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections

RV Garage Apartment Plan

  • 967

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,000
  • 5 Sets + PDF $1,250
  • CAD + PDF - Single-Build $1,500
  • PDF - Unlimited Build $1,500
  • CAD - Unlimited Build $2,000
  • View all purchase option online

About This Plan

  • Store your RV in style with this apartment garage plan. This plan gives you guest space to add to your existing house or gives you a place to work from home. With a beautiful blend of wood garage doors, stone and wood beams, this excellent craftsman exterior has great curb appeal.
  • On the main level, you'll find a great 2 car garage complete with a workshop in the back. Also on the main level, there is an excellent drive through RV garage.
  • The upper level of this garage includes a great apartment layout. The living area flows into the full-sized kitchen that includes an island and a walk-in pantry. The master suite has a large bathroom with his/her vanities and a walk-in closet.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 967 sq. ft.
  • 1st Floor: 156 sq. ft.
  • 2nd Floor: 811 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 39' 0"

Garage

  • Type: RV Garage, Detached
  • Area: 1441 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
