Plan 2238SL

RV Garage Plan - 1030 Sq Ft

Heated S.F.
0
Beds
0
Baths
0
Stories
1-2
Cars
3

Floor Plan

Plan 2238SL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 2238SL

M-F 9am-5pm EST |

1-203-761-8500

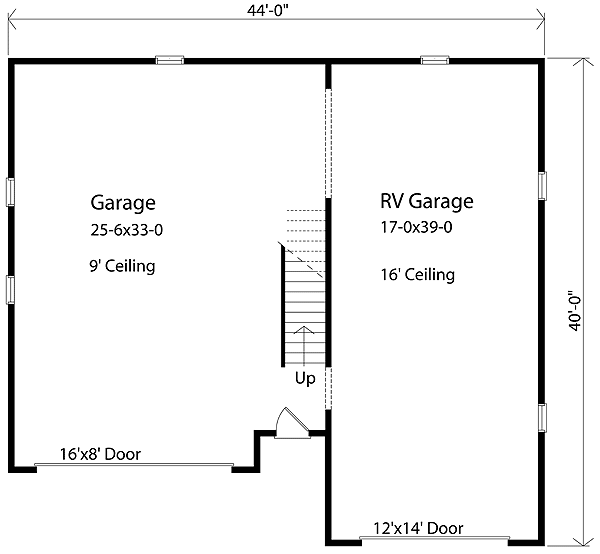

Main Level

Plan 2238SL: RV Garage Plan - 1030 Sq Ft - Floor Plan - Main Level

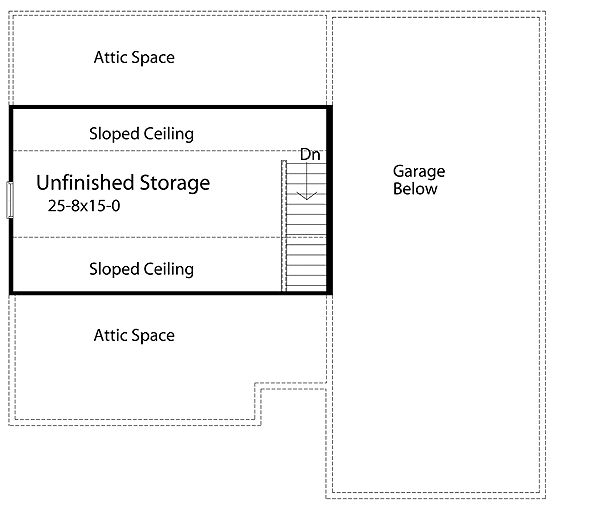

2nd Floor

Plan 2238SL: RV Garage Plan - 1030 Sq Ft - Floor Plan - 2nd Floor

Plan Details

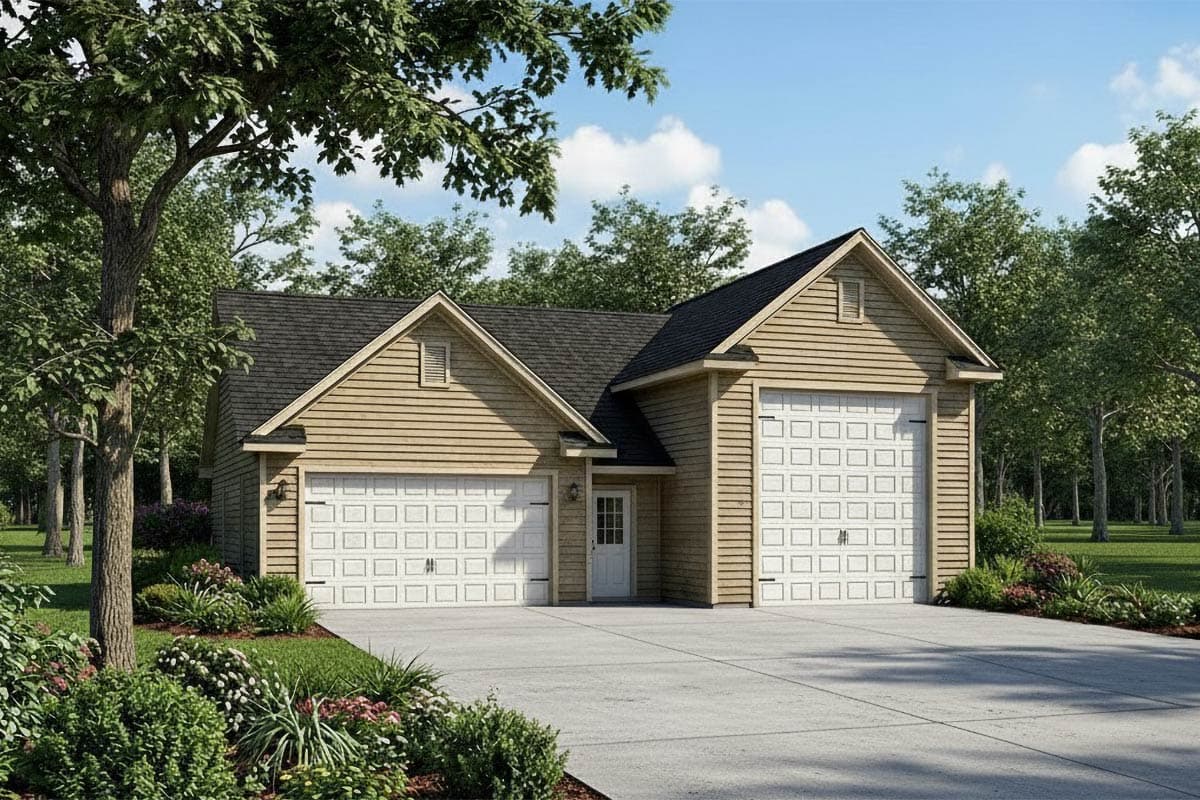

  • Front facing gables accent this RV garage plan with attached two-car garage.
  • A 12'x14' door and a 16' ceiling accommodates an RV or motor home.
  • A convenient pass-thru leads to the two-car garage featuring a 16'x8' overhead door and a 9' ceiling.
  • Interior stairs lead to the second level loft, perfect for storage, and flexible to suite your needs.
  • Related RV Plans: Gain a shop with RV plan 22099SL.
  • Also see these RV garage plans - 2237SL, 2263SL and 22101SL.

What's Included

  • Foundation plan
  • Fully dimensioned floor plans

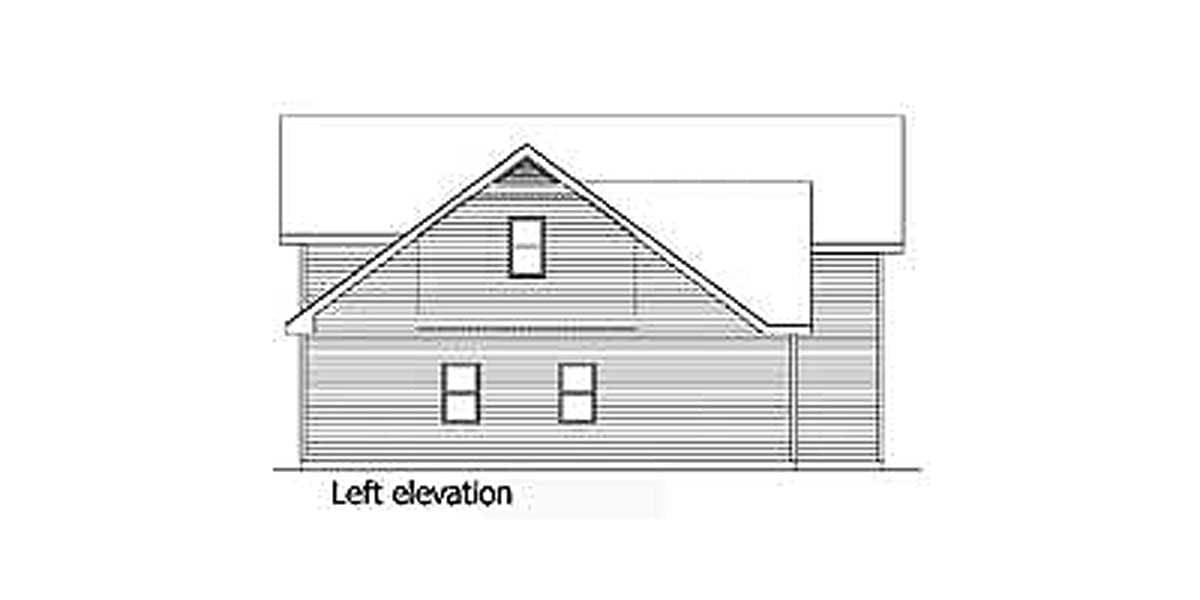

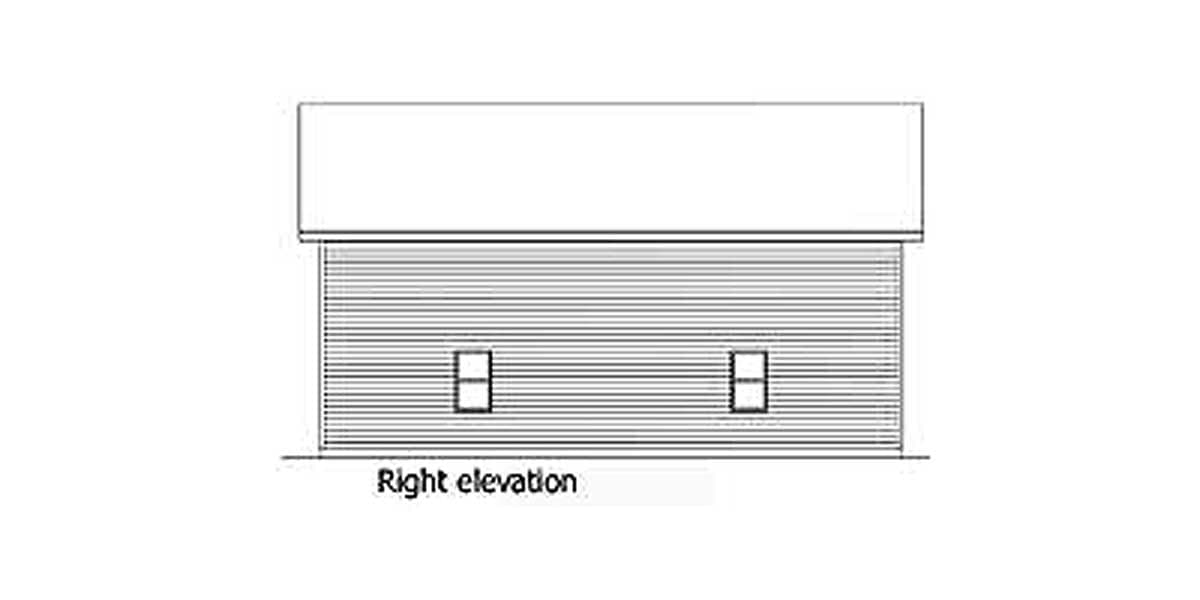

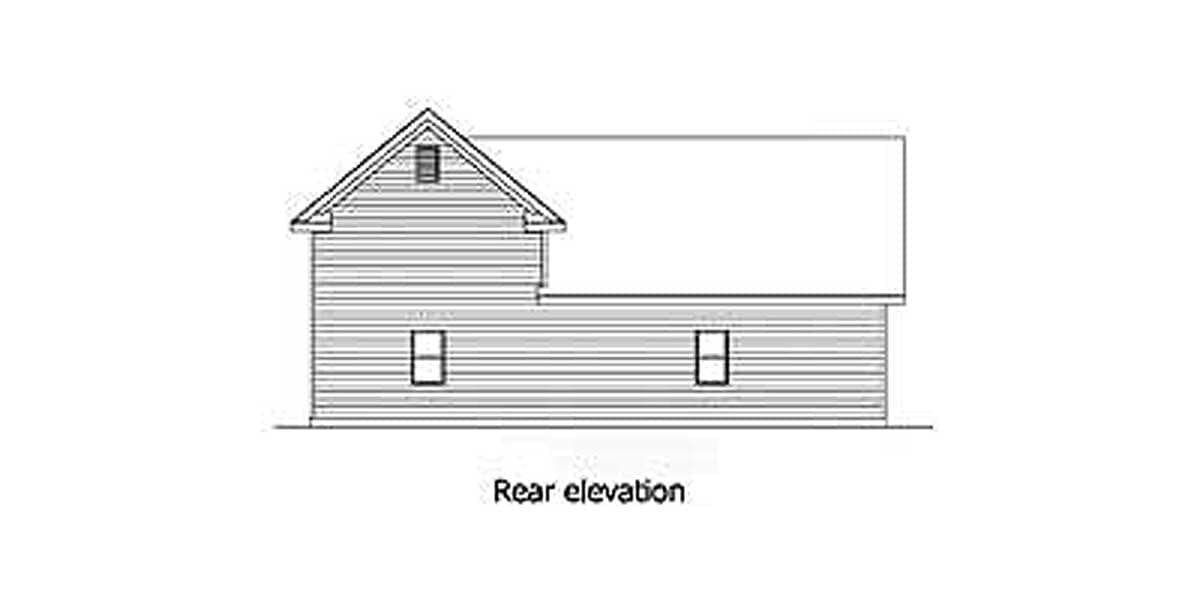

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Storage

413 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

40' 0"

Max Ridge Height

25' 0"

Garage

Type

Detached, RV Garage

Area

1588 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Special Features

Loft

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Storage

413 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

40' 0"

Max Ridge Height

25' 0"

Garage

Type

Detached, RV Garage

Area

1588 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Special Features

Loft
