RV Garage Plan with Workshop

Plan 9845SW

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • This RV garage with workshop plan provides two distinct and specific work and storage spaces.
  • The RV garage portion boasts a 12' ceiling sloping to 13'6" with a 12’ wide by 12’ high overhead garage door. Extra natural light is provided by a large skylight. Plans could be modified to accommodate a rear overhead garage door for drive through ease if required.
  • The workshop portion of this plan has an 8' ceiling with ample work bench space including a wash up sink location. Add a wall between the two spaces to control separate activities if required.

Each plan set includes the following:


Cover sheet with rendering
General notes and specifications
Foundation plan
Fully dimensioned floor plan - windows are called out as generic sizes
Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
Electrical
Cross sections
Details as required
All four elevations

Plans do not include interior cabinet elevations or separate window schedules

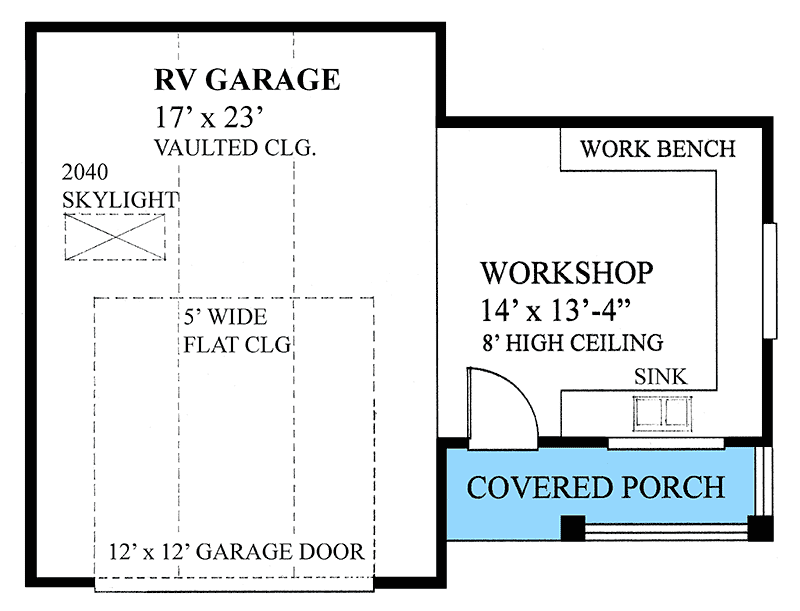

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
RV Garage Plan with Workshop - 9845SW floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Workshop: 196 sq. ft.
  • Porch, Front: 56 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 24' 0"
  • Max ridge height: 18' 6"

Garage

  • Type: RV Garage, Detached
  • Area: 432 sq. ft.
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Plan Collections

RV Garage Plan with Workshop

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

Buy This Plan
  • 5 Sets $275
  • PDF - Single-Build $395
  • View all purchase option online

About This Plan

  • This RV garage with workshop plan provides two distinct and specific work and storage spaces.
  • The RV garage portion boasts a 12' ceiling sloping to 13'6" with a 12’ wide by 12’ high overhead garage door. Extra natural light is provided by a large skylight. Plans could be modified to accommodate a rear overhead garage door for drive through ease if required.
  • The workshop portion of this plan has an 8' ceiling with ample work bench space including a wash up sink location. Add a wall between the two spaces to control separate activities if required.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Workshop: 196 sq. ft.
  • Porch, Front: 56 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 24' 0"
  • Max ridge height: 18' 6"

Garage

  • Type: RV Garage, Detached
  • Area: 432 sq. ft.
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 9845SW
View this and more for this plan by visiting www.architechtecturaldesigns.com/9845SW
|
