Plan 20133GA

RV Garage with Apartment Above

Heated S.F.
1,207
Beds
2
Baths
1
Stories
2
Cars
4- 5

Floor Plan

Plan 20133GA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 20133GA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

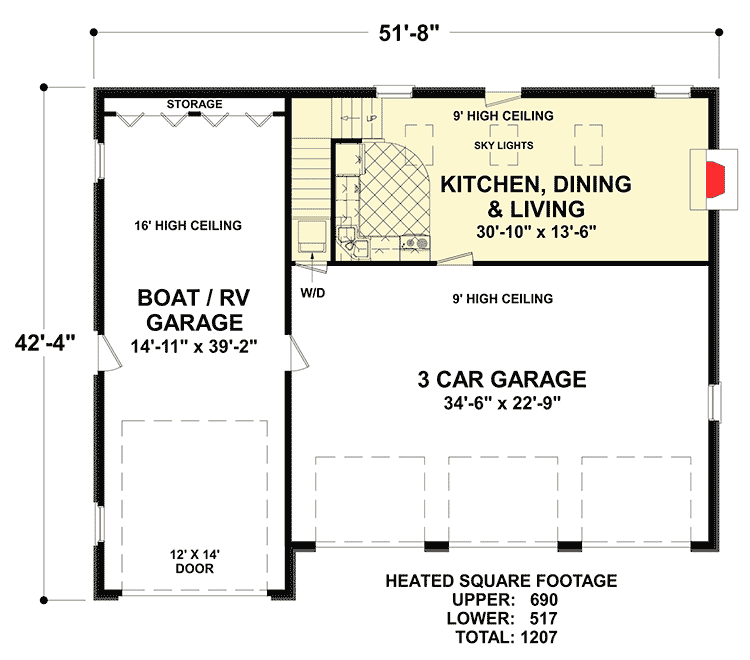

Plan 20133GA: RV Garage with Apartment Above - Floor Plan - Main Level - Carriage, Vacation

2nd Floor

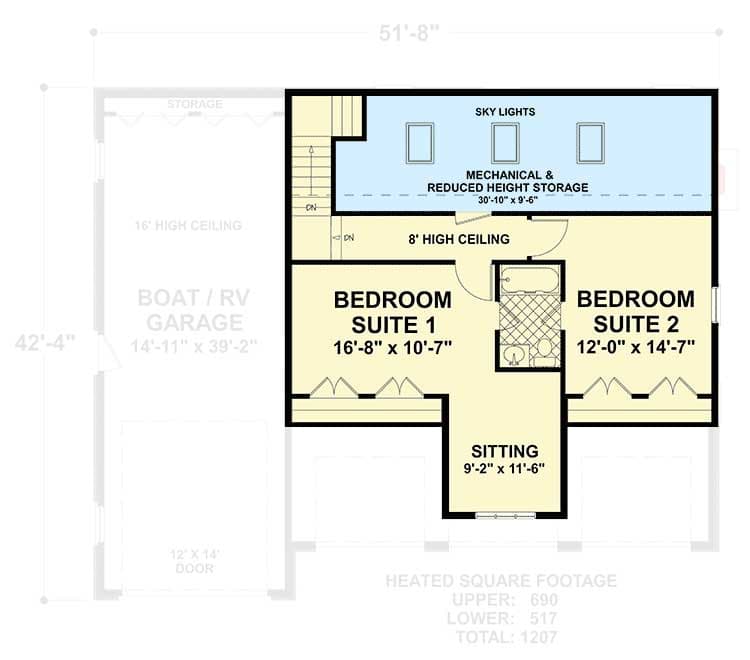

Plan 20133GA: RV Garage with Apartment Above - Floor Plan - 2nd Floor - Carriage, Vacation

Plan Details

  • After a long trip in your RV, park it in the left bay of this house plan and rest your weary bones in the apartment upstairs.
  • There is a full kitchen and living area plus a bedroom and full bath upstairs.
  • The main floor has parking for 3 standard-sized vehicles.

What's Included

  • Digital exterior rendering cover page
  • Exterior elevation page
  • Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  • Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  • Cross sections and interior elevation page
  • Roof framing plan with 3-D roof framing schematic
  • IRC code specifications and methodologies
  • General construction details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,207 sq. ft.

1st Floor

517 sq. ft.

2nd Floor

690 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

51' 8"

Depth

42' 4"

Garage

Type

Detached, RV Garage

Area

1370 sq. ft.

Count

4 or 5 Cars

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Carriage

Vacation

Special Features

Jack & Jill Bath

Laundry - Main Level

Master Suite - Sitting Area

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,207 sq. ft.

1st Floor

517 sq. ft.

2nd Floor

690 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

51' 8"

Depth

42' 4"

Garage

Type

Detached, RV Garage

Area

1370 sq. ft.

Count

4 or 5 Cars

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Carriage

Vacation

Special Features

Jack & Jill Bath

Laundry - Main Level

Master Suite - Sitting Area

Master Suite - Upstairs
