Plan 9827SW

RV Garage with Blank Canvas Above

Heated S.F.
114
Beds
1
Baths
0.5
Stories
2
Cars
3

Floor Plan

Plan 9827SW

Main Level
Main Level
2nd Floor
2nd Floor

Plan 9827SW

M-F 9am-5pm EST |

1-203-761-8500

Main Level

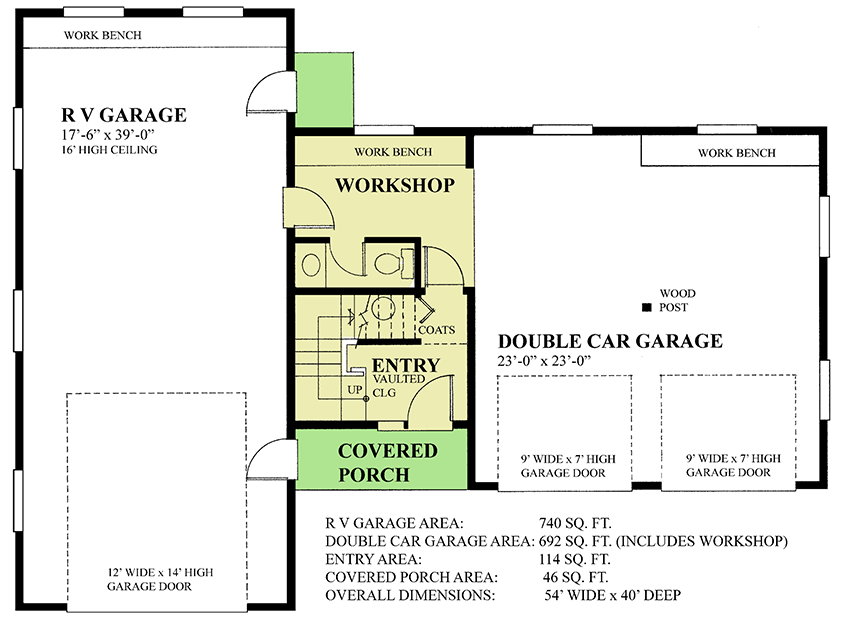

Plan 9827SW: RV Garage with Blank Canvas Above - Floor Plan - Main Level

2nd Floor

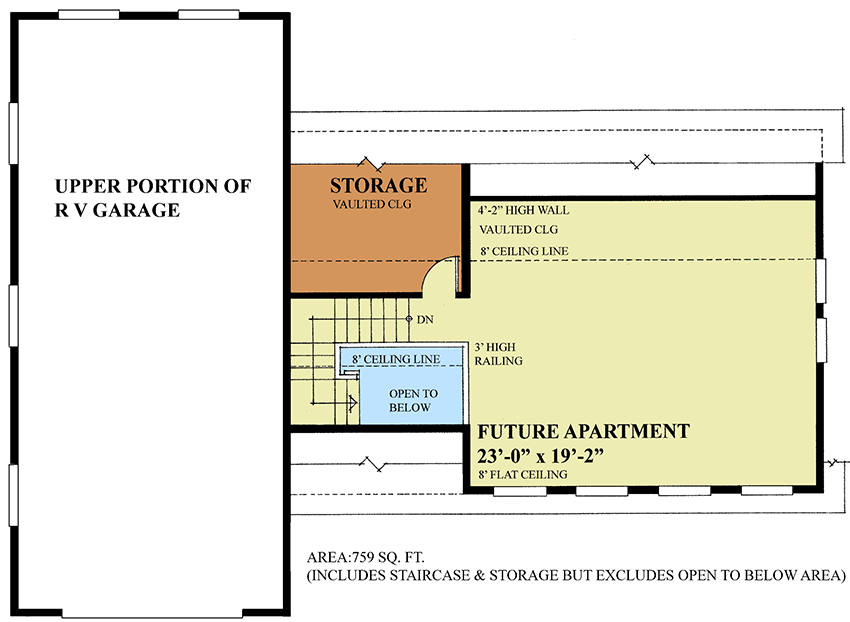

Plan 9827SW: RV Garage with Blank Canvas Above - Floor Plan - 2nd Floor

Plan Details

  • The RV garage portion of this combination garage has a 16'-high ceiling accessed through a 14'-high by 12'-wide overhead door. The double car garage has a 8'-high ceiling with two 7'-high by 9'-wide overhead doors.
  • The covered entry opens into the vaulted entry with direct access to the workshop which contains a conveniently located half bathroom. The workshop provides easy access to both the RV and double car garage areas. Add a wall between the workshop and double garage to heat this space if required.
  • The second level is a blank canvas ready to be transformed into a future apartment, exercise room or private home office.
  • Plans are designed with a concrete slab foundation plan.
  • Related Plans: Eliminate the upper floor with RV Garage Plan 9826SW. Get 2 bedrooms with garage plan 9839SW.

What's Included

  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required
  • Elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

114 sq. ft.

1st Floor

114 sq. ft.

Storage

759 sq. ft.

Porch, Front

46 sq. ft.

Beds/Baths

Bedrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

40' 0"

Max Ridge Height

26' 2"

Garage

Type

Detached, RV Garage

Area

1432 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5-Apr on 12

Framing Type

Stick and Truss

Special Features

Home Office

Workshop

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

114 sq. ft.

1st Floor

114 sq. ft.

Storage

759 sq. ft.

Porch, Front

46 sq. ft.

Beds/Baths

Bedrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

40' 0"

Max Ridge Height

26' 2"

Garage

Type

Detached, RV Garage

Area

1432 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5-Apr on 12

Framing Type

Stick and Truss

Special Features

Home Office

Workshop

Plan Collections

Canadian House Plans
