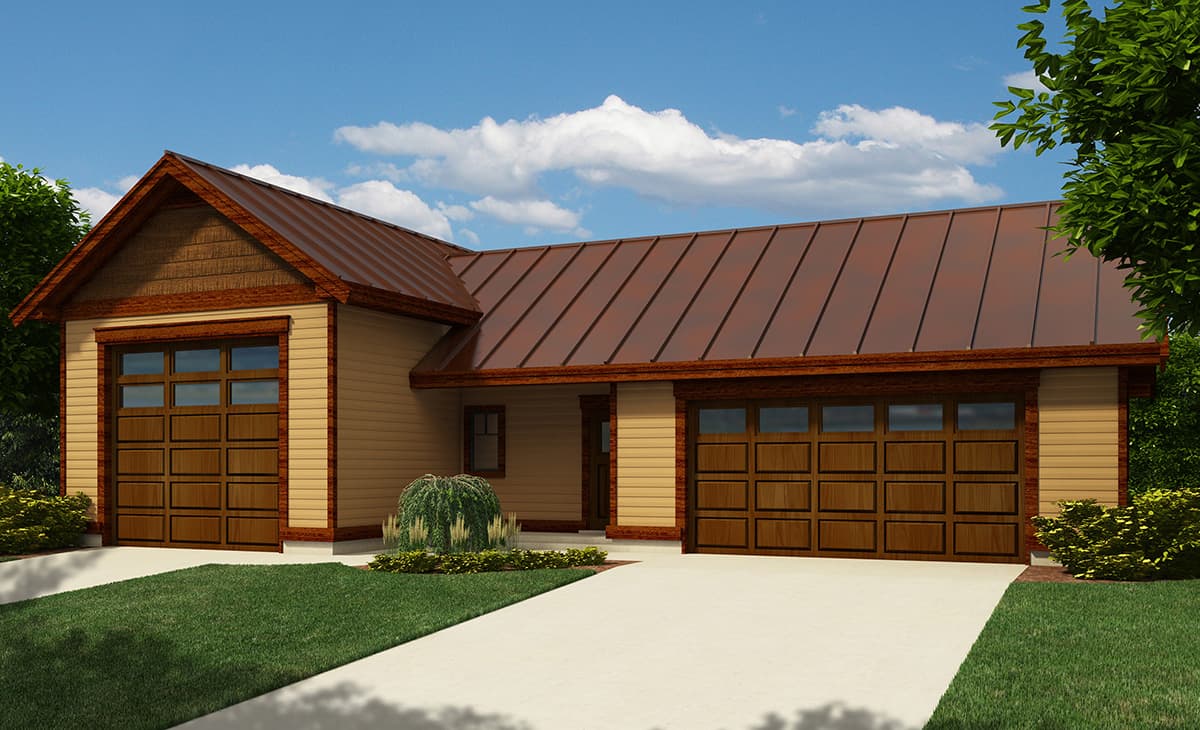

RV Garage With Workshop

Plan 9829SW

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 3

    Cars

  • The RV garage portion of this combination garage has a 14'- high ceiling accessed though a 12'-high by 12'-wide overhead door. The double car garage has a 9'-high ceiling with an 8'-high by 16'-foot wide overhead door.
  • The covered entry opens into the workshop and boasts a full bath with large 3'x4' shower. The conveniently located workshop provides access to both garage areas while still being its own separate heated area if required.
  • Plans are designed with a concrete slab foundation plan.
  • Related Plan: Get a half bath and build in reverse with plan 9831SW. And get an upstairs apartment with house plan 9832SW.

Each plan set includes the following:


Cover sheet with rendering
General notes and specifications
Foundation plan
Fully dimensioned floor plan - windows are called out as generic sizes
Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
Electrical
Cross sections
Details as required
All four elevations

Plans do not include interior cabinet elevations or separate window schedules

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

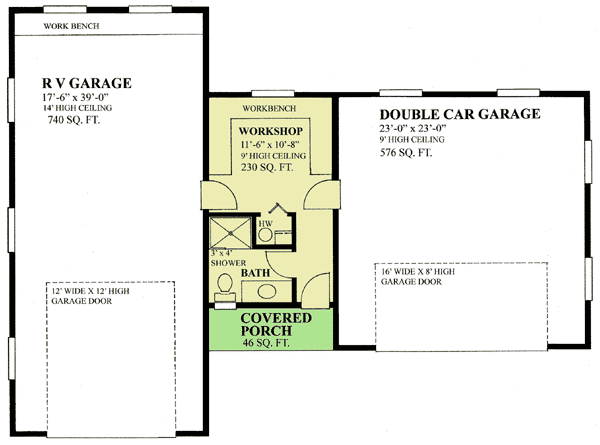

RV Garage With Workshop - 9829SW floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Porch, Front: 46 sq. ft.
  • Workshop: 230 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 40' 0"
  • Max ridge height: 21' 0"

Garage

  • Type: Detached, RV Garage
  • Area: 576 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Plan Collections

RV Garage With Workshop

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $375
  • PDF - Single-Build $495
  • View all purchase option online

About This Plan

  • The RV garage portion of this combination garage has a 14'- high ceiling accessed though a 12'-high by 12'-wide overhead door. The double car garage has a 9'-high ceiling with an 8'-high by 16'-foot wide overhead door.
  • The covered entry opens into the workshop and boasts a full bath with large 3'x4' shower. The conveniently located workshop provides access to both garage areas while still being its own separate heated area if required.
  • Plans are designed with a concrete slab foundation plan.
  • Related Plan: Get a half bath and build in reverse with plan 9831SW. And get an upstairs apartment with house plan 9832SW.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Porch, Front: 46 sq. ft.
  • Workshop: 230 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 40' 0"
  • Max ridge height: 21' 0"

Garage

  • Type: Detached, RV Garage
  • Area: 576 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
