Plan: 2276SL

Secluded Main Floor Master

3,223 4 4 2 3
Pageloader

Secluded Main Floor Master

Plan 2276SL

  • 3,223

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

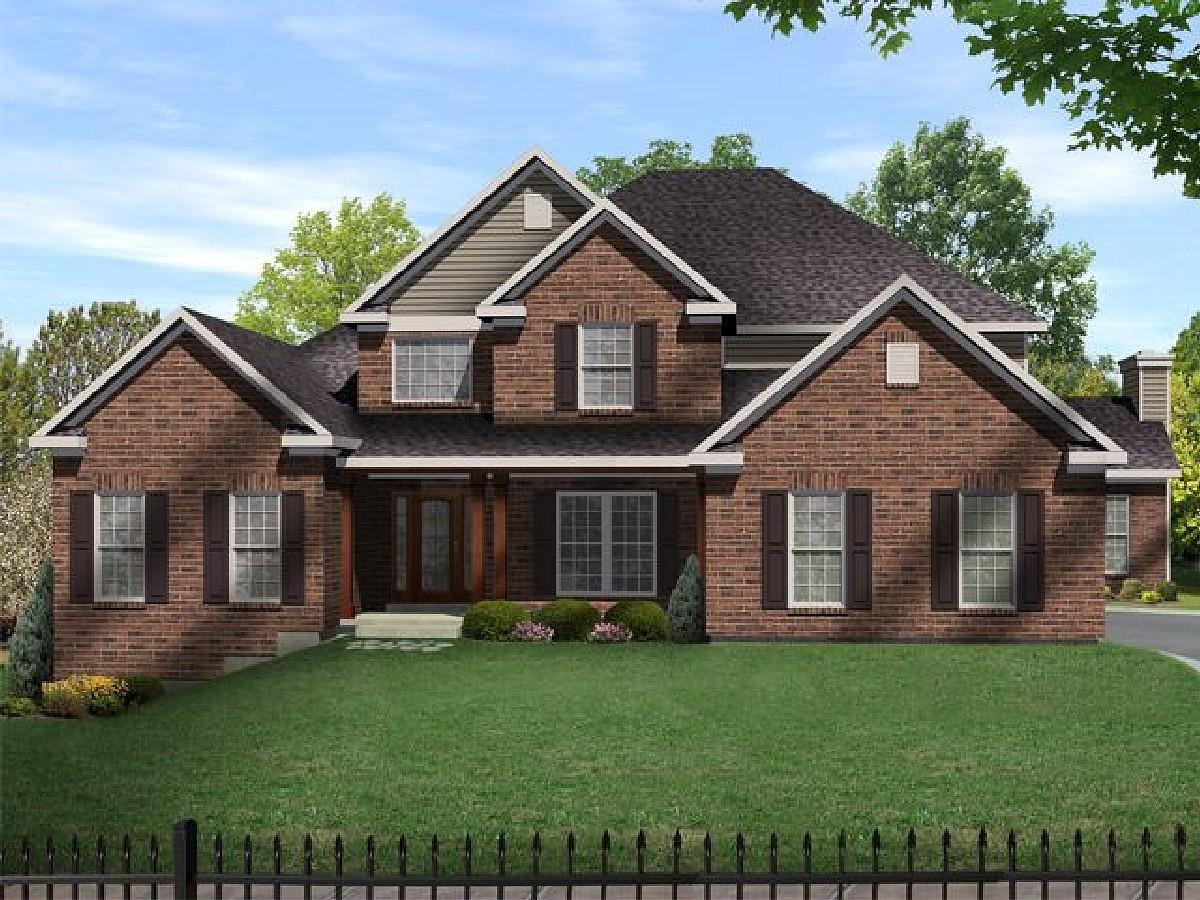

  • Decorative windows grace the exterior of this traditional home plan. The 2-story foyer and great room create a lasting first impression. A unique staircase easily serves traffic flow for a busy family.
  • The great room and dining room are adjoined by a wet bar perfect for entertaining.
  • The kitchen, breakfast and hearth rooms are brightened by cheerful windows.
  • The secluded main floor master bedroom enjoys a double door entrance, two walk-in closets and a deluxe bath.
  • Three upstairs bedrooms feature walk-in closets and a loft area overlooks the great room.

Each plan set includes the following:

  • Foundation plan
  • Fully dimensioned floor plans

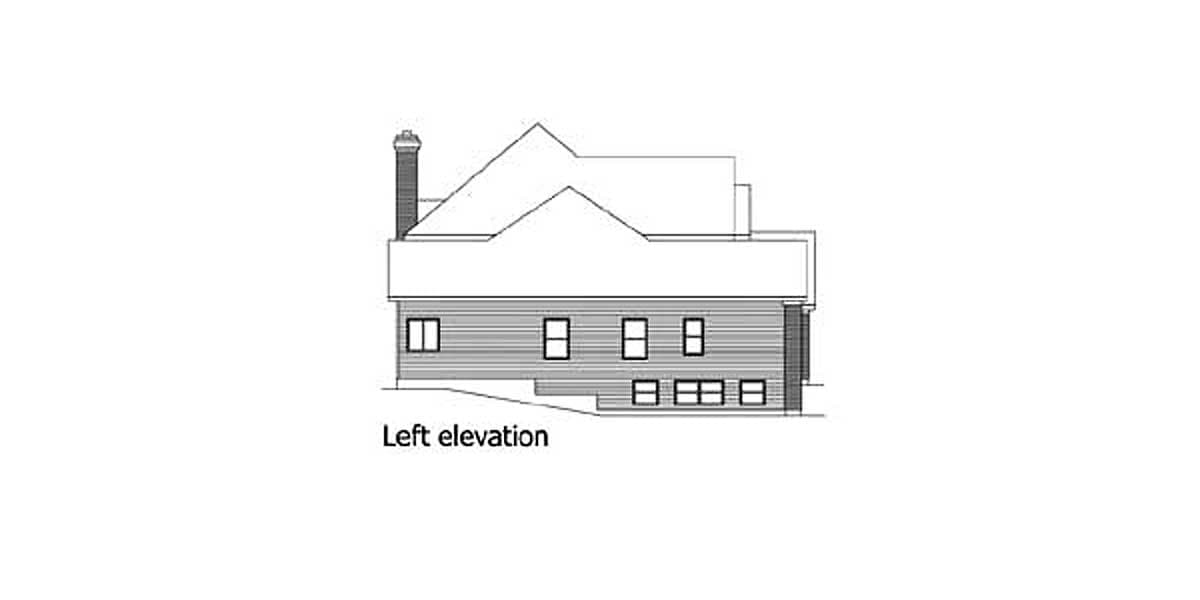

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details

Floor Plan

Plan details



Secluded Main Floor Master

  • 3,223

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $710
  • 8 Sets $755
  • PDF - single-use $775
  • CAD $875
  • PDF - multi-use $2,275
  • CAD - multi-use $2,375
  • View all purchase option online

About This Plan

  • Decorative windows grace the exterior of this traditional home plan. The 2-story foyer and great room create a lasting first impression. A unique staircase easily serves traffic flow for a busy family.
  • The great room and dining room are adjoined by a wet bar perfect for entertaining.
  • The kitchen, breakfast and hearth rooms are brightened by cheerful windows.
  • The secluded main floor master bedroom enjoys a double door entrance, two walk-in closets and a deluxe bath.
  • Three upstairs bedrooms feature walk-in closets and a loft area overlooks the great room.

Floor Plans

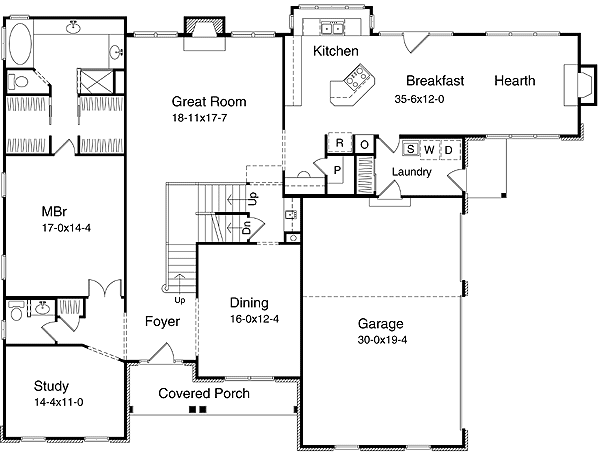

  • Main Level

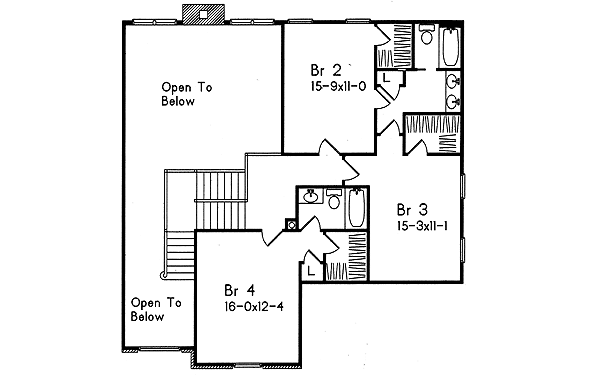

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,223 sq. ft.
  • 1st Floor: 2,276 sq. ft.
  • 2nd Floor: 947 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 72' 0"
  • Depth: 54' 0"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 580 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

  • Traditional

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • PDF
