Plan 60585ND Secluded Master Suite

2,346 3-4 2.5 1 2
Print
Compare
...

Secluded Master Suite

Plan 60585ND

  • 2,346

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This charming southern, traditional home plan features an open great room with a fireplace and a 10' beamed ceiling.
  • The great room flows into the kitchen and breakfast room, creating a warm and friendly atmosphere. Step out of the kitchen and enjoy a large grilling porch with a fireplace, perfect for entertaining.
  • The spacious master suite boasts a raised whirlpool tub, glass shower and 2 walk-in closets and has great privacy with its location in the back. An added bonus is the door to thee back porch.
  • Bedroom 2 can be used as a study if so desired.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

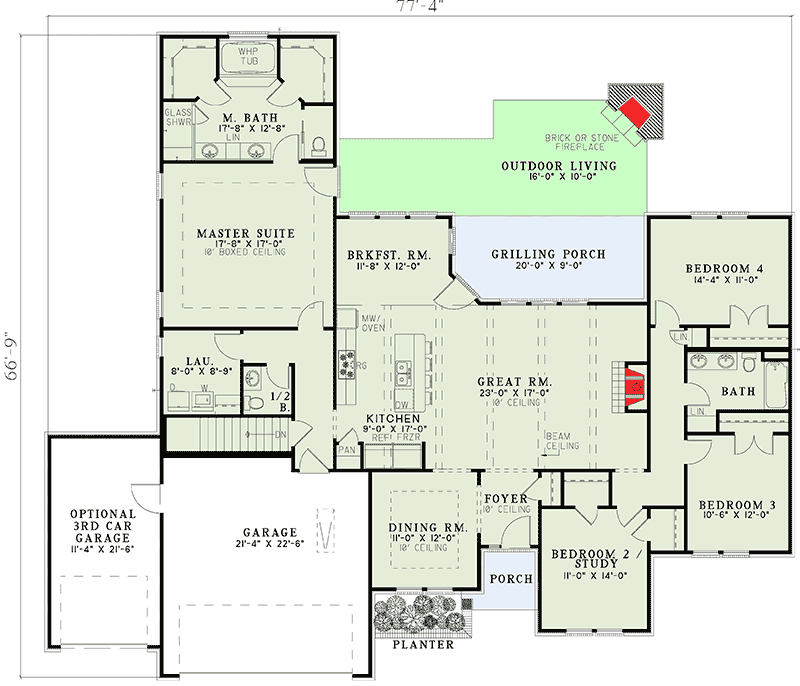

Secluded Master Suite - 60585ND floor plan - Main Level

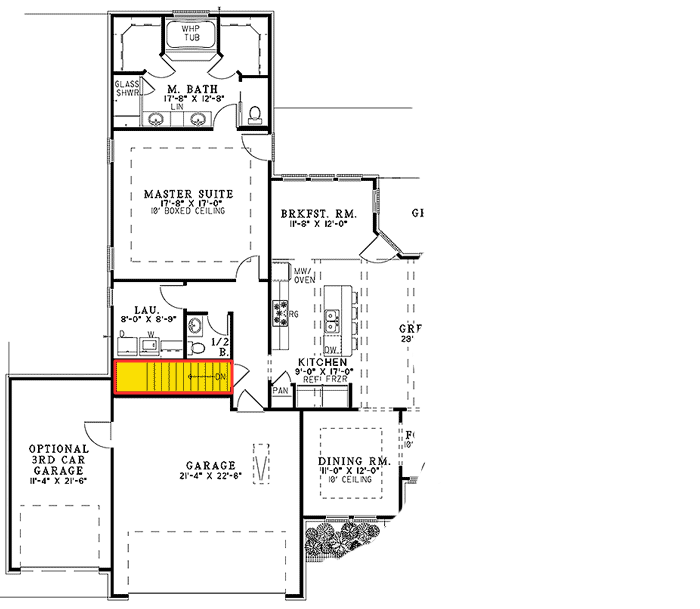

Optional Basement Stair Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Secluded Master Suite - 60585ND floor plan - Optional Basement Stair Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,346 sq. ft.
  • 1st Floor: 2,346 sq. ft.
  • Porch, Combined: 221 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl, Slab
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 77' 4"
  • Depth: 66' 9"
  • Max ridge height: 21' 2"

Garage

  • Type: Attached
  • Area: 545 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features



Secluded Master Suite

  • 2,346

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,100
  • 5 Sets $1,200
  • 5 Sets + PDF $1,450
  • CAD - Single-Build $2,200
  • View all purchase option online

About This Plan

  • This charming southern, traditional home plan features an open great room with a fireplace and a 10' beamed ceiling.
  • The great room flows into the kitchen and breakfast room, creating a warm and friendly atmosphere. Step out of the kitchen and enjoy a large grilling porch with a fireplace, perfect for entertaining.
  • The spacious master suite boasts a raised whirlpool tub, glass shower and 2 walk-in closets and has great privacy with its location in the back. An added bonus is the door to thee back porch.
  • Bedroom 2 can be used as a study if so desired.

Floor Plans

  • Main Level

  • Optional Basement Stair Location

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,346 sq. ft.
  • 1st Floor: 2,346 sq. ft.
  • Porch, Combined: 221 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 77' 4"
  • Depth: 66' 9"
  • Max ridge height: 21' 2"

Garage

  • Type: Attached
  • Area: 545 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Plan 60585ND
View this and more for this plan by visiting www.architechtecturaldesigns.com/60585ND
|
Need Help? 800-854-7852
|
Plan 60585ND
