Plan 81633AB

Second Floor In-Law Suite

Heated S.F.

2,675

Beds

3-5

Baths

3.5 - 5.5

Stories

1-2

Cars

3

What's Included

Floor Plan

Main Level

Reverse Floor Plan

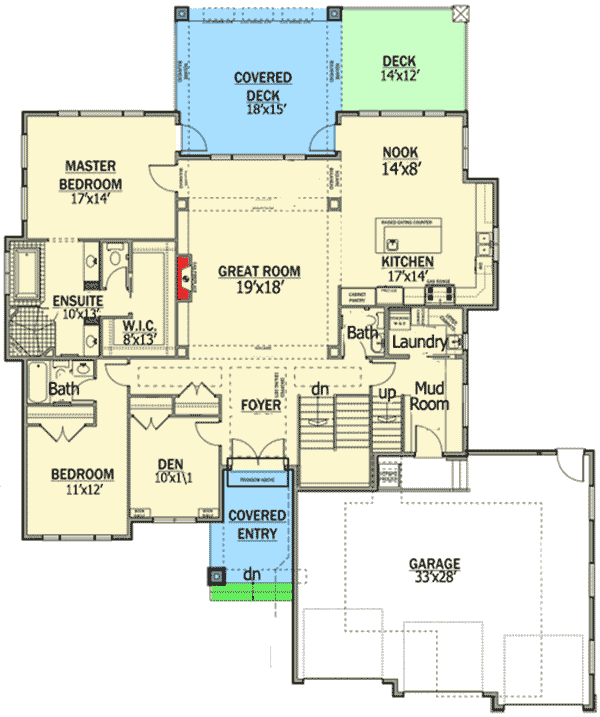

Second Floor In-Law Suite - 81633AB floor plan - Main Level

Second Level

Reverse Floor Plan

Second Floor In-Law Suite - 81633AB floor plan - Second Level

Lower Level

Reverse Floor Plan

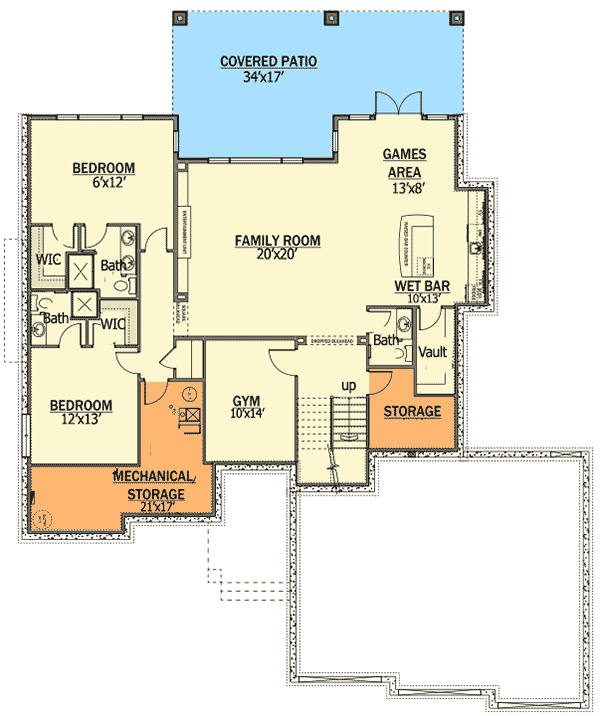

Second Floor In-Law Suite - 81633AB floor plan - Lower Level

Plan Details

This handsome Northwest home plan has room for everyone in the family including a second floor in-law suite with mini-kitchenette.
Square bulkheads set off the huge great room with its fireplace flanked by built-ins.
Views go through the gallery all the way to the rear covered deck.
Gain a second sink in the huge kitchen island that overlooks the nook.
An open deck off the nook lets you enjoy the full sunshine.
A beautiful finished lower level gives you a huge family room with a fully equipped wet bar kitchenette, a wine vault and a home gym.
Two more family bedrooms each have their own bathroom.

What's Included

Plans include the following:

4 elevations (Front, Rear, Left and Right)
Floor plans
Foundation plan
Cross section
Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

These items are NOT included:

Electrical plan
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

2,675 sq. ft.

1st Floor:

2,254 sq. ft.

2nd Floor:

421 sq. ft.

Deck:

438 sq. ft.

Apartment:

421 sq. ft.

Optional Lower Level:

1,705 sq. ft.

Beds/Baths

Bedrooms:

3, 4, or 5

Full bathrooms:

3, 4, or 5

Half bathrooms:

1 or 2

Foundation Type

Standard Foundations:

Walkout

Optional Foundations:

Basement

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

68' 0"

Depth:

81' 0"

Max Ridge Height:

30' 5"

Garage

Type:

Attached

Area:

924 sq. ft.

Count:

3 Cars

Entry Location:

Front

Ceiling Heights

Floor / Height:

Lower Level / 9' 0" First Floor / 10' 0"

Roof Details

Primary Pitch:

10 on 12

Framing Type:

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections
