Plan 38026LB

Seven Plex House Plan with Open Living Area

Heated S.F.
10,780
Units
7
Width
Depth

Floor Plan

Plan 38026LB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 38026LB

M-F 9am-5pm EST |

1-203-761-8500

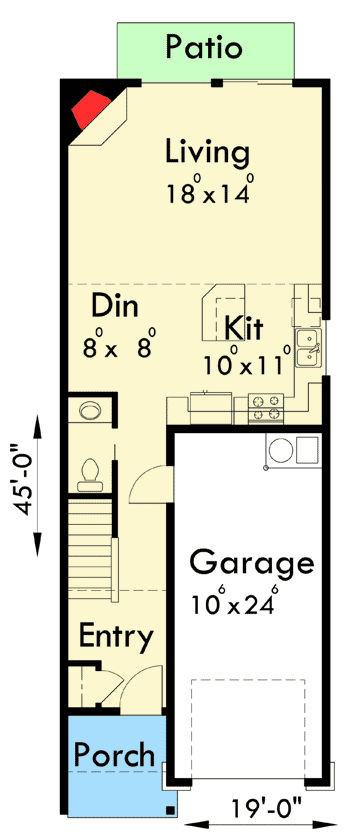

Main Level

Plan 38026LB: Seven Plex House Plan with Open Living Area - Floor Plan - Main Level

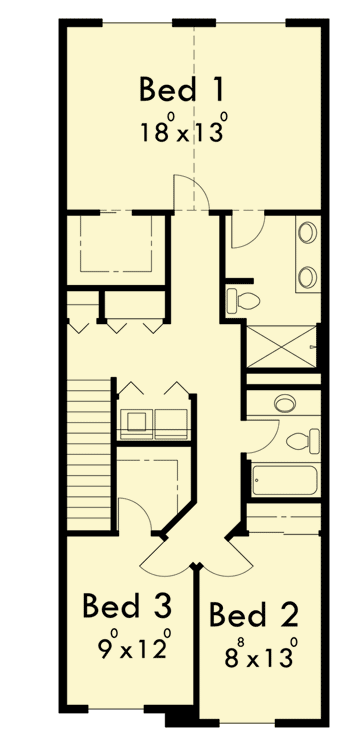

2nd Floor

Plan 38026LB: Seven Plex House Plan with Open Living Area - Floor Plan - 2nd Floor

Plan Details

  • This is a 7-unit house plan giving you identical 19'-wide units that give each owner 3 beds and 2.5 baths.
  • Each unit gives you 1,540 square feet (635 sq. ft. on the main floor and 905 sq. ft. on the upper floor).
  • The foyer gives you views to the back of the home where an open concept plan awaits. The kitchen island has bar seating on two sides and the living room enjoys a fireplace and patio access through sliding doors. The bedrooms are upstairs. The master has a vaulted ceiling and the laundry is conveniently located upstairs as well.
  • Related Plan: Get an alternate 7-unit plan with 38030LB.
Unit Unit A
Heated Area
1,540Sq. Ft.
Unit Unit B
Heated Area
1,540Sq. Ft.
Unit Unit C
Heated Area
1,540Sq. Ft.
Unit Unit D
Heated Area
1,540Sq. Ft.
Unit Unit E
Heated Area
1,540Sq. Ft.
Unit Unit F
Heated Area
1,540Sq. Ft.
Unit Unit G
Heated Area
1,540Sq. Ft.

What's Included

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

10,780 sq. ft.

1st Floor

4,445 sq. ft.

2nd Floor

6,335 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab, Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

140' 0"

Depth

45' 0"

Max Ridge Height

26' 2"

Garage

Type

Attached

Area

1799 sq. ft.

Count

1 Cars

Entry Location

Front

Special Features

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

10,780 sq. ft.

1st Floor

4,445 sq. ft.

2nd Floor

6,335 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab, Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

140' 0"

Depth

45' 0"

Max Ridge Height

26' 2"

Garage

Type

Attached

Area

1799 sq. ft.

Count

1 Cars

Entry Location

Front

Special Features

Master Suite - Upstairs
