Shingle-clad House Plan with Two-Sided Fireplace and Two-Story Grand Room
Heated S.F.
3,190
Beds
3-4
Baths
3.5 - 4.5
Stories
2
Cars
3
Plan Details
  • Clad in shingles, this stunning house plan gives you two stairs to your upper floor which features two or three bedrooms depending on your needs.
  • On the main floor, guests are greeted by the 2-story foyer and are entertained in the 2-story grand room beyond. Note the 2-sided fireplace shared by the gallery.
    Columns are all that separate the dining room with tray ceiling from the foyer and gallery hall.
  • The luxurious master suite has a bright and airy sitting room that opens to the rear deck.
  • The spacious kitchen has a large island, corner walk-in pantry and views to the keeping and breakfast rooms.
  • On the second floor, the loft overlooks both the grand room and the foyer through open rails. An optional cedar storage can hold all your out-of-season clothes.
  • The angled 3-car garage is spacious and attractive.
What's Included

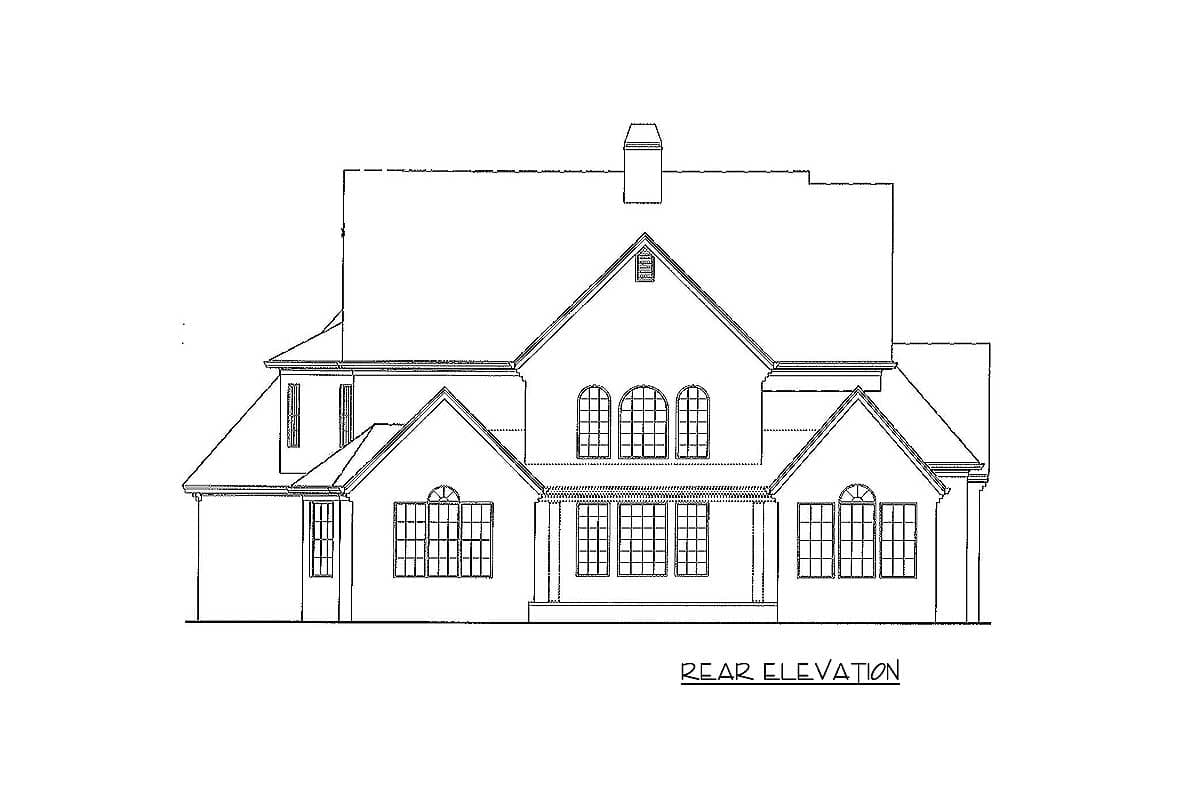

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Shingle-clad House Plan with Two-Sided Fireplace and Two-Story Grand Room

  • 3,190

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

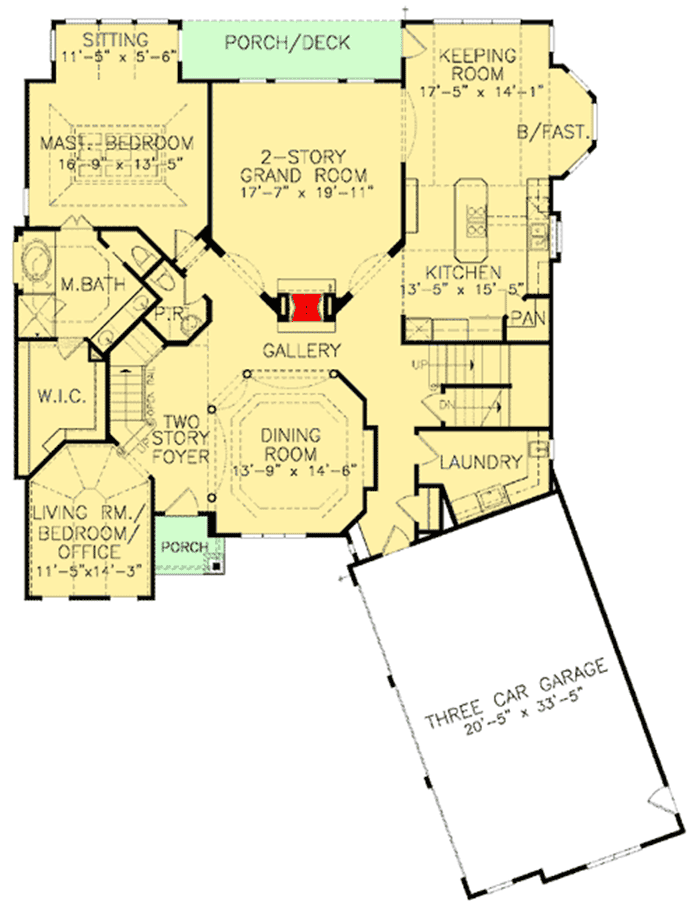

  • Main Level

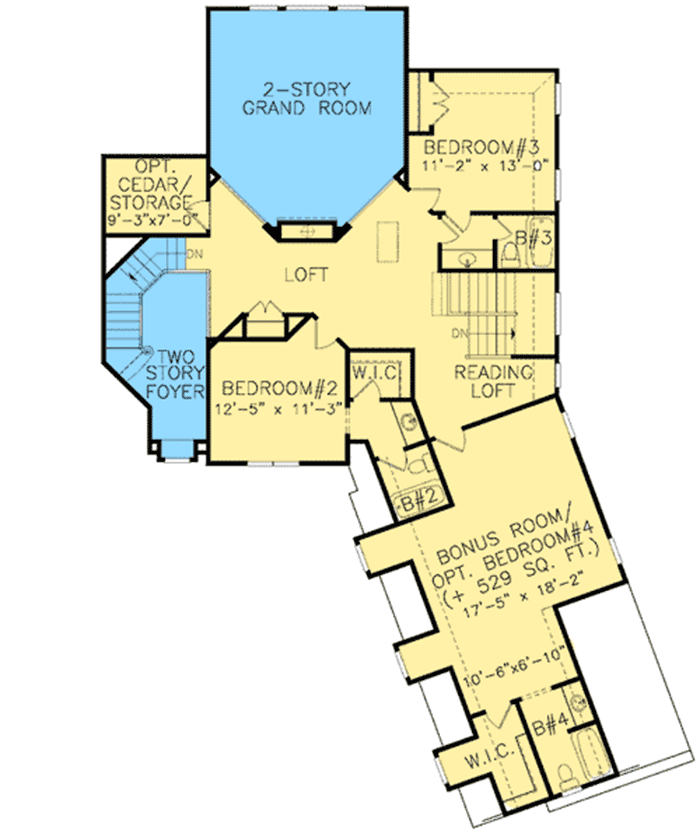

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,190 sq. ft.
  • 1st Floor: 2,332 sq. ft.
  • 2nd Floor: 858 sq. ft.

Dimensions

  • Width: 63' 3"
  • Depth: 82' 8"
  • Max ridge height: 36' 2"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 682 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6
