Plan 72731DA

Shingle Sided Compact Ranch Home Plan

Shingle Sided Compact Ranch Home Plan

Plan 72731DA

  • 1,859

    Heated s.f.

  • 3-4

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Shingle siding, Craftsman-style windows and stone veneer column supports put a warm, natural face on this compact home plan. Wide expanses of glass brighten the vaulted family gathering spaces that flow together at the rear.
  • Entering via the covered porch, you step into a hallway that leads straight ahead to the expansive vaulted area. Along the way, you pass double doors on the right that open into a den. Its location makes it ideal for a home office. It could also be outfitted as a guest bedroom or flex room. Two nearly identical bedrooms and a bathroom are to the left of the entry hall.
  • The vaulted ceiling in the living/dining area slopes up from the entry hall, then down at the rear. A direct-vent gas fireplace nestles into one rear corner. On the opposite side of the room, a peninsular eating bar bounds the kitchen. Sliding glass doors in the dining area access a partially covered patio flanked by slender posts. The covered area could be screened, if desired.
  • A roomy walk-in pantry fills one corner of the step-efficient kitchen. Standing at the double sink, kitchen workers can gaze across the patio or scan the gathering spaces to keep tabs on activities.
  • The owners' suite is down a passageway and amenities include a roomy walk-in closet and a two-section bathroom with dual vanity. A storage closet and a utility room that links with the garage are accessed via the owners' suite hallway.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Shingle Sided Compact Ranch Home Plan

  • 1,859

    Heated s.f.

  • 3 - 4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $700
  • PDF Light $915
  • 5 Sets $915
  • 5 Sets PLUS $1,020
  • 8 Sets $1,070
  • PDF - single-use $1,890
  • CAD $2,025
  • CAD - multi-use $2,245
  • View all purchase option online

About This Plan

  • Shingle siding, Craftsman-style windows and stone veneer column supports put a warm, natural face on this compact home plan. Wide expanses of glass brighten the vaulted family gathering spaces that flow together at the rear.
  • Entering via the covered porch, you step into a hallway that leads straight ahead to the expansive vaulted area. Along the way, you pass double doors on the right that open into a den. Its location makes it ideal for a home office. It could also be outfitted as a guest bedroom or flex room. Two nearly identical bedrooms and a bathroom are to the left of the entry hall.
  • The vaulted ceiling in the living/dining area slopes up from the entry hall, then down at the rear. A direct-vent gas fireplace nestles into one rear corner. On the opposite side of the room, a peninsular eating bar bounds the kitchen. Sliding glass doors in the dining area access a partially covered patio flanked by slender posts. The covered area could be screened, if desired.
  • A roomy walk-in pantry fills one corner of the step-efficient kitchen. Standing at the double sink, kitchen workers can gaze across the patio or scan the gathering spaces to keep tabs on activities.
  • The owners' suite is down a passageway and amenities include a roomy walk-in closet and a two-section bathroom with dual vanity. A storage closet and a utility room that links with the garage are accessed via the owners' suite hallway.

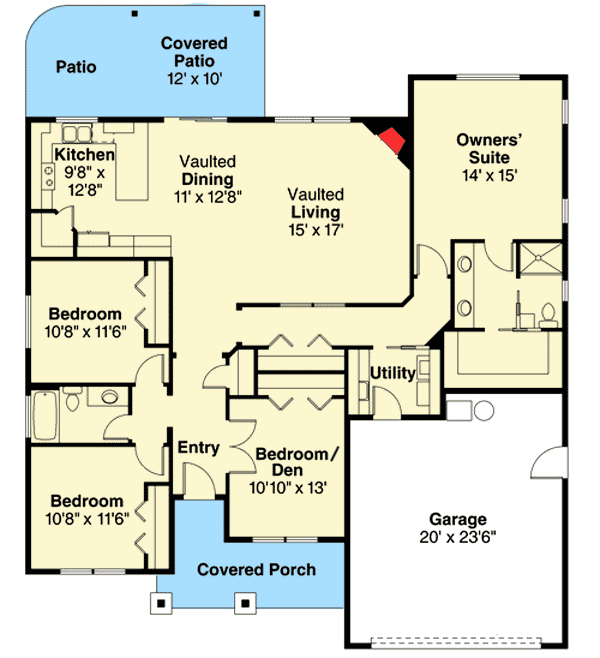

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,859 sq. ft.
  • 1st Floor: 1,859 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 51' 0"
  • Depth: 60' 0"
  • Max ridge height: 20' 10"

Garage

  • Type: Attached
  • Area: 474 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 6 on 12
