Shingle-style Garage with Storage Above

Plan 22078SL

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 2

    Cars

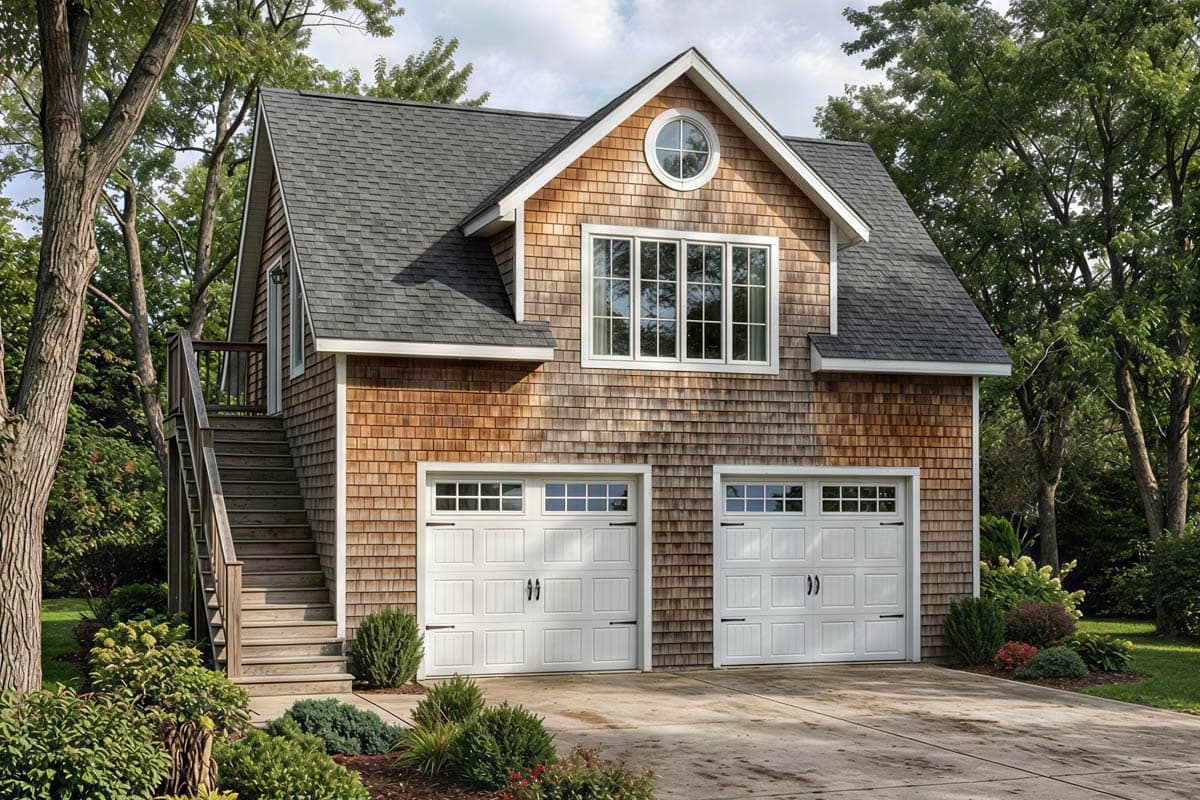

  • Ideal for extra parking with room for storage on the upper level.
  • Two 9'x7' over head doors open to the garage area featuring 616 square feet of parking area.
  • Exterior stairs lead to the upstairs storage room.
  • Related Plans: For an alternate exterior, see plan 22077SL.
  • Convert the upstairs to guest quarters with house plan 22115SL and 22074SL. You'll gain an apartment with an open floor plan, one bedroom and one bath.

Each plan set includes the following:

  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Shingle-style Garage with Storage Above - 22078SL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Shingle-style Garage with Storage Above - 22078SL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Storage: 533 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 22' 0"
  • Max ridge height: 23' 6"

Garage

  • Type: Detached
  • Area: 615 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss

Shingle-style Garage with Storage Above

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $350
  • CAD - Single-Build $500
  • PDF - Unlimited Build $1,100
  • CAD - Unlimited Build $1,250
  • View all purchase option online

About This Plan

  • Ideal for extra parking with room for storage on the upper level.
  • Two 9'x7' over head doors open to the garage area featuring 616 square feet of parking area.
  • Exterior stairs lead to the upstairs storage room.
  • Related Plans: For an alternate exterior, see plan 22077SL.
  • Convert the upstairs to guest quarters with house plan 22115SL and 22074SL. You'll gain an apartment with an open floor plan, one bedroom and one bath.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Storage: 533 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 22' 0"
  • Max ridge height: 23' 6"

Garage

  • Type: Detached
  • Area: 615 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
