Plan 22077SL

Shingle-style Garage with Storage Room

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
2

Floor Plan

Plan 22077SL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 22077SL

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 22077SL: Shingle-style Garage with Storage Room - Floor Plan - Main Level

2nd Floor

Plan 22077SL: Shingle-style Garage with Storage Room - Floor Plan - 2nd Floor

Plan Details

  • Ideal for extra parking with room for storage on the upper level.
  • Two 9'x8' over head doors open to the garage area featuring 616 square feet of parking area.
  • Exterior stairs lead to the upstairs storage room.
  • Related Plans: For an alternate exterior, see plan 22078SL.
  • Convert the upstairs to guest quarters with house plan 22074SL and 22115SL. You'll gain an apartment with an open floor plan, one bedroom and one bath.

What's Included

  • Foundation plan
  • Fully dimensioned floor plans

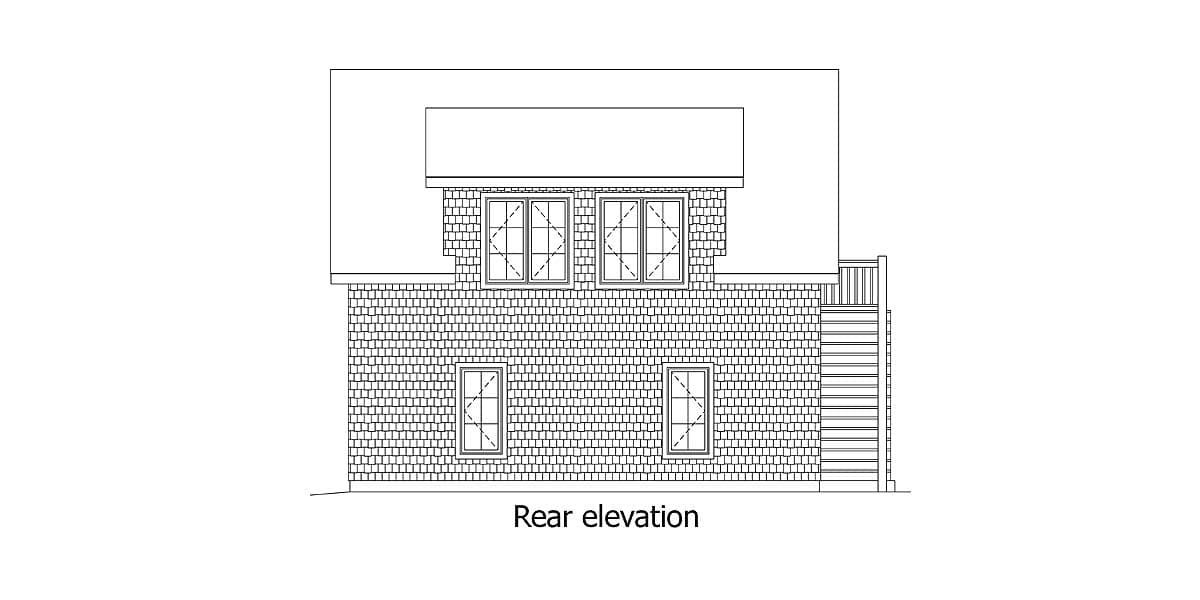

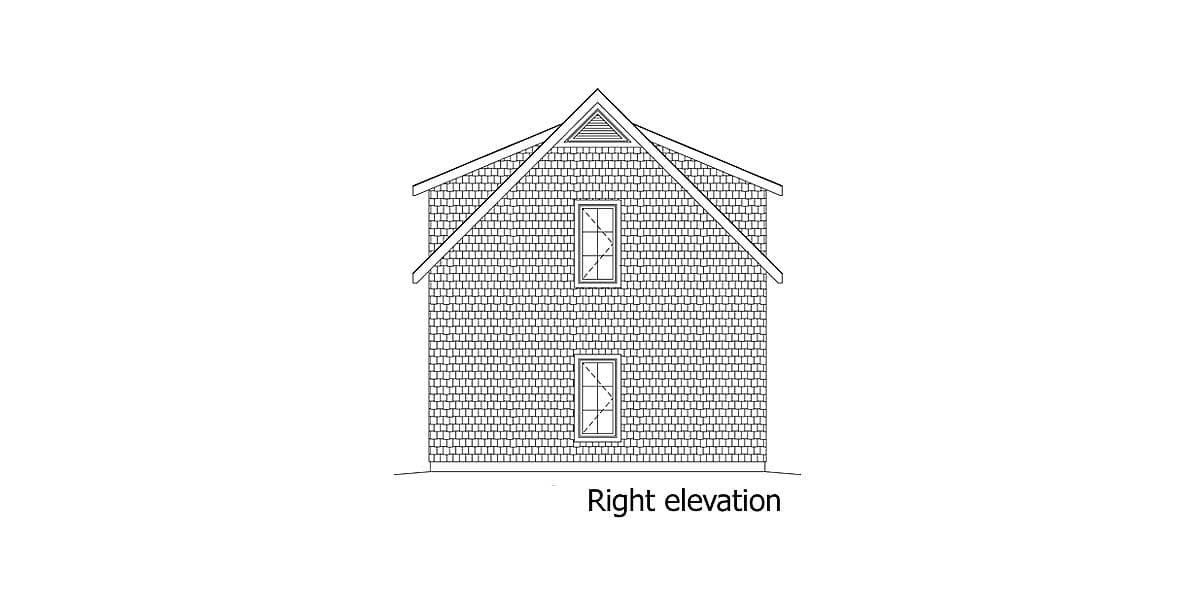

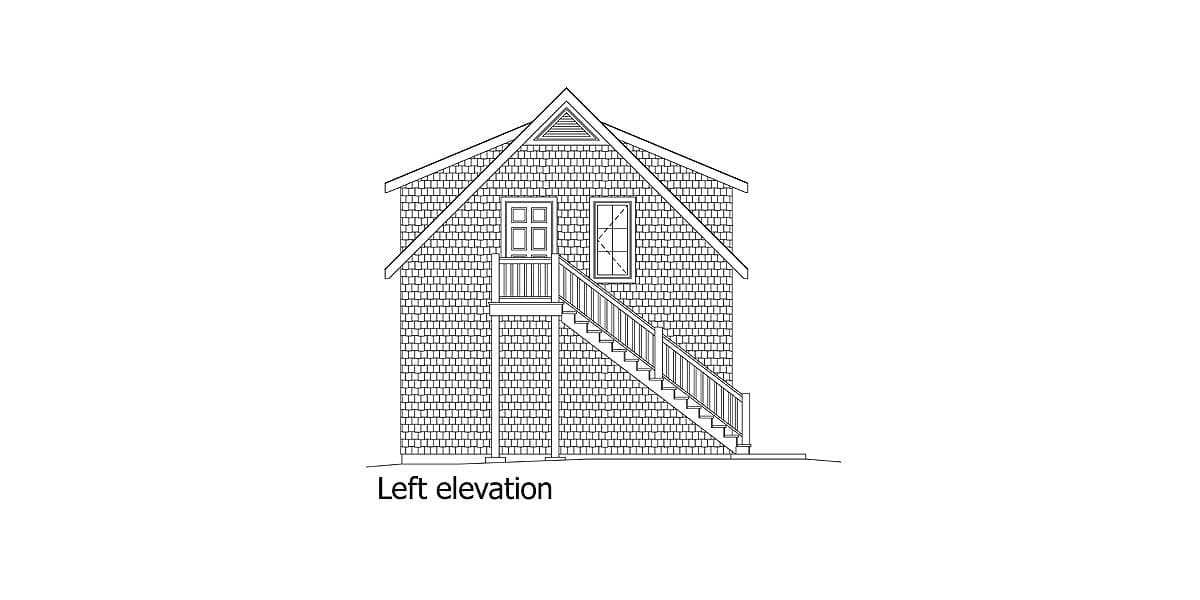

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Storage

533 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

22' 0"

Max Ridge Height

24' 6"

Garage

Type

Detached

Area

615 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Storage

533 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

22' 0"

Max Ridge Height

24' 6"

Garage

Type

Detached

Area

615 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Truss
