Shingle-Style Home Plan with Home Office and Two Mud Rooms for a Sloping Lot
Heated S.F.
3,364
Beds
4-5
Baths
3.5 - 4.5
Stories
2
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

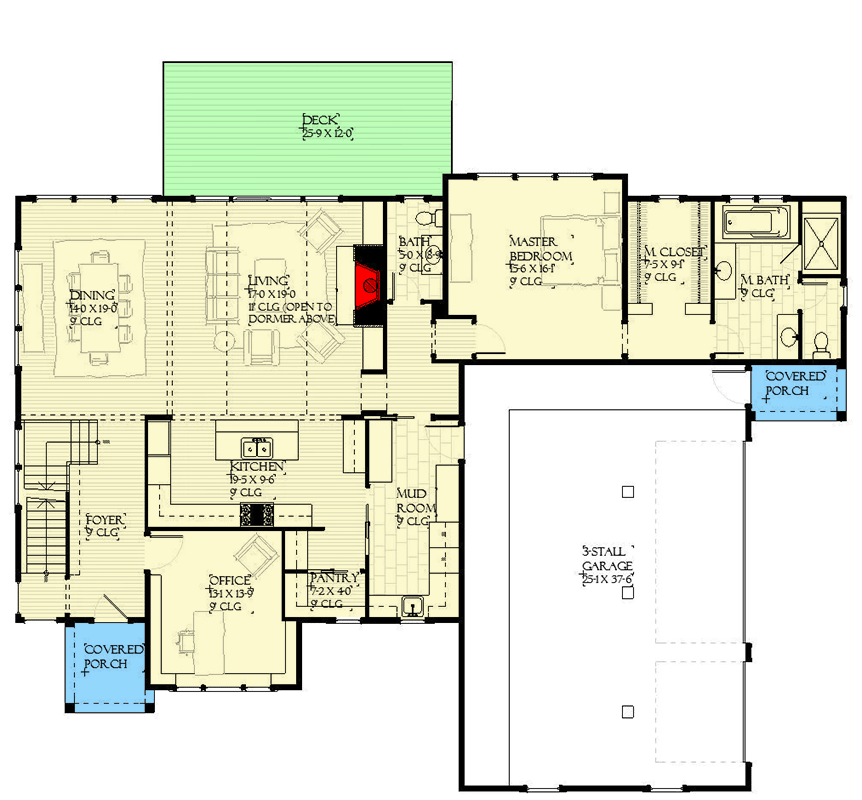

Shingle-Style Home Plan with Home Office and Two Mud Rooms for a Sloping Lot - 970098VC floor plan - Main Level
2nd Floor
Reverse Floor Plan
Shingle-Style Home Plan with Home Office and Two Mud Rooms for a Sloping Lot - 970098VC floor plan - 2nd Floor
Optional Lower Level
Reverse Floor Plan
Shingle-Style Home Plan with Home Office and Two Mud Rooms for a Sloping Lot - 970098VC floor plan - Optional Lower Level
Plan Details
  • This shingle-style home plan has a timeless exterior with a sweeping roofline and attractive dormers.
  • The main level floor plan features a grand great room with light coming in from the dormer above and an open floor plan with the kitchen, dining, and living room flowing together.
  • The master suite is privately located on the main floor and has a roomy walk-in closet a compartmented master bathroom. Large windows look out on the backyard.
  • A laundry/mudroom is situated directly off the 3-car garage, and there is direct access to the main floor half bath and kitchen making for an efficient flow and layout.
  • A private home office located in the front of the home provides privacy for your work-from-home refuge.

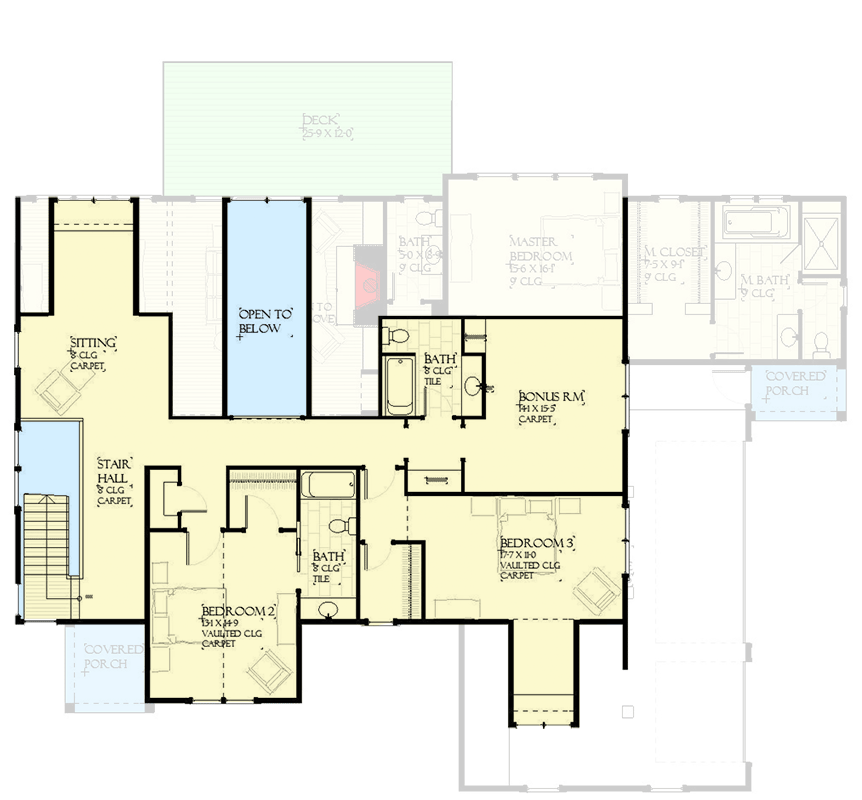

  • Upstairs, the home features a sitting area and a bonus room. A bathroom is easily accessible by both of these spaces and the second bedroom. The second floor also contains a private guest suite with a large walk-in closet. All spaces feature dormer windows adding character and style.

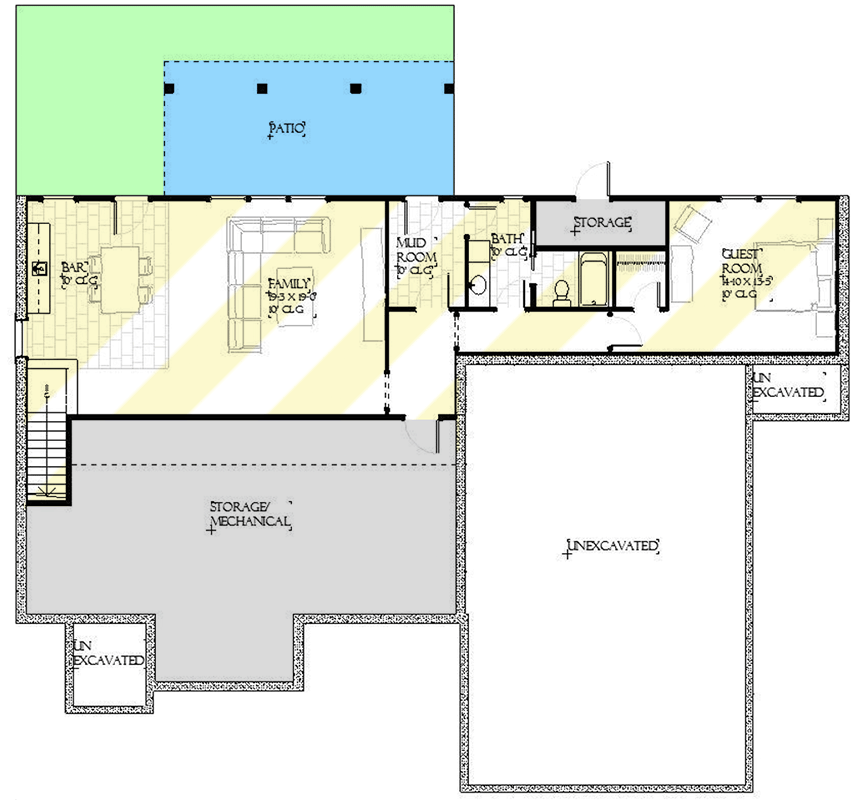

  • The optional walkout basement level (adds 1,293 square feet when finished as designed) adds additional function with a large family room and kitchen/bar. Another guest bedroom and bathroom provide additional privacy for children or guests.
What's Included
  • Title Sheet. This page includes a color rendering of your home and an index of the complete set.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

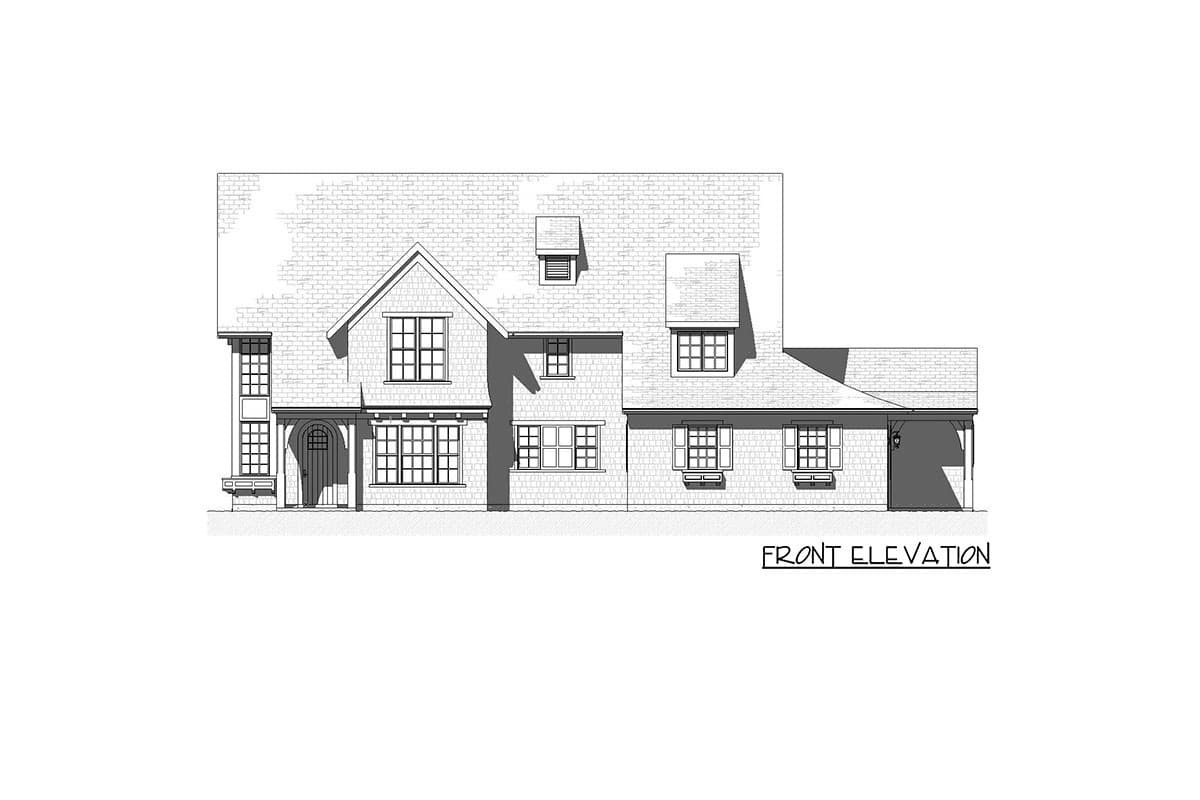

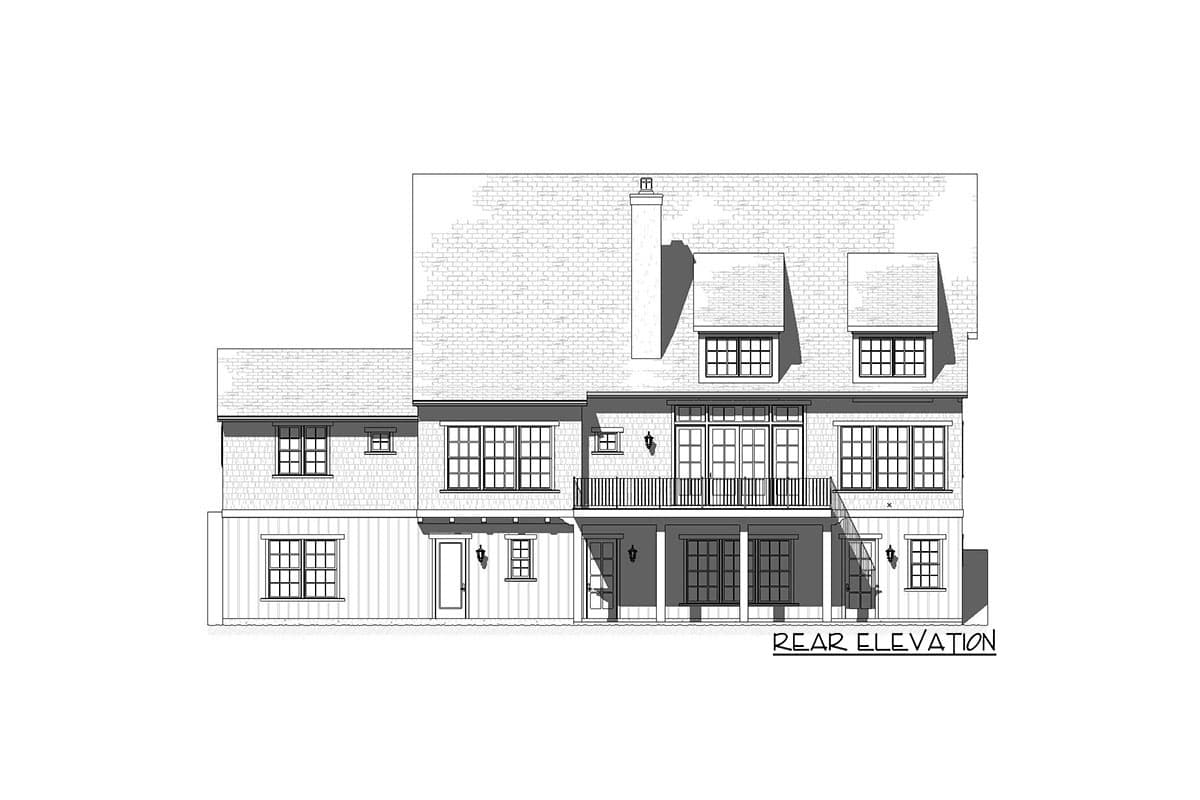

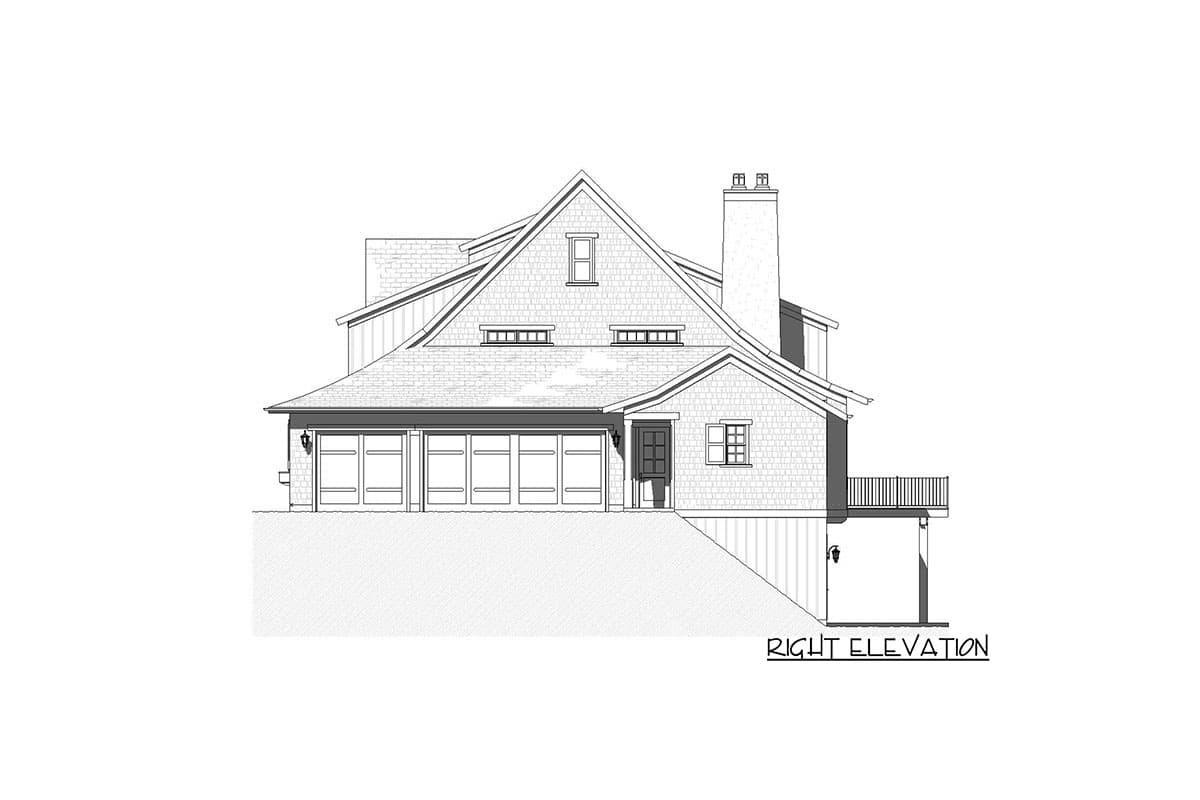

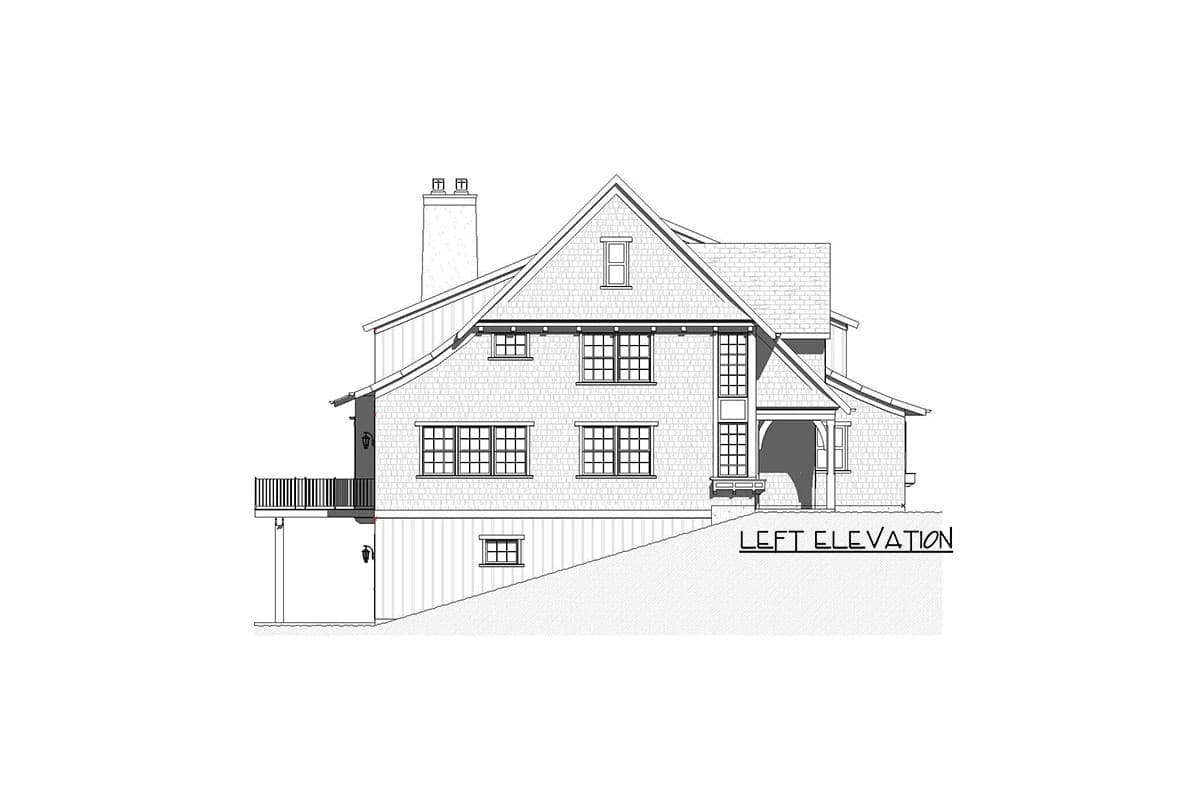

  • Exterior Elevations: front,rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material call outs, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
