Plan 23470JD

Shingle-style House Plan with Two Master Suites

Pageloader

Shingle-style House Plan with Two Master Suites

Plan 23470JD

  • 4,640

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 4

    Cars

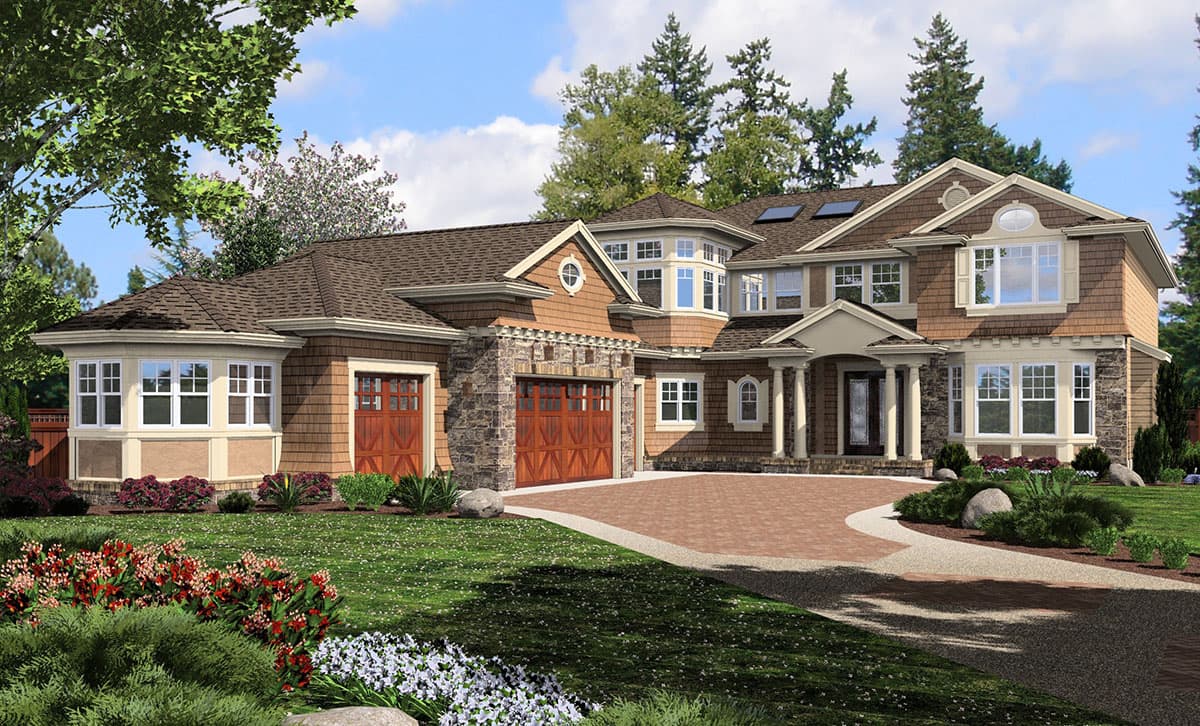

  • Beamed ceilings and wide, open spaces are the hallmarks of this luxurious Shingle style home plan.
  • Double doors open to the large den with its fireplace and bay window.
  • The staircase fans out at the bottom for an elegant look.
  • The beamed stair hall leads to the formal dining room with a tray ceiling and triple windows.
  • A huge media room makes a great entertainment space with french doors that open to a rear patio.
  • In the kitchen, a huge center island adds lots of counter space and enjoys views of the great room.
  • Two master suites are on the second floor, one with a corner window seat - perfect for a reading nook.
  • Step up to a cozy private sanctuary near the main master suite with its vaulted ceiling and two huge walk-in closets.
  • Each of the bedrooms on this level is generously-sized.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Plan details



Shingle-style House Plan with Two Master Suites

  • 4,640

    Heated s.f.

  • 5

    Beds

  • 5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - single-use $2,000
  • 5 Sets PLUS $2,150
  • CAD - multi-use $3,500
  • View all purchase option online

About This Plan

  • Beamed ceilings and wide, open spaces are the hallmarks of this luxurious Shingle style home plan.
  • Double doors open to the large den with its fireplace and bay window.
  • The staircase fans out at the bottom for an elegant look.
  • The beamed stair hall leads to the formal dining room with a tray ceiling and triple windows.
  • A huge media room makes a great entertainment space with french doors that open to a rear patio.
  • In the kitchen, a huge center island adds lots of counter space and enjoys views of the great room.
  • Two master suites are on the second floor, one with a corner window seat - perfect for a reading nook.
  • Step up to a cozy private sanctuary near the main master suite with its vaulted ceiling and two huge walk-in closets.
  • Each of the bedrooms on this level is generously-sized.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information

Floor Plans

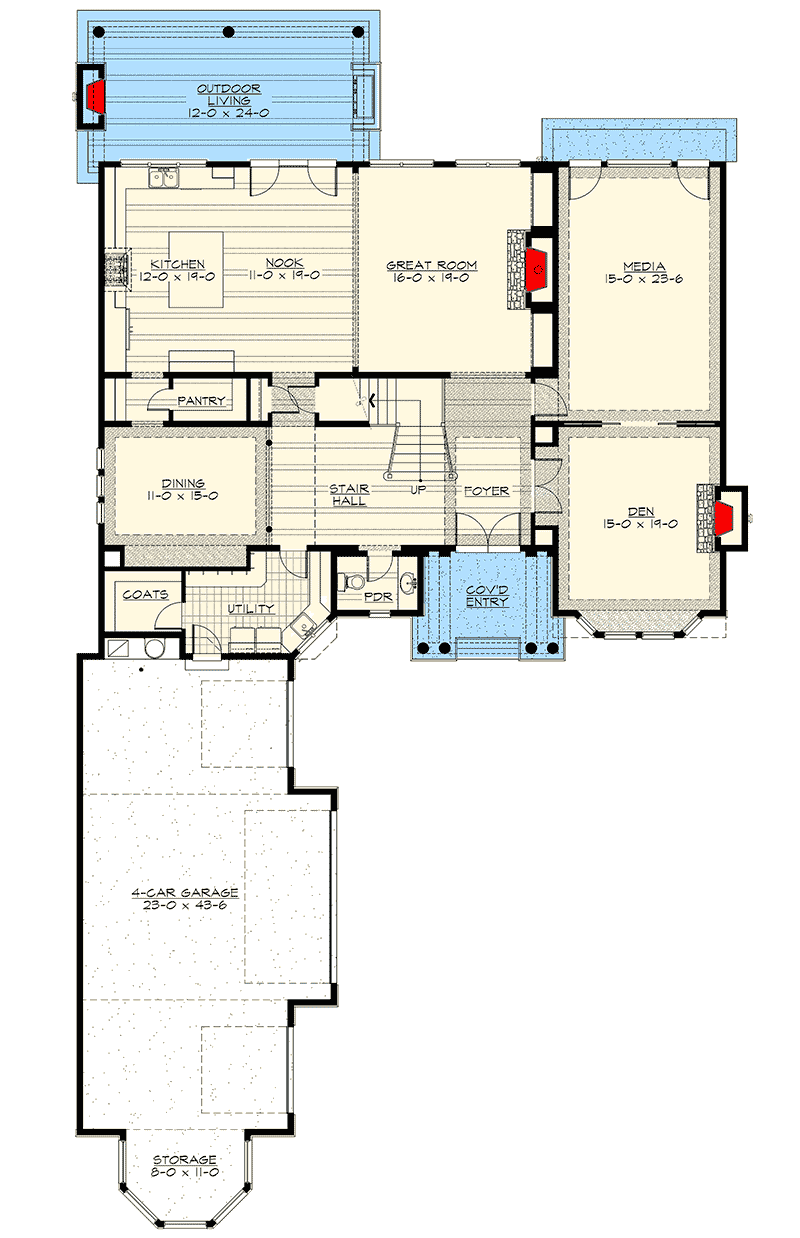

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,640 sq. ft.
  • 1st Floor: 2,415 sq. ft.
  • 2nd Floor: 2,225 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 111' 6"
  • Max ridge height: 28' 6"

Garage

  • Type: Attached
  • Area: 1070 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
