Shingle Style Ranch House Plan with Optional Finished Lower Level

Plan 970053VC

  • 2,032

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Get a sun room, three car garage and an open floor plan with this attractive shingle style ranch house plan.
  • Two large patio areas give you lots of outdoor space.
  • The main floor master suite has two walk-in closets, a private bathroom and lots of privacy.
  • Finish the optional lower level to gain an extra 1,520 square feet of living space.
  • A bunk room is perfect for guest sleepovers for the kids.

  • Title Sheet. This page includes a color rendering of your home and an index of the complete set.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

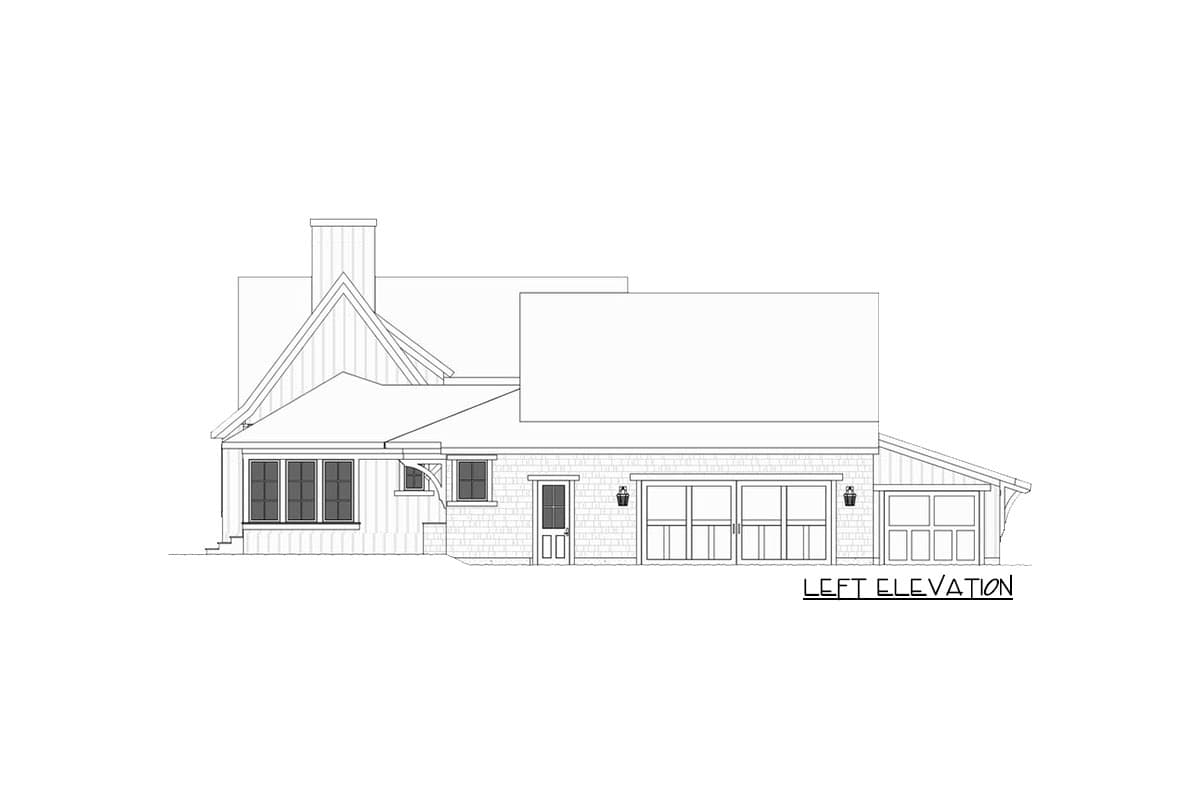

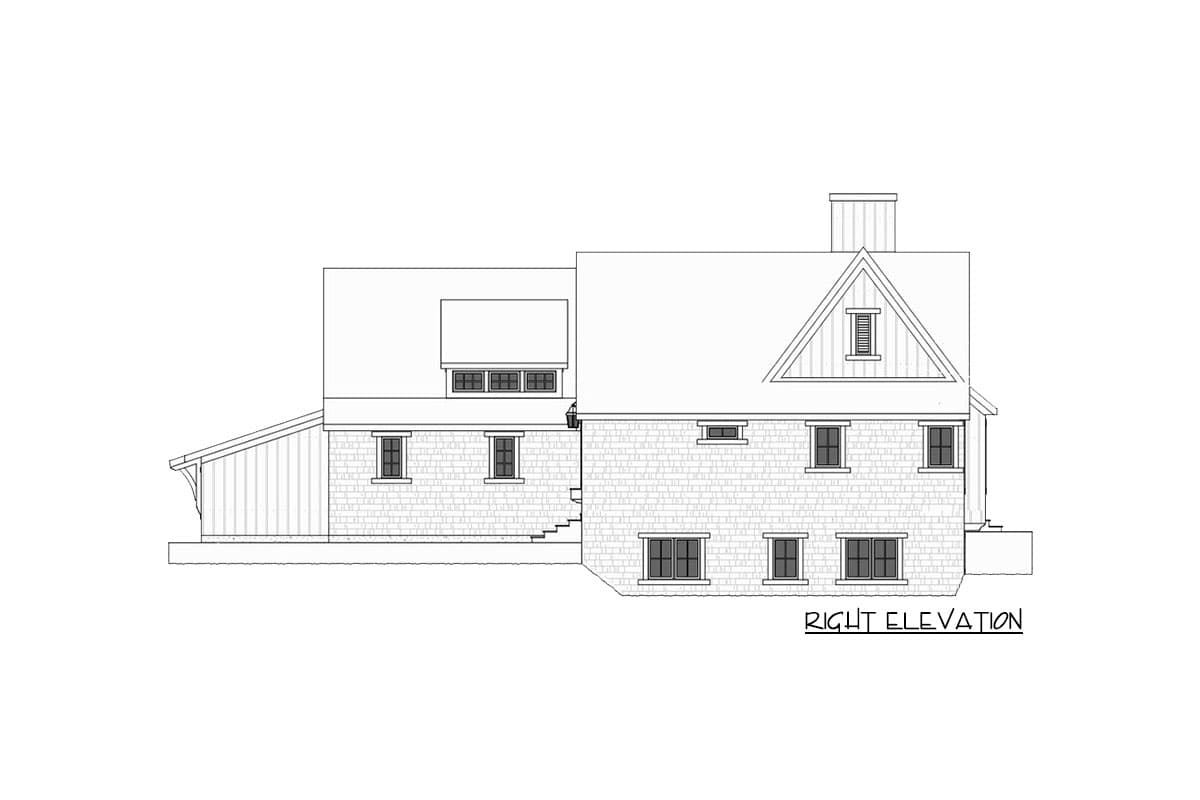

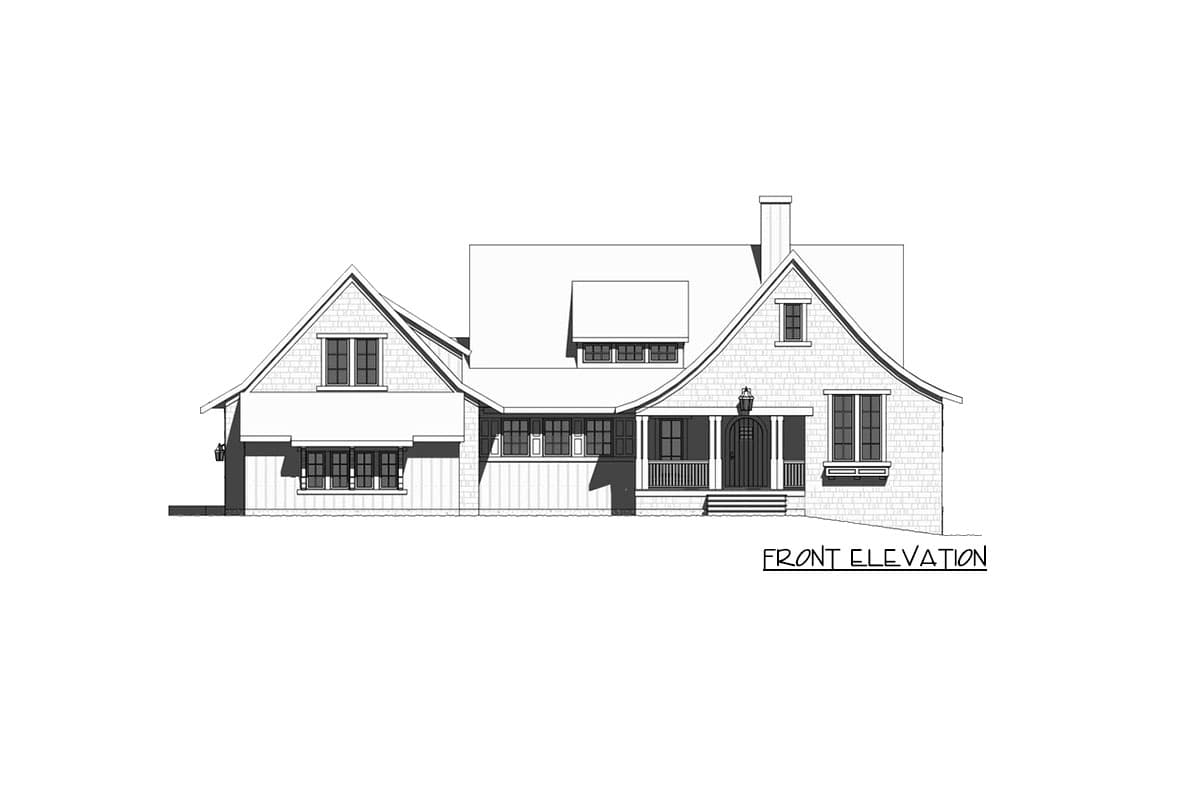

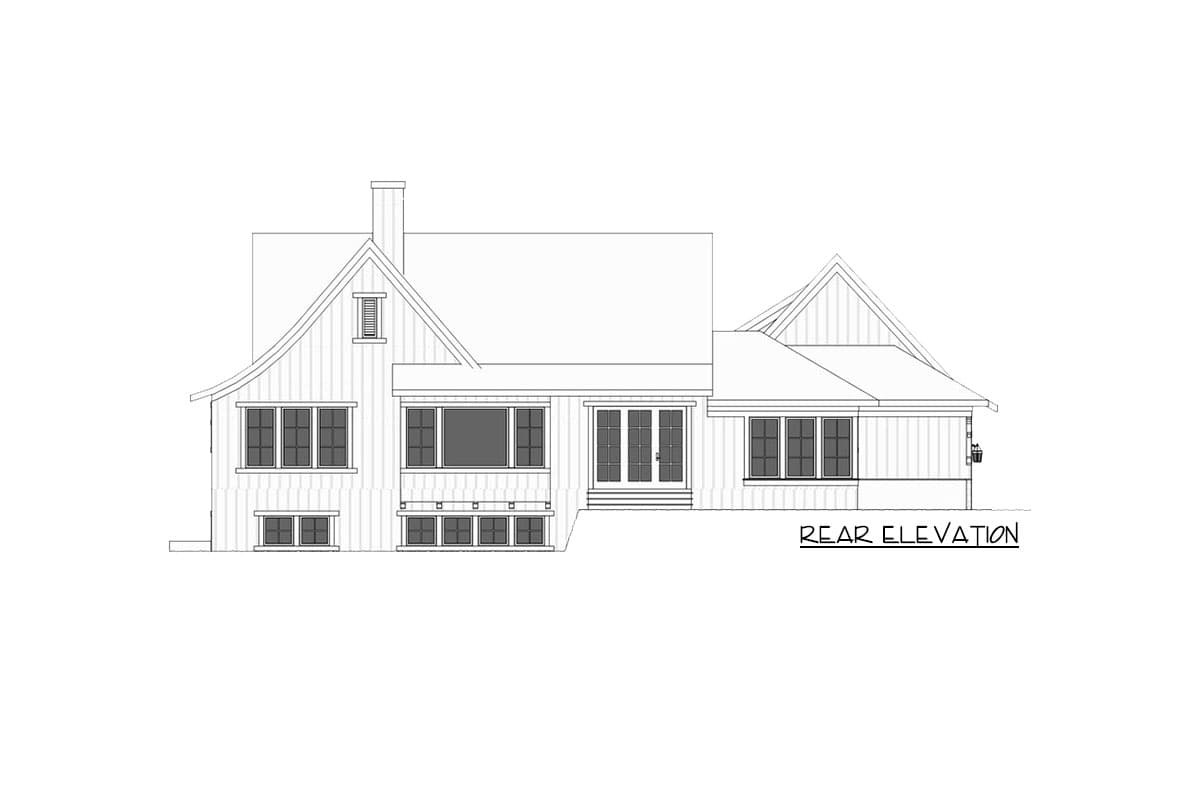

  • Exterior Elevations: front,rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material call outs, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

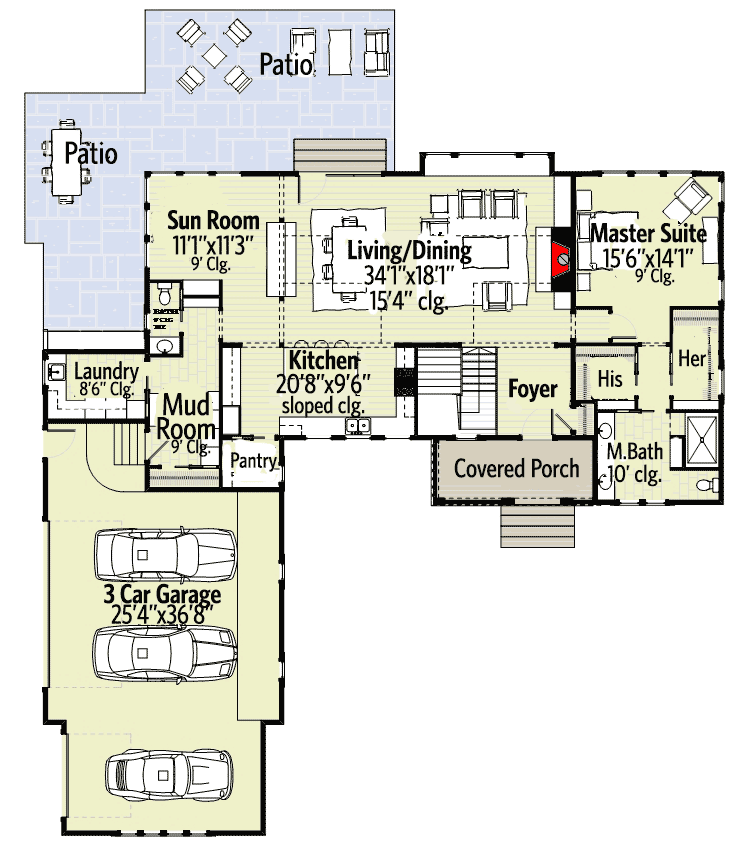

Shingle Style Ranch House Plan with Optional Finished Lower Level - 970053VC floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

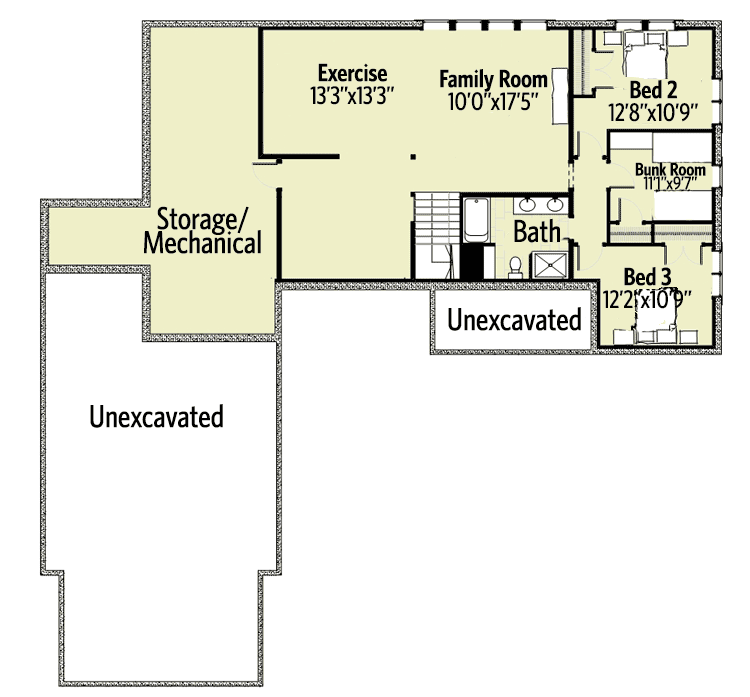

Shingle Style Ranch House Plan with Optional Finished Lower Level - 970053VC floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,032 sq. ft.
  • 1st Floor: 2,032 sq. ft.
  • Optional Lower Level: 1,520 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 73' 7"
  • Depth: 73' 10"
  • Max ridge height: 27' 10"

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Living Room 15' 4"
Dining Room 15' 4"
Kitchen Slope
Master Bath Flat 10' 0"

Roof Details

  • Primary Pitch: 16 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Shingle Style Ranch House Plan with Optional Finished Lower Level

  • 2,032

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $2,700
  • PDF - Single-Build $2,700
  • 8 Sets $2,800
  • CAD - Single-Build $3,645
  • View all purchase option online

About This Plan

  • Get a sun room, three car garage and an open floor plan with this attractive shingle style ranch house plan.
  • Two large patio areas give you lots of outdoor space.
  • The main floor master suite has two walk-in closets, a private bathroom and lots of privacy.
  • Finish the optional lower level to gain an extra 1,520 square feet of living space.
  • A bunk room is perfect for guest sleepovers for the kids.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,032 sq. ft.
  • 1st Floor: 2,032 sq. ft.
  • Optional Lower Level: 1,520 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 73' 7"
  • Depth: 73' 10"
  • Max ridge height: 27' 10"

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof
